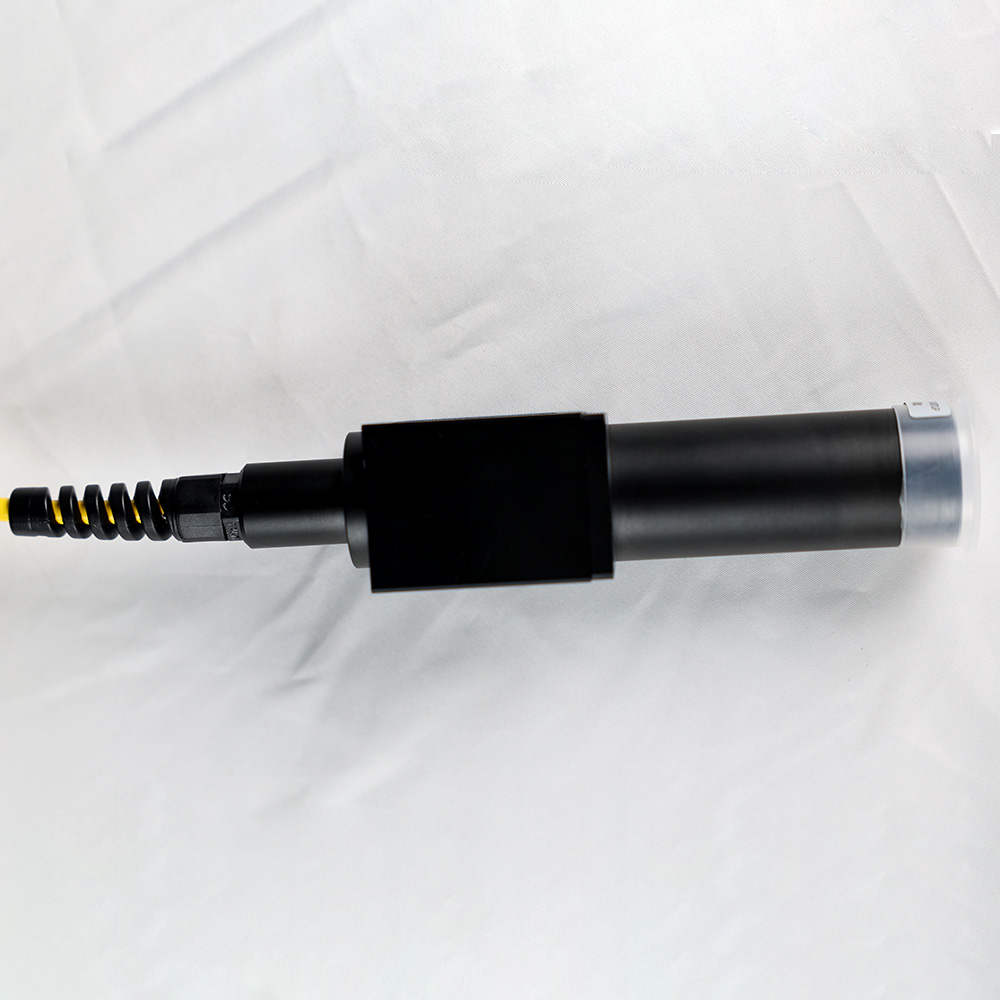

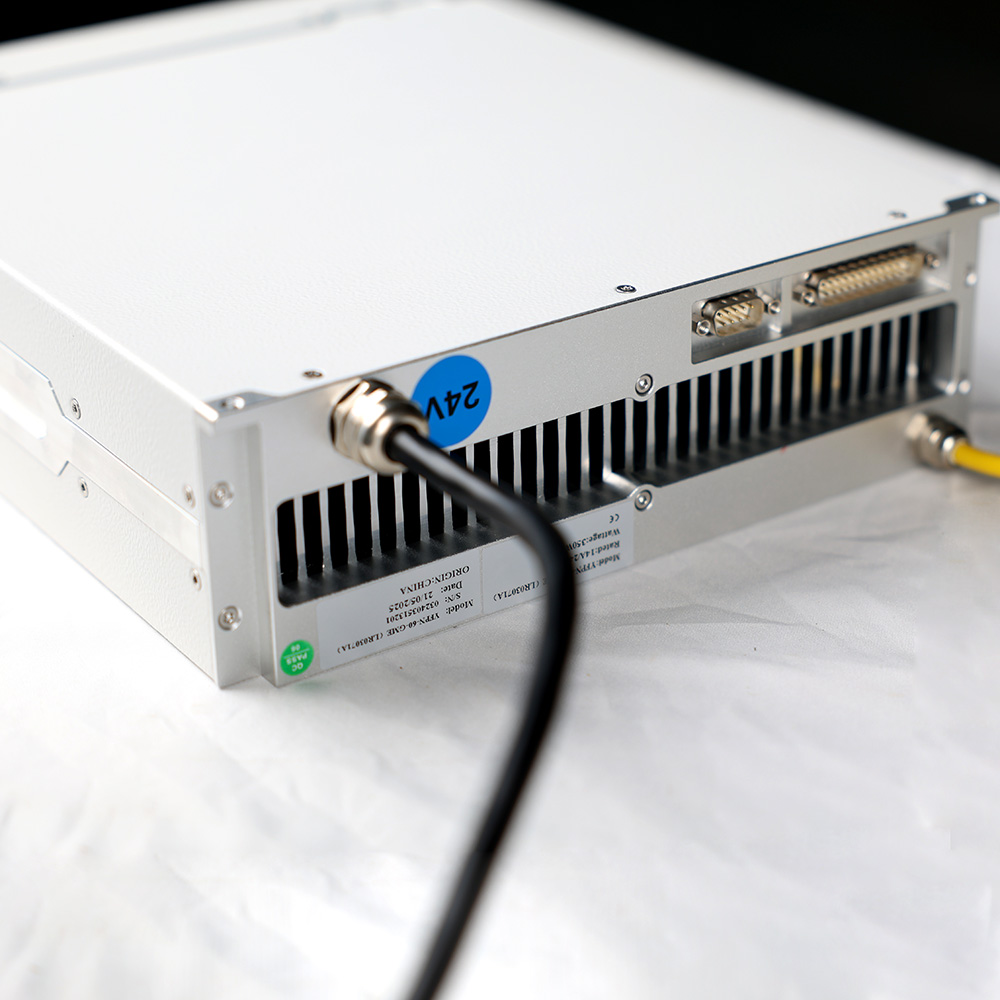

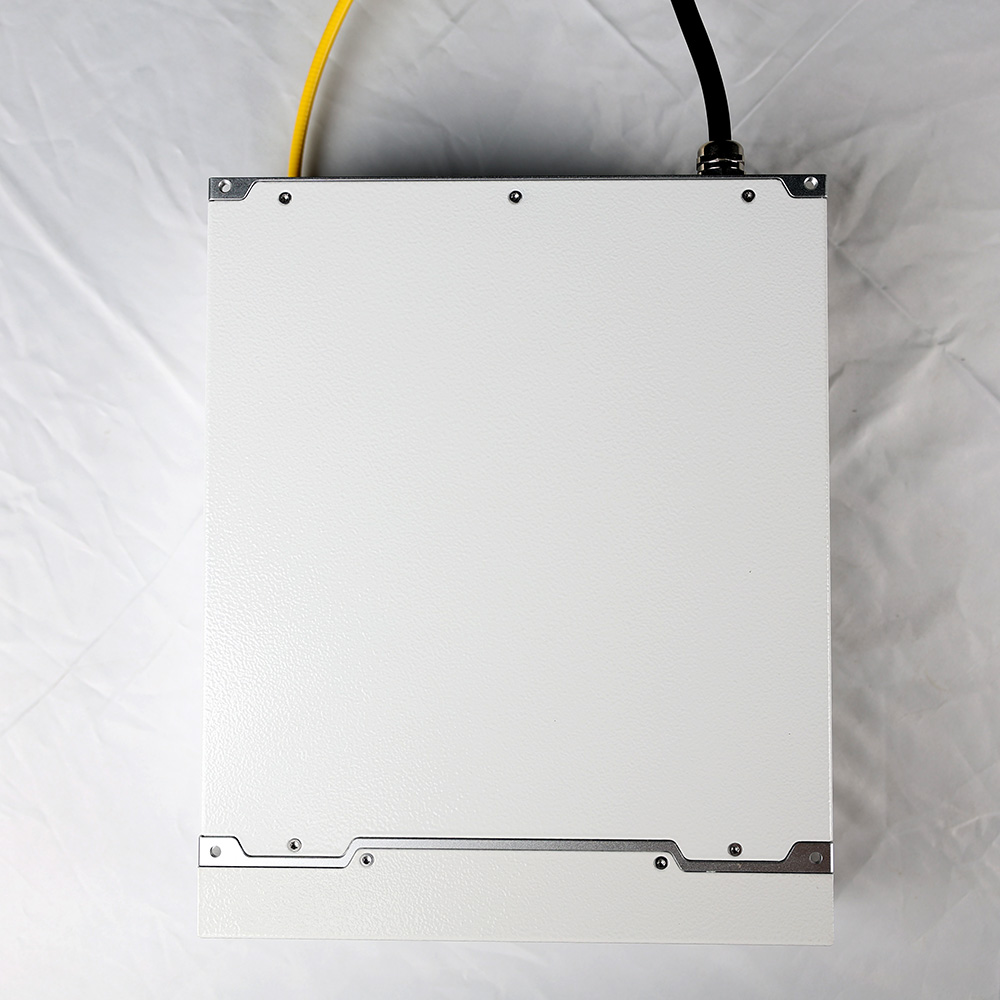

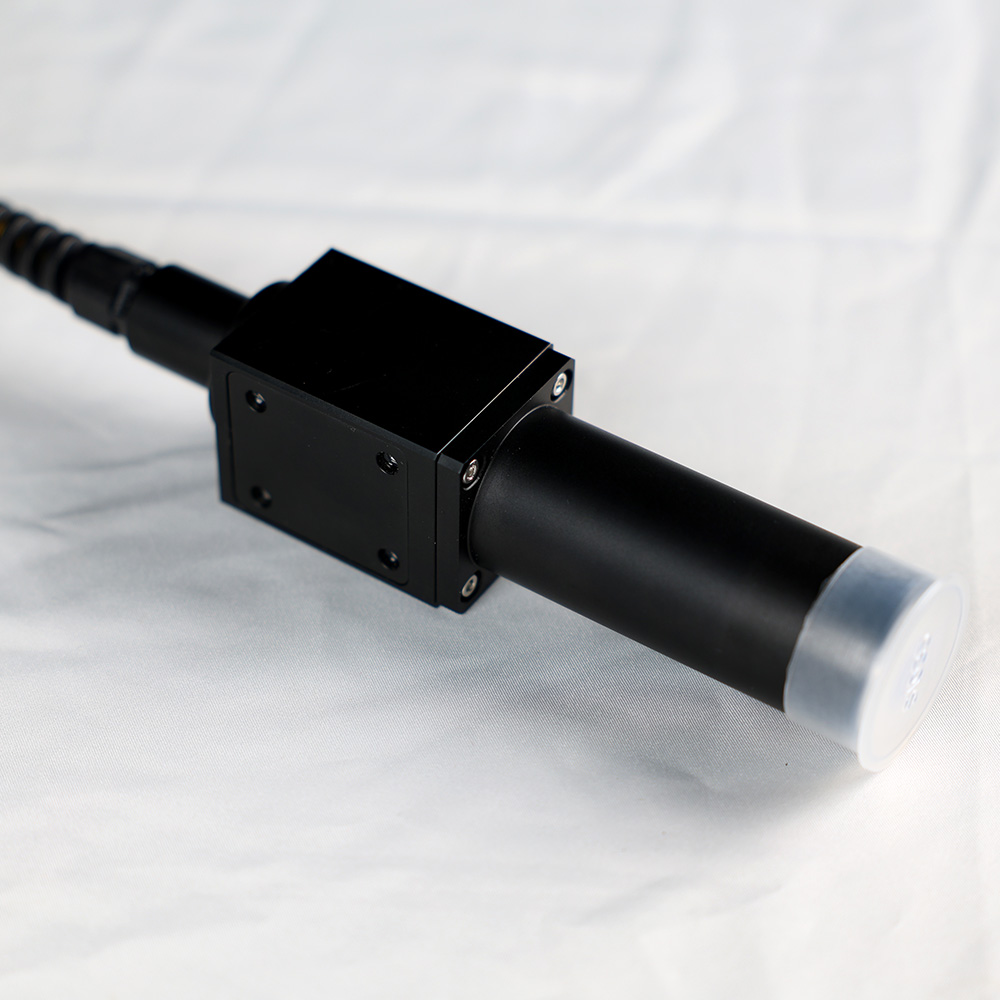

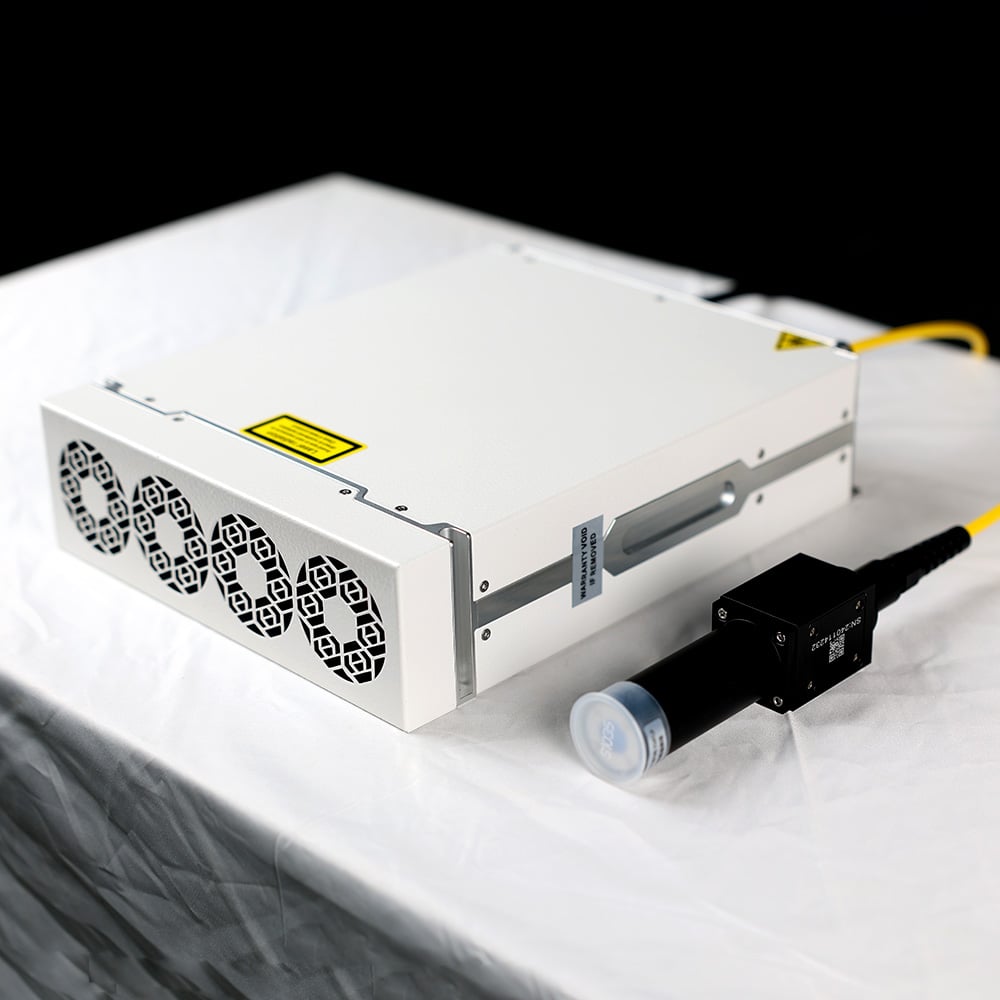

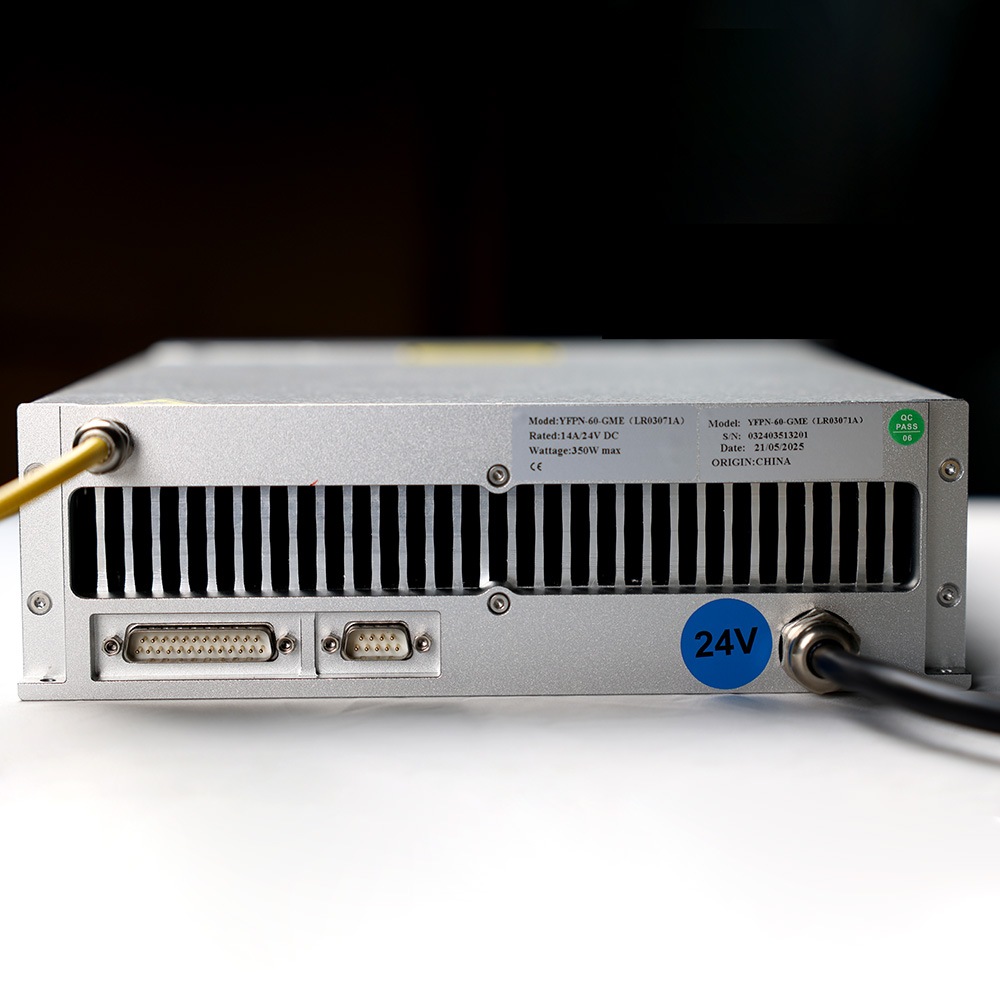

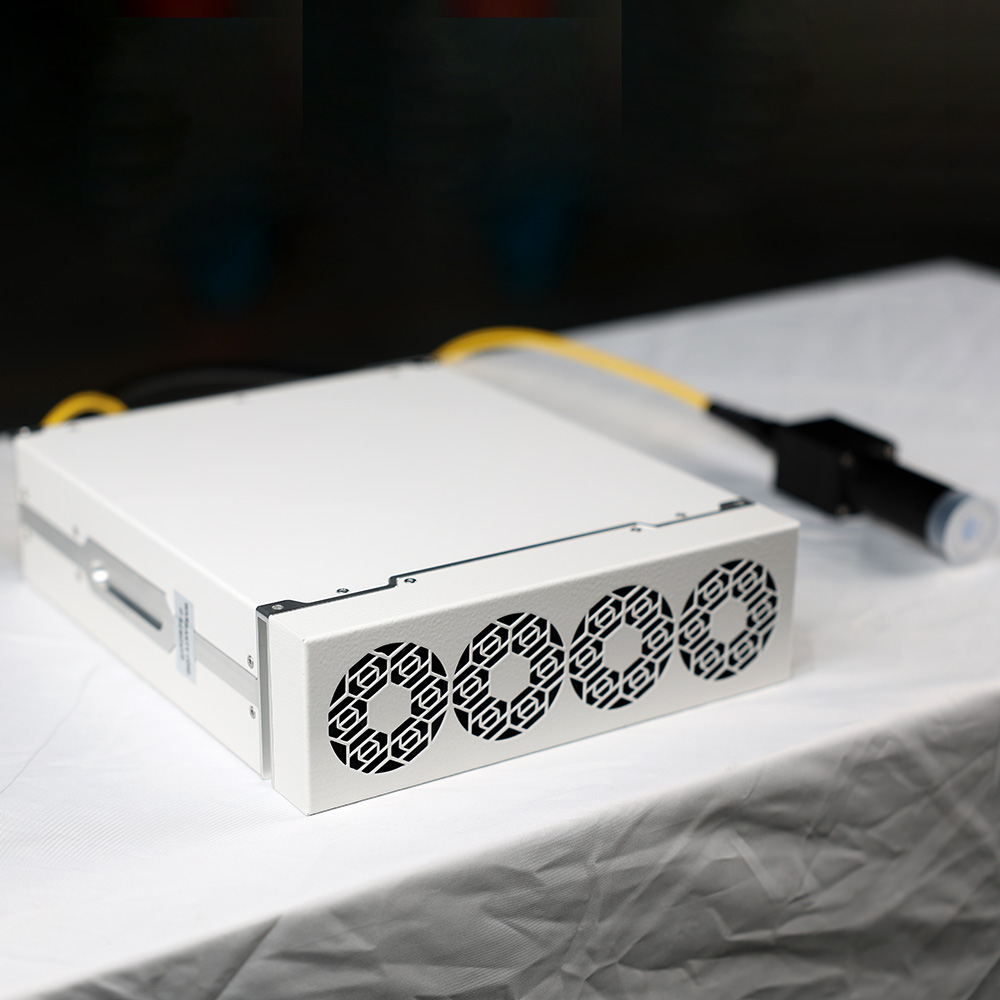

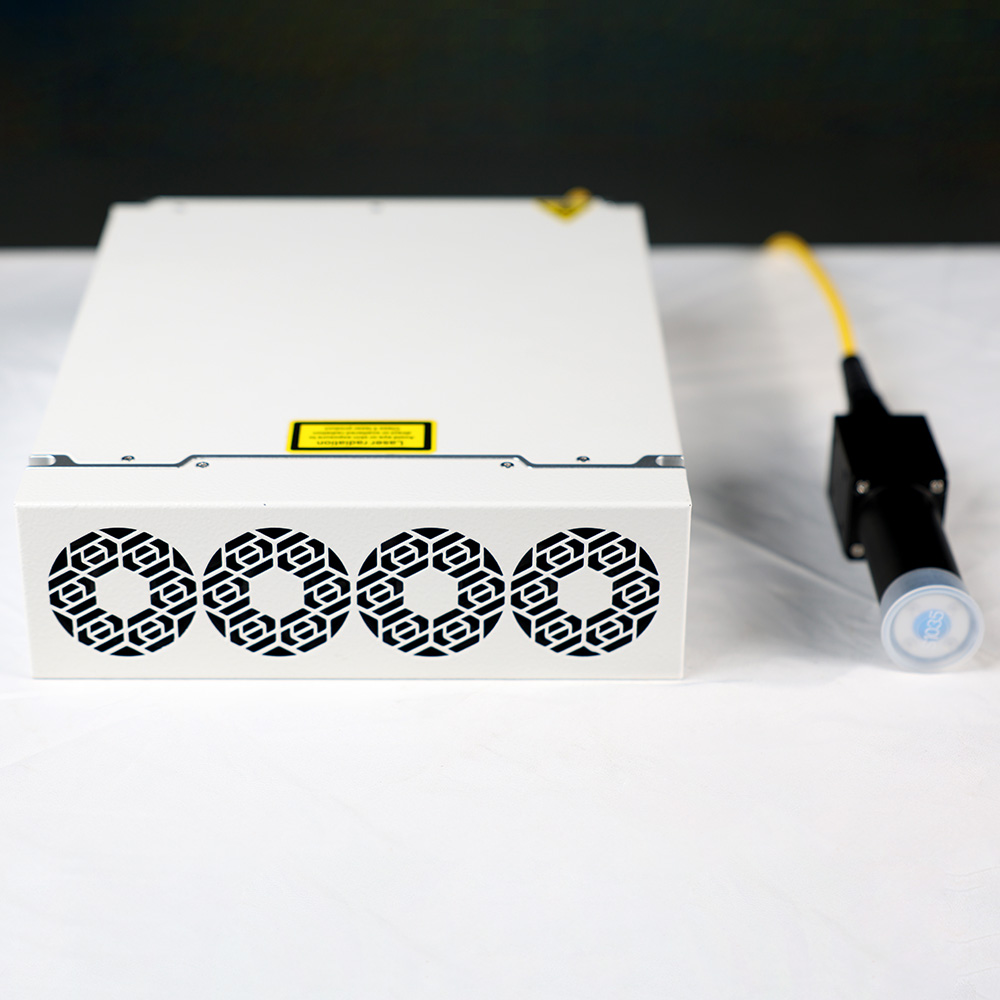

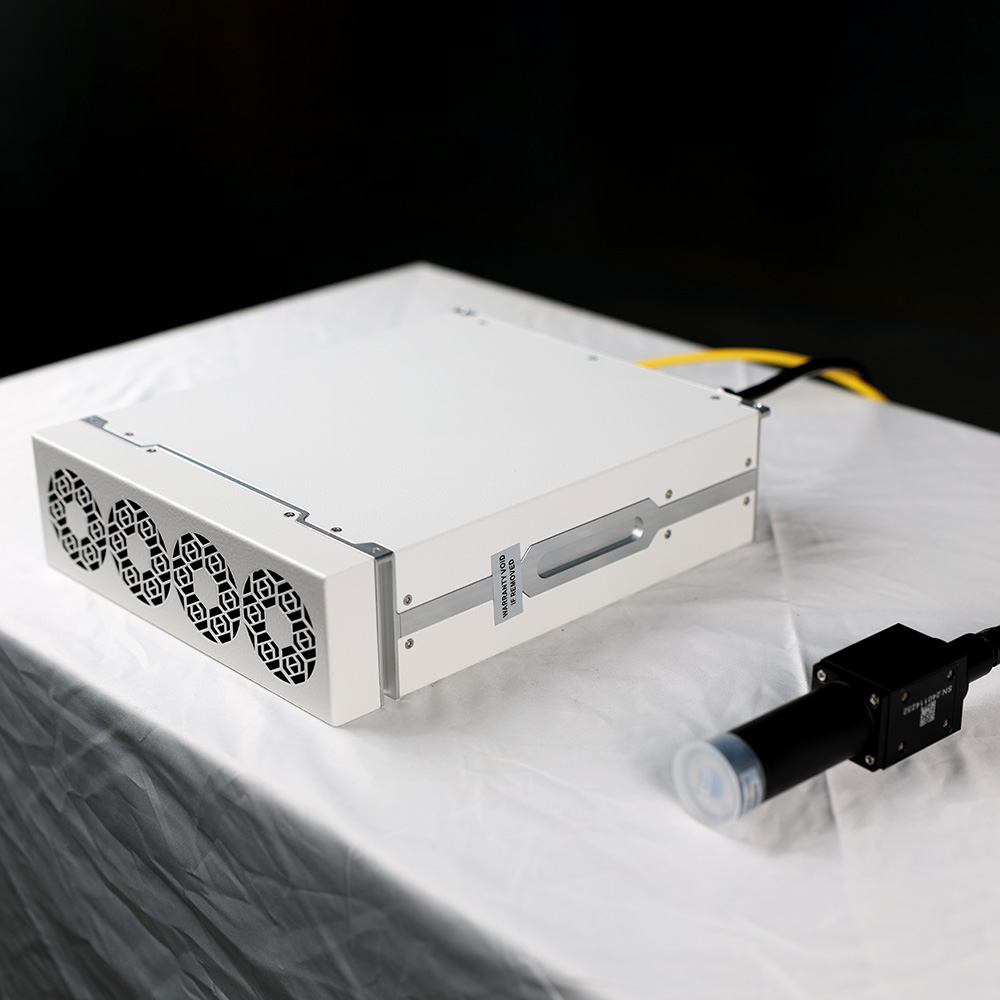

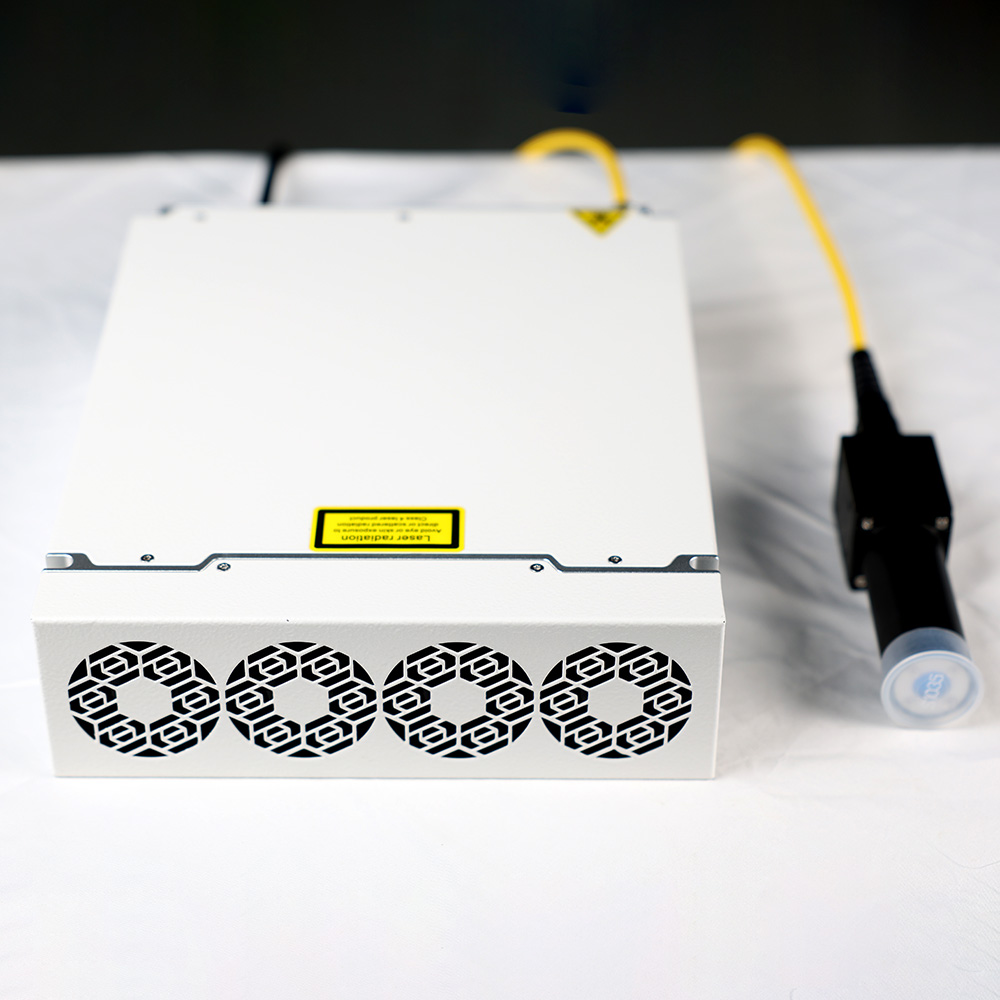

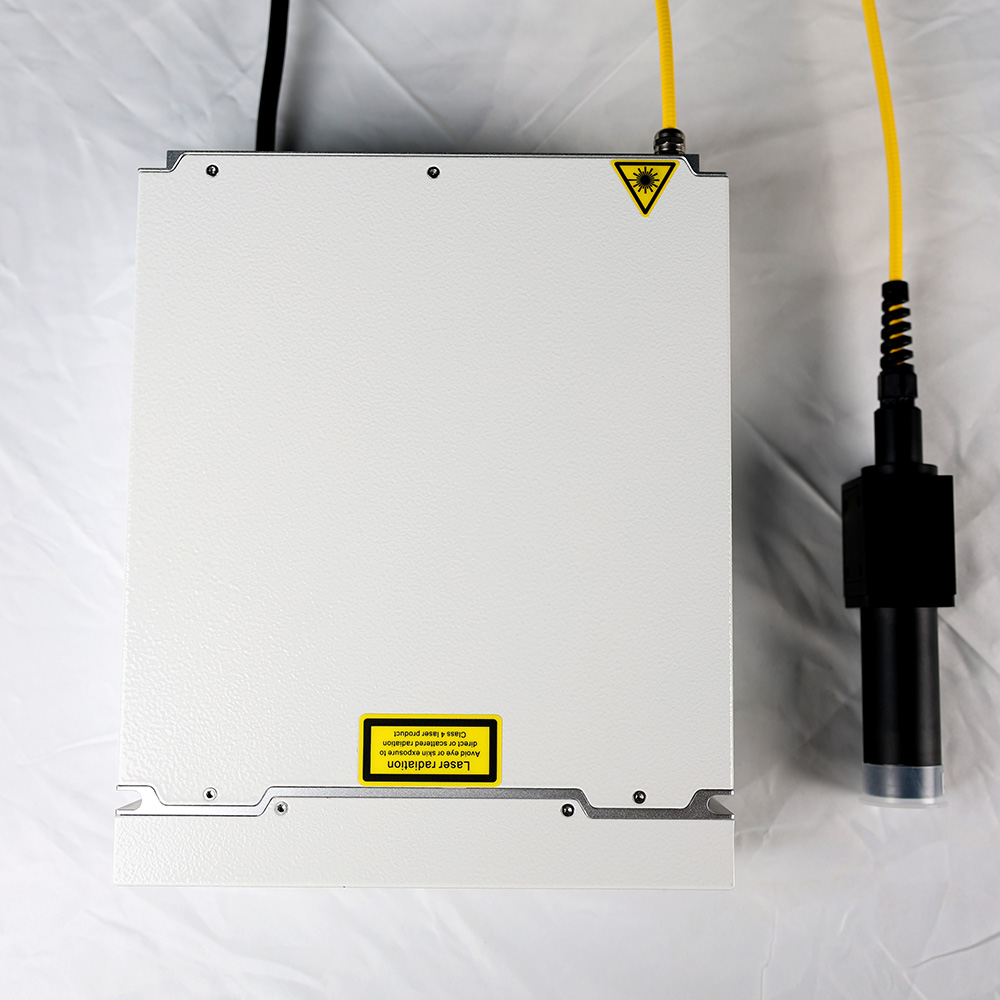

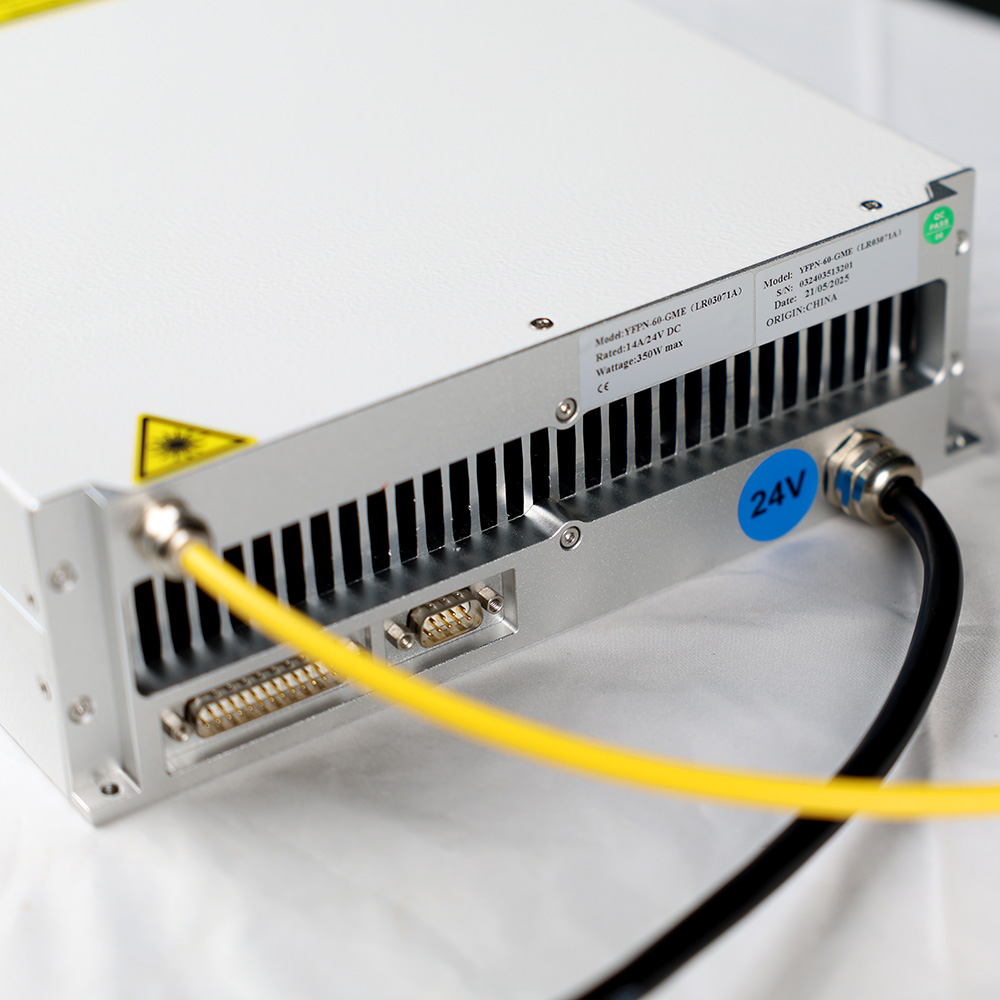

YFPN-60-GME MOPA Pulsed Fiber Laser
| Product Overview |
The YFPN-60/80/100-GME is an economical MOPA pulsed fiber laser designed for a wide range of industrial marking, cutting, and surface treatment applications. Featuring a tunable pulse width of 2–500 ns and repetition frequency range from 1 to 3000 kHz, this series offers flexibility and precision in various materials processing tasks.
Available in 60W, 80W, and 100W power options, the YFPN-GME series delivers reliable performance with maintenance-free operation, making it a preferred choice for manufacturers looking for high stability, fine control, and cost-effectiveness.
| Features |
| MOPA Technology: Flexible pulse control for diverse material processing |  |
 |
Adjustable Pulse Width: 2–500 ns |
| Wide Frequency Range: 1–3000 kHz |  |
 |
Maintenance-Free: Long-life operation with zero routine maintenance |
| Cost-Effective Solution: Excellent performance-to-cost ratio |  |
 |
Compact and Easy Integration: Ideal for OEM and system integrators |
| Specifications |
| Parameter | Specification |
|---|---|
| Available Power Levels | 60W / 80W / 100W |
| Pulse Width Range | 2 – 500 ns |
| Repetition Frequency Range | 1 – 3000 kHz |
| Output Type | Pulsed |
| Technology | MOPA |
| Cooling Method | Air-cooled |
| Operation Mode | Maintenance-free |
| Target Applications | Marking, Cutting, Surface Processing |
| Applications |
General Metal and Plastic Marking
Color Marking on Stainless Steel
Precision Micro-Cutting and Drilling
Surface Texturing and Cleaning
Anodized Aluminum Black Marking
Thin Film Removal
