SKYLC-SPM-500/1000 High-Power Laser Cleaning Equipment - 500W/1000W Adjustable
Product Description
SKYLC-SPM-500/1000 is a professional high-power laser cleaning equipment designed for heavy pollution cleaning scenarios in industrial fields. Adopting high peak power pulsed laser, high-speed scanning system and self-developed high-precision control system, it is equipped with a power supply from well-known domestic enterprises, ensuring stable and reliable operation, excellent performance and high cleaning efficiency.
The equipment can efficiently realize rust removal, paint stripping, oil removal, oxide film cleaning on all metal and partial non-metallic surfaces, as well as cleaning of welding black ash, carbon oil and other dirt on component surfaces, and pre-treatment for metal surface painting and texturing. Compared with traditional cleaning methods, this industrial laser cleaning machine has obvious advantages: non-contact cleaning without damaging the substrate, environmentally friendly without secondary pollution, recyclable cleaned substances, micron-level precision control in thickness direction, no consumables during use (only consuming electricity), and ultra-energy-saving.
Equipped with universal wheels for easy movement, it supports handheld or automated operation and can be easily integrated with robotics and CNC systems. The air-conditioned mainframe and water-cooled cleaning head enable long-term continuous and stable operation under different environmental conditions. It is widely used in aerospace, rail transportation, automotive manufacturing, marine vessels, mold processing, additive manufacturing and semiconductor fields, and is an ideal choice for high-efficiency and environmentally friendly industrial heavy pollution cleaning.
Product Parameters
| Parameter Category | Specific Parameters |
|---|---|
| Optical Property Parameters | - Cleaning head model: Type A - Laser average power: 500W (SPM-500) / 1000W (SPM-1000) - Power adjustable range: 10%~100% - Polarization direction: Arbitrary - Laser line width: 5mm~100mm adjustable - Fiber length: 10m - Minimum Fiber Bend Radius: 150mm - Cooling mode: Water cooling + Air condition - Guided Laser Function: Available - Anti-high-reflection function: Available - Field lens model: F160/F210/F254/F330（optimized by actual working conditions |

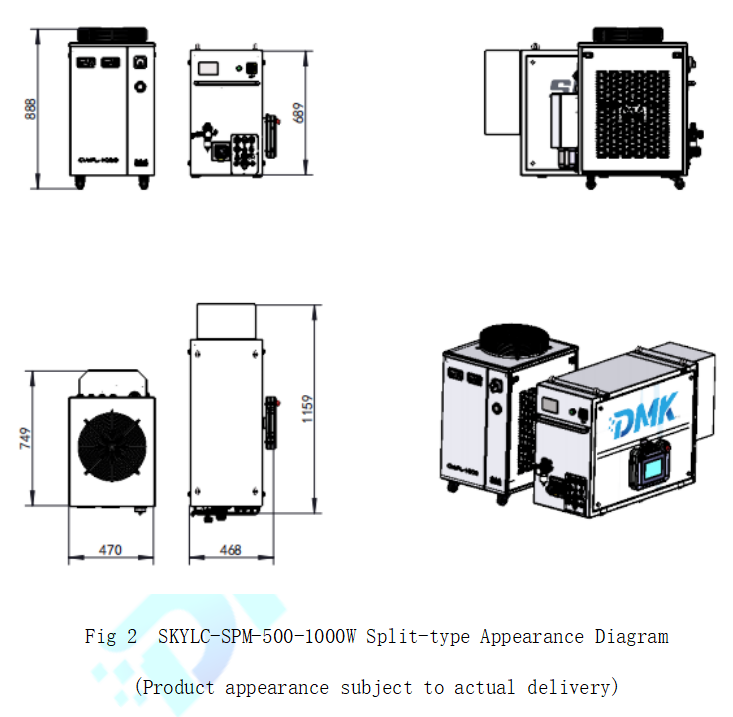

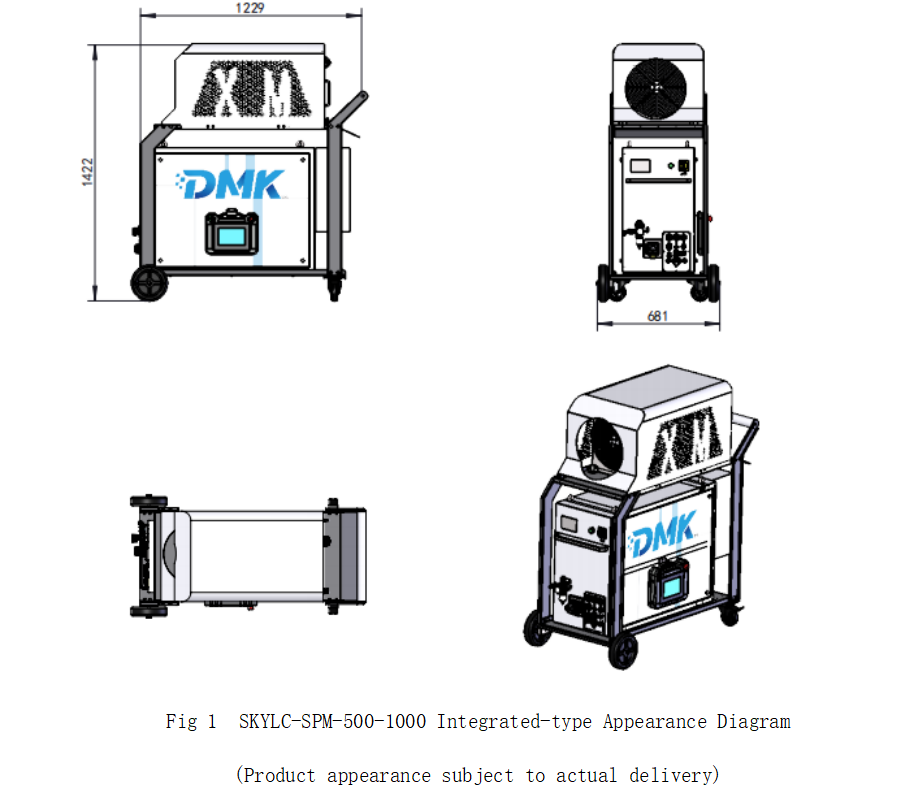

| General Property Parameters | - Chassis Size: Integrated type: L1229mm×W681mm×H1412mm Split main unit: L1159mm×W468mm×H689mm Split water cooling machine: L749mm×W468mm×H689mm - Net weight: Integrated type: 170kg; Cleaning head: 4.0kg Split main unit: 110kg; Split water cooling machine: 40kg - Operate mode: Automated / Handheld - Supply voltage:Single phase three-wire system AC 220±10% V - Utility frequency: 50Hz - Work temperature: 0℃~40℃ - Storage temperature: -10℃~60℃ - Power consumption @25℃: SPM-500＜4000w; SPM-1000＜6000w |
Other Details
1. Configuration
| Configuration Type | Details |
|---|---|
| Standard Configuration | - IP54 level constant temperature cleaning host: 7-inch display, 10m operating cable, red light indication, external control start/stop, alarm fault output - Water cooler: 1 set - Laser protective glasses: 1 pair（compliant with EU EN207:2009/AC2011＆CE certification - Lens wiping paper: 2 boxes - Replaceable field lenses: Including 4 field lens protection lenses - Warranty: 1 year |
| Selective Assembly | Customized Communication、Fume Purifier、Wireless Remote Start-Stop、Integrated cart |
2. Safety & Operation（安全与操作）
- The equipment is Class IV laser product with laser wavelength 1064nm (invisible light). Direct or indirect contact with laser can cause irreversible eye damage and skin burns, so operators must wear the provided laser protective glasses throughout operation.
- Emergency stop button: Located on the right of the operation panel (red mushroom head). Press immediately in case of abnormality, and rotate clockwise to reset after troubleshooting.
- Operation steps: Power on → Insert password "9527" to unlock → Adjust parameters (laser power, scanning width/frequency/speed, etc.) → Enable red light and laser → Start cleaning (maintain 1-3mm from focusing distance during handheld operation).
- Laser parameters adjustment: Pulse repetition frequency adjustable range 5kHz~200kHz (adjust when laser is off); cleaning width recommended to be 10mm-60mm.
3. Maintenance & Troubleshooting
| Daily & Periodic Maintenance | Common Troubleshooting |
|---|---|
| - Clean the cleaning head lens with special wipes after each use - Check chassis buttons, knob tightness and water tank temperature (≤40℃) before use - Clean equipment surface and ventilation filter weekly - When environmental humidity >70%, check for condensation in the chassis - Winter protection: Add antifreeze according to temperature (refer to proportioning chart); empty coolant if equipment stops for a long time in sub-zero environment | - No power on: Check emergency stop switch reset, power connection and air switch - No red light: Confirm laser operation, power connection and red light enable status - No laser output: Verify "Start" button, DB25 line and optical path - Display shows asterisks: Check if wiring sequence of A/B wires is reversed - Weak laser output: Clean the field lens of the handheld head |
4. Packing, Transportation & Storage
- Packing: Coil optical fiber (bend radius ≥150mm), wrap equipment with foam and film, lock universal wheels, and fix equipment in the packing box without moving space.
- Transportation: Keep vertical, avoid vibration/collision/inversion/rain, use closed cabins for long-distance transport; prohibit passing through areas with strong corrosive gas, electric field or magnetic field.
- Storage: Avoid water, direct sunlight, strong electric/magnetic fields and corrosive gas; meet temperature (-10℃~60℃) and humidity requirements, no strong vibration or impact.
Sample Display
 |
 |
 |
 |
