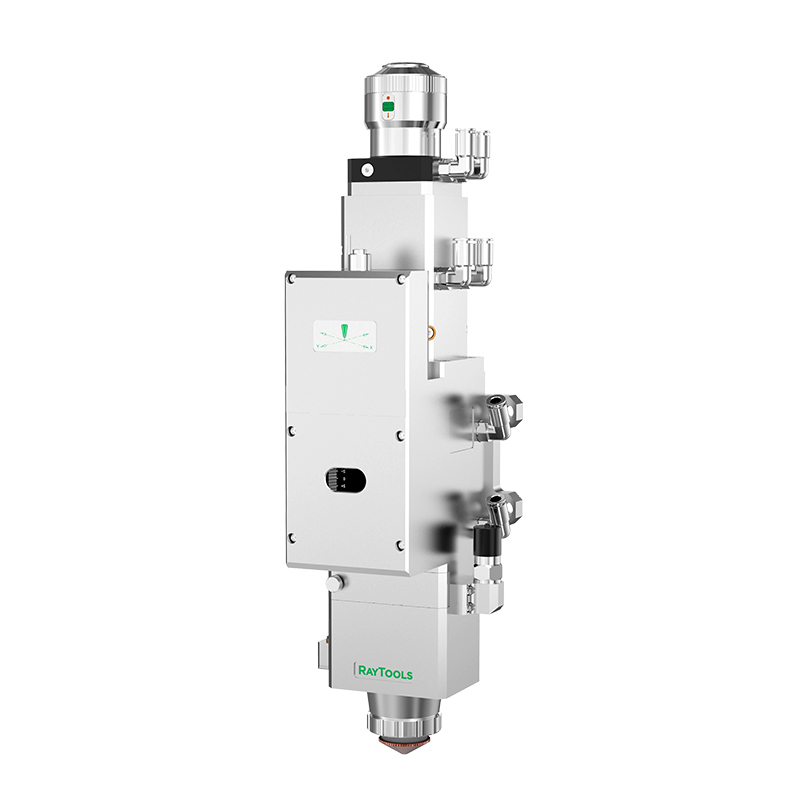

Raytools BM110E High-Performance Auto-Focus Laser Cutting Head
Raytools BM110E High-Performance Auto-Focus Laser Cutting Head

Raytools BM110E High-Performance Auto-Focus Laser Cutting Head

Product Overview

The BM110E is a high-performance auto-focus laser cutting head optimized for medium and low power applications, supporting up to 3.3kW. It features compatibility with multiple mainstream fiber interfaces including QBH, QD, and G5, enabling seamless integration with various leading laser sources. With optimized optical configuration and a smooth, efficient airflow design, the BM110E significantly improves both cutting quality and overall processing efficiency.


Key Features

Advanced Auto-Focus Technology

    • Auto-focus range: -12mm to +10mm

    • Focus adjustment accuracy: 0.05mm

    • Reduces manual adjustments, improving consistency and ease of use


Superior Optical and Airflow Design

  • Enhanced optical system improves beam quality

  • Streamlined internal airflow boosts cutting speed and edge quality

Multi-Layer Protective Lens Design

  • Additional collimation protection lens included

  • Effectively extends service life of the internal optics


Drawer-Type Protective Lens Holder

  • Quick and simple protective lens replacement

  • Reduces maintenance downtime

High Compatibility with Fiber Interfaces

  • Supports QBH, QD, G5 interfaces

  • Compatible with major laser brands and systems

Technical Specifications
Parameter Value
Power Rating ≤ 3.3kW
Focus Range -12mm ~ +10mm
Max Focus Speed ≤ 170mm/s
Acceleration ≤ 10m/s²
Optical Aperture 28mm
Positioning Accuracy 0.05mm
Protective Nozzles Single-layer, double-layer, non-standard
Nozzle Aperture Sizes 0.8 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 mm
Assist Gas Pressure ≤ 30 bar
Weight ~5.0kg


Application

Ideal for:

  • Precision sheet metal cutting

  • Carbon steel and stainless steel applications

  • Medium-to-low power fiber laser cutting systems

  • OEM and retrofit laser cutting machines
