Raytools BH02K Dual Galvo Handheld Laser Welding Head

Description

The Raytools BH02K is a compact and lightweight dual galvo handheld laser welding head, designed for high-precision welding tasks up to 2000W. Featuring eight programmable swing patterns, it enables versatile weld formation for a wide range of materials and thicknesses. The BH02K is equipped with an intelligent laser control system that seamlessly integrates with robotic arms and automated platforms, making it a reliable tool for advanced manufacturing.

Ideal for industries such as sheet metal fabrication, stainless steel hardware, cabinetry, and door/window production, the BH02K provides flexibility, efficiency, and ergonomic handling for operators across multiple welding environments.

Advantages

• Dual Galvo Oscillation System
  Supports up to 8 swing patterns for customized weld shaping and enhanced seam quality.

• Lightweight & Ergonomic Design
  Weighs only ~1.0kg, with a compact body that ensures comfortable long-term operation and easy handling.

• Enhanced Safety Features
  Built-in safety mechanisms prevent laser emission when not in contact with the workpiece, ensuring operator protection.

• Robust Dust & Splash Protection
  Dual protective lenses and an enclosed design minimize contamination from debris, improving system reliability and lens longevity.

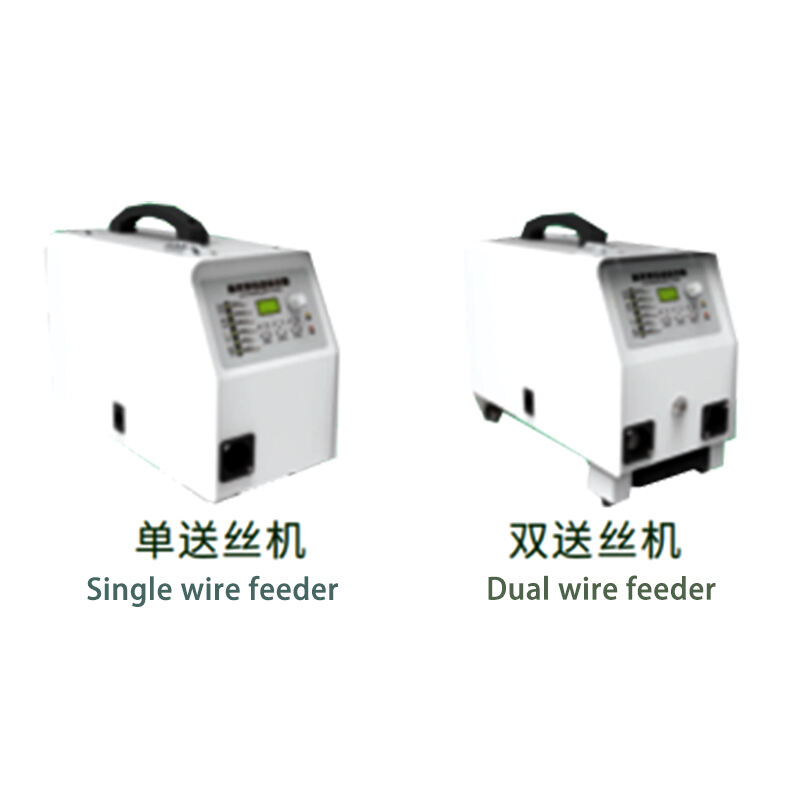

• Optional Dual Wire Feeder Support
  Compatible with dual wire feeding systems for wide seam welding and thick plate applications.

Specifications

Parameter	Specification
Model	BH02K
Power Capacity	≤2000W
Clear Aperture	8mm
X-Axis Swing Range	0–5mm
Y-Axis Swing Range	0–5mm
Compatible Wavelength	1070nm
Weight	~1.0kg
Swing Patterns	8 types
Optional Features	Dual wire feed configuration

Application

• Sheet Metal Welding

• Stainless Steel Door & Window Fabrication

• Cabinet Manufacturing

• Metal Hardware & Frame Assembly

• Custom Metal Structures

• Robotic or Platform-Based Automated Welding Systems
