Qilin Laser F3 Series Handheld Infrared Fiber Laser Welder

Product Description

The Qilin Laser F3 Series is a new type of handheld infrared fiber laser welding equipment, compatible with a wavelength of 1080±10nm and capable of welding materials up to 3mm thick. It supports welding of metals such as steel, aluminum, copper, and stainless steel.

Featuring an air-cooled design, the device integrates a 7-inch touchscreen and 36 preset process packages for easy operation. It is equipped with multiple safety protections (conduction circuit, emergency stop, overheating protection) and can be optionally fitted with a T20 wire feeder.

Widely used in pipeline, kitchen & bathroom, and hardware industries, it has obtained CE, ROHS, and FCC certifications, ensuring safety and compliance.

Product Features

1. Wide Material Compatibility：Supports stainless steel, carbon steel, aluminum plates, galvanized plates, copper, and other metals, with a maximum welding thickness of 3mm. It meets basic welding needs across industries, such as stainless steel guardrails and copper accessories.

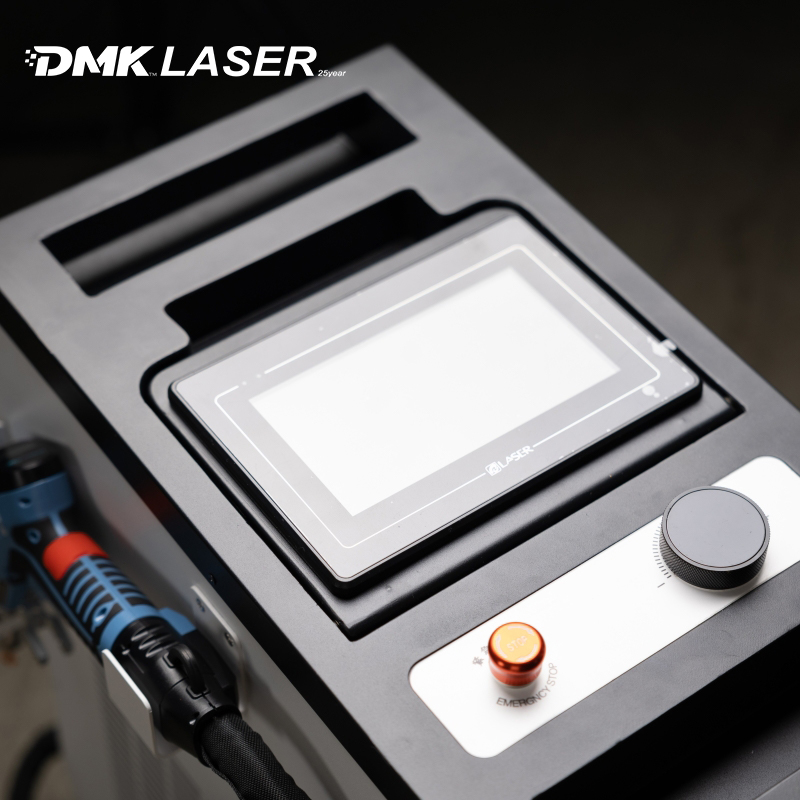

2. Easy Operation & Flexible Processes：Controlled via a 7-inch touchscreen, with 36 built-in process packages (covering 4 common materials + custom mode). No complex programming is required - simply select the corresponding material and thickness to start welding. It supports continuous/pulsed laser output, and allows adjustment of laser power, oscillation frequency (0-30Hz), and oscillation width (0-5mm) to adapt to different weld requirements.
3. Multiple Safety Protections & Compliance：Equipped with a workpiece conduction safety circuit (laser emits only when the copper nozzle touches the workpiece), emergency stop button, overheating protection, and air pressure alarm. Certified by CE, ROHS, and FCC, it meets EU and US safety and environmental standards for reliable use.

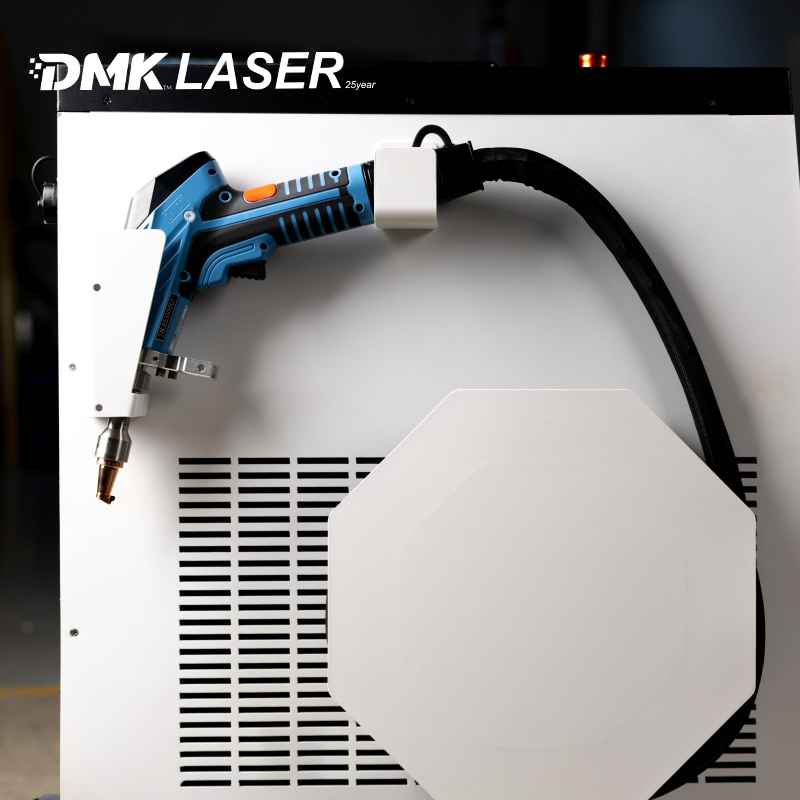

4. Portable, Durable & Easy Maintenance：The whole machine weighs ≤35Kg, with a flexible handheld torch design suitable for welding complex workpieces. Dual protective lenses prevent dust and spatter. Consumables (copper nozzles, protective lenses) have clear replacement steps, minimizing daily maintenance difficulty.

Technical Parameters

Application

1. Pipeline & Kitchen/Bathroom Processing：Suitable for metal pipeline splicing and welding of stainless steel kitchen sinks/stovetops. The handheld torch flexibly handles curved pipeline sections and complex kitchen/bathroom structures, producing smooth welds that reduce subsequent grinding work.
2. Hardware & Guardrail Decoration：Used for welding hardware accessories (hinges, handles) and stainless steel guardrails/decorative parts. Preset process packages adapt to different stainless steel thicknesses, and the oscillation function ensures uniform welds, enhancing product aesthetics and strength.
3. Automotive & Aerospace Manufacturing：Applicable to welding small automotive metal parts (frame connectors, interior brackets) and lightweight metal accessories in the aerospace field. Low heat input minimizes material deformation, meeting high-precision manufacturing requirements.
4. Precious Metal & Precision Processing：For welding precious metal jewelry (gold, silver), the pulsed mode precisely controls energy to avoid excessive metal melting. It also supports copper welding (thickness ≤1mm) for electronic copper accessories and busbar connections, ensuring conductivity and connection stability.
