NGL-SLT-2000 Green Laser Diamond Cutting Machine

Description

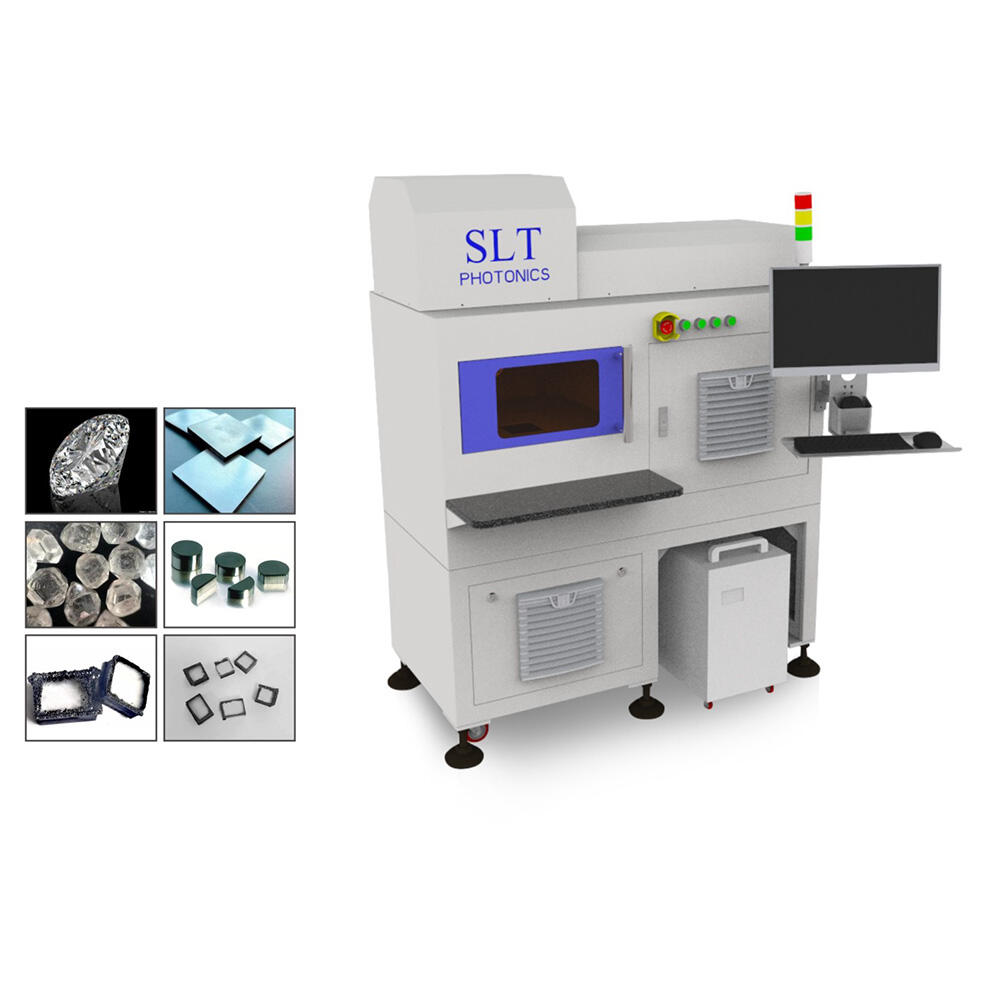

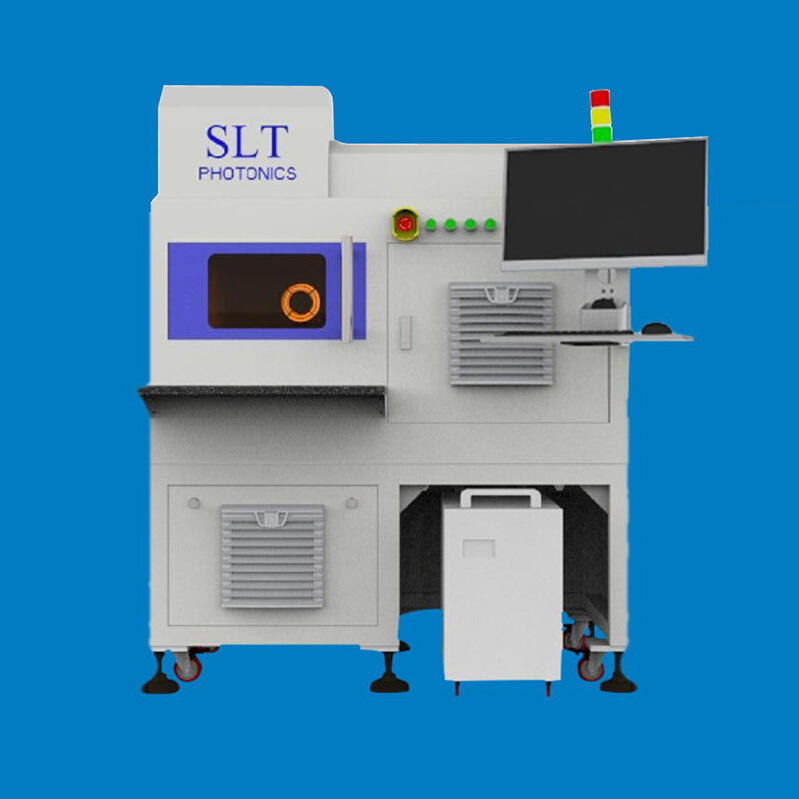

NGL-SLT-2000 Green Laser Diamond Cutting Machine

High-Speed, High-Precision Solution for Diamond and Ultra-Hard Materials

The NGL-SLT-2000 is a high-performance laser cutting system designed specifically for ultra-hard materials such as natural diamonds, CVD/HPHT synthetic diamonds, PCD, PDC, silicon carbide, and carbon-based composites. Equipped with a proprietary 532nm green laser and integrated CNC motion control modules, this system delivers exceptional precision, speed, and long-term operational stability.

Key Features

Proprietary 532nm Green Laser Source: In-house developed, ensuring minimal attenuation and consistent beam quality. Precision CNC Motion Platform: Japanese-imported linear motor system with ±0.005mm repeatability.
	Closed Optical Path & Robust Construction: Fully enclosed cutting chamber with anti-vibration granite base and steel-welded structure. CCD Vision System: 130W industrial camera with 25x magnification for precise positioning and real-time monitoring.
User-Friendly Software Interface: Custom-developed smart control software with task automation and clear UI. Dual Grinding Heads: Fast switching via 180° rotation for efficiency.

Key Advantages

• Stable Long-Term Operation: Water-cooled laser source and efficient heat dissipation ensure high durability.

• Unmatched Cutting Accuracy: Nanosecond pulse width and <1.3 m² beam quality ensure ultra-clean cuts.

• Automation Ready: Supports multi-piece cutting programs with minimal manual input.

• Enhanced Operator Safety & Cleanliness: Fully sealed system with dust management and integrated cooling.

• Customizability: Software and functions can be tailored to your application needs.

Technical Specifications

Laser System Parameters

• Laser Source: In-house pump laser (integrated terminal type)

• Laser Power: 20W

• Wavelength: 532nm

• Mode: TEM₀₀

• Beam Quality (M²): ≤1.3

• Pulse Energy: ≥2MJ @ 10kHz

• Repetition Rate: 5–20kHz

• Pulse Width: <20ns

• Cooling: Water-cooled

• Max Cutting Depth: 20mm

• Working Temperature: 20–50°C

Machine Specifications

• Ambient Temp / Humidity: <25°C / <70%

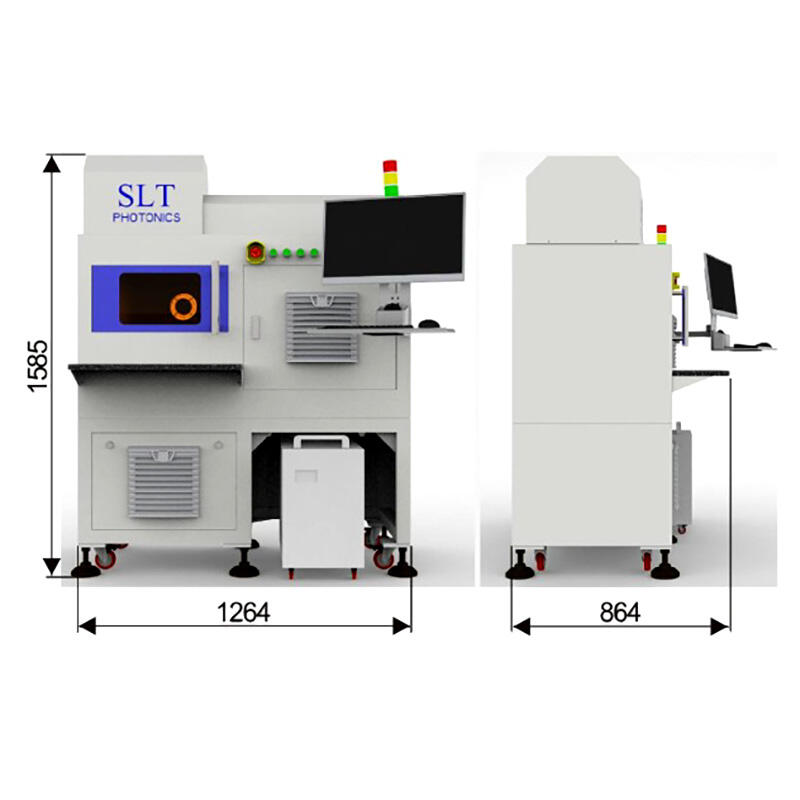

• Machine Size: 1264×864×1585mm

• Total Power: 2KW

• Air Pressure: 86–106KPa

• Voltage: AC220V

• Weight: 600KG

CNC Motion System

• Axes Travel (X/Y/Z): 150×150×60mm

• Repeatability: ±0.005mm

• Guide Rail: Japanese imported

CCD Vision System

• Camera: 130W industrial-grade, 1280×1024ppi, 300FPS

• Zoom: 25x

• Power / Lighting: 24V / Bar light

Cooling System

• Power: 1200W

• Temp Range: 20–30°C

• Water Capacity: 18L

Machine Frame

• Structure: Steel-welded

• Base Platform: Granite

• Finish: Gray-white powder coat

Application Scope

• Cutting natural diamonds, CVD/HPHT synthetic diamonds
• Processing PCD/PDC tools and silicon carbide wafers
• Precision micromachining of graphene and carbon fiber components
• High-performance finishing of ultra-hard materials for jewelry, semiconductors, and industrial tools
