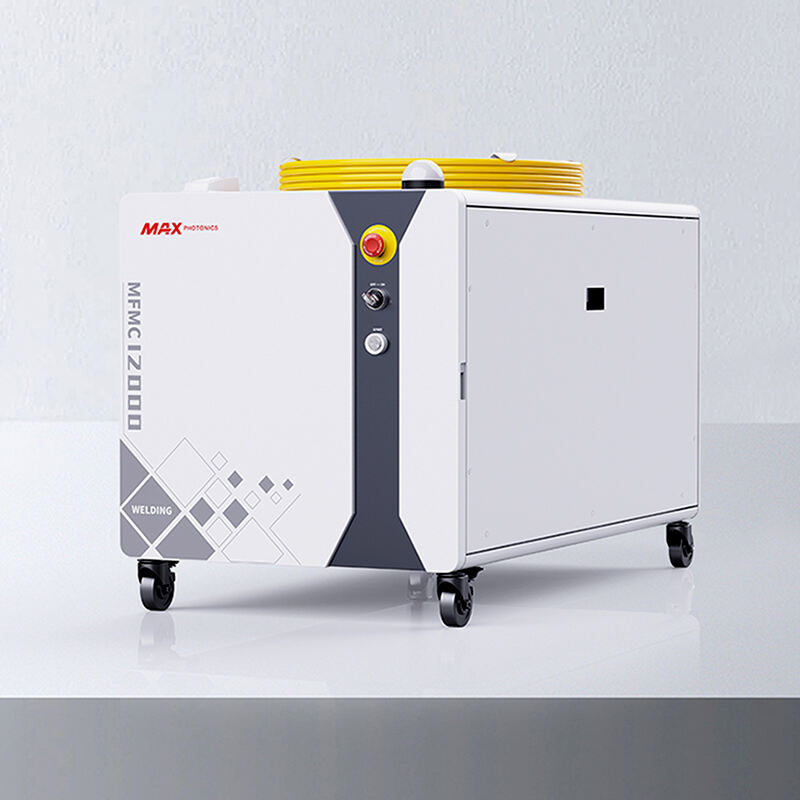

MAX MFMC-12000 Fiber Laser Source
| Product Description |
Superior Performance, Precision Welding – Empowering High-End Manufacturing
The MAX MFMC-12000 is a high-power fiber laser featuring advanced electro-optical design, delivering outstanding welding results, excellent electro-optical conversion efficiency, and exceptional stability. With a compact structure and easy integration, it is widely used in laser welding, laser cladding, laser brazing, and laser surface heat treatment applications.
| Key Advantages |
|
Stable Beam Quality Precise optical path design ensures consistent spot energy for high-quality welding and processing. |
|
 |
Ultrafast Response The laser system offers microsecond-level response times, meeting the demands of high-precision and high-efficiency processing. |
|
High Reliability Design Built to high safety standards, ensuring consistent and stable performance throughout the production process. |
|
|
Integrated Waveform Editing Equipped with a built-in waveform editing card for precise control of laser output waveforms, ideal for complex and non-standard workpieces. |
|
Excellent System Compatibility Supports multiple customized bus protocols, easily integrating into various automated production systems. |
|
|
Customizable Fiber Options Available with different fiber core diameters to meet diverse application needs across different industries and materials. |
| Technical Specifications |
| Model | MFMC-12000 (W) |
|---|---|
| Optical Characteristics | |
| Output Power (W) | 12000 |
| Operating Mode | CW/Pulse |
| Polarization State | Random |
| Power Adjustment Range (%) | 5~100 |
| Central Wavelength (nm) | 1080±5 |
| Spectral Bandwidth (3dB) (nm) | 5~7 |
| Short-Term Power Stability (%) | ±1 |
| Long-Term Power Stability (%) | ±1.5 |
| Beam Quality (BPP) | 3-3.8 (Core diameter 100μm) |
| Laser On Time (μs) | <50 |
| Laser Off Time (μs) | <50 |
| Modulation Frequency (KHz) | 50 |
| Red Light Indicator Power (μW) | 200 |
| Output Fiber Parameters | |
| Output Type | LOE |
| Fiber Cable Length (m) | 25 (Customizable) |
| Output Fiber Core Diameter (μm) | 100 (150/200 optional) |
| Fiber Bending Radius (mm) | 200 |
| Electrical Parameters | |
| Operating Voltage (VAC) | 400 (±40) |
| Rated Power Consumption (KW) | 33 |
| Other Parameters | |
| Operating Ambient Temperature (°C) | 25 (Range: 10~40) |
| Storage Temperature (°C) | -10~60 |
| Operating Humidity (%) | 10~85 |
| Cooling Method | Water Cooling |
| Dimensions W×D×H (mm) | 640×1120×620 (excluding wheels/warning lights) |
| Weight (kg) | 220±10 |
| Application Fields |
Laser Welding
Laser Cladding
Laser Brazing
Laser Surface Heat Treatment
