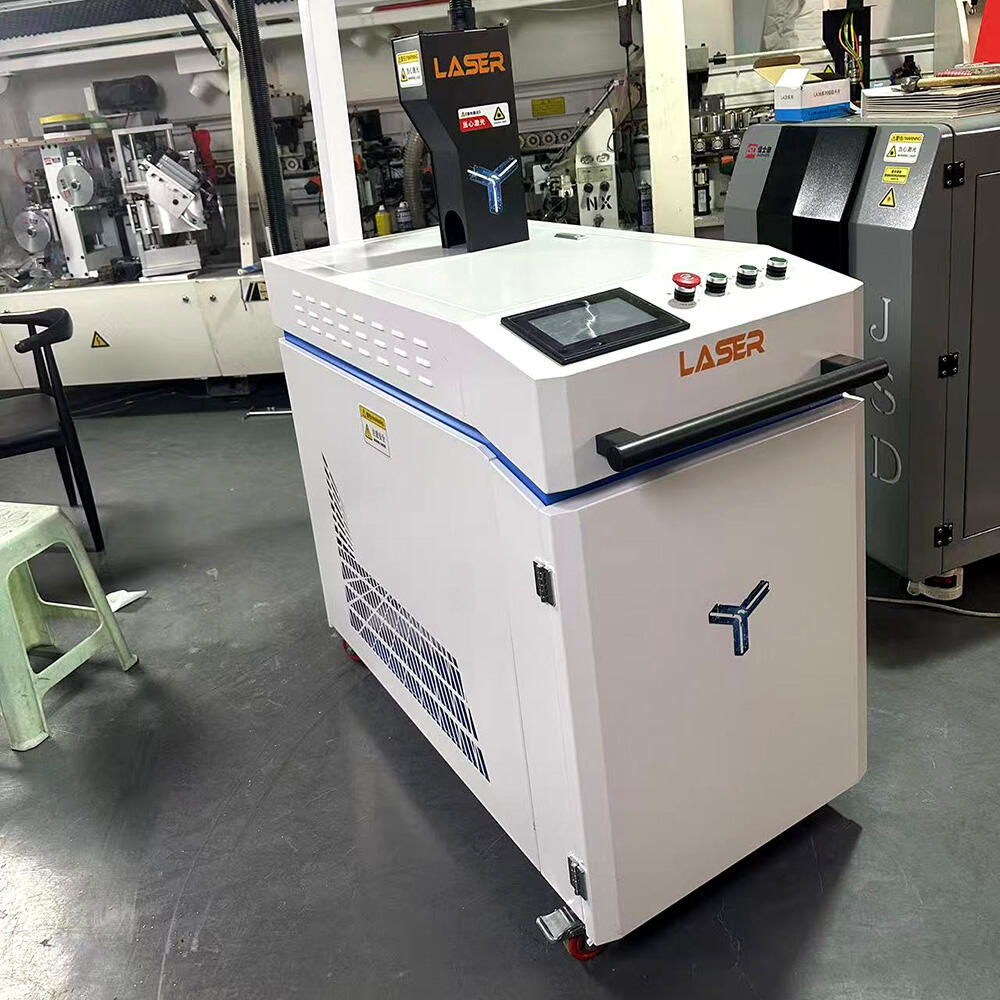

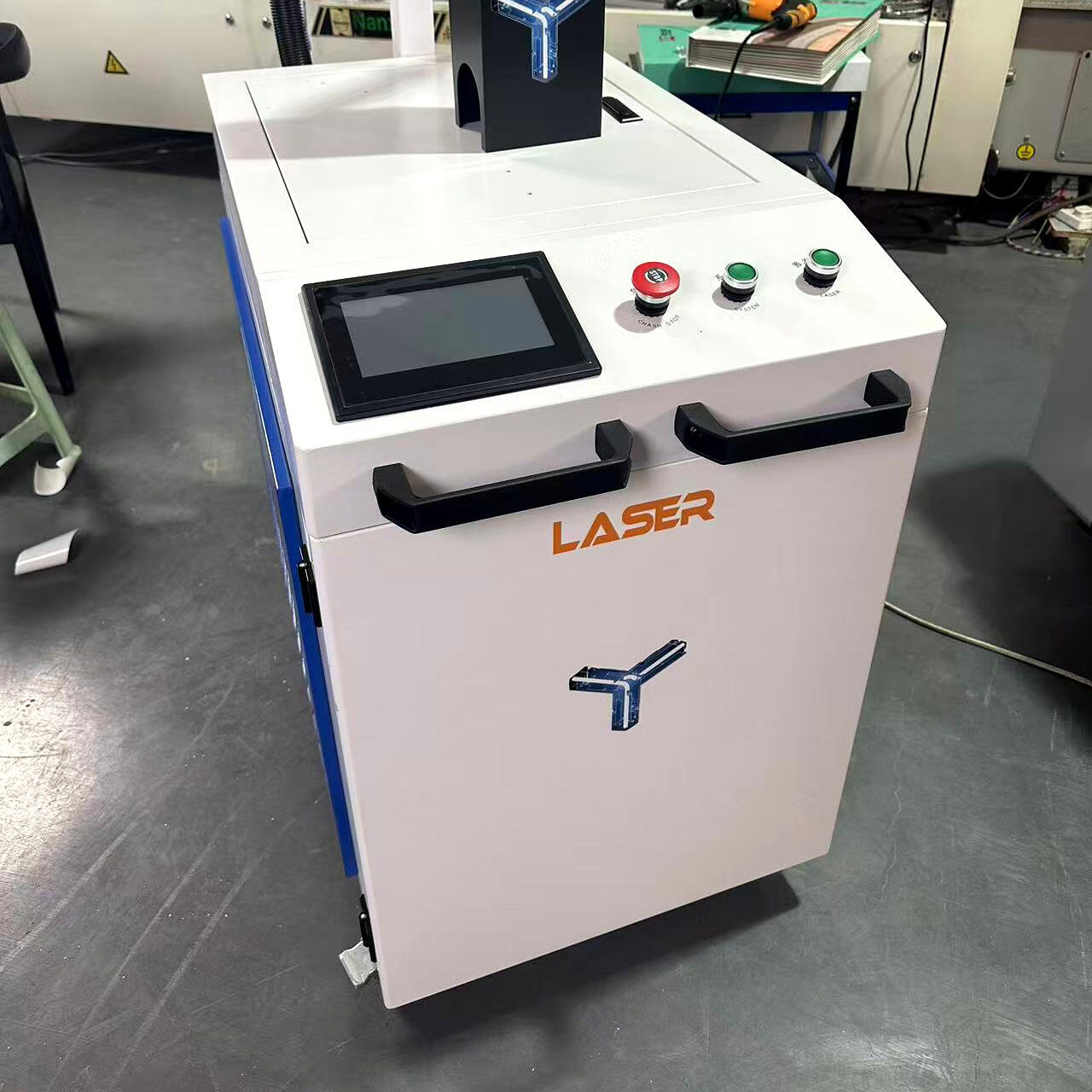

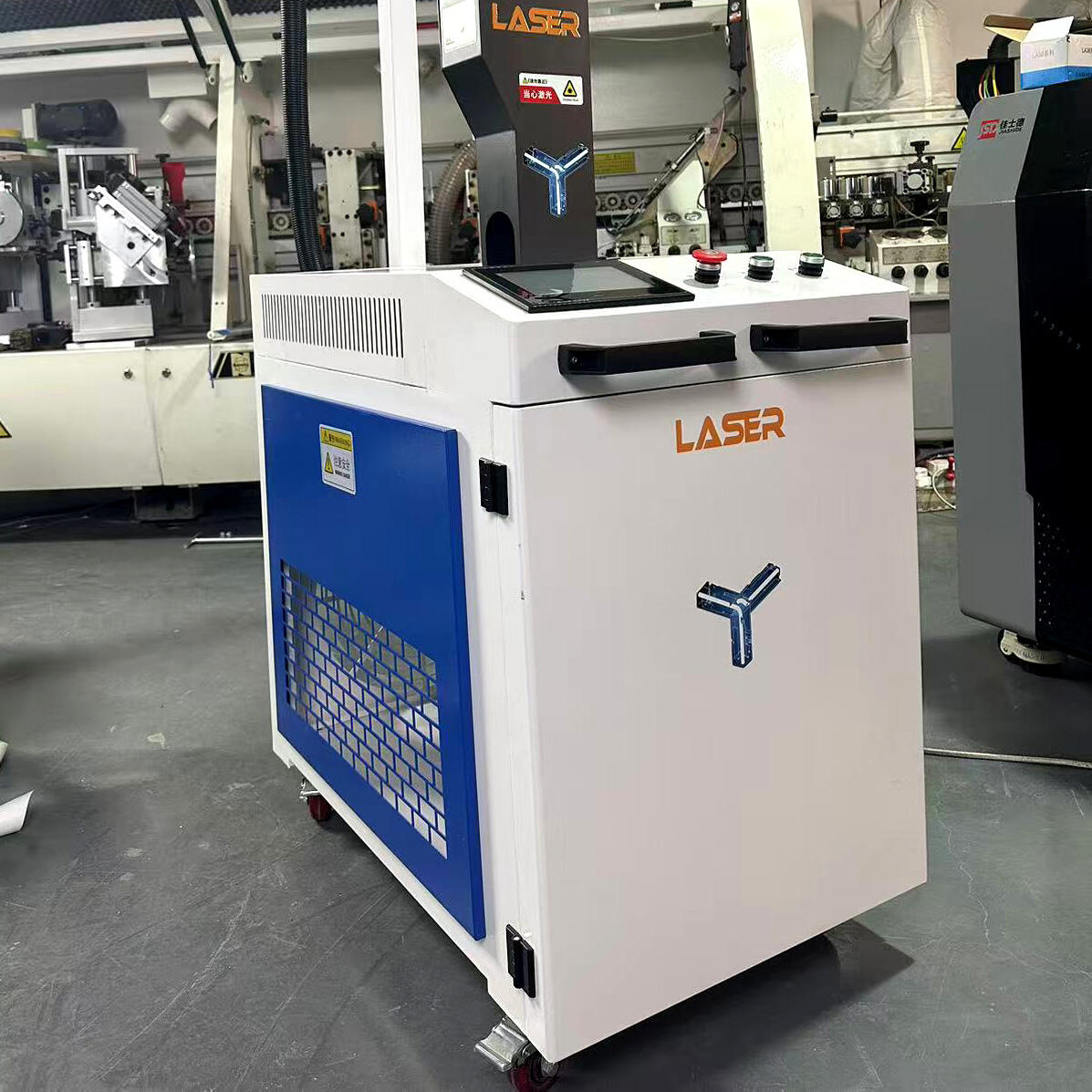

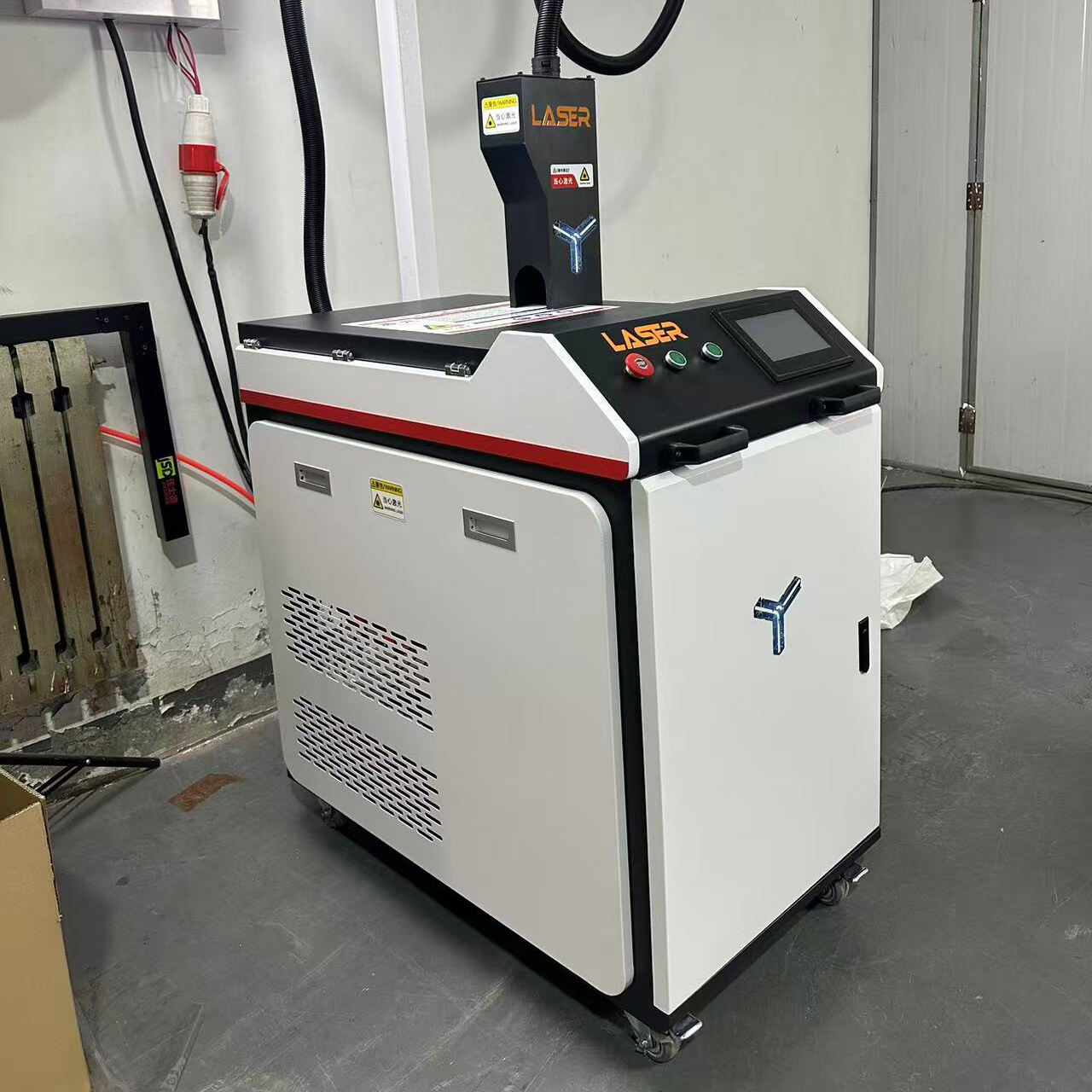

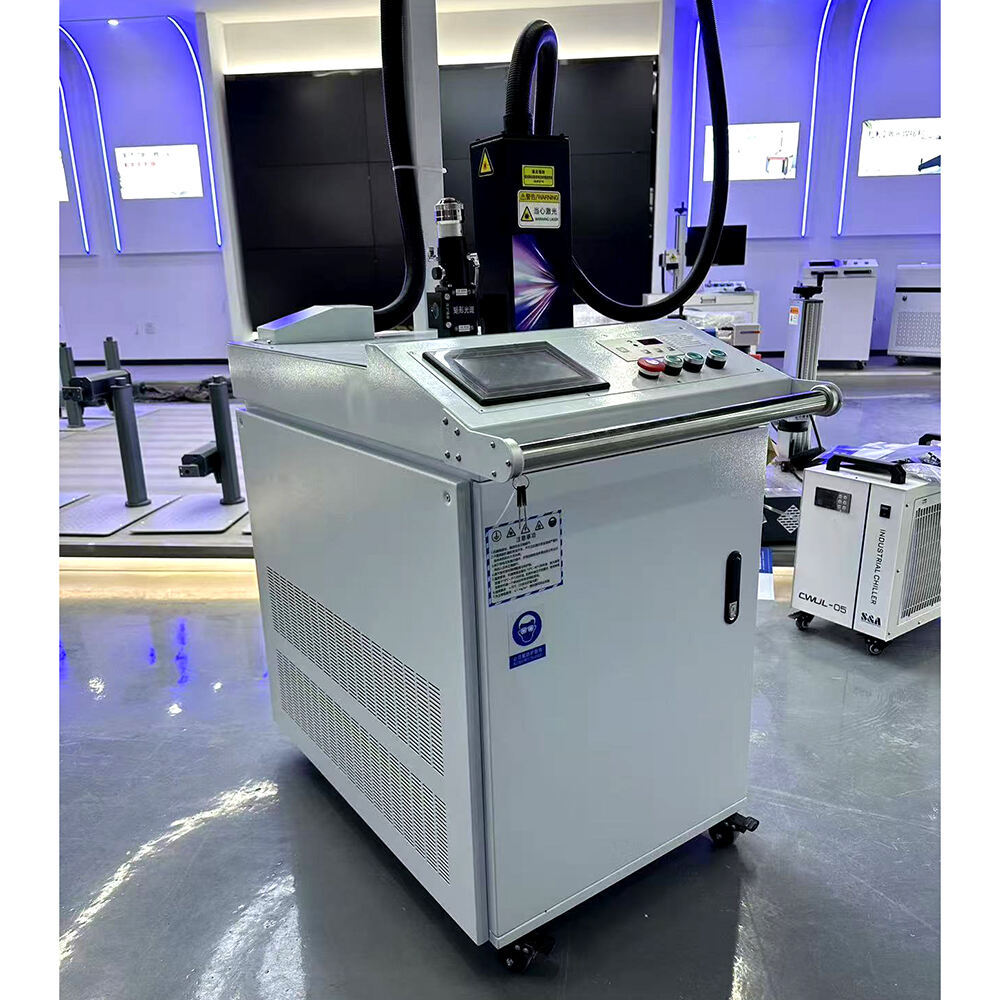

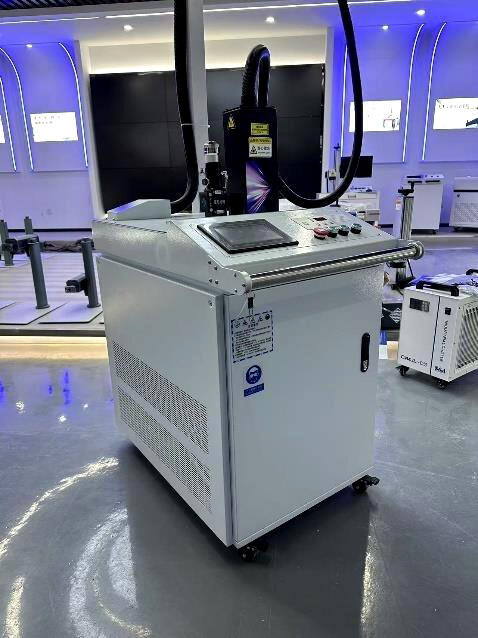

LASER 868s Laser Edge Banding System
| Product Description |

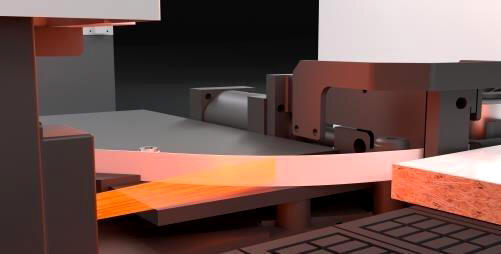

The LASER 868s is a next-generation laser edge banding system that revolutionizes traditional edge banding processes with advanced laser technology. By directing a high-energy laser beam onto specially coated edge banding tape, the system ensures seamless integration between the edge and the panel — achieving a flawless, durable, and aesthetically pleasing finish. This thermal bonding process eliminates the need for conventional hot-melt adhesives, providing superior bonding strength, enhanced durability, and a clean, glue-free result.
Utilizing high-precision laser control, the LASER 868s offers consistent, high-speed operation with minimal energy consumption. It’s an intelligent, modular, and environmentally friendly solution designed for manufacturers looking to upgrade to a smarter, safer, and more efficient edge banding process.
| Advantages |
Ultra-Perfect Integration: Ergonomic and intelligent all-in-one design for easy operation and consistent quality
Ultra-High Speed: Proprietary flying laser control system allows processing speeds up to 22m/min, easily adapting to traditional edge banding machines
Ultra-Durable: Second-gen fiber delivery system with high photoelectric efficiency and up to 100,000 hours lifespan, virtually maintenance-free
Ultra-Safe: Precision laser energy control maintains optimal processing temperatures; integrated explosion-proof dust extraction system ensures clean and safe operation

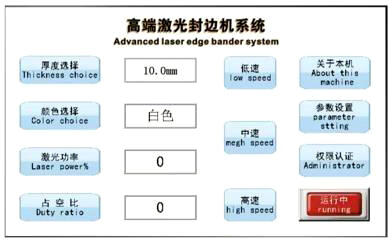

Ultra-Intelligent: One-button laser mode activation; includes a comprehensive process parameter library – input speed, product size, and tape type to automate quality output
Ultra-Convenient: No need for climate-controlled rooms; simple maintenance, no complex upkeep required
| System Structure |
 |
Laser Source Module
|
|
|
Laser Modulation Module
|
 |
Control System Module
|
 |

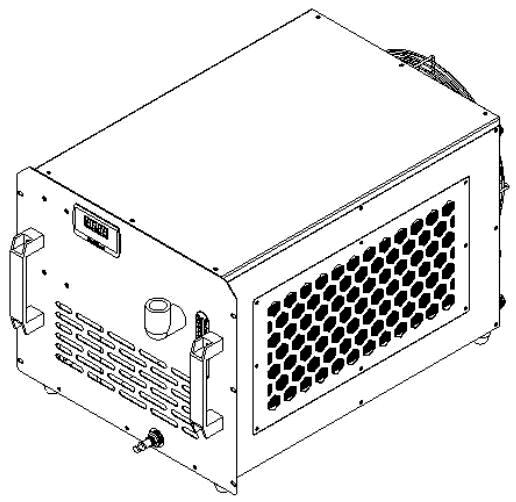

Water Cooling Module
|
| Product Parameters |
Laser 868s
category |
item |
Parameters |
Remark |
|
working conditions
|
power supply |
AC 220V±10%/50Hz |
|
| Compressed air | 0.6-0.7MPa |
|
|
Coolant |
Distilled water/deionized water |
|
|
Ambient temperature |
-40℃-40℃ |
|
|
Working environment humidity range |
30%~70% |
|
|
Workpiece size |
Workpiece thickness |
Laser edge banding size：18mm、22mm |
|
|
Edge banding
|
Edge banding thickness |
Laser edge banding 1mm-3mm |
|
Edge banding width |
Thickness of board+(4～6mm) |
|
|
Laser energy density |
≤26J/cm2 |
|
|
Edge banding speed |
speed |
Open tracking feed speed≤22m/min |
Only for 18mm plate |
|

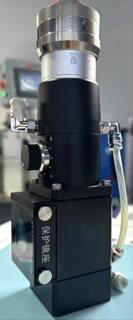

Laser head status
|
Scan length |
≤40mm |
|
Scan speed |
≤10000mm/s |
|
|
System Control |
Mechanical, electrical and software interactive chain |
Optical/mechanical/electrical/software linkage control and alarm interaction to achieve safety interlocking |
Laser 968s
category |
item |
Parameters |
Remark |
|
working conditions |
power supply |
AC 220V±10%/50Hz |
|
Compressed air |
0.6-0.7MPa |
|
|
Coolant |
Distilled water/deionized water |
|
|
Ambient temperature |
-40℃-40℃ |
|
|
Working environment humidity range |
30%~70% |
|
|
Workpiece size |
Workpiece thickness |
Common sizes of laser edge banding：18mm - 55mm |
|
Edge banding |
Edge banding thickness |
Laser edge banding 1mm-3mm |
|
Edge banding width |
Thickness of board +(4～6mm) |
|
|
Laser energy density |
≤26J/cm2 |
|
|
Edge banding speed |
speed |
Open tracking feed speed≤25m/min |
Data for 18mm plate thickness Different actual plate thickness, different joules Different speed |
Laser head status |
Scan length |
≤50mm |
|
Scan speed |
≤10000mm/s |
|
|
System Control |
Mechanical, electrical and software interactive chain |
Optical/mechanical/electrical/software linkage control and alarm interaction to achieve safety interlocking |
| Applications |
The LASER 868s is ideal for furniture manufacturing, cabinet production, decorative panels, and any high-end woodworking applications where superior edge quality is demanded. Whether upgrading existing production lines or integrating into new automation systems, the LASER 868s delivers unmatched performance, efficiency, and return on investment.
