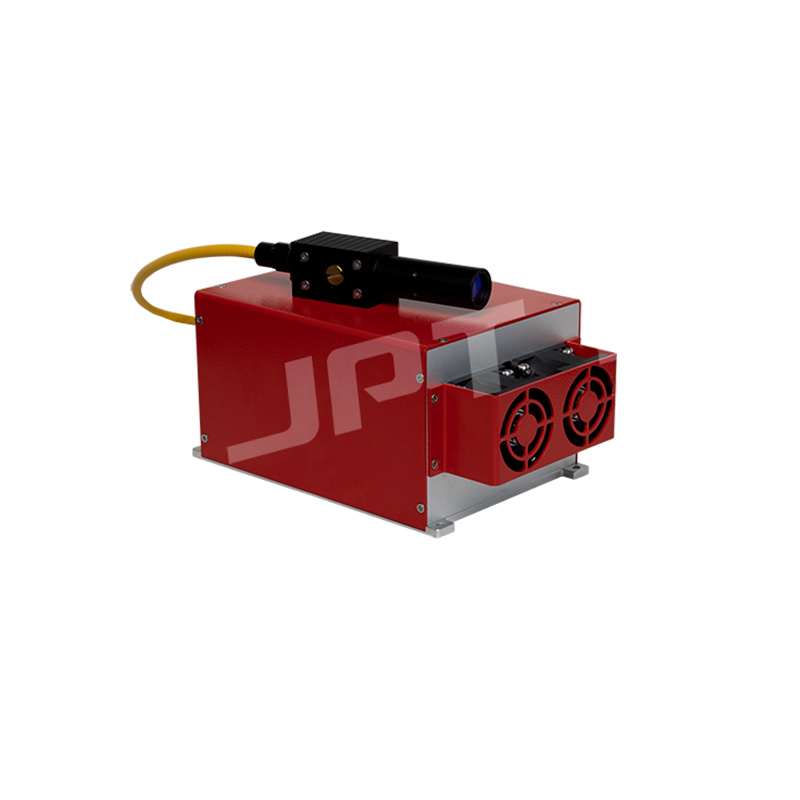

JPT M7 Series 20W / 30W MOPA Fiber Laser Source
| Product Overview |
The JPT M7 Series 20W and 30W fiber lasers are advanced MOPA-based systems that utilize directly modulated semiconductor lasers as seed sources. Compared to Q-switched fiber lasers, the M7 MOPA series offers independent control over pulse frequency and pulse width, enabling unparalleled precision and adaptability in laser processing.
Whether you're marking, engraving, cleaning, or cutting, the M7 series delivers consistently high peak power, making it an ideal solution for complex applications and high-speed environments. Its enhanced output performance also opens new possibilities for substrates and tasks that traditional Q-switched lasers cannot handle.
| Key Features |
| ✅ Adjustable Pulse Frequency & Pulse Width: Full control for optimized results across different materials. | |
|
✅ Consistent High Peak Power: Maintains stable performance even under changing processing conditions. |
| ✅ Superior to Traditional Q-Switched Lasers: Offers broader adaptability and finer control. | |
|
✅ POD Mode (Pulse On Demand): Enables high-speed, real-time triggering for dynamic marking and processing. |
| ✅ MOPA Architecture: Greater flexibility in pulse shaping, ideal for both fine and deep engraving. | |
| Product Parameters |
| Series Model |
YDFLP-E2- 20-M7-S-R |
YDFLP-E2- 30-M7-S-R |
|
| Beam quality (M²) | / | <1.4 | |
| Armored cable length | m | 2 | |
| Average output power | W | 20 | 30 |
| Maximum pulse energy | mJ | 1 | |
| Frequency adjustable range | kHz | 1~4000 | |
| Pulse Width | ns | 2~500 | |
| Output power instability | % | <5 | |
| Cooling method | / | Air-cooling | |
| Operating voltage | V | 24 (DC) | |
| Maximum power consumption | W | 95 | 110 |
| Ambient supply current | W | ≥120 | ≥180 |
| Central wavelength | nm | 1064 | |
| Spectrum width@3dB | nm | <15 | |
| Beam diameter | nm | 7.0±1.0 | |
| Power adjustment range | % | 0~100 | |
| Operating temperature range | ℃ | 0~40 | |
| net weight | kg | 1.86 | |
| Size（L×W×H） | % | 188 × 110 × 85.5 | |
| Application |
Thin Sheet Cutting and Welding: Excellent beam quality for precision tasks.
Laser Engraving & Drilling: Crisp detail with minimal thermal impact.
Laser Rust Removal & Surface Cleaning: Non-contact and residue-free.
Surface Treatment & Anodized/Coating Removal: Targeted, damage-free processing.
Flying Marking: Seamless integration for marking on-the-fly production lines.
Available Models:
🔸 M7-20W: Suitable for general high-precision marking and light material processing.
🔸 M7-30W: Offers higher power for deeper engraving, faster throughput, and more demanding industrial applications.
Typical Use Cases:
Electronics & Semiconductor Components
Automotive Parts
Medical Devices
Aerospace Marking
Jewelry & Tool Engraving
Industrial Surface Cleaning
Why Choose JPT M7 Series?
JPT’s M7 series redefines flexibility in fiber laser technology. By enabling full control over pulse parameters and delivering higher output power, it outperforms traditional solutions, helping manufacturers increase productivity and improve processing quality.
