Industrial-Grade SLA300pro Resin 3D Printer - 355nm Wavelength + 8-18m/s Scanning Speed - Special for 3D Printing in Electronic Appliances/Auxiliary Medical/Handboard Manufacturing/Jewelry
Product Description
The Industrial-Grade SLA300pro Resin 3D Printer is an upgraded equipment developed for high-precision industrial needs. Adopting full-digital design and high-integration architecture, it is equipped with a solid-state laser and marble platform, perfectly meeting the core requirements of industrial-grade printing for stability, efficiency and precision.

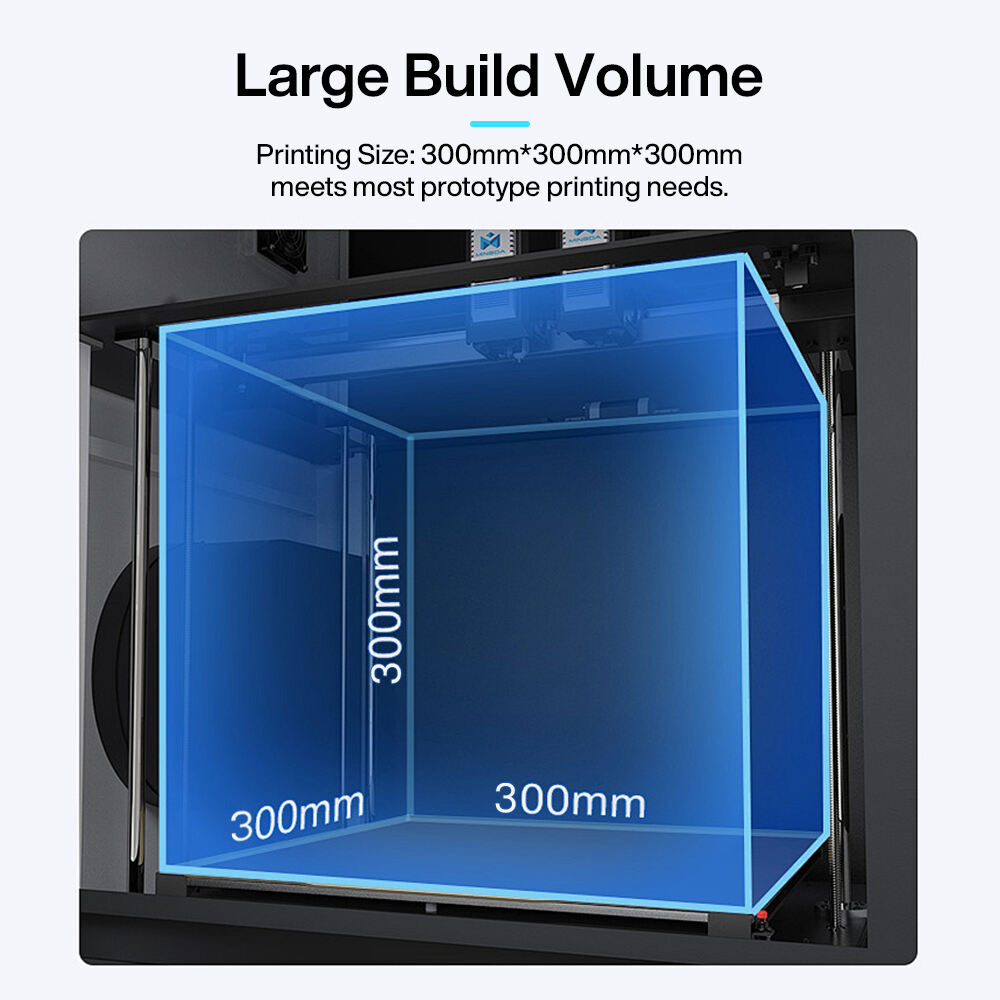

Equipped with a 355nm wavelength laser with a laser power of 3000mw, the printer has a scanning speed of 8-18m/s, a scanning layer thickness of 0.04-0.25mm, and a building size of 300×300×300mm, enabling high-precision and fast 3D printing effects. It has automatic environment control function, and the air-cooled design reduces annual energy consumption by 50%. With high integration, it has no special requirements for the computer room environment.

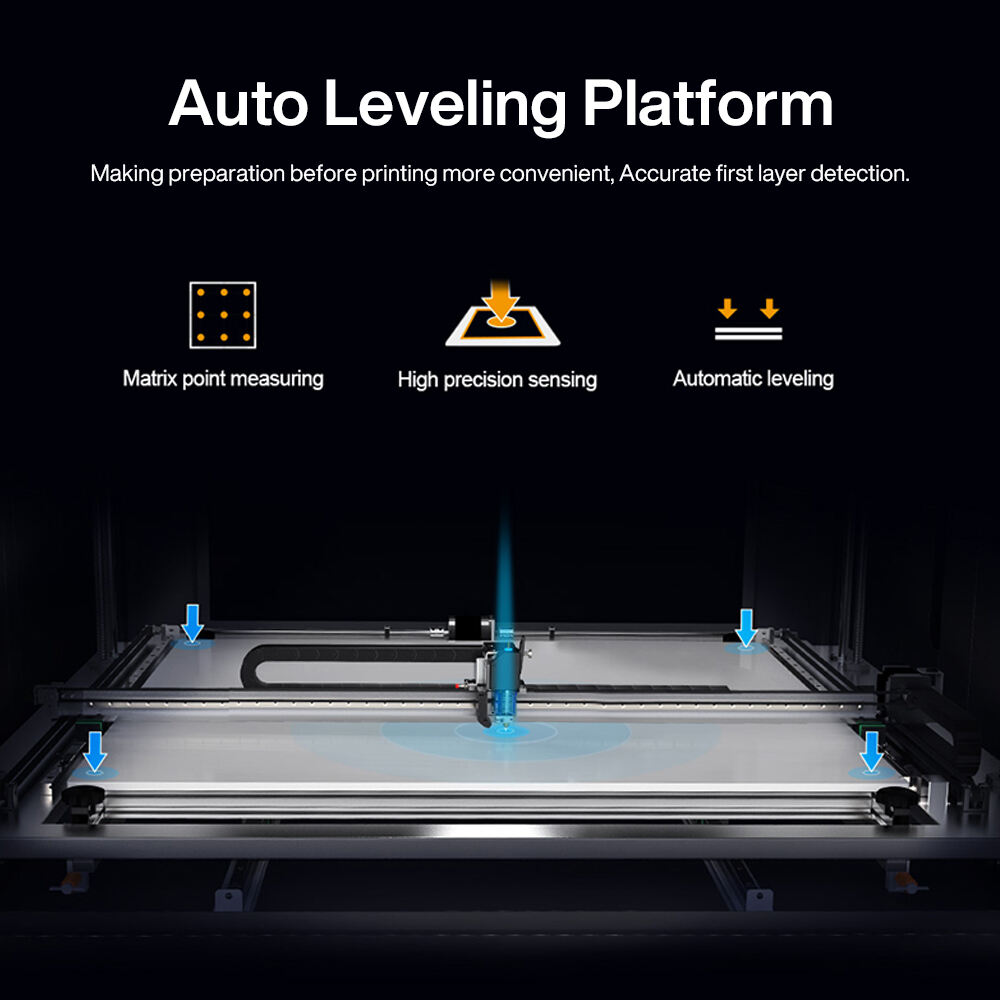

Adopting an intelligent control system, the optical system is of closed design to reduce external interference and pollution; the process is fully automatic, supporting negative pressure adsorption scraper, automatic liquid level adjustment and one-key start, basically realizing unattended production. The user-friendly operation interface is simple and easy to understand, widely used in electronic appliances, auxiliary medical, handboard manufacturing, architectural design, cultural and creative, toy animation, jewelry, aerospace and other fields. It provides an efficient solution for product R&D prototyping and small-batch production, greatly reducing mold costs and shortening product development cycles.
Product Parameters
| Parameter Category | Specific Parameters |
|---|---|
| Core Printing Parameters | - Machine Model: DY300pro - XY Axis Building Size: 300mm×300mm - Z Axis Building Size: 300mm - Scanning Speed: 8-18m/s - Scanning Layer Thickness: 0.04-0.25mm - Laser Power: 3000mw - Laser Wavelength: 355nm |
| Power Supply and Energy Consumption Parameters | - Power Supply Environment: AC 220V(±10%) 50/60Hz, single phase, 16A; AC 200~240V 50/60Hz, single phase, 16A - Energy Consumption Advantage: Annual energy consumption can be reduced by up to 50% - Cooling Mode: Air Cooling |
| Shape and Weight Parameters | - Machine Dimensions: 770mm×1010mm×1680mm - Machine Weight: Approximately 350kg |
| Operating Environment Parameters | - Ambient Temperature: 20-26℃ - Relative Humidity: Less than 40%, non-condensing |
| Performance and Warranty Parameters | - Control System: Intelligent Control (high stability, scalability) - Optical System: Closed Design - Automation Level: Full-process automatic, unattended production - Warranty Period: 18 months from the date of arrival |
