Flexible Multi-functional Laser Cleaning Machine - 5-Axis Collaboration + Automated/Handheld Dual Modes + 100 Preset Parameters + Real-time Auto-focus - For Irregular Workpieces
Product Description
The Flexible Multi-functional Laser Cleaning Machine is an efficient industrial cleaning equipment developed for complex workpiece cleaning scenarios. It adopts high peak power pulsed laser, high-speed scanning system, self-developed high-precision control system and power supply from well-known domestic enterprises, ensuring stable and reliable operation and excellent performance.
The equipment is suitable for surface treatment of metal and certain non-metallic materials, including flat surfaces, circumferential welded areas of rotating bodies, square tubes and various small irregular workpieces. It can efficiently complete rust removal, paint stripping, degreasing, oxide film removal, surface texture enhancement, as well as cleaning of black ash, carbon deposits, oil stains and other contaminants after welding. Compared with traditional cleaning methods, this flexible laser cleaning equipment (flexible multi-functional laser cleaning equipment) has prominent advantages: non-contact cleaning without damaging substrates, environmental protection without secondary pollution (recyclable removed substances), micron-level precision control in thickness direction, no consumables during use (only consuming electricity), ultra-energy-saving and wide applicability.
The equipment supports manual loading and unloading, one-key start of automatic cleaning, and the cleaning head is equipped with real-time auto-focus function to ensure cleaning effect; it operates with 5-axis collaboration, built-in 100 sets of preset parameters to adapt to diverse working conditions; equipped with a sealed laser processing chamber and synchronized dust removal system for safe and stable operation. It also supports customized multi-functional cleaning heads, allowing free switching between automatic and handheld modes, and is widely used in aerospace, rail transit, automotive manufacturing, mold processing and other industrial fields.
Product Parameters
| Parameter Category | Specific Parameters |
|---|---|
| Optical Property Parameters | - Laser Average Power: 100W/200W/500W/1000W - Power Adjustment Range: 10%~100% (Adjustable) - Laser Line Width: Length 1mm~100mm (Adjustable); Width 1mm~100mm (Adjustable) - Field Lens Model: F254 - Minimum Fiber Bend Radius: 200mm - Laser Output Stability: ＜5% - Cooling Mode: Air Cooling/Water Cooling - Polarization Direction: Arbitrary - Guided Laser Function: Available - Anti-high-reflection Function: Available - Real-time Auto-focus: Supported |
| General Property Parameters | - Net Weight: 4500kg - Floor Space: L3700mm×W4400mm - Maximum Cleaning Size: 3000mm×1500mm - Maximum Thickness: 50mm - Supply Voltage: AC220±10%V - Utility Frequency: 50/60Hz - Operating Temperature Range: 0℃~40℃ - Storage Temperature Range: -10℃~60℃ - Power Consumption @25℃: ＜5kW - Supply Air Pressure: 0.4Mpa (Oil-free and Water-free Clean Compressed Air) - Operation Mode: 5-Axis Collaboration, Automated/Handheld Dual Modes - Preset Parameters: 100 Sets |
Other Details
1、Configuration
| Configuration Type | Details |
|---|---|
| Standard Configuration | - Cleaning Host: Operation Platform, Industrial Dust Collector, Industrial Refrigeration Equipment - Laser Protective Glasses: 1 Pair (Compliant with EU EN207:2009/AC2011 & CE Certification, Protection Band 190~400nm & 800~1100nm) - Replaceable Protective Lenses: 5 Pieces - Supporting Documents: Equipment Operation Manual, Maintenance Manual, Product Inspection Certificate, Technical Drawings (Including 2D/3D Models), PLC Program & Process Program Files, Warranty Card, Packing List |
| Optional Configuration | Customized Multi-functional Cleaning Head |
2、Safety & Operation
- The equipment is a Class Ⅳ laser product with a central wavelength of 1064nm (invisible light). Operators must wear laser protective glasses throughout the operation and are strictly prohibited from looking directly at the laser output head.
- Emergency Stop Button: Located on the right side of the operation panel (red mushroom shape), which can be pressed to stop urgently in case of abnormalities and rotated clockwise to reset.
- Operation Process: Manual Loading/Unloading → Select Cleaning Program → One-key Start Automatic Cleaning (or Switch to Handheld Mode) → Synchronized Dust Removal System Operation.
- Precautions: Reserve 10cm ventilation distance around the equipment; fiber bend radius ≥200mm; do not place flammable and explosive materials nearby; cover the laser output port when not in use.
3、Maintenance & Troubleshooting
| Daily Maintenance | Common Troubleshooting |
|---|---|
| - Clean the cleaning head protective lens after each use to ensure no dust contamination. - Regularly check the operation status of the dust removal system and refrigeration equipment. - Clean the equipment surface and ventilation filter weekly. - Check for condensation inside the equipment when environmental humidity ＞70%. | - No Power On: Check emergency stop switch reset, power connection and air switch status. - No Red Light Output: Confirm laser operation and power connection are normal, and check if the temperature of the refrigeration equipment meets the standard. - No Laser Output: Check the "Start" button, DB25 line and power line, and troubleshoot optical path issues. - Weak Laser Output: Wipe the cleaning head protective lens to ensure cleanliness. |
Sample Display
|

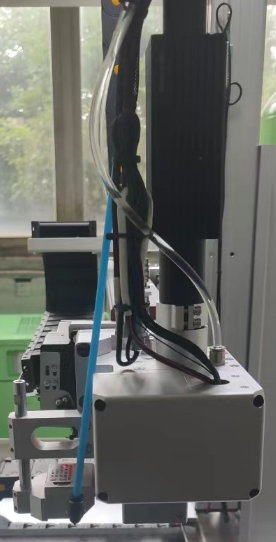

Type A cleaning head (standard, size subject to actual product) |

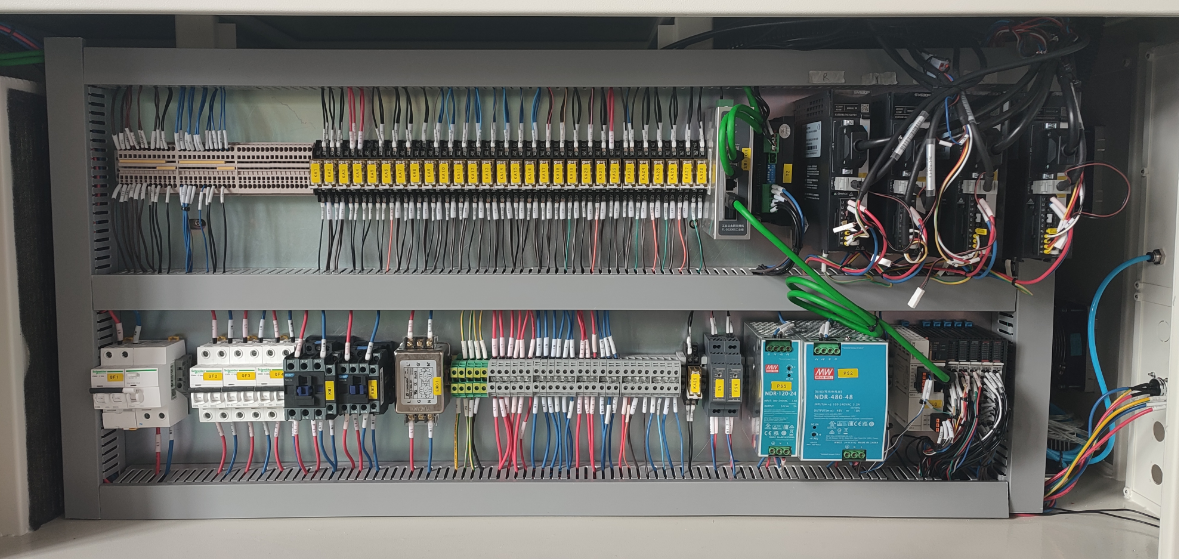

Control system |
