System Advantages
1.New-Generation 64-Bit Architecture
- Ultra-fast data processing: 64-bit kernel handles large files (e.g., STL, DXF) without lag, 3–5× faster than 32-bit systems.
- High stability: Eliminates memory bottlenecks for complex 3D jobs, ensuring uninterrupted 24/7 production.
2. Integrated 2D & 3D Processing
- 2D: Precision marking on flat surfaces (text, barcodes, logos, images).
-
3D: Dynamic focusing for curved, tilted, or irregular surfaces; supports STL slicing, projection, and wrapping without distortion.
3. Powerful Motion & Laser Control
- 4-axis synchronization: DLC cards control up to 4 motors for automated positioning and feeding.
- Universal laser compatibility: Works with fiber, CO₂, UV, green, YAG, picosecond, femtosecond lasers (IPG, Raycus, JPT, Coherent, etc.).
- High-precision galvanometer control: Supports 16–20 bit galvanometers with advanced calibration (trapezoidal, barrel, parallelogram correction).

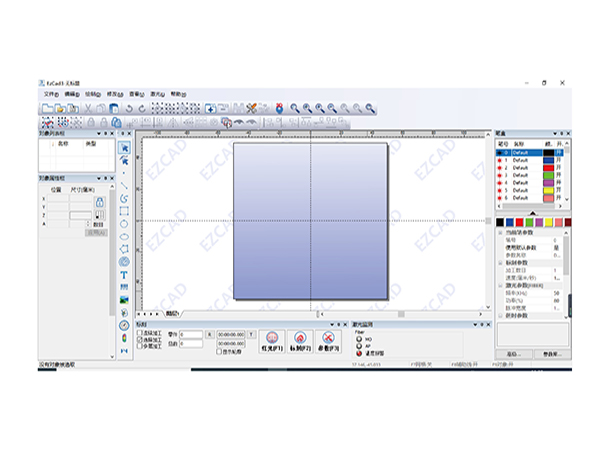

EZCAD3 Software
| Item |
Specification |
| Kernel |
64-bit (Windows 7/10/11 64-bit) |
| Supported Formats |
AI, DXF, STL, BMP, JPG, PNG, PLT, etc. |
| Fonts & Codes |
TrueType, single-line (JSF), dot matrix (DMF), 1D/2D barcodes (DataMatrix, QR) |
| Processing Modes |
2D marking, 3D dynamic focusing, fly marking, offline marking |
| Network |
TCP/IP remote control, variable text transmission |
| Secondary Development |
SDK available for custom integration |

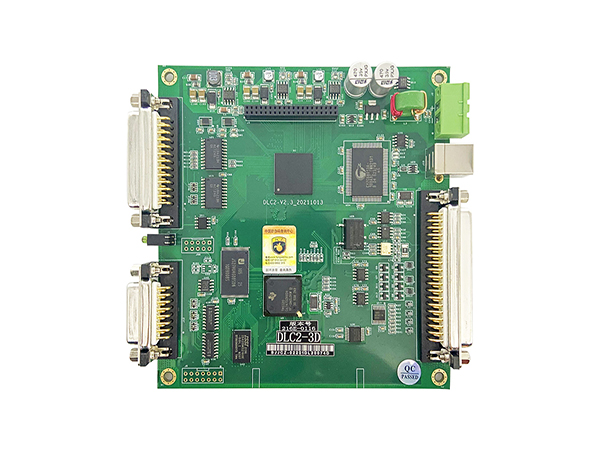

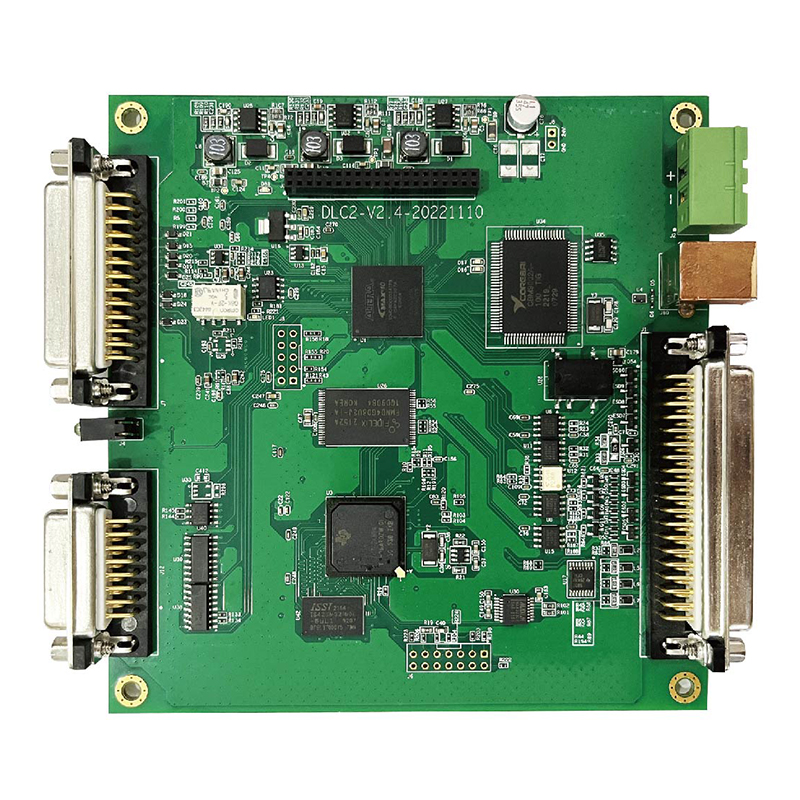

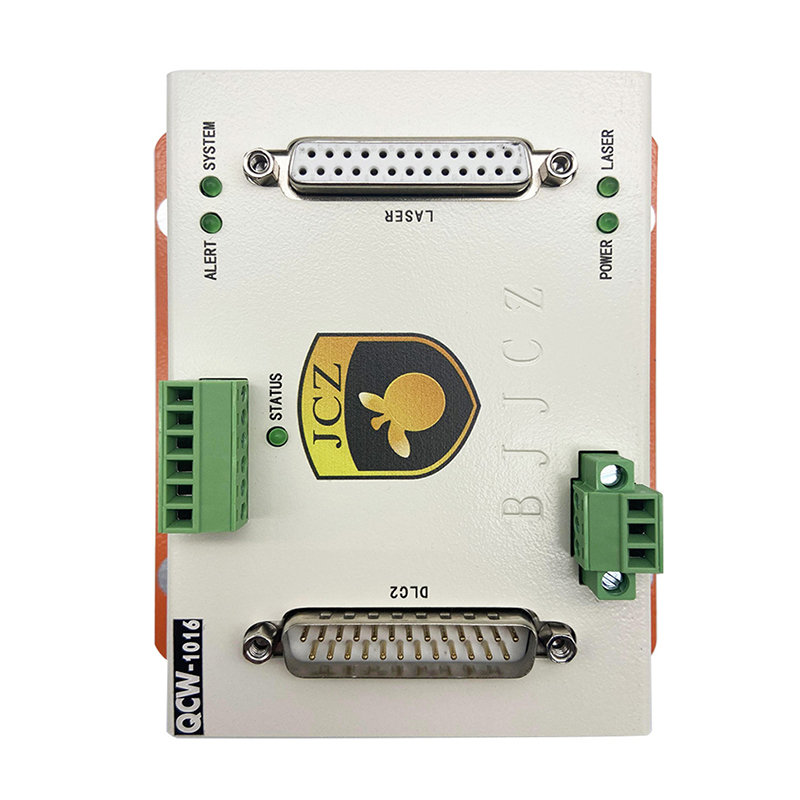

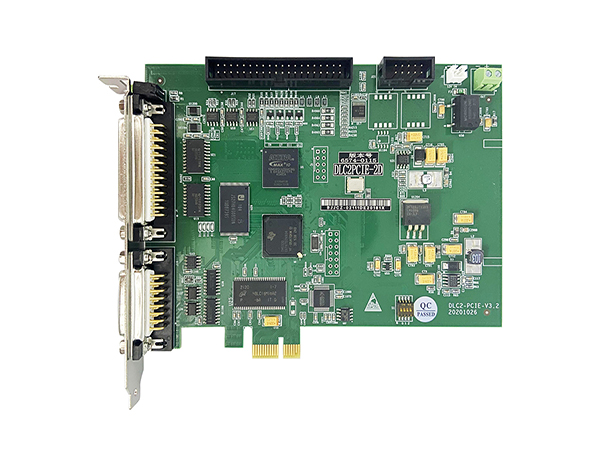

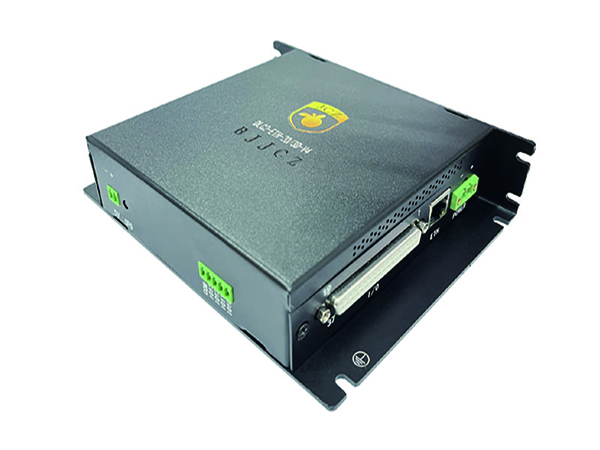

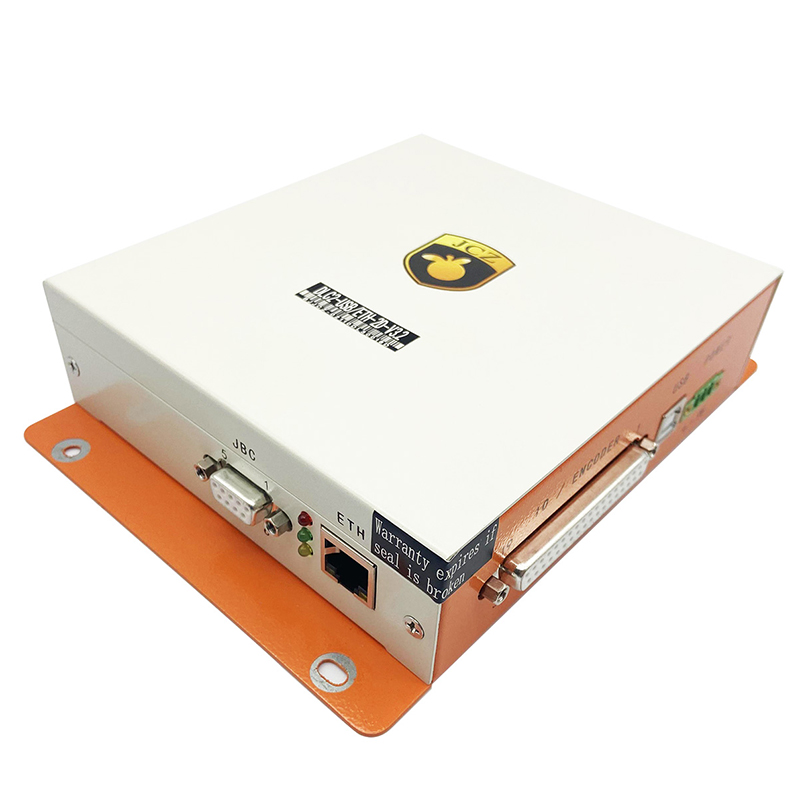

DLC Series Control Cards (DLC2-M4-3D as Standard)
| Item |
Specification |
| Model |
DLC2-M4-3D (2D/3D compatible) |
| Connection |
PCIE/USB/Ethernet |
| Axis Control |
4 axes (pulse/direction signal) |
| Galvanometer Protocol |
XY2-100, SL2-100, RAYLASE, CANON |
| Laser Types |
Fiber, CO₂, UV, YAG, QCW, SPI, IPG, etc. |
| I/O Ports |
10-in / 8-out (NPN/PNP compatible) |
| Galvanometer Resolution |
16/18/20 bit (customizable) |
| Power Supply |
DC 5.5–24V, 3A |
| Dimensions |
Standard PCIE form factor; compact for embedded systems |
Main Applications

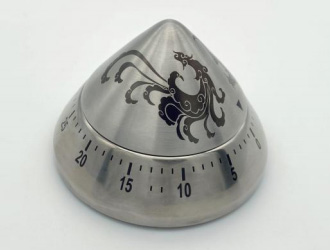

Precision Marking & Engraving
Consumer Electronics: Phone cases, laptops, keyboards, and accessories (logo, serial number, QR code marking).
- Jewelry & Watches: Gold, silver, platinum engraving; 3D curved surface marking for bracelets, rings, and watch dials.
Hardware & Tools: Knives, scissors, bearings, and fasteners (model, batch number, anti-counterfeiting marking).
