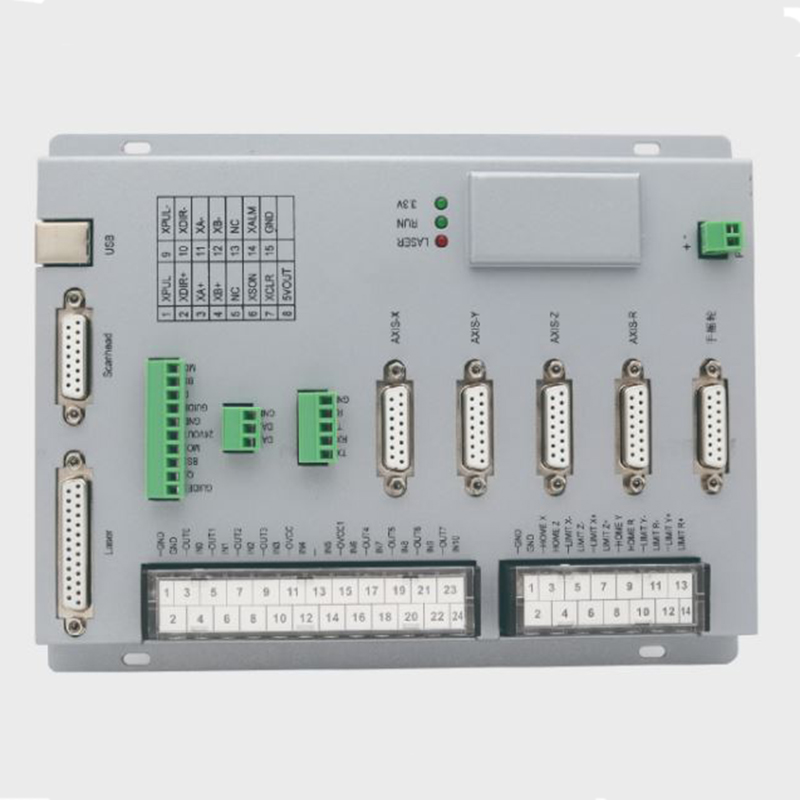

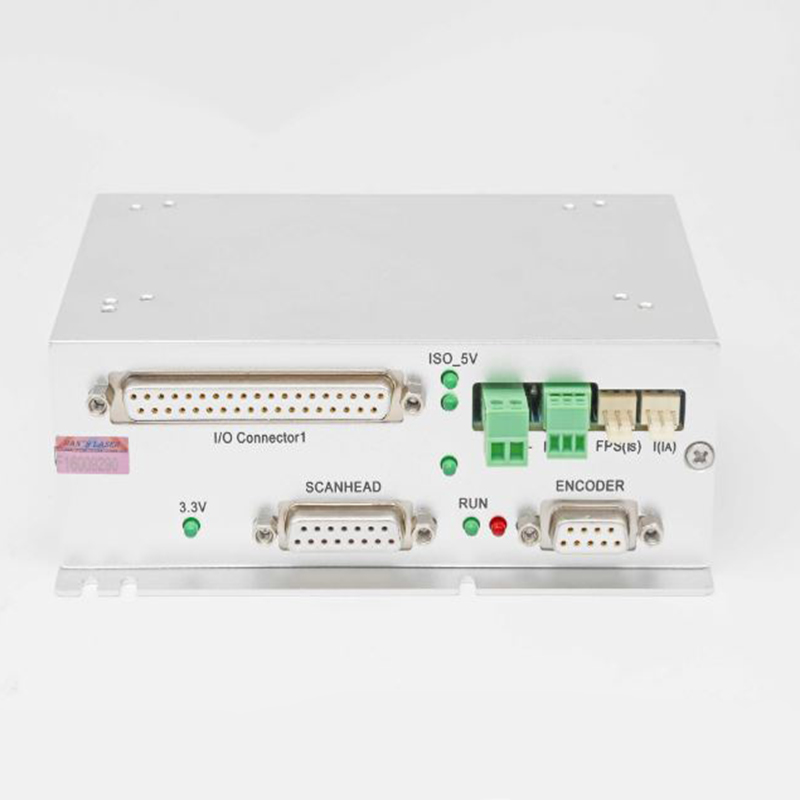

EMCC Laser Marking Control System
Technical Features
 |
 |
As a self-developed product by Han’s Laser, the EMCC series is a full-range motion control system for laser marking. All controllers are equipped with a built-in encryption chip, eliminating the need for external dongles and supporting unlimited remote encryption with minute-level timing accuracy.
Adopting optimized core algorithms, the system ensures smooth laser operation without deceleration at corners, effectively solves pulse accumulation issues, and delivers high control precision and excellent graphic restoration with no distortion on tiny patterns. It supports offline editing and file saving, and enables offline marking of up to 128 independent files.
The system boasts powerful process capabilities, covering 2D marking, 2.5D deep engraving, 3D dynamic rotation, multi-station processing and various 3D texture mapping modes including projection and cylindrical wrapping. It is compatible with mainstream galvanometers and laser devices on the market, and provides USB and 100M Ethernet ports for flexible connection and network interconnection.
It supports one computer controlling multiple cards to realize multi-device collaborative operation. Two sets of secondary development libraries are available to meet customized development demands. Matched with the "E-Precision" high-precision calibration software, the system completes calibration in three simple steps, achieving an accuracy of around 10 μm within a 100×100 mm area, and up to less than 5 μm after multiple iterations. The supporting timing authorization software enables usage period management, tamper resistance and anti-cracking for terminal devices.

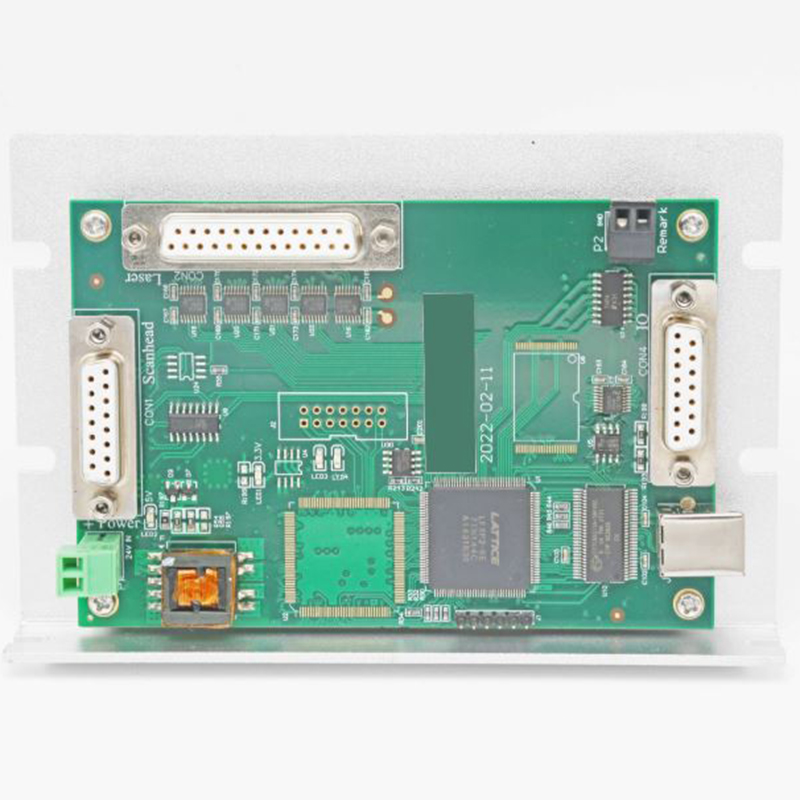

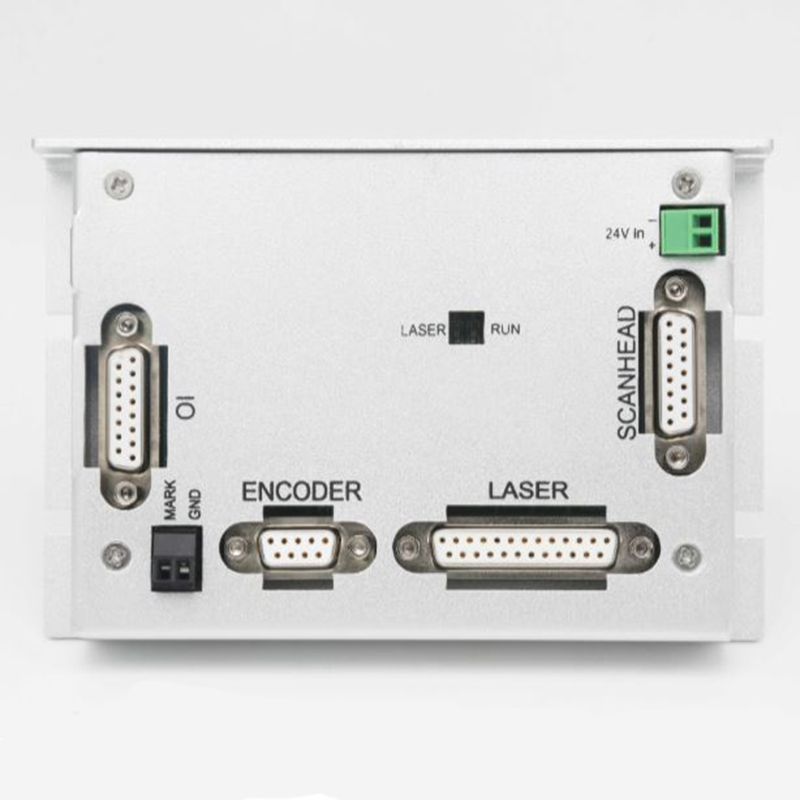

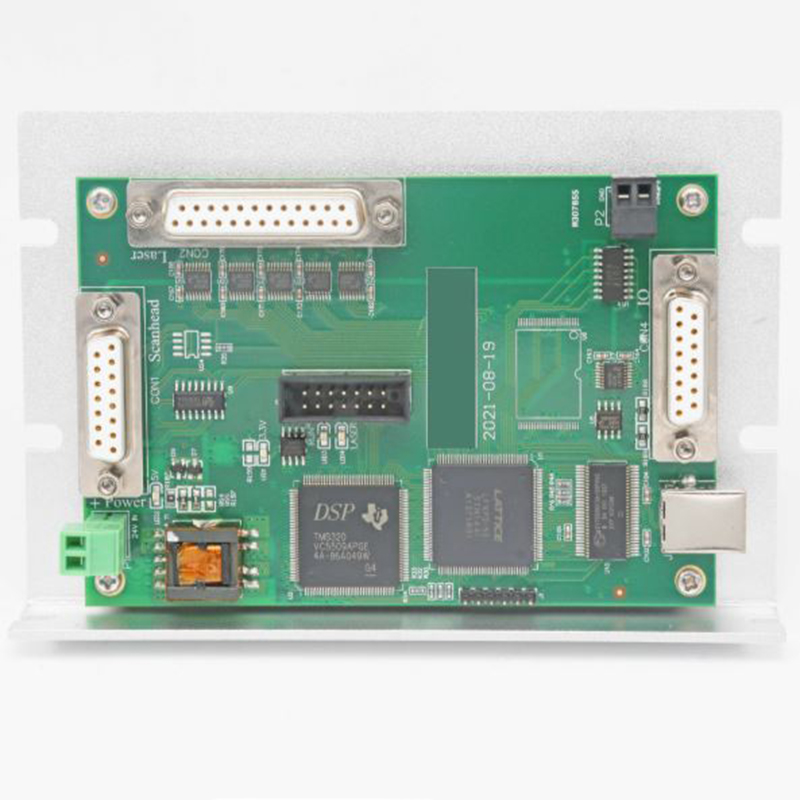

Performance Parameters of EMCC Slim Card
 |
 |
The EMCC Slim Card includes models 2008/2080/2009/2010/2090 and 2091, designed for cost-effective basic applications.
- General Specifications: Compatible with HBM marking software; rated supply voltage 24V; equipped with external trigger signal; connected via USB interface; compatible with mainstream galvanometers and lasers.
- Models 2008/2080/2009/2010/2090: 1 motion axis, 4 universal input ports and 4 universal output ports. Standard features include high-precision calibration, multi-card operation on one PC and standard rotary marking. Offline operation and relief marking are optional functions for selected models.
- Model 2091: Compact structure for easy integration; 1 motion axis, 4 universal input ports, 3 universal output ports and TTL serial port. It supports multi-card operation and standard rotary marking.
Main Applications
 |
 |
 |
Full EMCC Series
Widely used in consumer electronics, precision machining, food packaging, tobacco, automotive, new energy, medical molds and other industries. It fulfills high-precision processing requirements for 3D curved surfaces, irregular workpieces and special-shaped components, and adapts to automated production lines for flying marking, large-format splicing and special processes such as laser glass processing.
EMCC Slim Card
Focused on basic 2D laser marking scenarios. It is widely applied to 3C electronics, daily hardware, non-metallic light industry, jewelry, medical consumables and entry-level auto parts. Ideal for desktop laser marking machines, portable marking equipment and simple automated marking units, it meets conventional marking demands for texts, serial numbers, QR codes, logos and simple rotary marking of small workpieces.
