DMKLASER 3KW Laser Cutter-Specific Air Circuit & Lubrication Integrated Kit
Product Brief

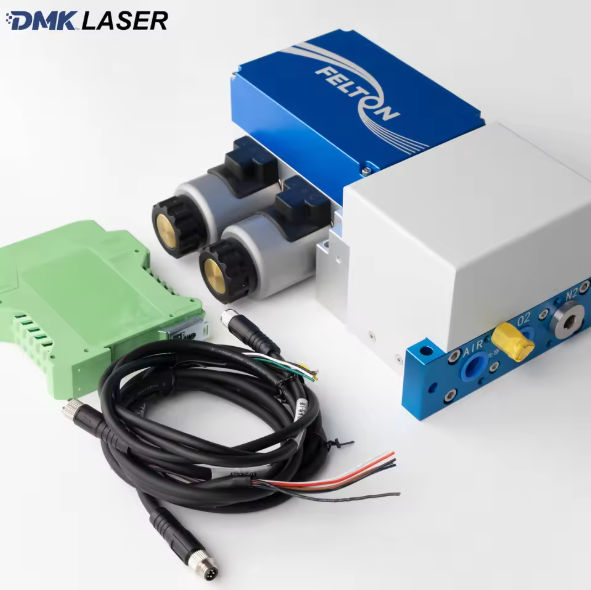

This is a plug-and-play pneumatic kit specifically designed for laser cutters with power up to 3KW. It integrates core components such as a high-precision SMC proportional valve, dual-stage filtration system, and automatic lubrication oil pump, realizing integrated precise pressure control, impurity filtration, and component lubrication to ensure cutting quality and equipment service life.
Product Features
- Precise Pressure Control with SMC Proportional Valve: Equipped with Japan's SMC Series 2050 proportional valve, featuring fast response and stable output of 0.15-0.8MPa air pressure. It ensures precise and controllable gas supply for laser cutting, enhancing the cleanliness of cutting edges.

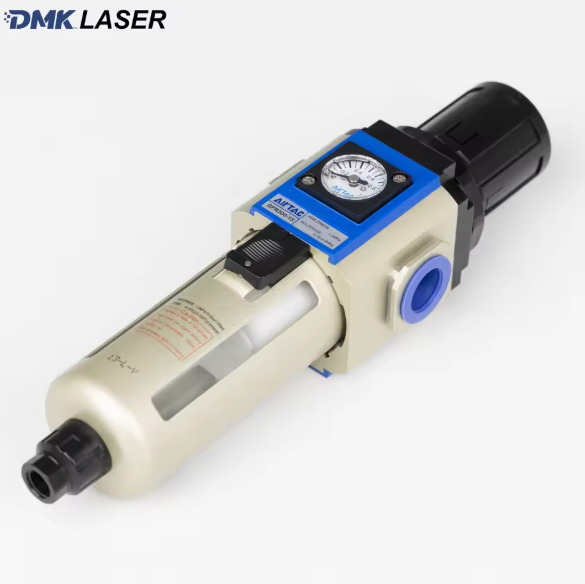

- Dual-Stage Filtration + Low-Pressure Alarm: The low-pressure stage is equipped with an AirTAC filter and an alarm pressure switch to monitor air supply status in real time; the high-pressure stage has a built-in 40-micron filter that efficiently removes impurities, protecting core components like valves and nozzles.
- Multi-Point Automatic Lubrication: Built-in lubrication oil pump provides 5+3+3 multi-point lubrication, reducing wear on moving parts such as guide rails and cylinders, extending equipment service life, and lowering maintenance costs.
- Strong Compatibility with Plug-and-Play Design: The fully integrated design requires no additional adaptation, directly matching 3KW laser cutters. It eliminates the hassle of component sourcing and assembly, improving installation efficiency.
- Patented Certification & Quality Assurance: Boasts patented technology, complies with IP65 protection standards and CE certification. The product is brand-new ex-factory, ensuring reliable quality.
Product Parameter Table
| Category | Specifications |
|---|---|
| Applicable Power Range | Laser cutters ≤3KW |
| Core Component Models | SMC Proportional Valve (Series 2050), AirTAC Solenoid Valve (4V210-08) |
| Working Pressure | 0.15~0.8MPa |
| Solenoid Valve Voltage | DC24V (Power: 3.0W, Voltage Range: 21.6V-26.4V) |
| High-Pressure Filtration Precision | 40 microns |
| Lubrication Method | Automatic multi-point lubrication (5+3+3 points) |
| Protection Level | IP65 |
| Certification Standards | CE Certified, Patented Product |
| Product Weight | 50kg |
| Package Size | 50×50×40cm |
| Single Package Gross Weight | 30.0kg |
Product Application Fields
- Air circuit supply for laser cutters ≤3KW
- Lubrication of moving parts in laser cutting equipment
- Supporting industrial laser cutting production lines
- Upgrade of air circuit systems in laser processing equipment
Product FAQ
-
What power range of laser cutters is this kit compatible with? Answer: Specifically designed for laser cutters with power up to 3KW. The full set of components has strong compatibility and supports plug-and-play.
-
What is the function of the dual-stage filtration system? Answer: Low-pressure stage filtration + alarm can monitor air supply status to avoid equipment damage caused by low pressure; high-pressure stage 40-micron filtration can remove impurities, protecting core components like valves and nozzles.
-
How is the automatic lubrication function achieved? Answer: A built-in lubrication oil pump provides 5+3+3 multi-point automatic lubrication, specifically reducing wear on moving parts such as guide rails and cylinders.
-
What are the brands and models of the core control components? Answer: The core components include Japan's SMC Series 2050 proportional valve and AirTAC 4V210-08 solenoid valve, ensuring pressure control precision and operational stability.
- Does the product support customization? Answer: Yes, it supports minor customization and can be adapted and adjusted according to actual needs.
