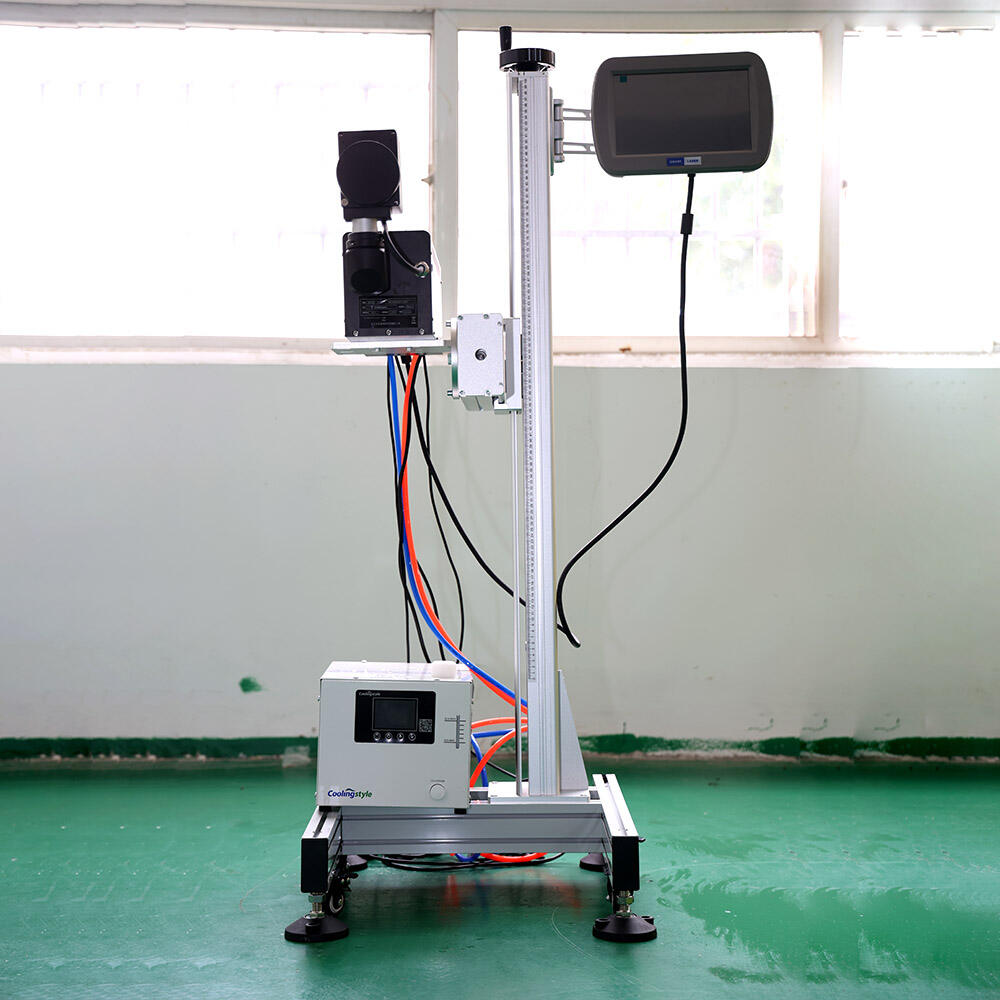

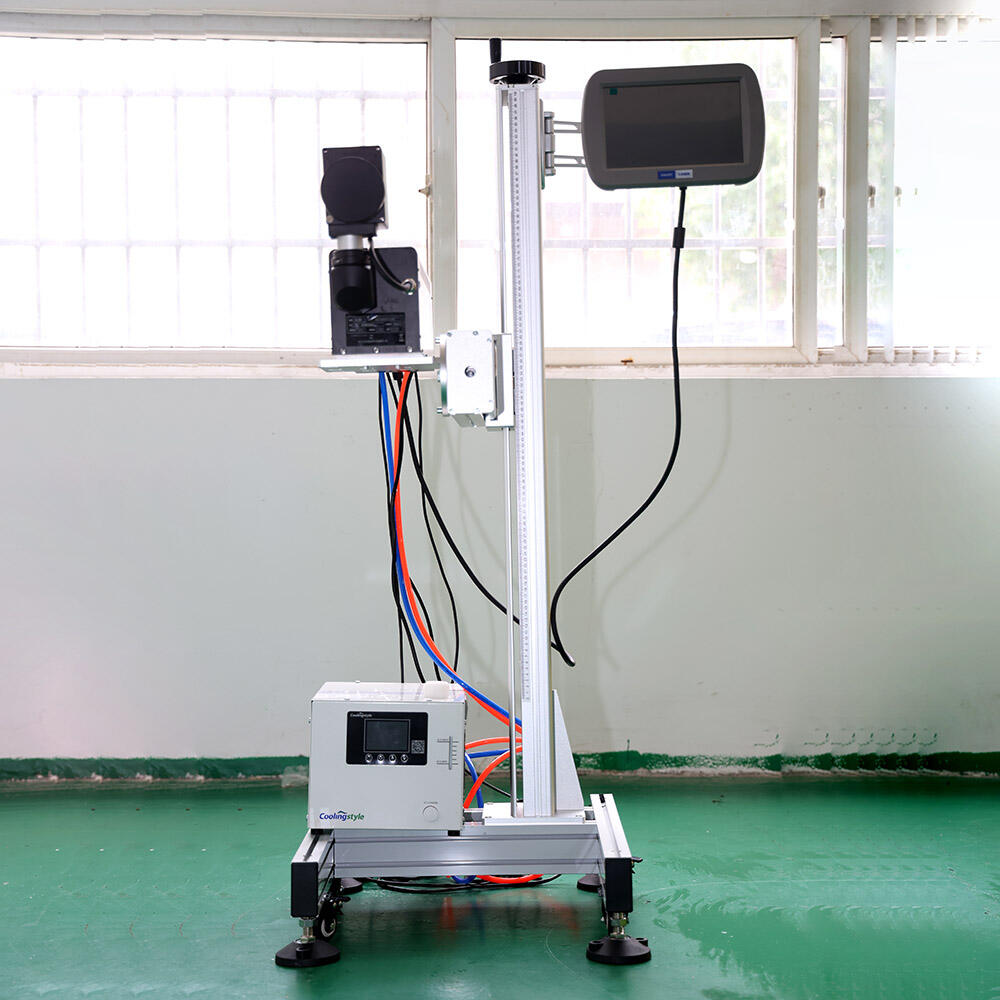

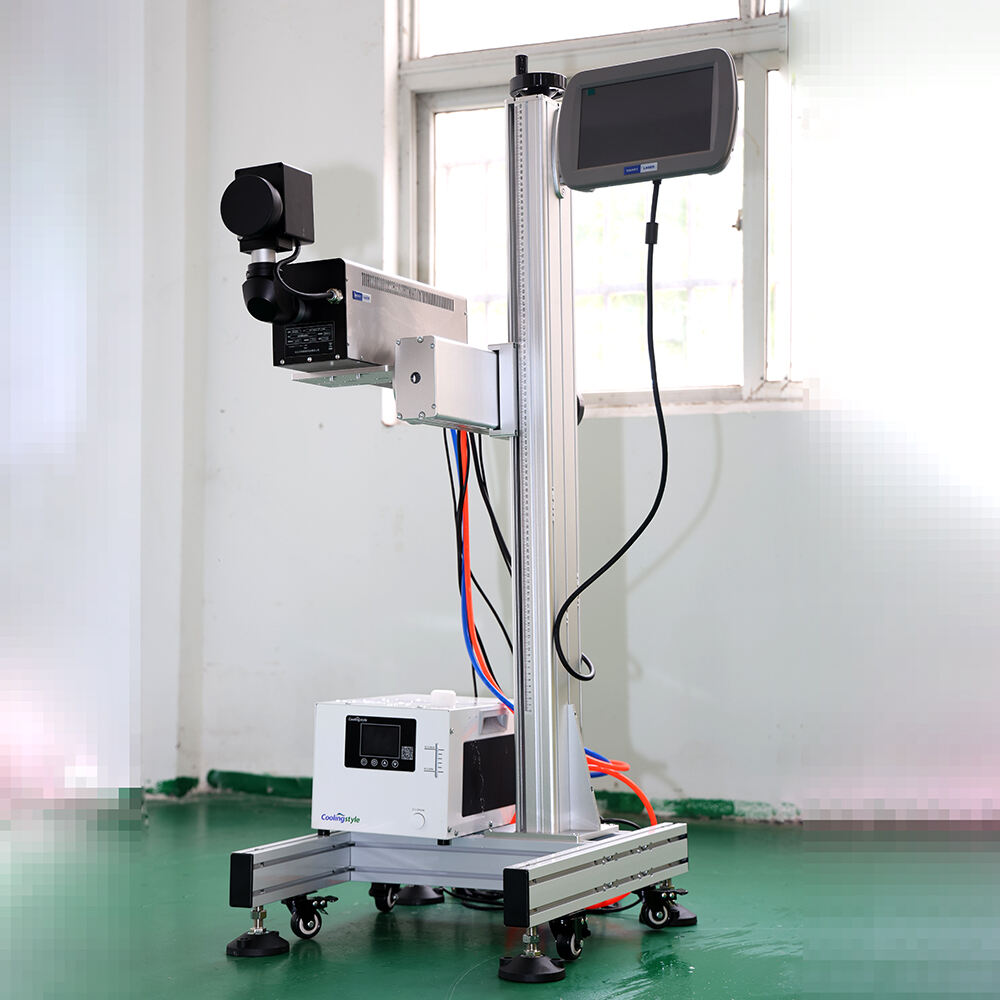

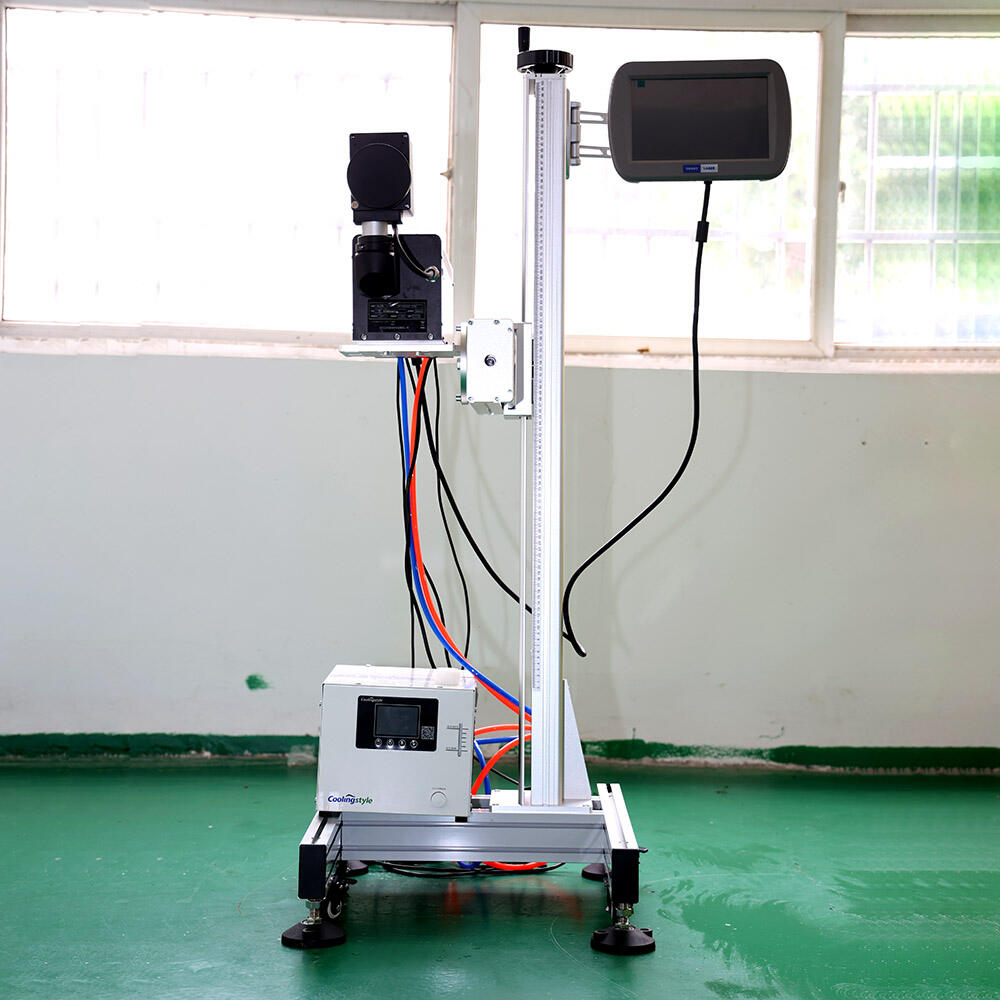

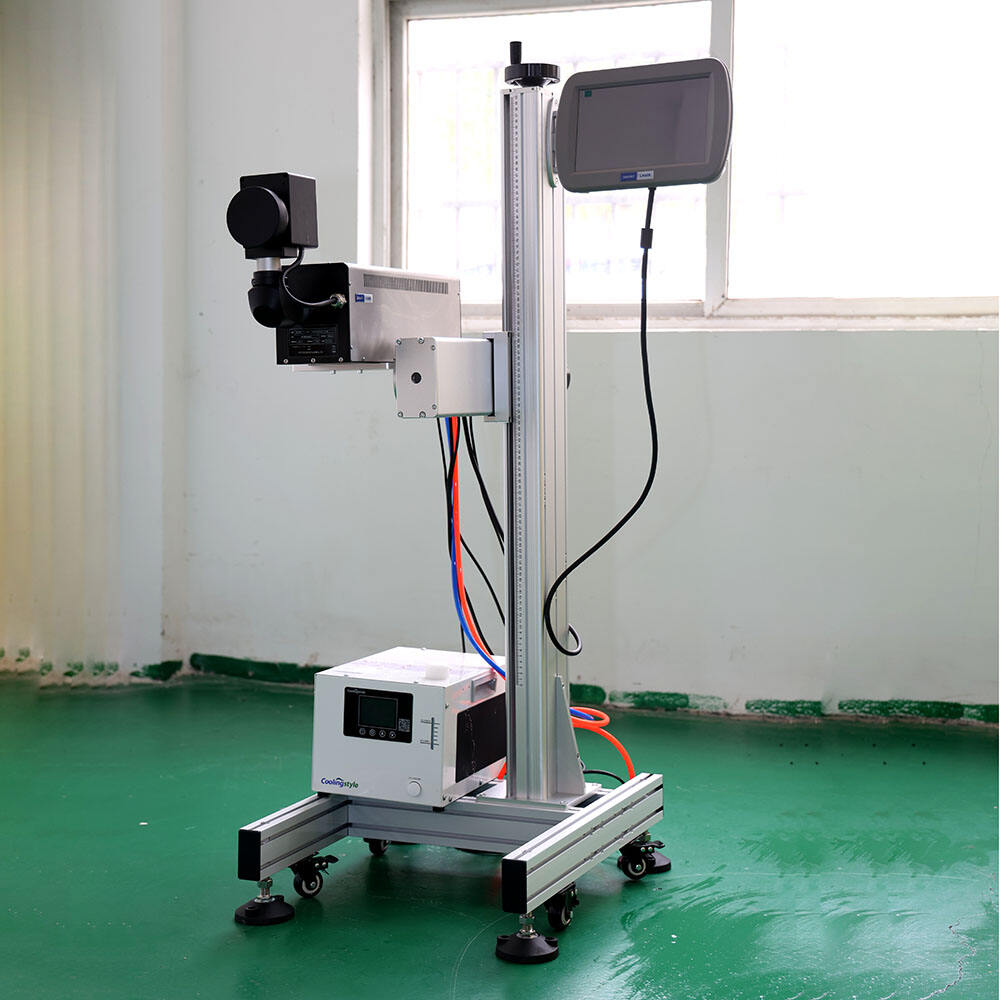

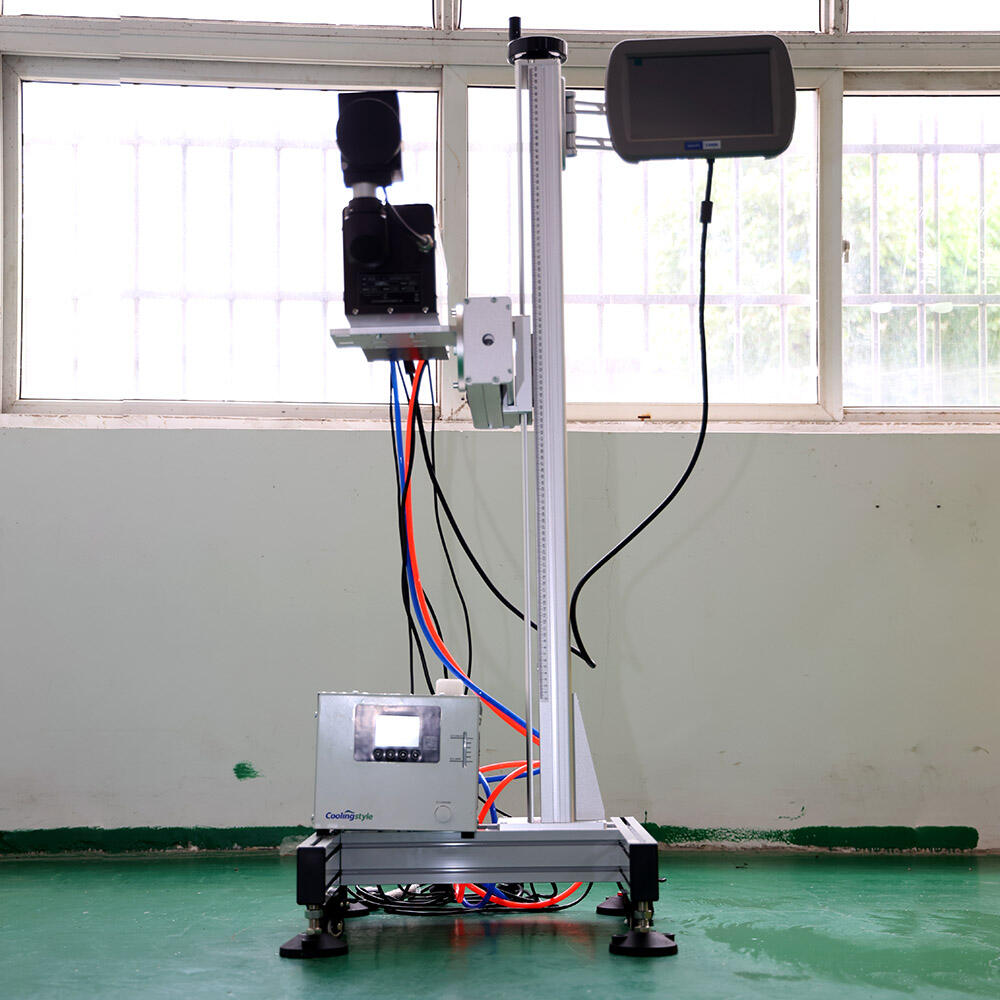

DMK SU5000 UV Laser Coding Machine

The DMK SU5000 UV Laser Coding Machine is a high-performance industrial marking solution designed for permanent, non-contact marking on a wide range of materials. With advanced 355nm UV laser technology, it delivers ultra-fine, high-contrast marks on packaging films, plastic, glass, paperboard, and more—without causing surface damage.

Engineered for high-speed production lines, the SU5000 ensures excellent stability, precise marking, and seamless integration with automation systems. It is ideal for industries requiring fine-detail printing like food & beverage, pharmaceuticals, cosmetics, electronics, and automotive manufacturing.

🔬 High-Precision UV Laser (355nm): Suitable for sensitive materials with minimal thermal effect

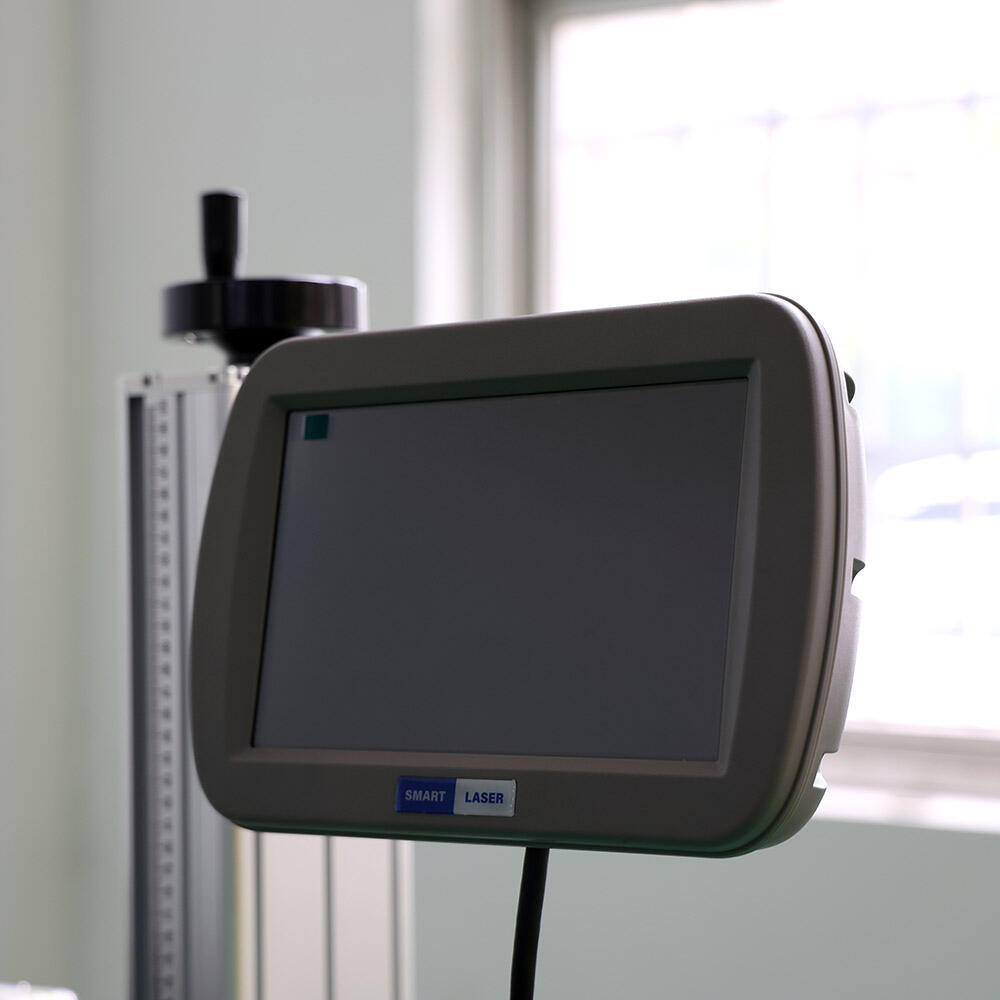

	⚙️ Integrated Industrial Control System: Fast, accurate control of laser output, marking data, and external signals
🧊 Efficient Cooling Options: Available in air-cooled and water-cooled versions (depending on laser power)
	🔍 High-Speed Marking: Up to 12,000 mm/s, with preview and red-light positioning for real-time accuracy
📦 Multiple File Formats Supported: BMP, JPEG, DXF, PLT, HPGL for flexible design input
	🔌 Smart Connectivity: Supports encoder, photoelectric sensor, RS232/ TCP/IP for automation
👁️ Advanced Safety Design: Full laser protection, electrical grounding, and emergency stop system
	🧠 Software Expandability: Supports custom development and real-time marking on production lines

Parameter	Details
Model	SU5000
Laser Type	UV laser, wavelength 355nm
Laser Power	5W
Cooling Method	Water cooling
Marking Speed	Up to 12,000 mm/s (depends on application)
Marking Area	110x110mm, 175x175mm, 200x200mm (optional)
Positioning	Dual red-light focus + marking preview
Voltage	220V AC, 50/60Hz
Power Adjustment Range	10% - 100%
Supported File Formats	BMP, JPEG, DXF, PLT, HPGL
Control Interfaces	Encoder, I/O ports, RS232, TCP/IP
Protection Rating	IP54 (IP65 optional)

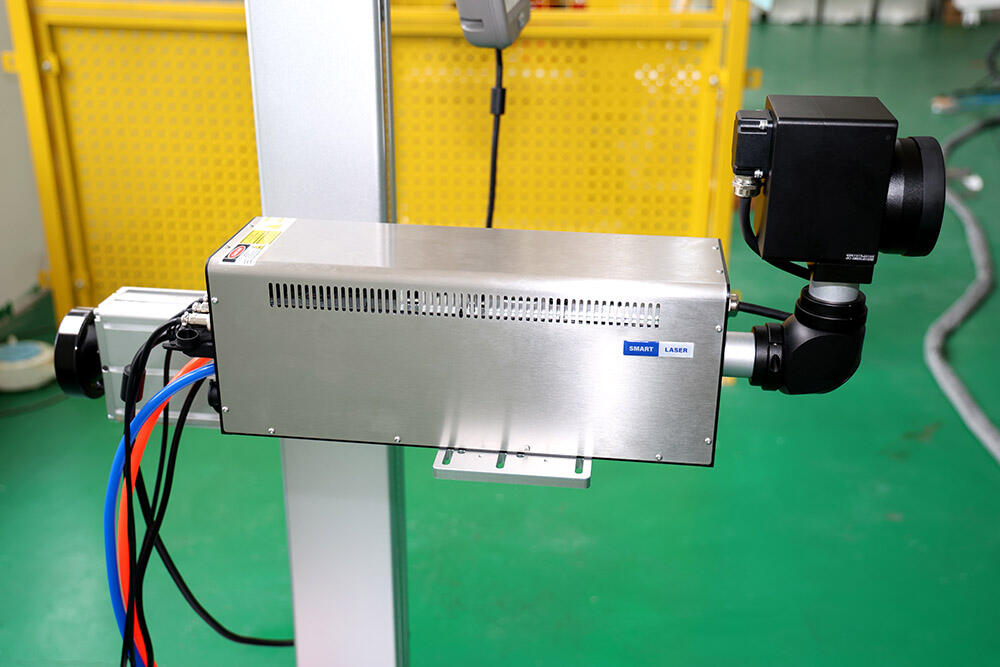

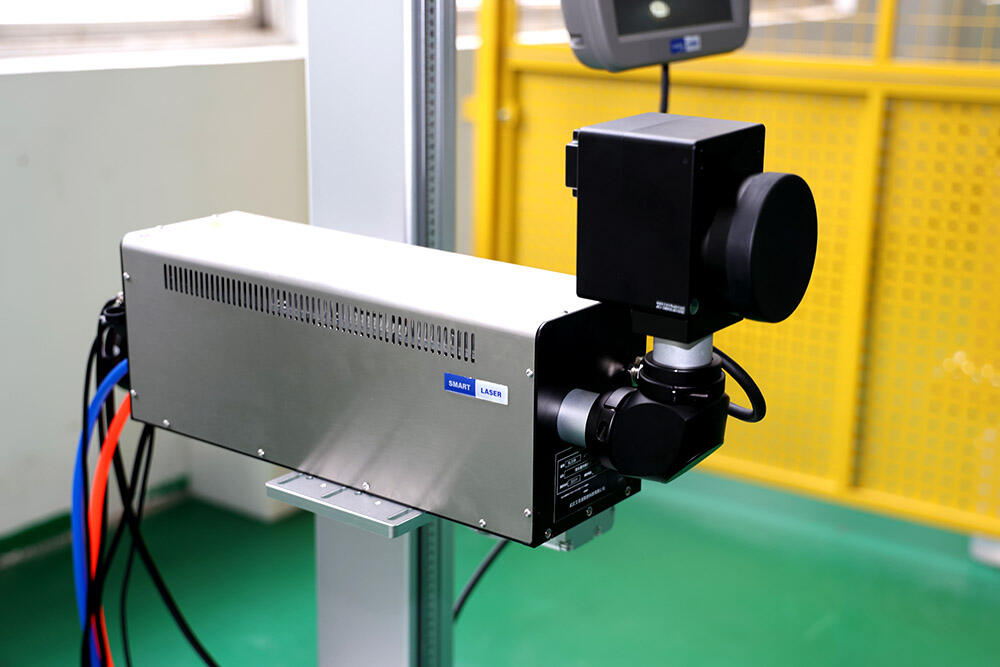

Dimensions	250mm x 134mm x 50mm (laser head)



Applications

Food & Beverage:

PET bottles, paper labels, flexible film packaging, coated boxes, and cartons.

Pharmaceuticals:
Blister packs, sterile containers, glass vials, paper labels, and folding cartons.

Cosmetics & Daily Chemicals:
Plastic containers (PET, PVC, PP), aluminum-laminated films, printed paperboard.

Electronics & Automotive:
PVC tubing, rubber, circuit boards, coated cartons, metal, and flexible laminates.
