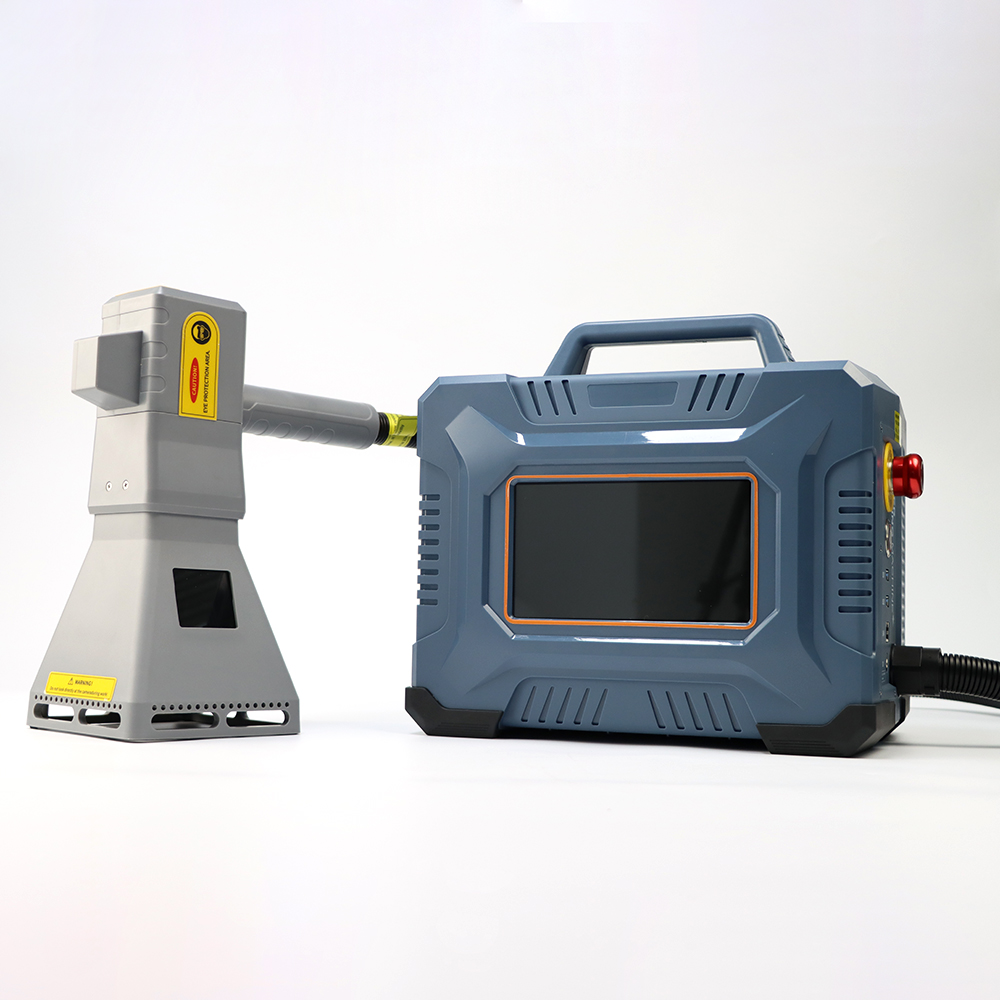

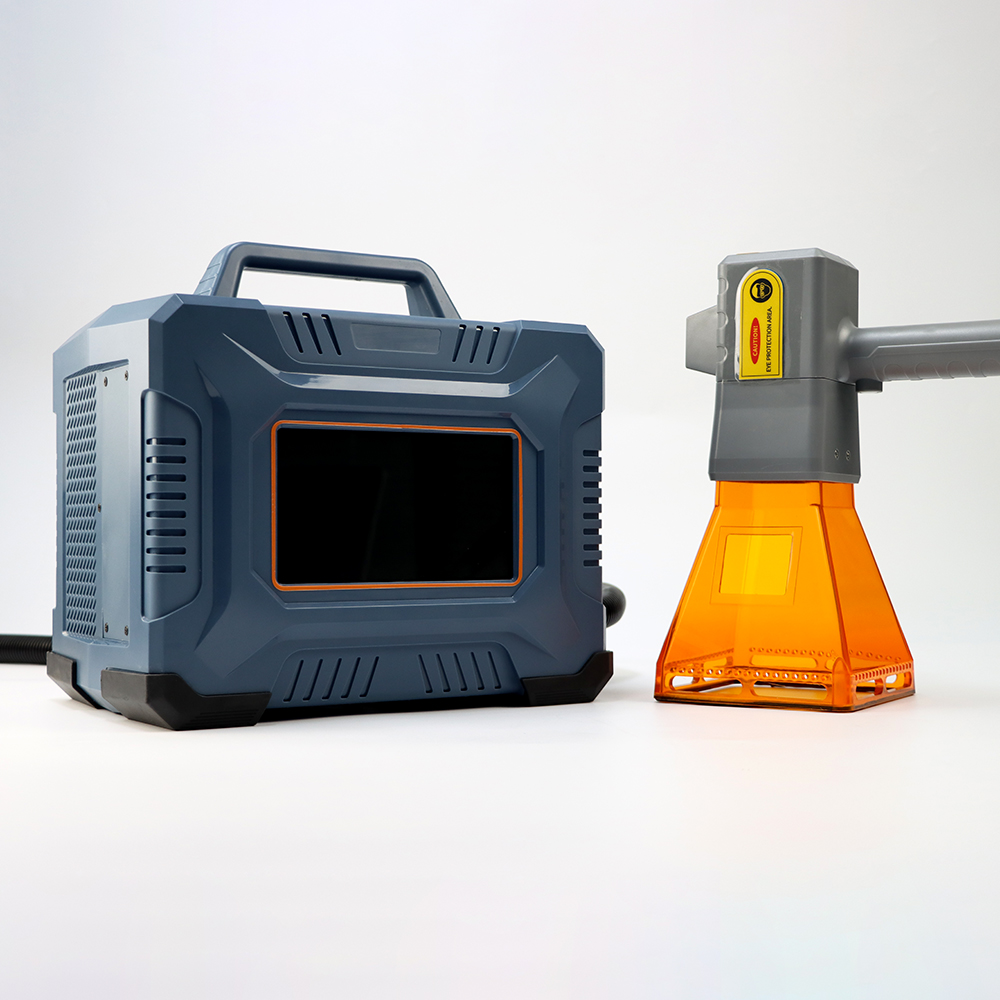

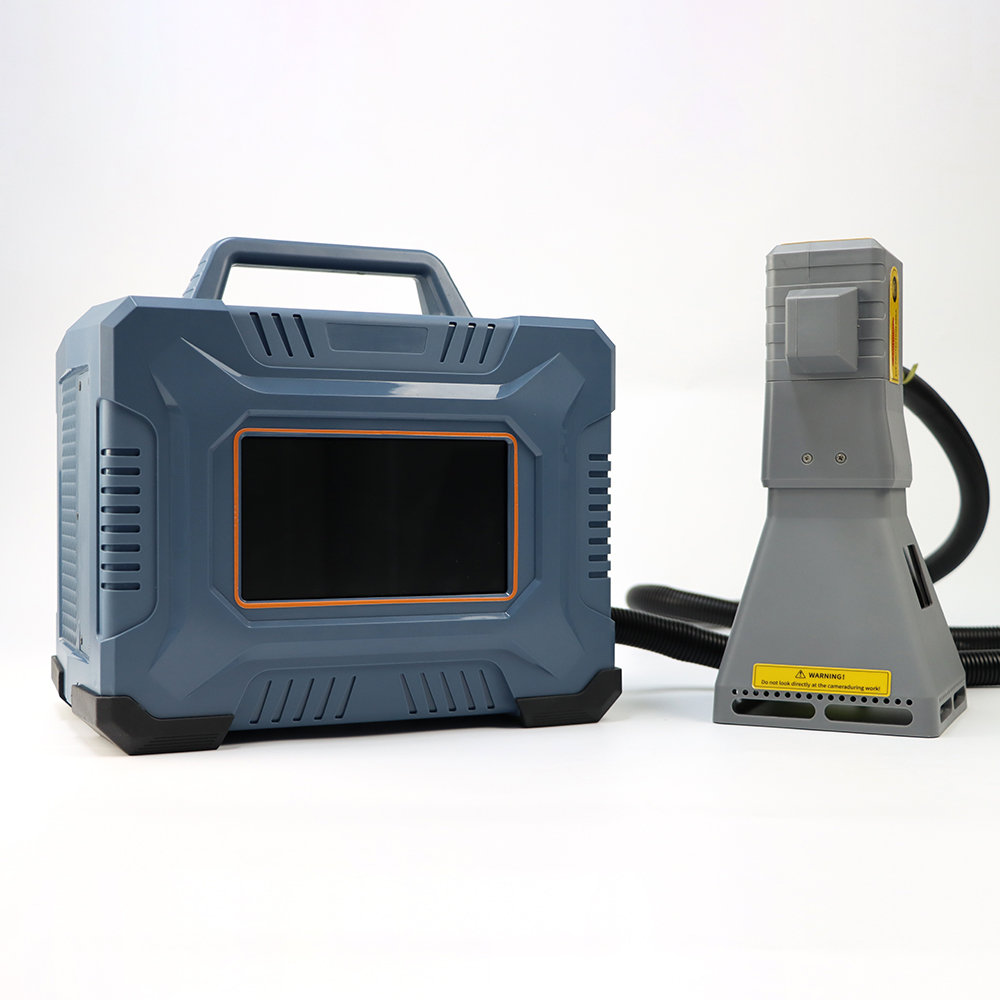

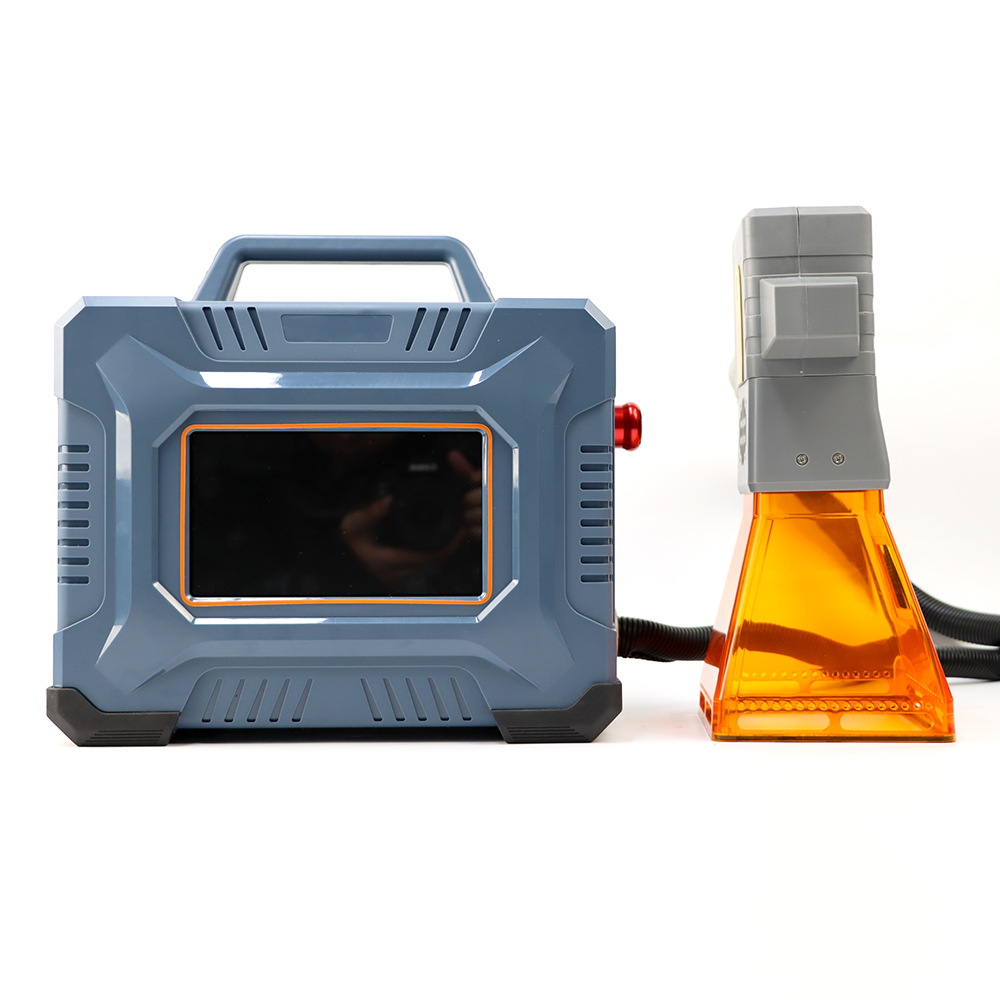

DMK Second-Generation Handheld Portable Laser Marking Machine

The upgraded second-generation handheld portable laser marking machine is designed to break through traditional limitations — combining high-performance marking power up to 60W with a fashionable, compact shell that’s built to last. Now available in stylish blue and black, the upgraded housing features an ergonomic chamfered handle for a more comfortable grip and easier marking operations.

This model brings major improvements in both hardware and software, including a newly designed Linux-based intelligent marking system, a larger 7-inch capacitive touch screen, enhanced dust protection, and full CE-standard safety features — making it an ideal choice for professionals across aerospace, automotive, and precision manufacturing industries.

• Upgraded Power Options: Available in 20W, 30W, 50W, and 60W, with marking depth up to 0.2mm on stainless steel in just 60 seconds.

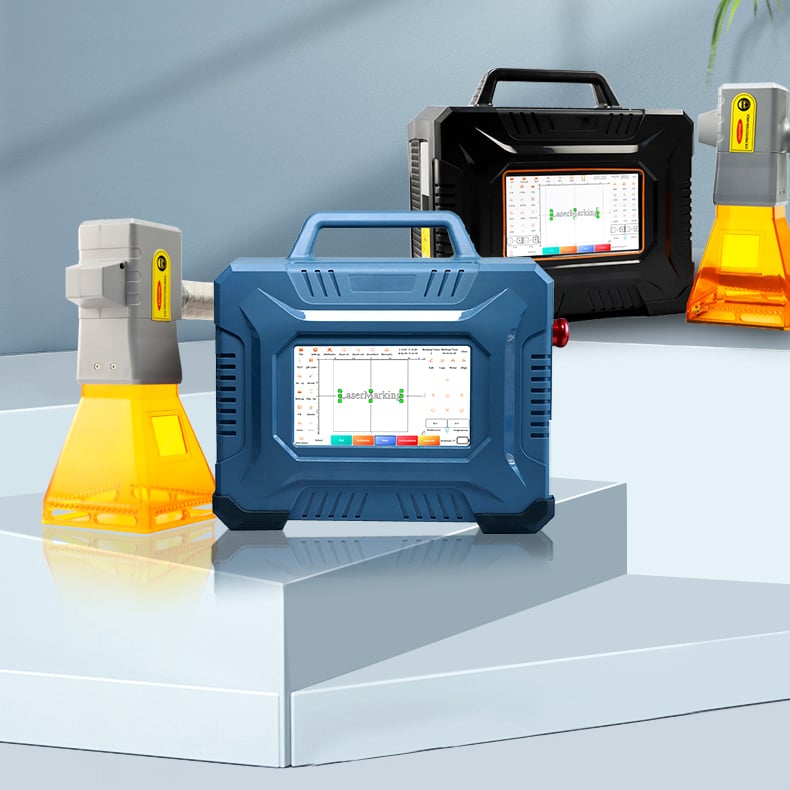

• Fashionable & Durable Housing: Compact, robust case with a non-monotone blue and black color scheme. Ergonomic chamfered handle design improves handling comfort.

• Compact & Portable: Lightweight design with smart layout — cables and controls on the same side for better storage and easier maintenance.

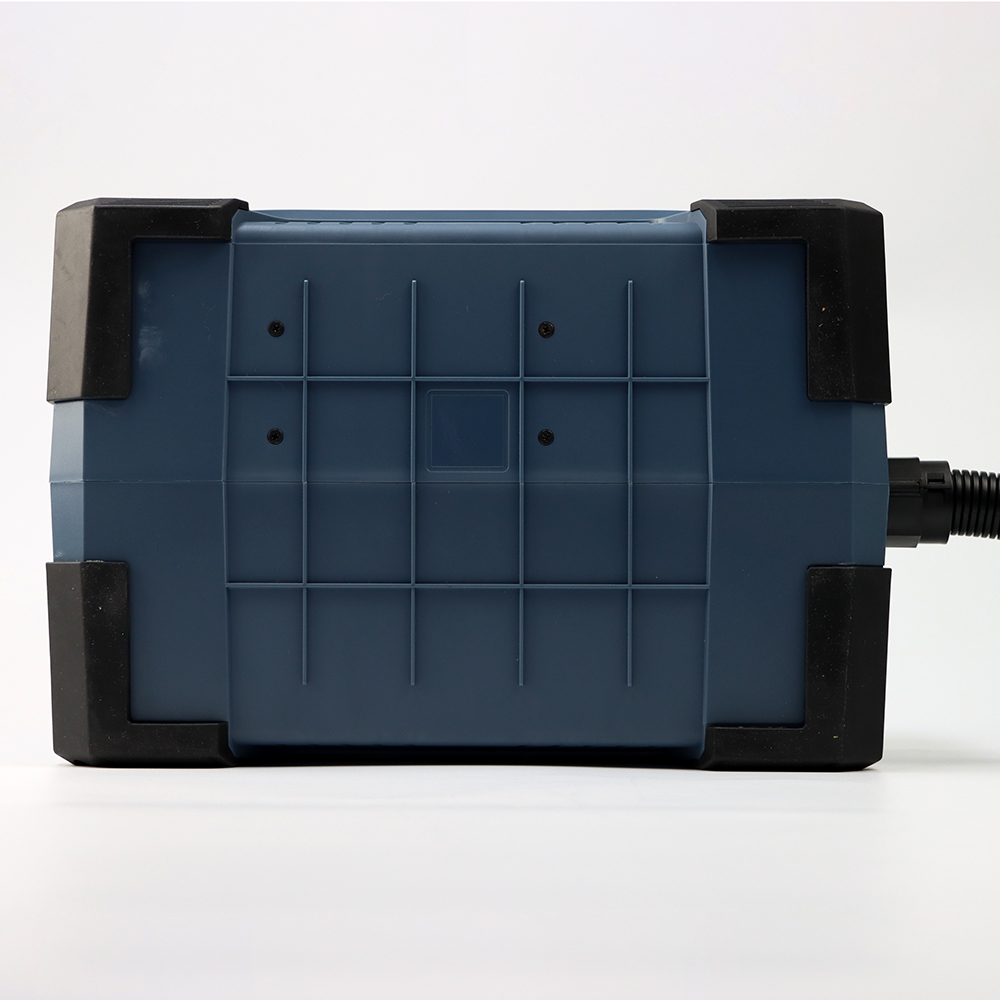

• Improved Stability: Rubber pads added to the base to prevent slipping, resist wear, and reduce shock damage.

• Efficient Cooling & Dustproof Design:

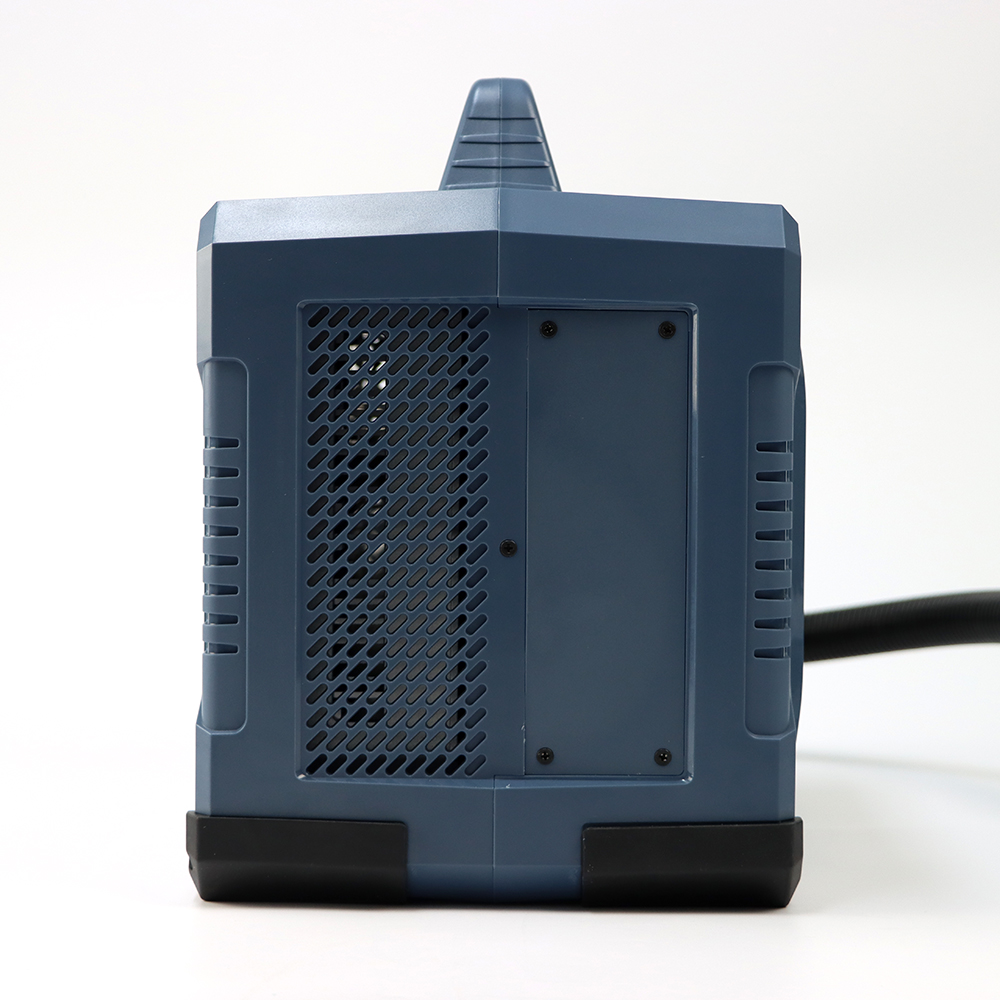

  • Detachable air duct dust filter for easier cleaning

  • Independent ventilation to protect electronics from dust/oil

• Back Support Stand: Newly added 45° rear-tilting support bracket for flexible tabletop or handheld operation.

• Smart Control System:

  • Self-developed Linux OS with intuitive UI

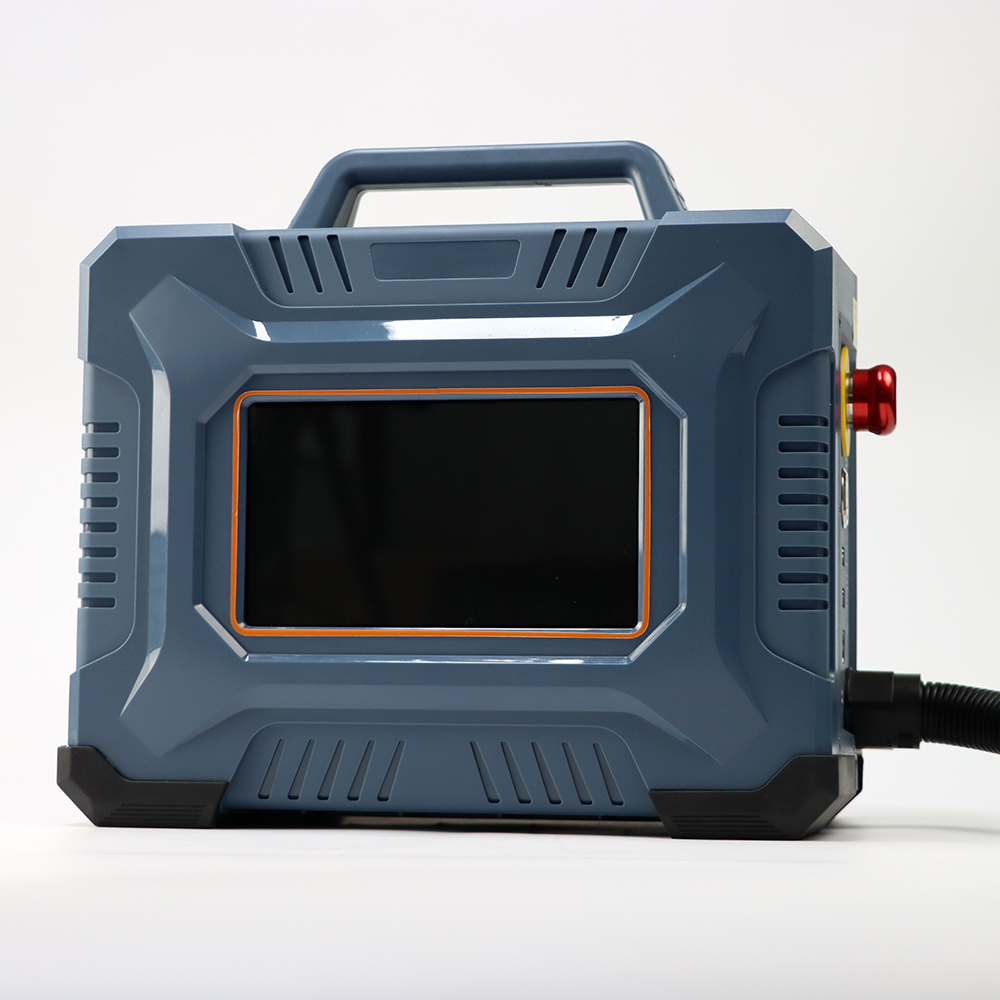

  • 7-inch HD capacitive touch screen for smooth interaction

  • Auto-sleep and auto start/stop settings extend battery life

  • Multi-user permission levels for secure operation

• Advanced Software Capabilities:

  • Supports barcode scanners (1D/2D), data filtering & editing

  • One-button control for red light positioning, marking, and stop

  • Software supports secondary development, TCP server/client, auto reconnection, and MES system integration

  • Optional LightBurn system access after license purchase

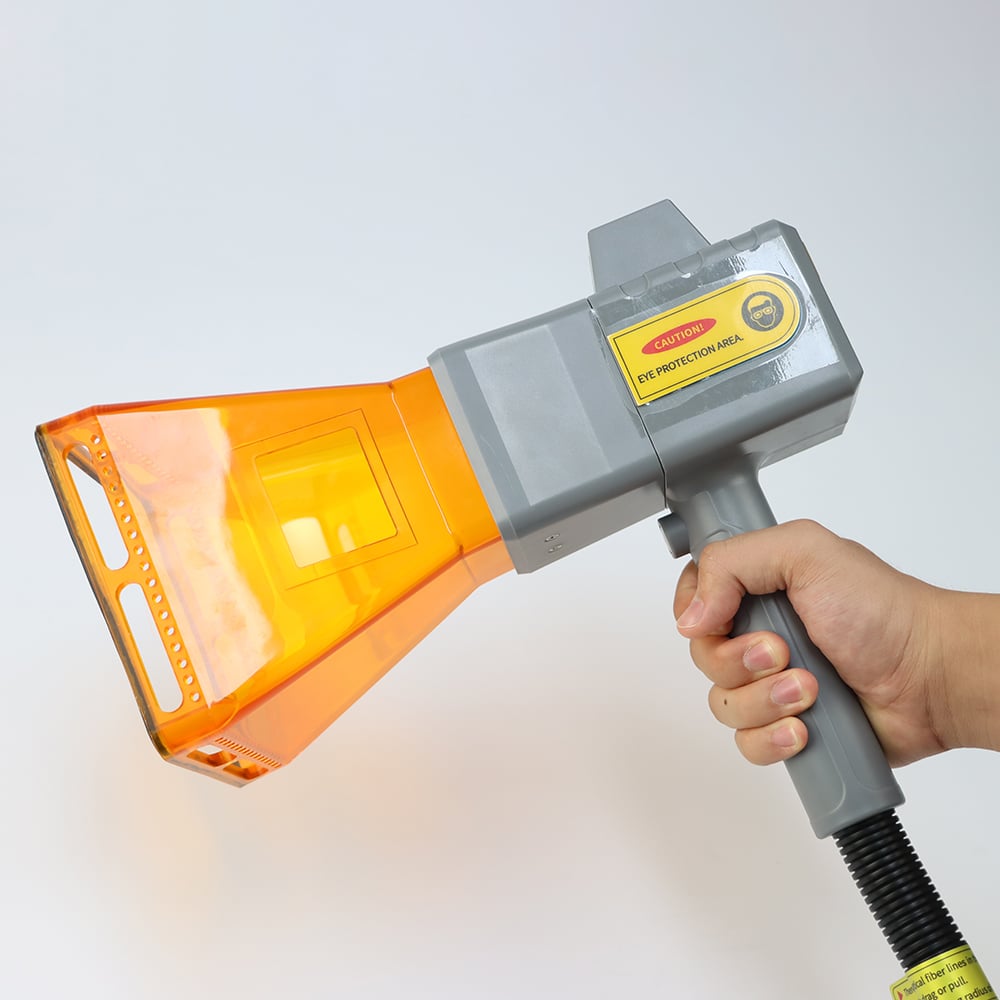

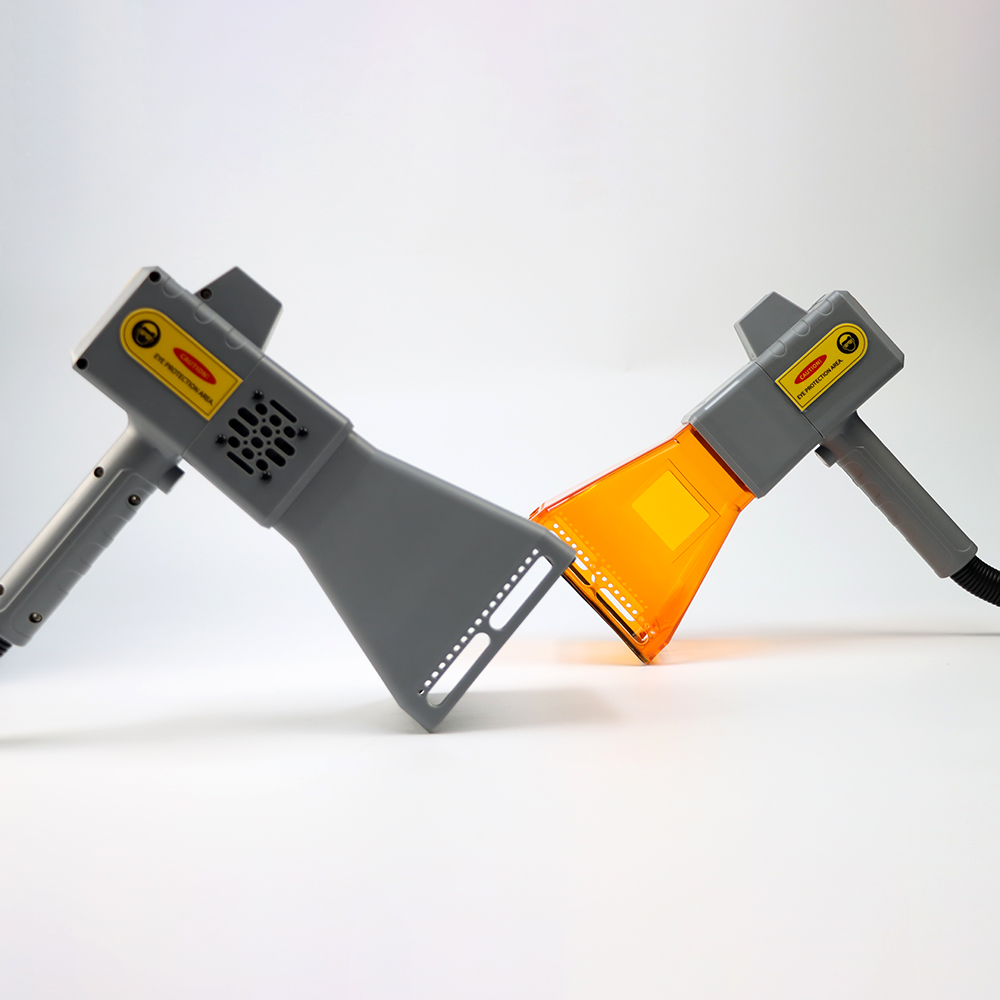

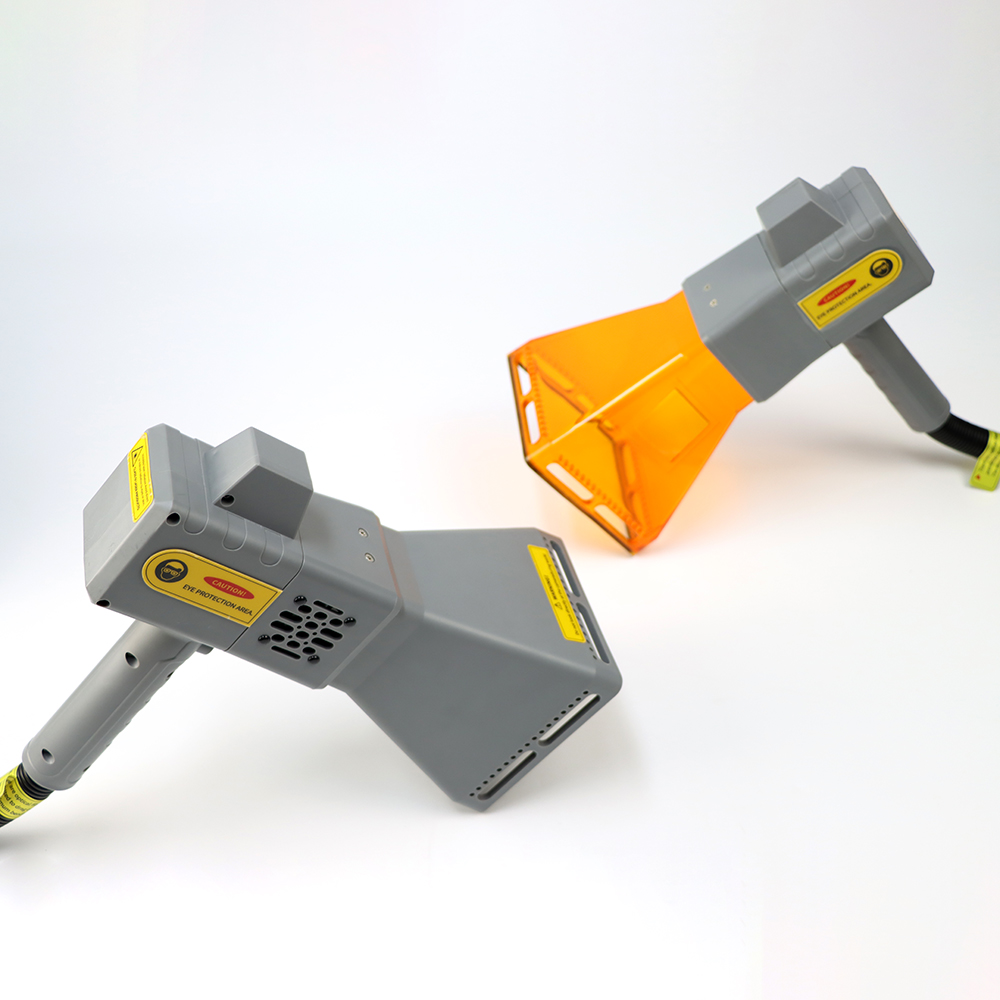

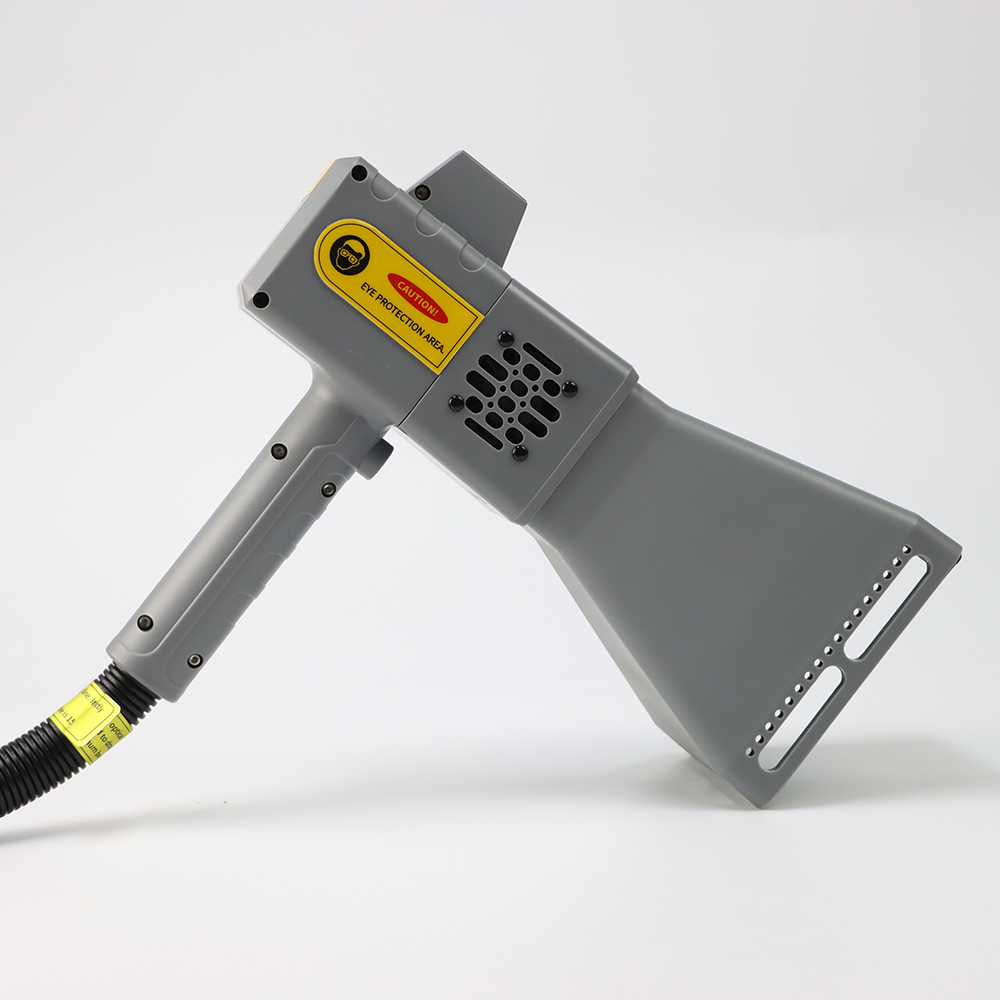

• Fully Enclosed Laser Head:

  • CE-compliant full protection with focus cover

  • Observation window and anti-dust cooling fan to protect optical components

• Multi-Device Compatibility:

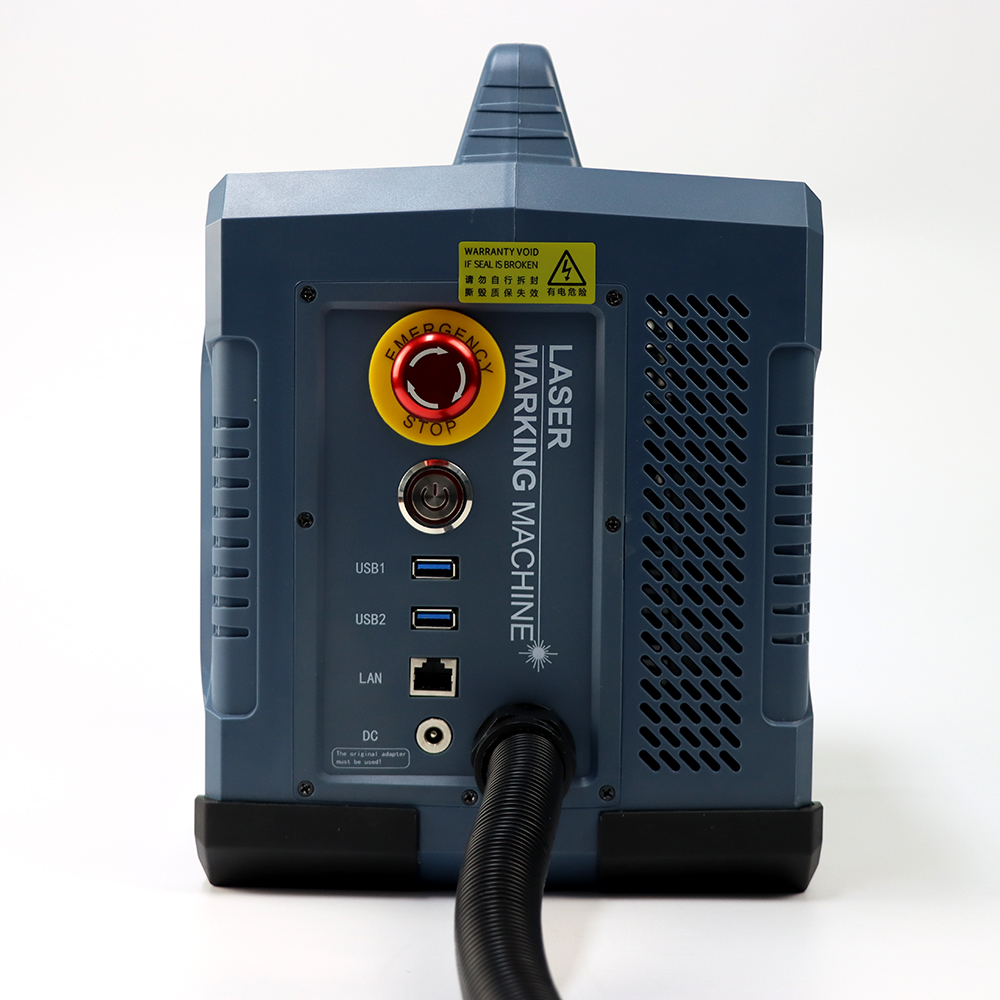

  • Dual USB ports, Ethernet port, Bluetooth & WiFi

  • Supports external mouse, keyboard, monitor, barcode scanner, and more

• Power Supply: Plug-in and battery-powered operation with support for charging while in use

  • Battery capacity ≥14500mAh

  • Max power consumption: 200W

  • Battery run time (full power): 4 hours

  • Charging time: ≤2 hours

This machine is ideal for high-precision, on-the-go marking across multiple industries:

• Aerospace & Aviation

• Metal Processing & Fabrication

• Automotive Manufacturing

• Railway and Transportation Equipment

• Rubber Mold Tooling

• Elevator Doors & Window Frames

• Workshops & On-Site Service

Whether used as a desktop or handheld solution, this second-generation laser marker offers unmatched performance, portability, and versatility.
