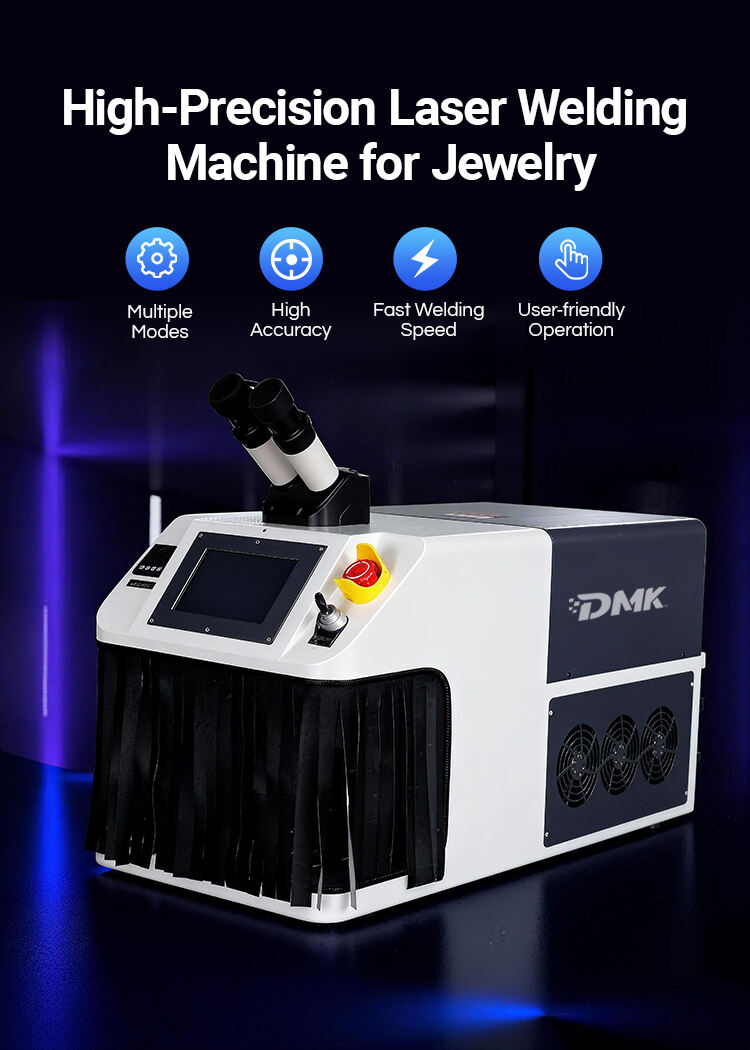

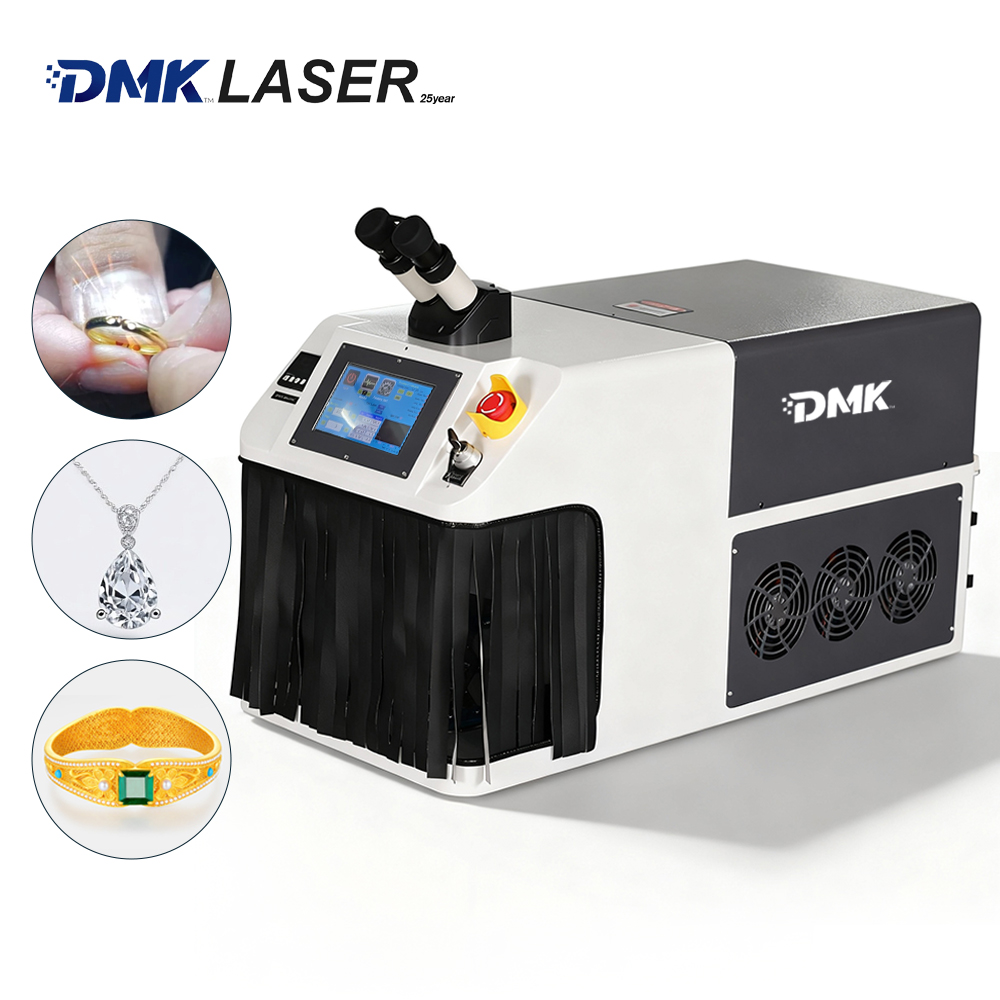

DMK Jewelry Laser Welding Machine
Product Description

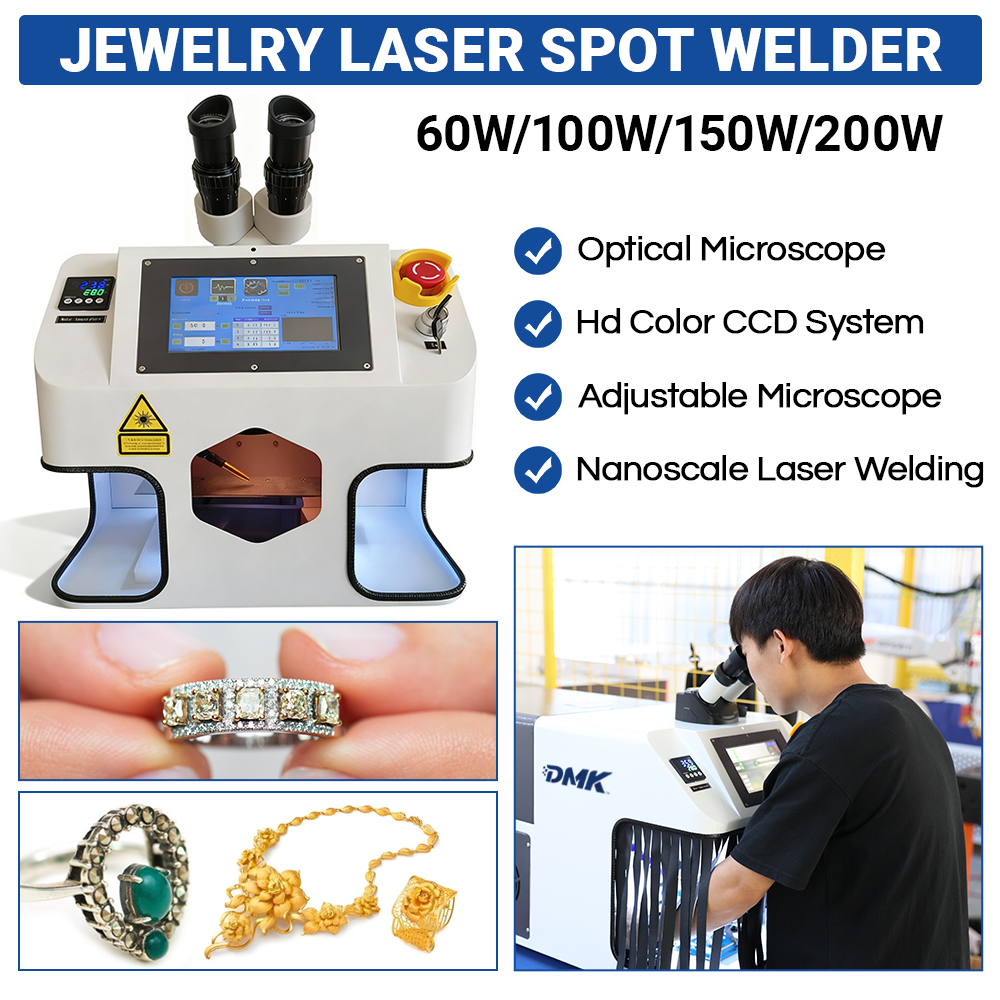

The HB-SW Series Laser Spot Welder is a high-precision solution designed for jewelry manufacturing and repair. Equipped with an advanced Nd:YAG laser source, it delivers exceptional welding performance for delicate applications such as resizing rings, repairing bracelets, re-tipping gold and silver, and stone setting. Its ergonomic design, high stability, and energy efficiency make it an essential tool for jewelers, eyewear manufacturers, and dental technicians.
Other Details
Key Features
Adjustable Parameters: Energy, pulse width, frequency, and focus can be customized for different welding requirements.
Premium Laser Components: Imported ceramic reflector ensures corrosion resistance, high temperature durability, and excellent optical conversion efficiency.

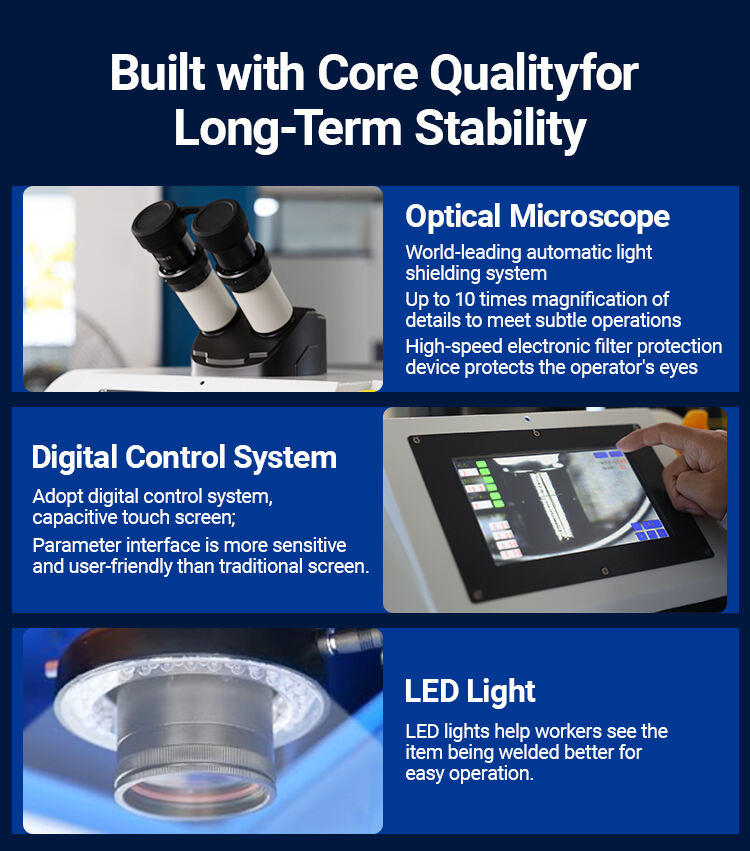

Advanced Safety System: Integrated automatic light shielding protects the operator's eyes from harmful light during operation.
Long-Term Stability: Engineered for 24-hour continuous operation with a maintenance-free life of up to 10,000 hours.
Ergonomic Design: Comfortable working position and user-friendly controls improve efficiency and reduce fatigue.

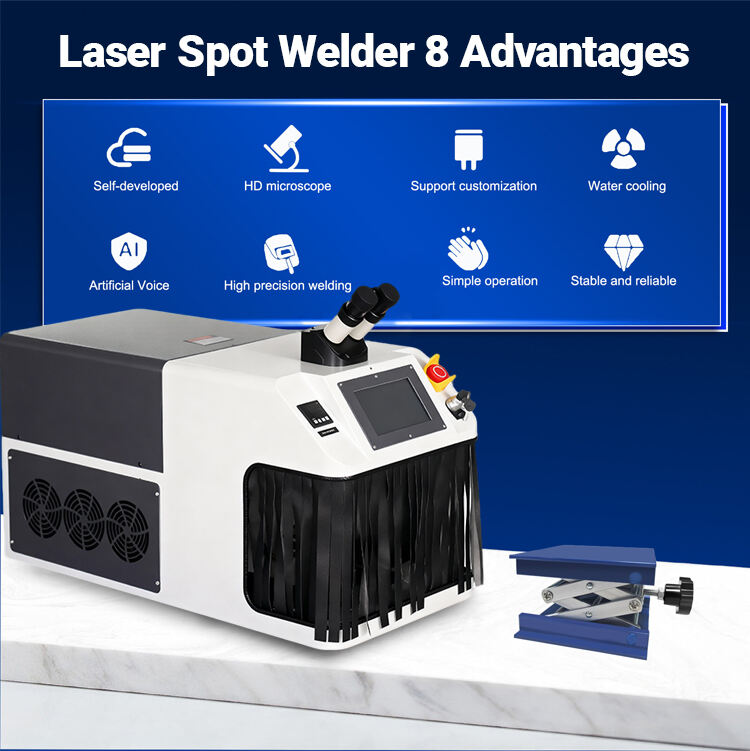

Advantages
Unmatched Precision: Ideal for micro welding and delicate repairs without damaging surrounding areas.
Energy Efficient: Pulsed laser technology minimizes heat input, reducing the heat-affected zone.
Versatile Material Compatibility: Perfect for gold, silver, platinum, titanium, stainless steel, copper, and more.
Cost-Effective Maintenance: Robust construction and advanced components ensure minimal service needs.
Specifications
| Laser Source | Nd³:YAG |
| Wavelength | 1064 nm |
| Pulse Frequency | Up to 115 Hz (adjustable) |
| Pulse Width |
1.5 – 20 ms adjustable |
| Single Pulse Energy | 40 J |

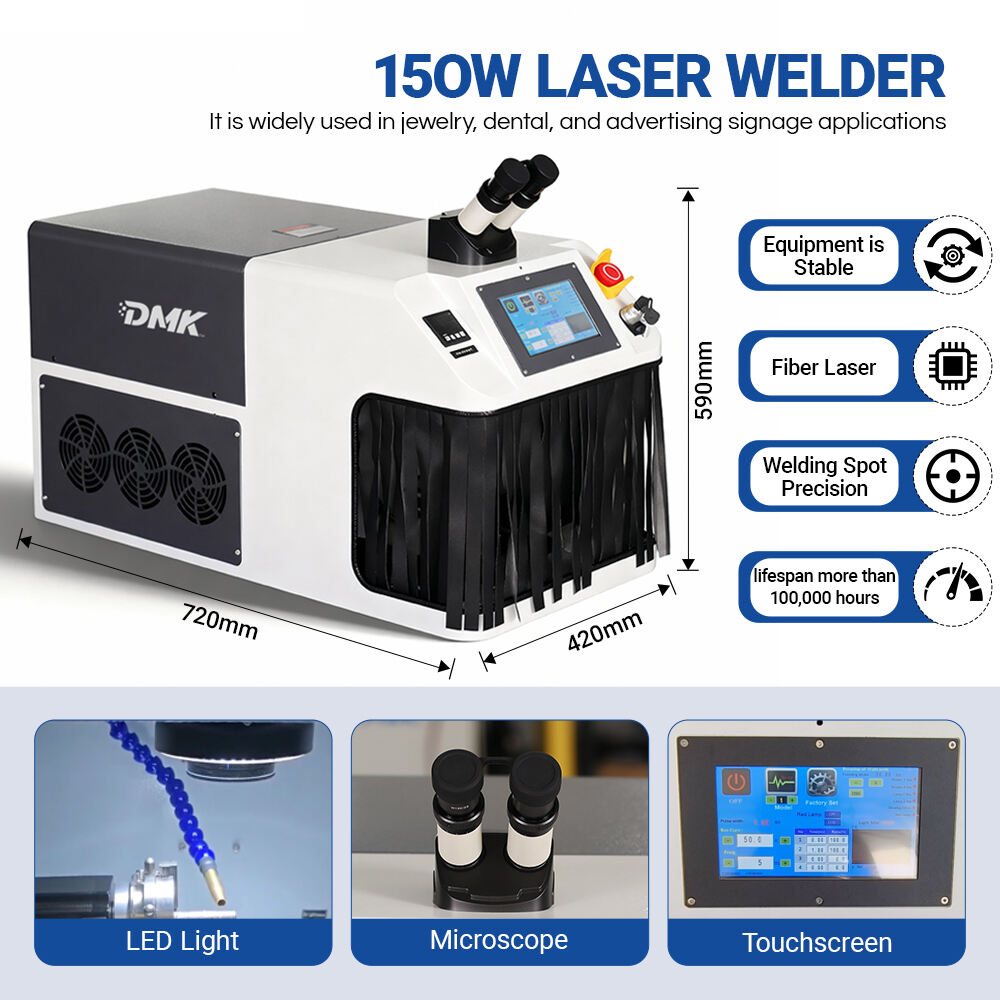

| Rated Laser Power | 150 W |
| Focused Beam Diameter | 0.12 mm |
| Microscope Ratio | 10X |
| Focal Length | 110 mm |
| Power Supply | AC 220 V, single-phase |
| Power Consumption | 3 kW |
| Environment | 5°C – 30°C, humidity < 85% |
| Continuous Working Time | 24 hrs |

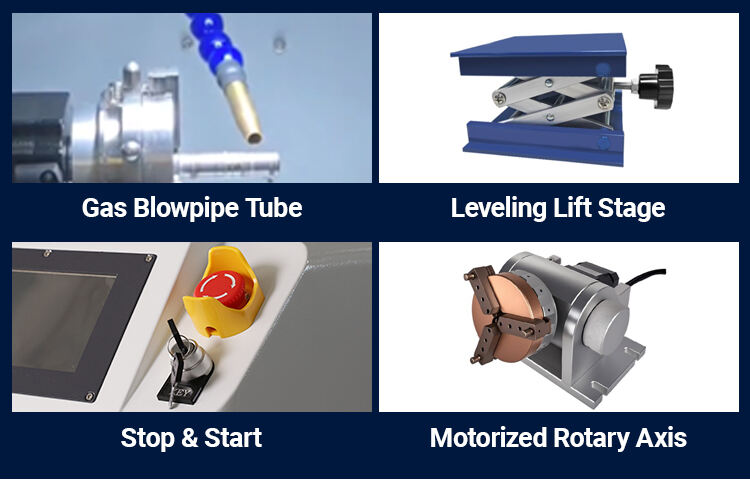

| Shield Gas Connection | Argon, quick connection |
Applications
- Jewelry manufacturing & repair: ring resizing, stone setting, gold & silver re-tipping
- Eyewear frame welding and micro repair
- Dental industry: titanium alloy denture welding
- Electronics and precision instruments
- Small automotive parts, aerospace, and sports equipment manufacturing
