DMK Fly Series Fiber Laser Coding Machine

Product Description

The Fly Series Fiber Laser Coding Machine is designed specifically for high-speed, continuous marking on production lines. It features a high-performance industrial-grade pulsed fiber laser source from Raycus, offering excellent beam quality, high peak power, and stable performance. With marking speeds of up to 200 meters per minute (for 2mm-high single-line characters), it meets the demands of high-efficiency, large-scale production environments.

This system supports automatic coding, serial number generation, batch numbers, timestamps, barcodes, QR codes, and variable data — ideal for industries requiring permanent, non-contact, high-contrast marking such as food and beverage, pharmaceuticals, cosmetics, electronics, and building materials.

Product Specifications

Item	Specification
Laser Type	Pulsed Fiber Laser (Raycus)
Output Power	20W / 30W / 50W / 60W
Laser Wavelength	1064 ± 5 nm
Power Stability	＜3%
Marking Area	100mm × 100mm to 300mm × 300mm (optional)
Marking Depth	Up to 1 mm (depending on material & power)
Marking Speed	Up to 10,000 mm/s
Repeat Accuracy	±0.002 mm
Minimum Line Width / Character Height	0.1 mm / 0.15 mm
Cooling Method	Built-in Air Cooling
Power Supply	500W / 220V / 50Hz (110V optional)
Operating Environment	Temp: 0–40°C; Humidity: 30–85% RH (no oil mist or condensation)
Supported Formats	Text, serial number, date, barcodes, QR codes, graphics

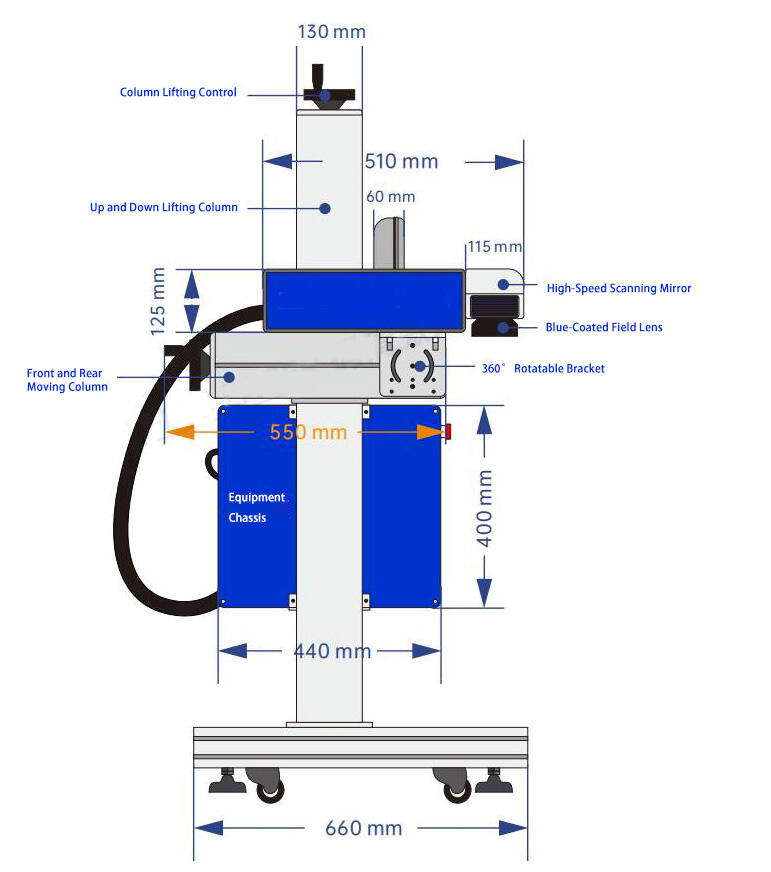

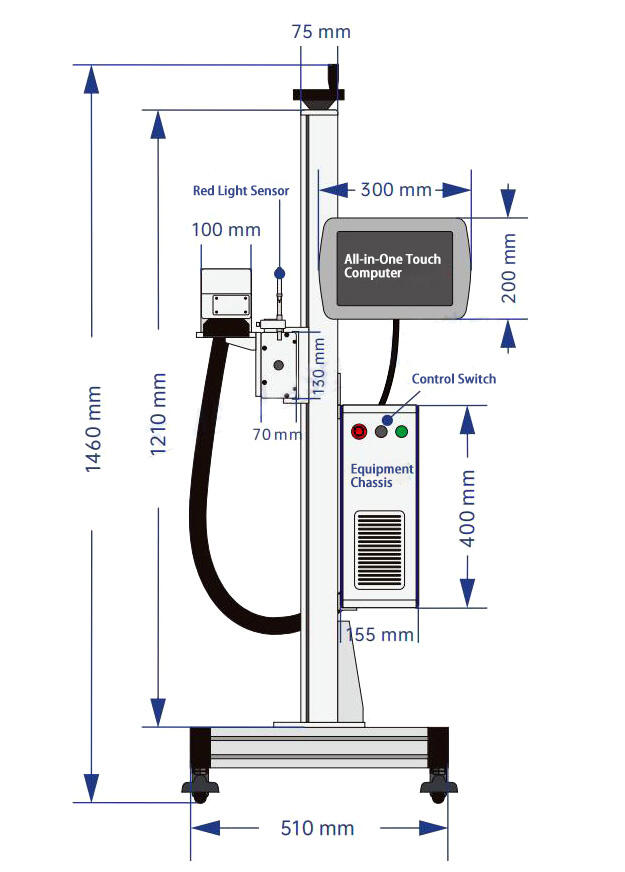

Dimensions	660 × 510 × 1460 mm
Packing Size	Main Unit: 790 × 740 × 350 mm; Stand: 1350 × 350 × 280 mm
Total Weight	Approx. 66 kg

Product Features

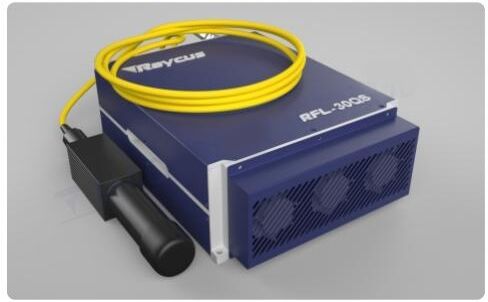

Raycus High-Performance Laser Source Delivers stable, high-energy pulses with excellent focus and contrast. The laser source has a design lifetime of up to 100,000 hours, ensuring long-term reliability.
	Ultra-Fast Marking Speed Achieves marking speeds up to 200 meters/minute, making it one of the fastest laser coding systems in the industry — ideal for medium to high-speed production lines.

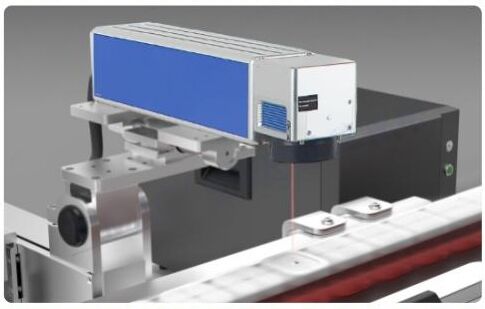

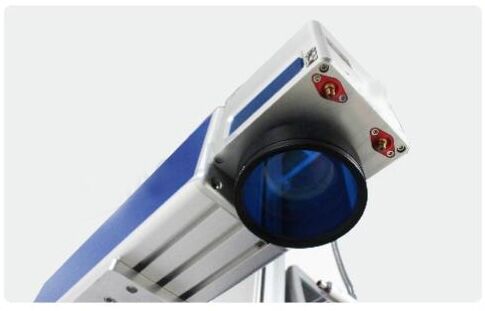

Compact & Flexible Marking Head Lightweight, space-saving design simplifies integration, reduces installation cost, and enhances flexibility in tight spaces.

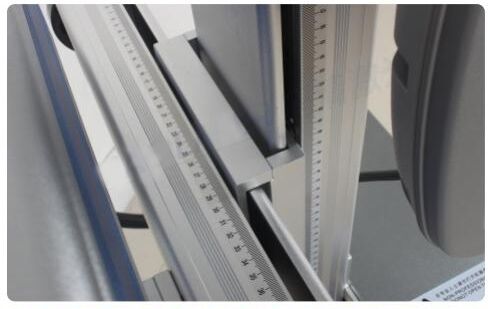

	360° Adjustable Stand The marking head can be rotated and adjusted in all directions — up, down, left, and right — for easy alignment and flexible positioning on your production line.

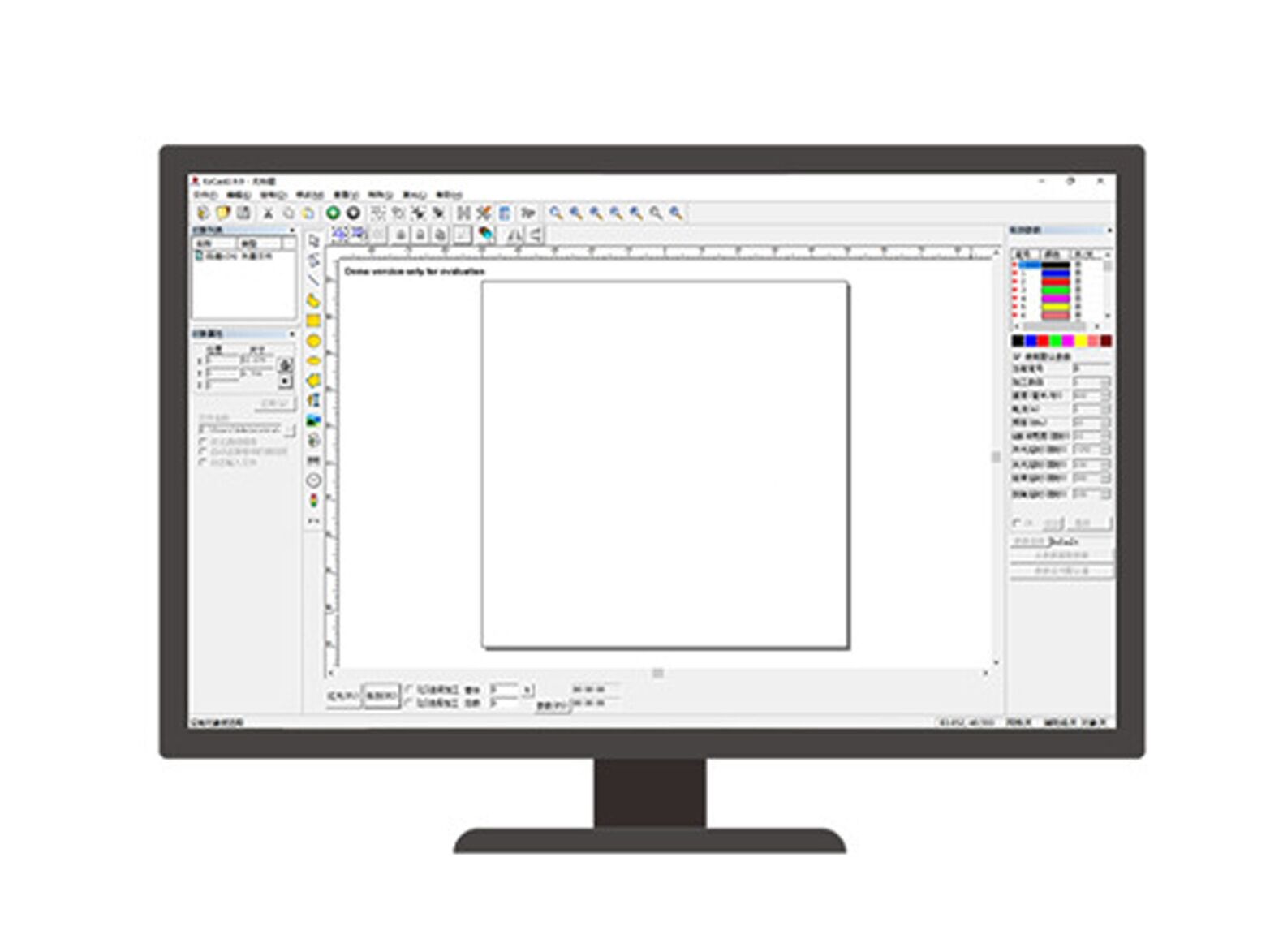

Industrial-Grade Control System Equipped with a reliable flying marking software system that supports various coding formats including dynamic QR codes, batch IDs, barcodes, and graphics.

Applications

Compatible with a wide range of metals and surface-treated non-metals, including:

• Metals: Stainless steel, aluminum, copper, and more

• Plastics & Others: PVC, HDPE, rubber, aluminum foil, coated materials

Widely used in:

• Food & Beverage Packaging: Expiry dates, batch codes, traceability

• Pharmaceuticals: Anti-counterfeiting codes, serial numbers

• Cosmetics & Personal Care: Production batch info, logos

• Electronics & Building Materials: Identification codes, brand markings

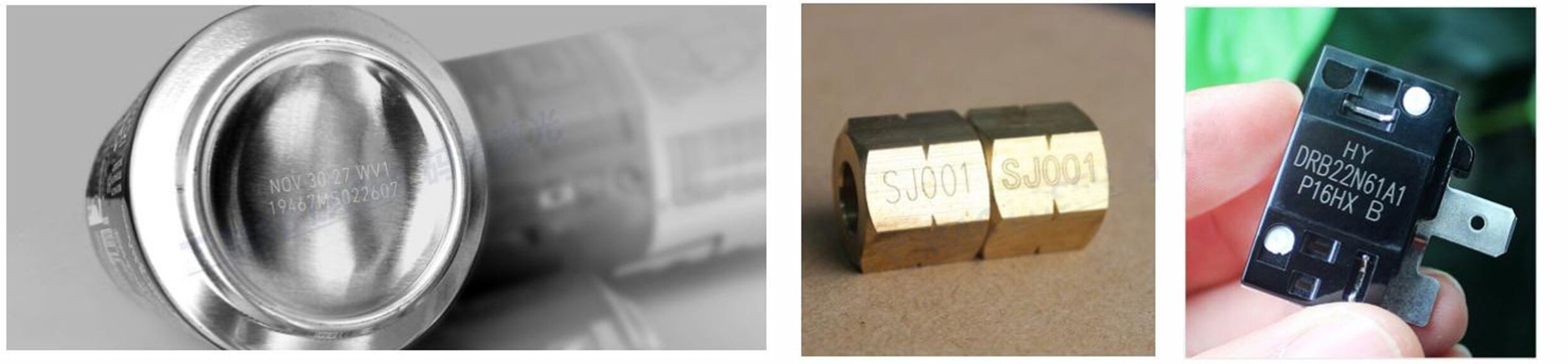

Sample display

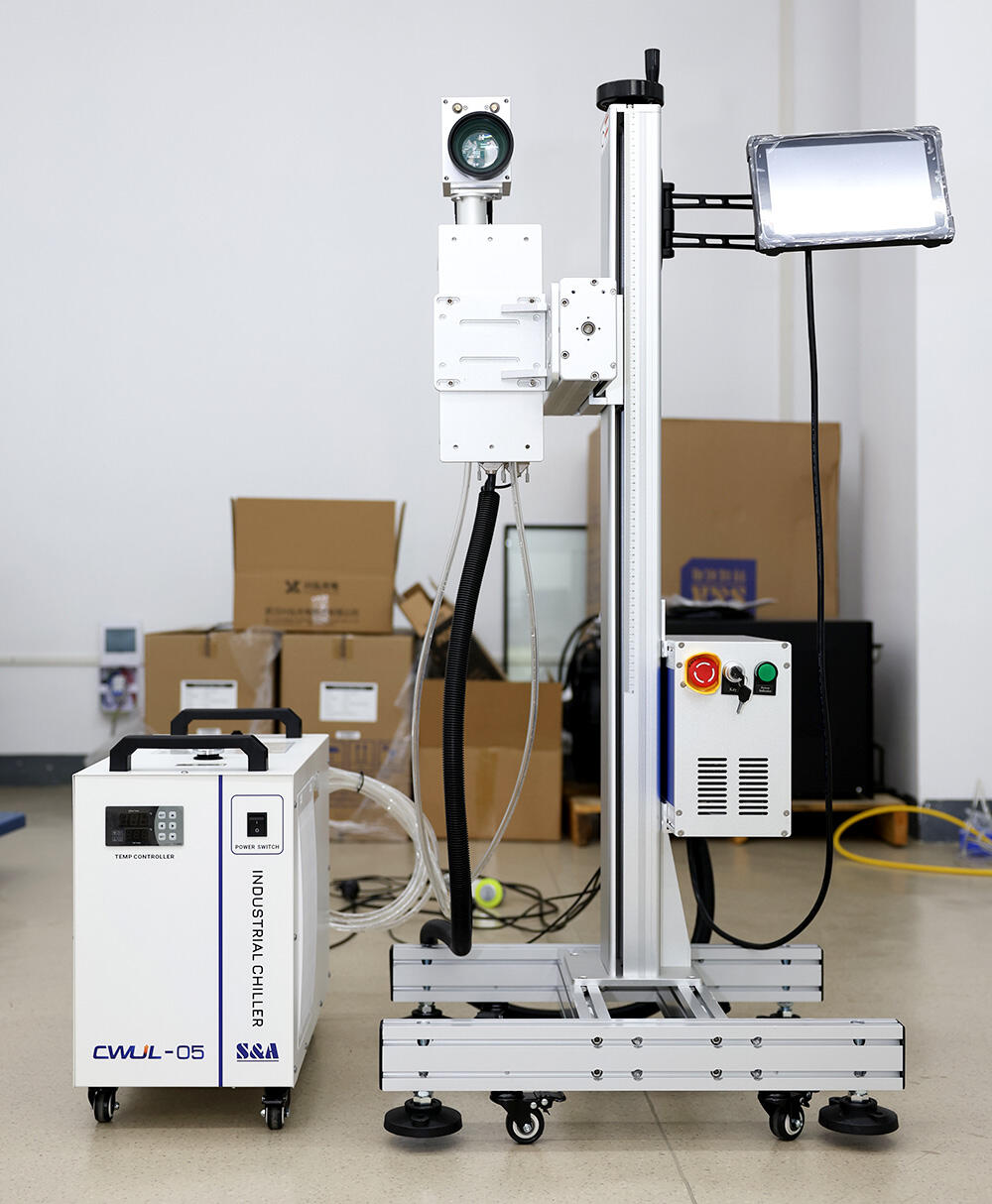

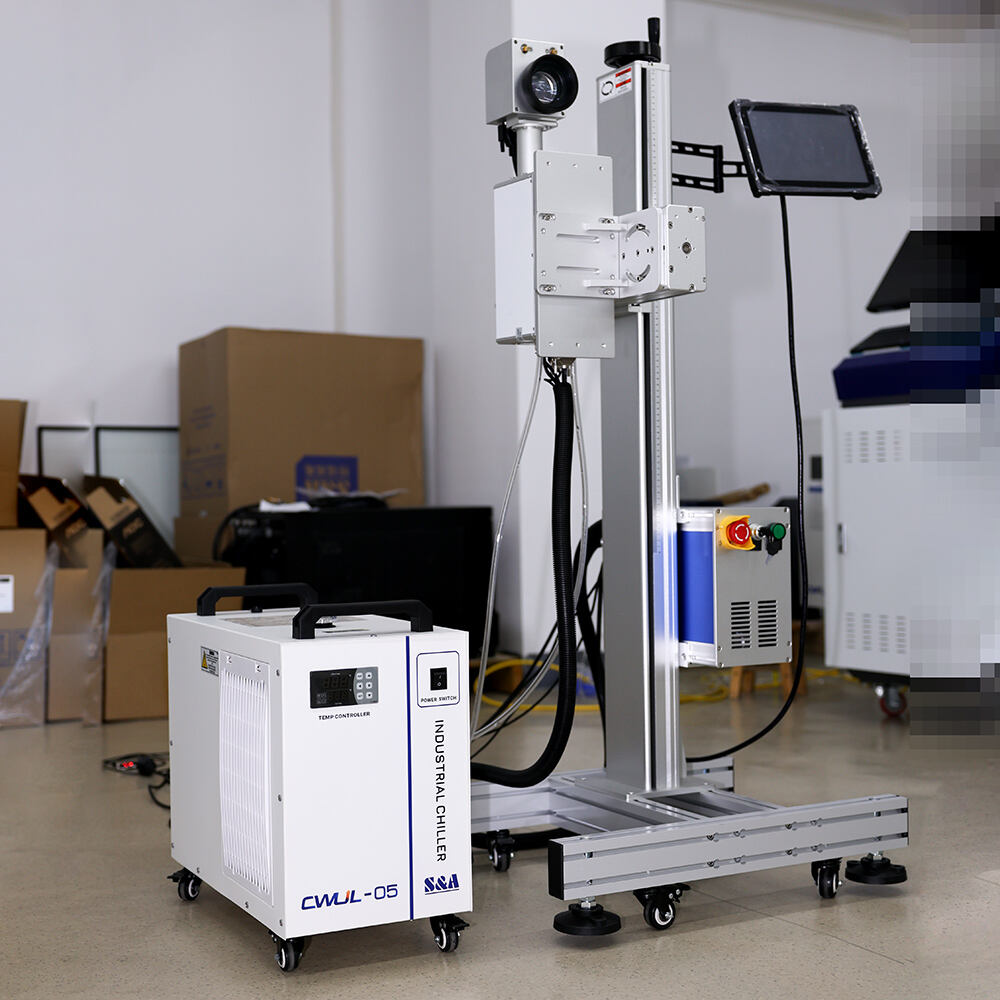

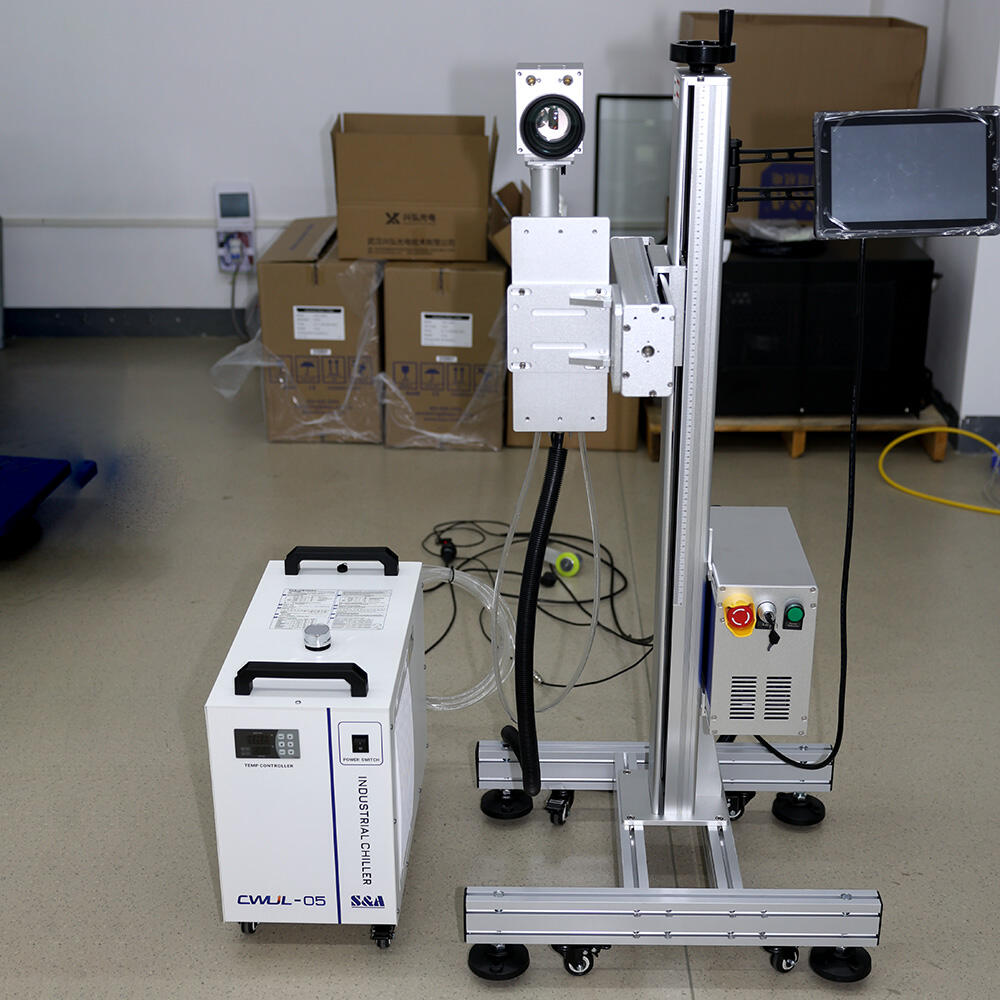

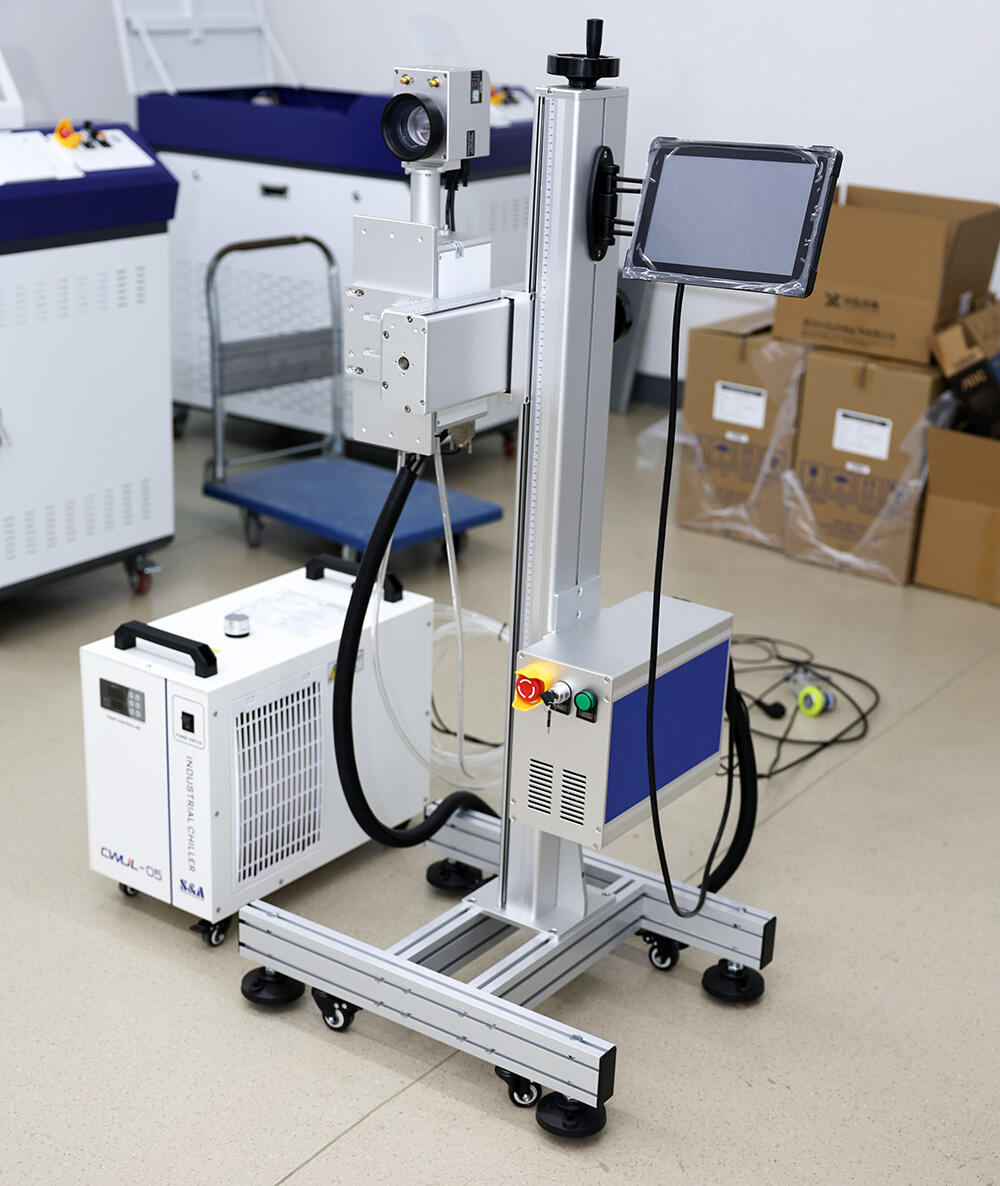

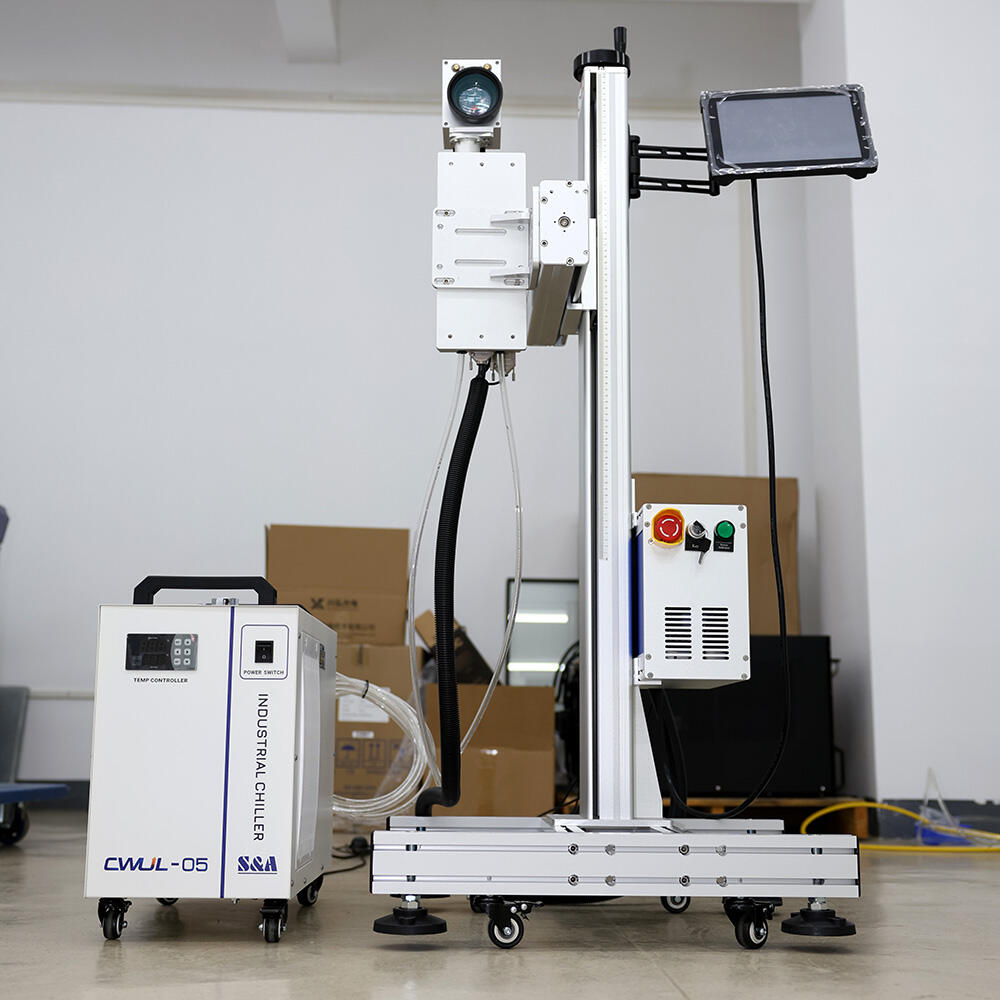

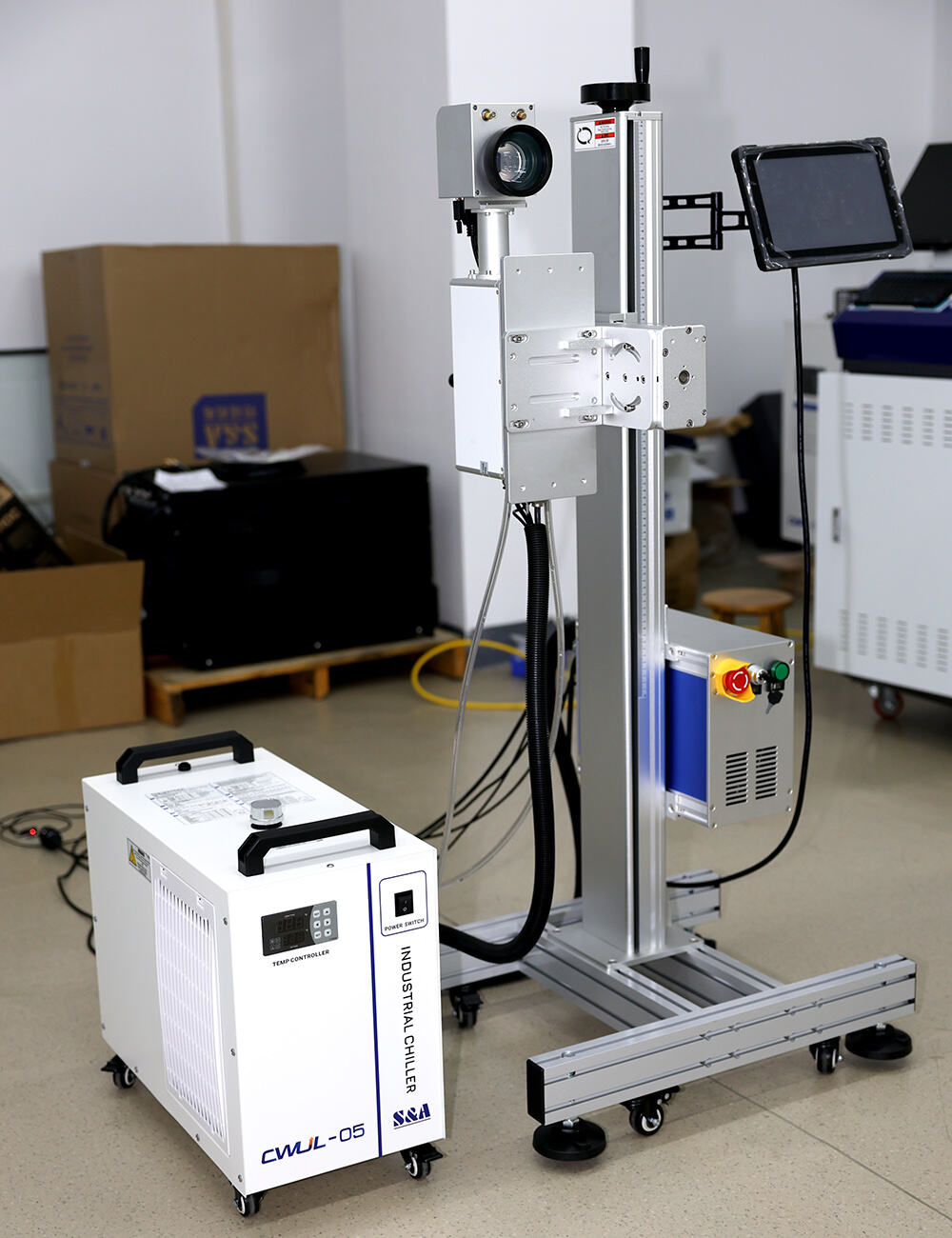

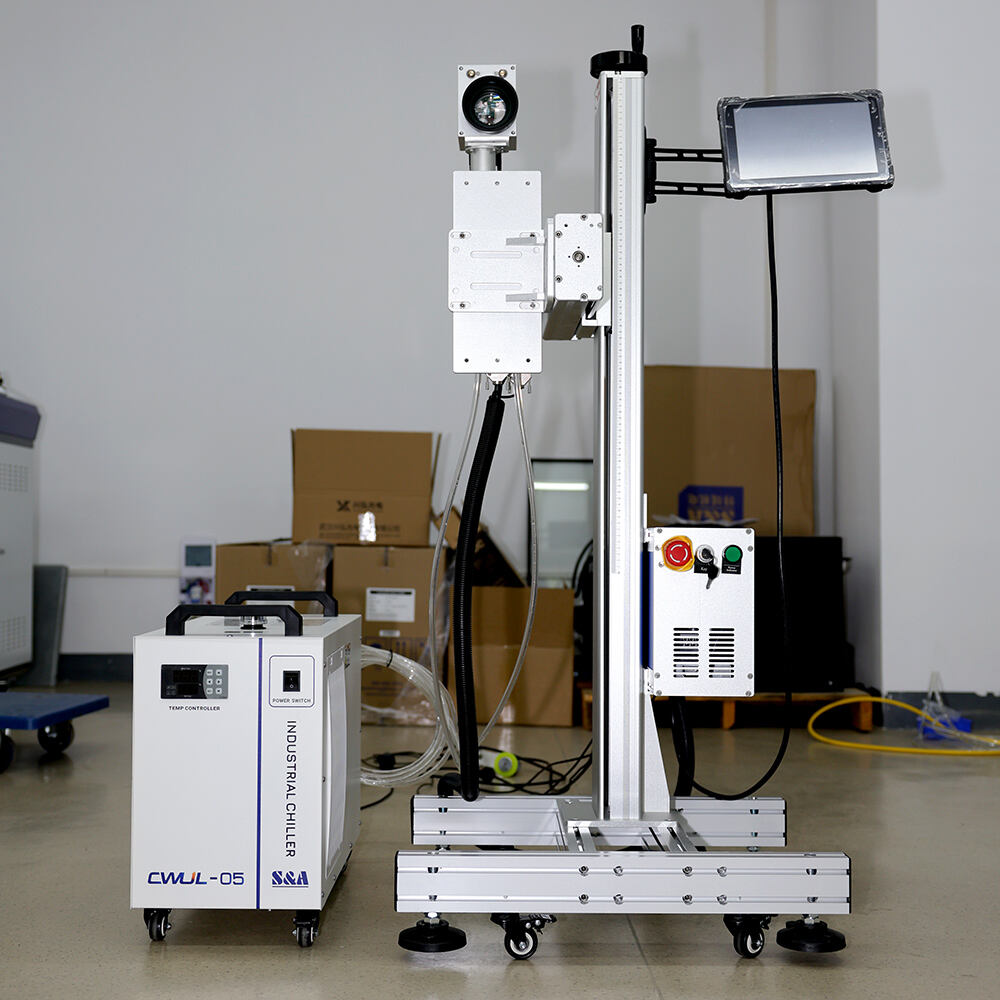

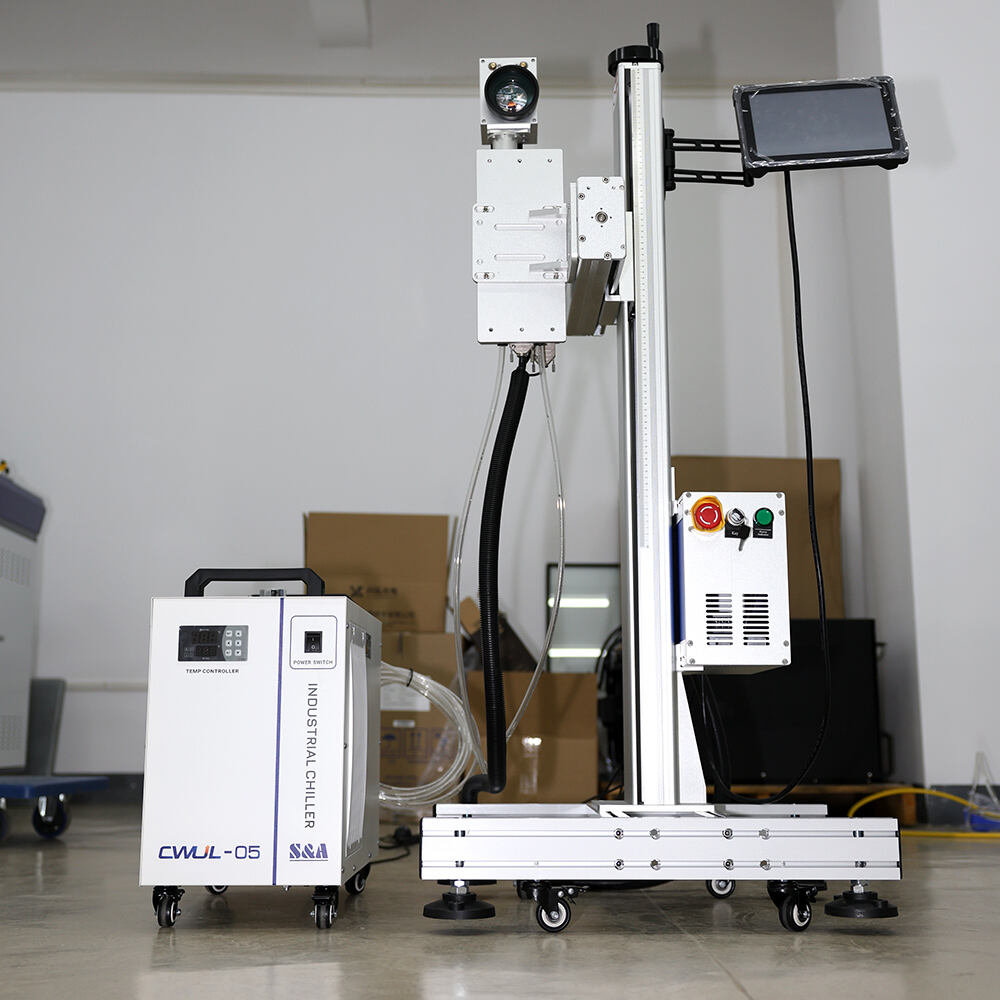

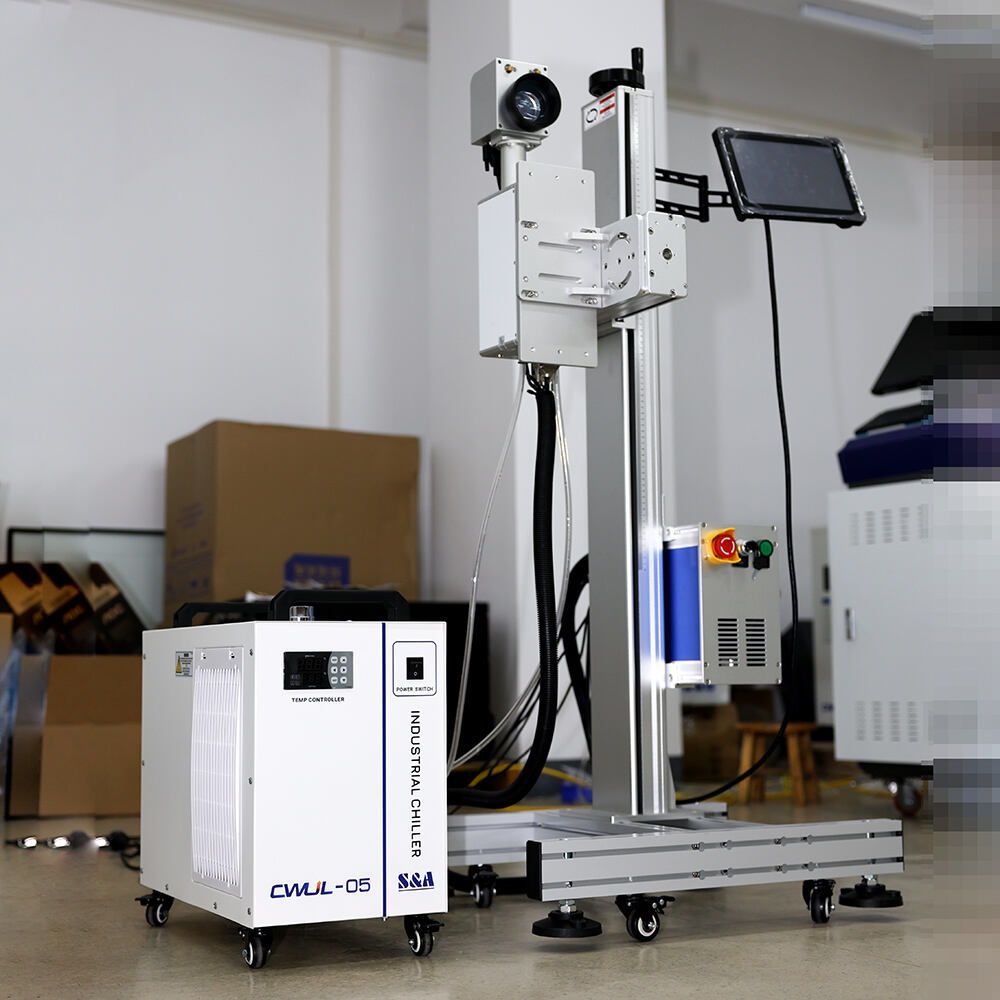

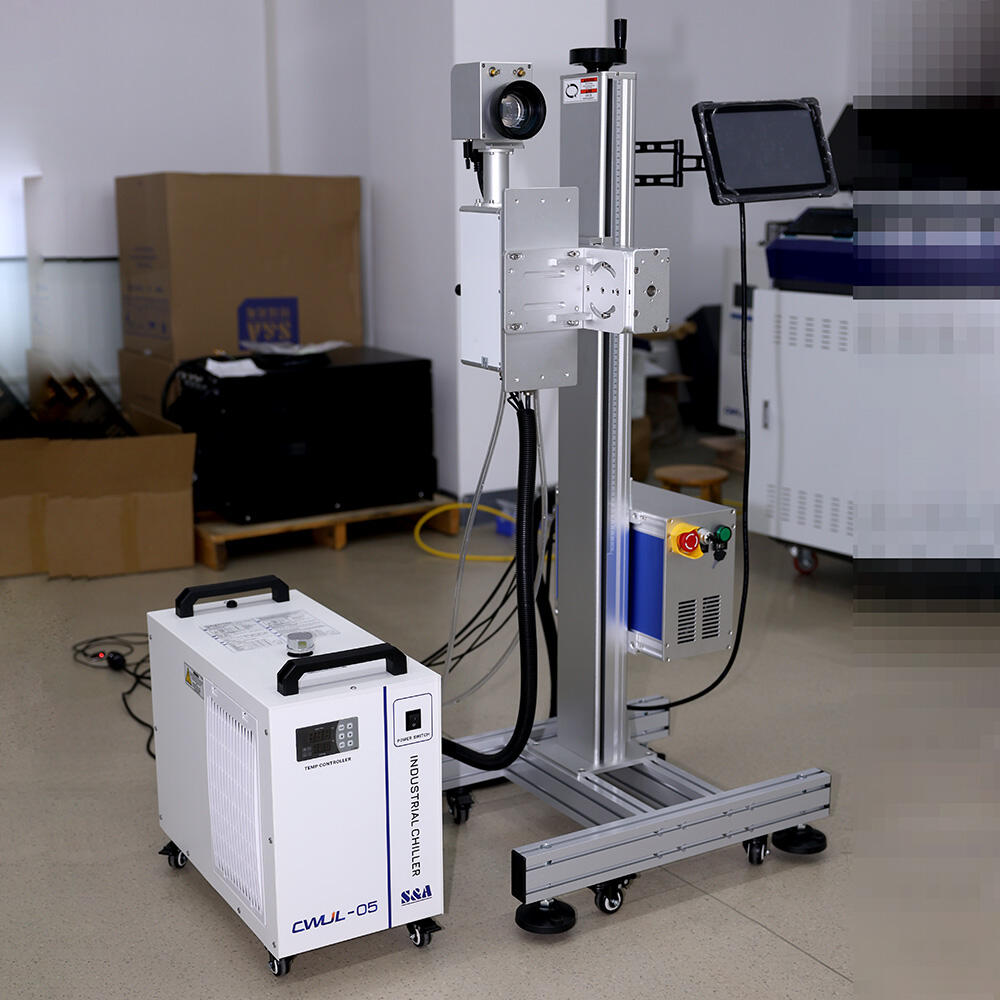

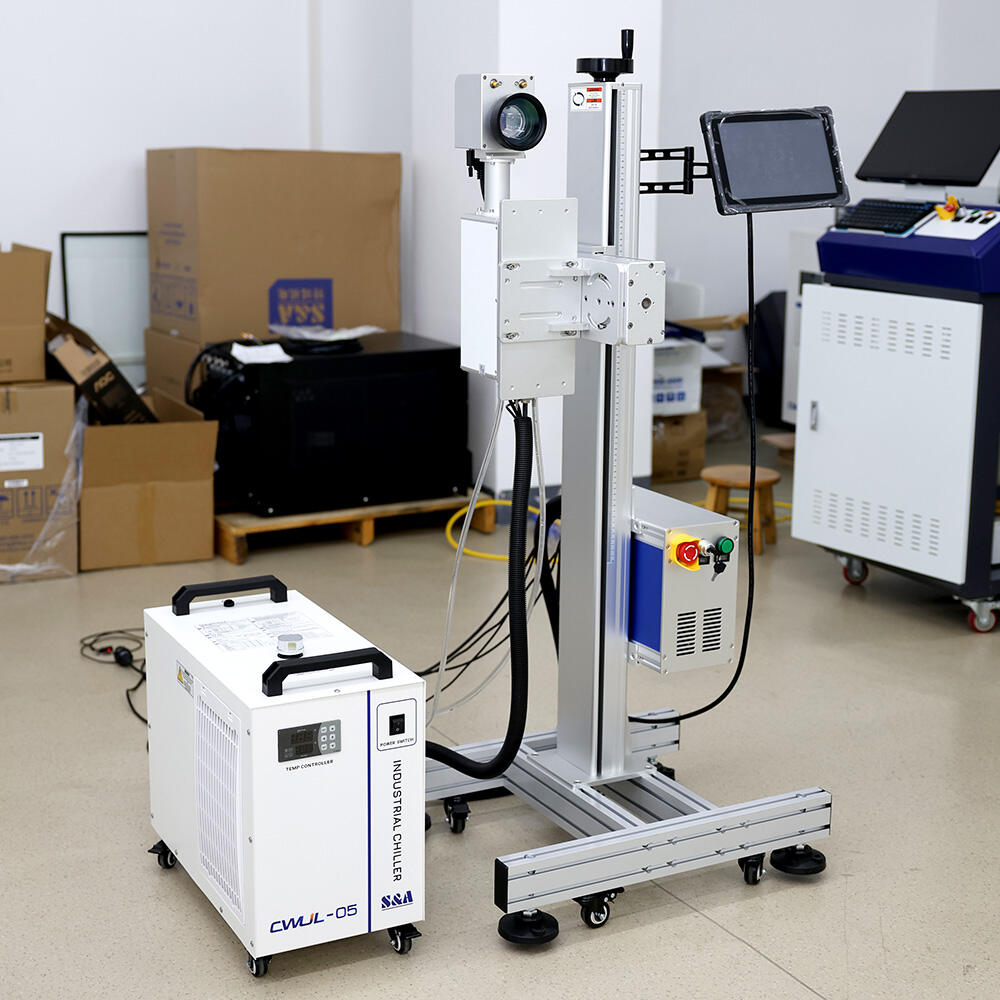

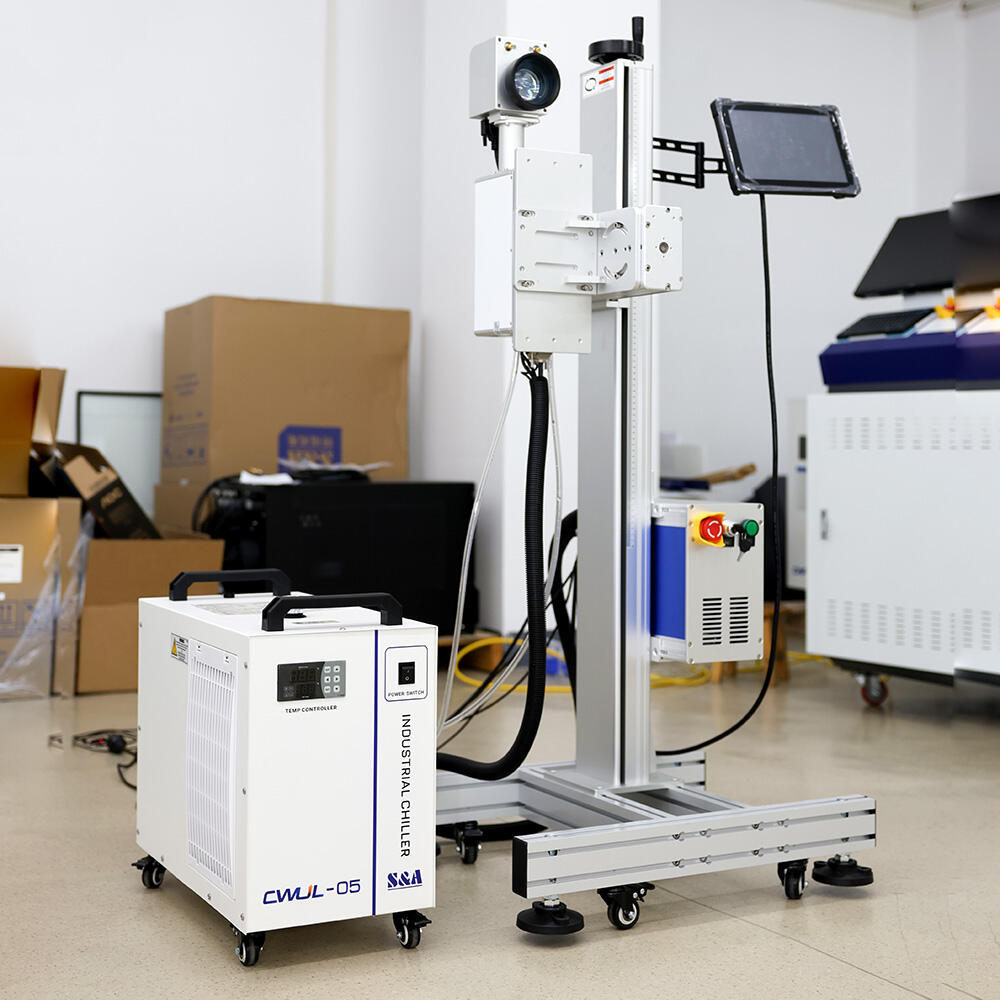

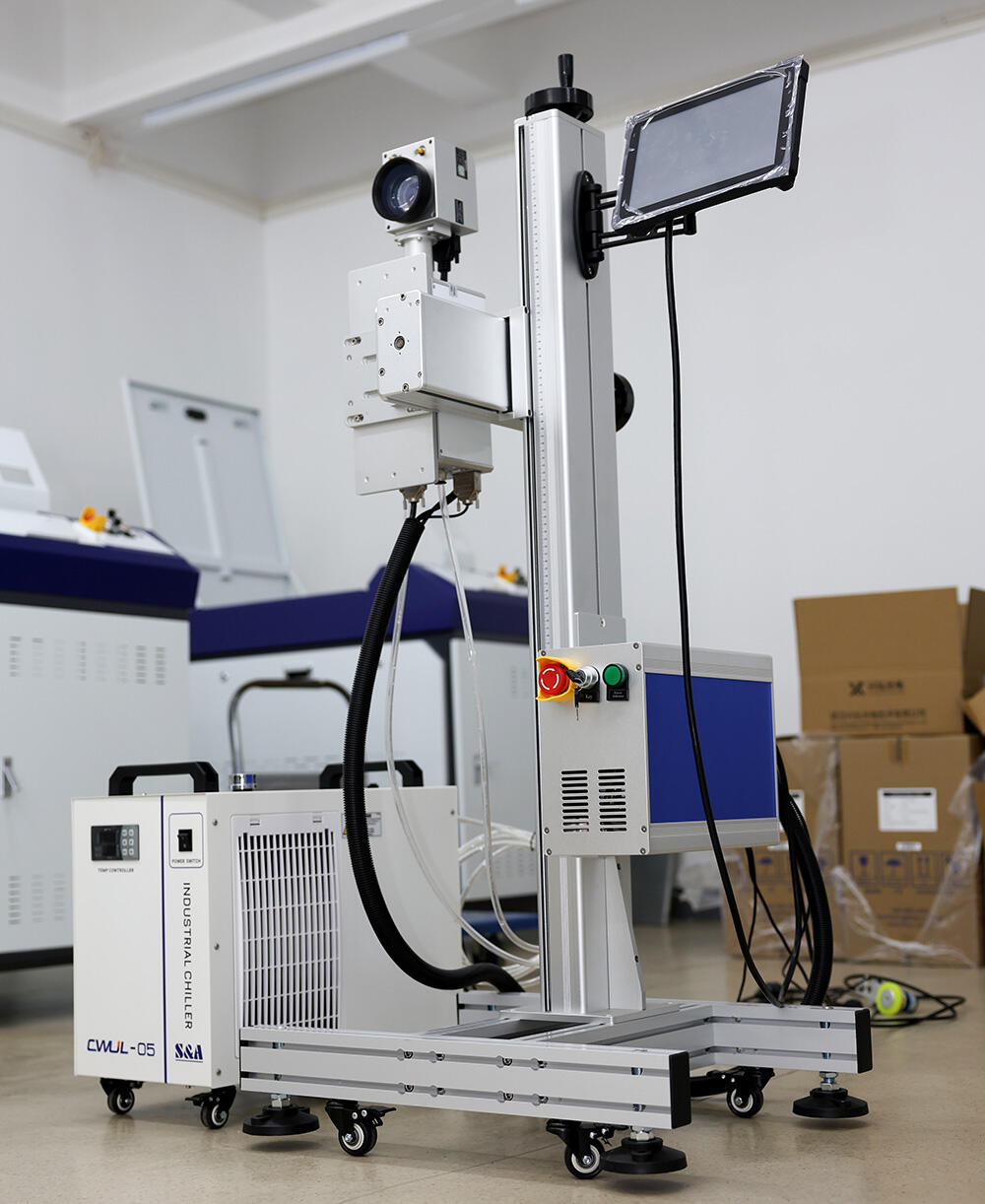

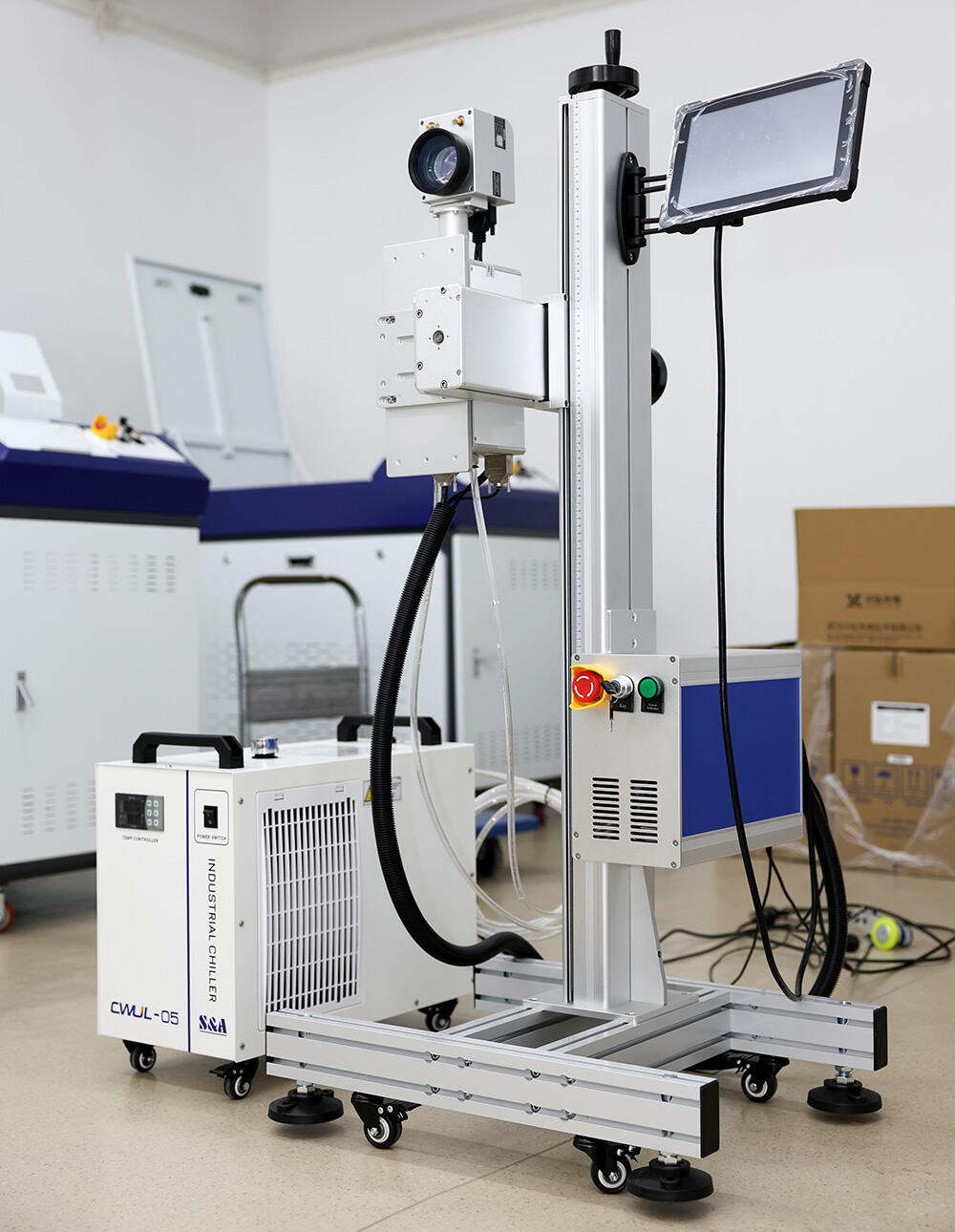

Product Picture
