BOCHU BLT4 Series P Profile Steel Laser Cutting Head (Models BLT442P/462P/482P/4102P)
This is BOCHU’s professional profile steel cutting head, compatible with the FSCUT9200 profile steel processing system. It supports "3-in-1" cutting (profile steel cutting, bevel cutting, and flat cutting), integrates multiple monitoring and protection functions, and covers a 15–40kW power range. It is a core accessory for industrial profile steel component processing.
Product Features

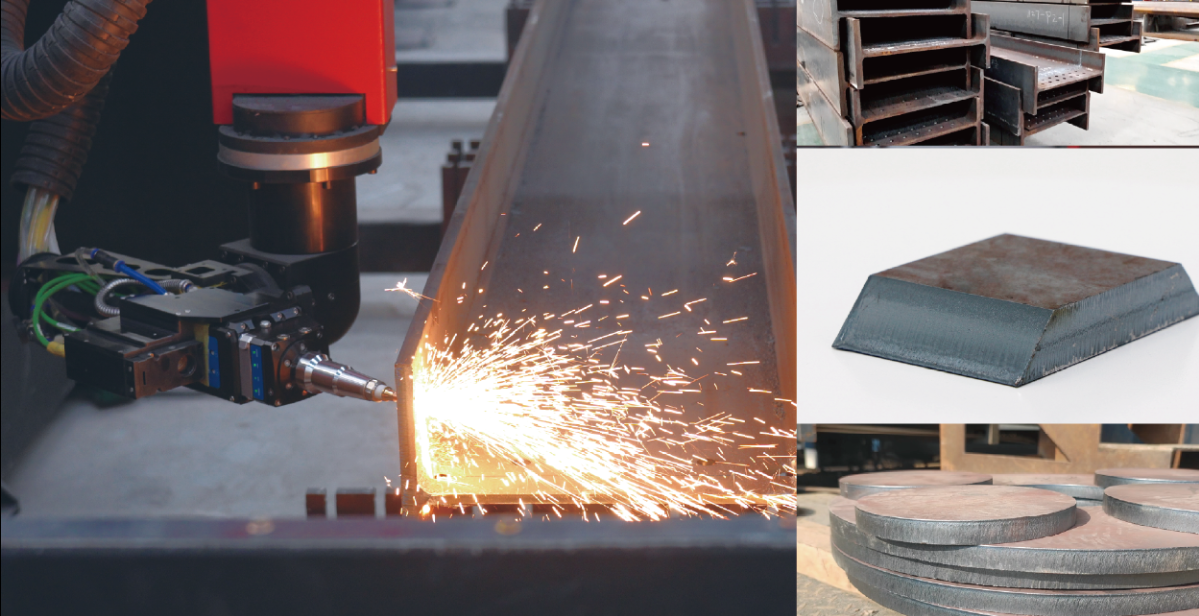

- 3-in-1 Multi-Scenario Cutting: Supports profile steel cutting, bevel cutting, and flat cutting in one unit, adapting to complex component processing needs.

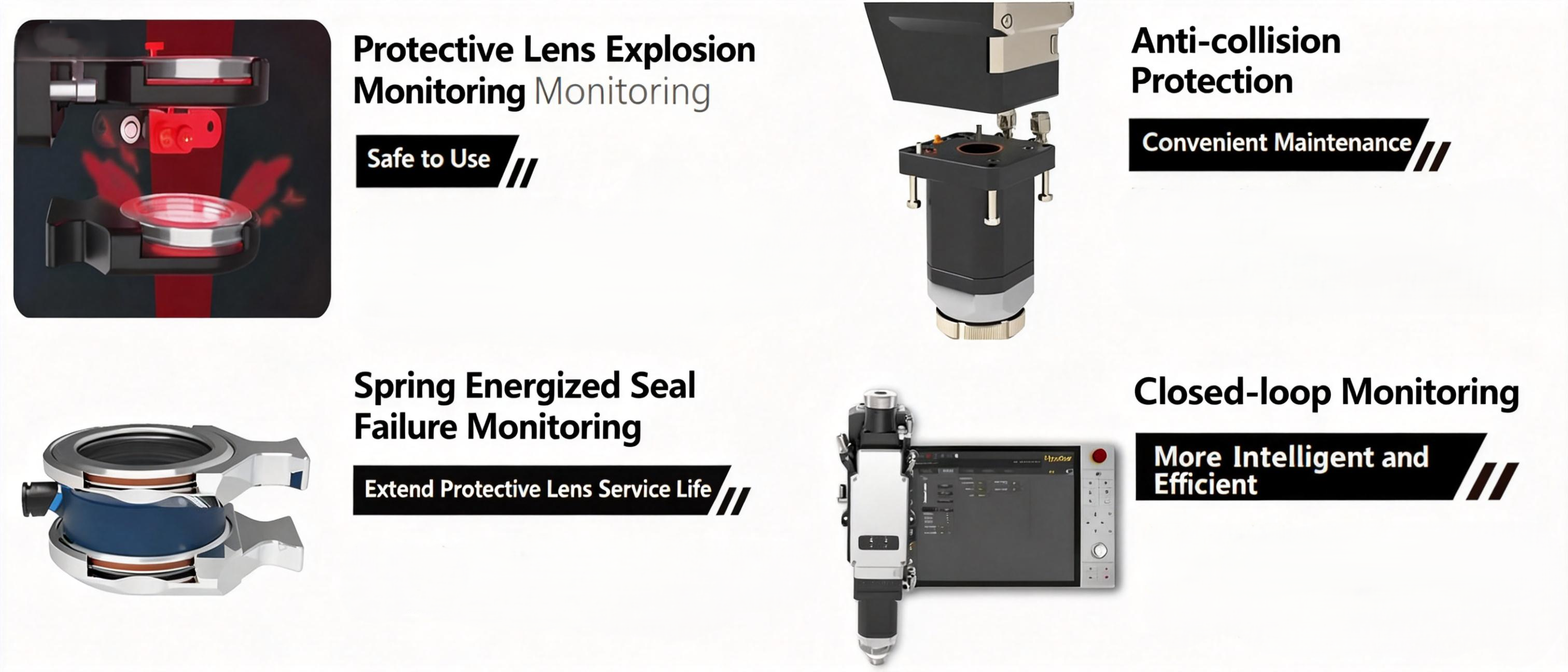

- Multi-Layer Monitoring & Protection: Equipped with protective lens explosion monitoring, gland seal failure monitoring, anti-collision protection, and closed-loop monitoring to enhance equipment safety and service life.
- High-Power & Multi-Model Compatibility: Covers a 15–40kW power range, with different models paired with 250/300mm focal lengths to suit varying profile steel thicknesses.
- Low Maintenance Cost Design: The anti-collision structure reduces damage risks and allows customers to replace components independently, minimizing downtime and maintenance expenses.
Product Parameter Table
| Cutting Head Model | BLT442P | BLT462P | BLT482P | BLT4102P |
|---|---|---|---|---|
| Technical Specs | ||||
| Laser Power (kW) | ≤15 | ≤20 | ≤30 | ≤40 |
| Focal Length (mm) | 250 | 250 | 250/300 | 300 |
| Fiber Interface | Q+/ADQ/QBH/CD | Q+/ADQ/QBH/CD | Q+/ADQ/QBH/CD | Q+/ADQ/QBH/CD |
| Focusing Speed (mm/s) | 500 | 500 | 500 | 500 |
| Focusing Range (mm) | ±50 | ±50 | ±50 | ±50 |
| Repeat Positioning Accuracy (mm) | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Laser Wavelength (nm) | 1030–1090 | 1030–1090 | 1030–1090 | 1030–1090 |
| Max Air Pressure (Bar) | 25 | 25 | 25 | 25 |
Product Application Fields
- Profile steel component cutting
- Steel structure manufacturing
- Bevel/flat cutting processing
- Heavy industrial component fabrication
Product FAQ
-
What is the "3-in-1" cutting function?Answer: It supports profile steel cutting, bevel cutting, and flat cutting in one unit, enabling multi-purpose use for complex component production.
-
What power and thickness ranges do different models support?Answer: BLT442P is compatible with ≤15kW (web 15mm / flange 25mm), and BLT4102P with ≤40kW (web 30mm / flange 55mm). Refer to the parameter table for model selection.
-
What does the multi-layer monitoring & protection include?Answer: It includes protective lens explosion monitoring, gland seal failure monitoring, anti-collision protection, and closed-loop monitoring, improving equipment safety and lifespan.
-
How does focal length affect cutting performance?Answer: The 250mm focal length balances positive/negative focus cutting, while the 300mm focal length delivers smaller R-angle cuts for deeper corner processing.
