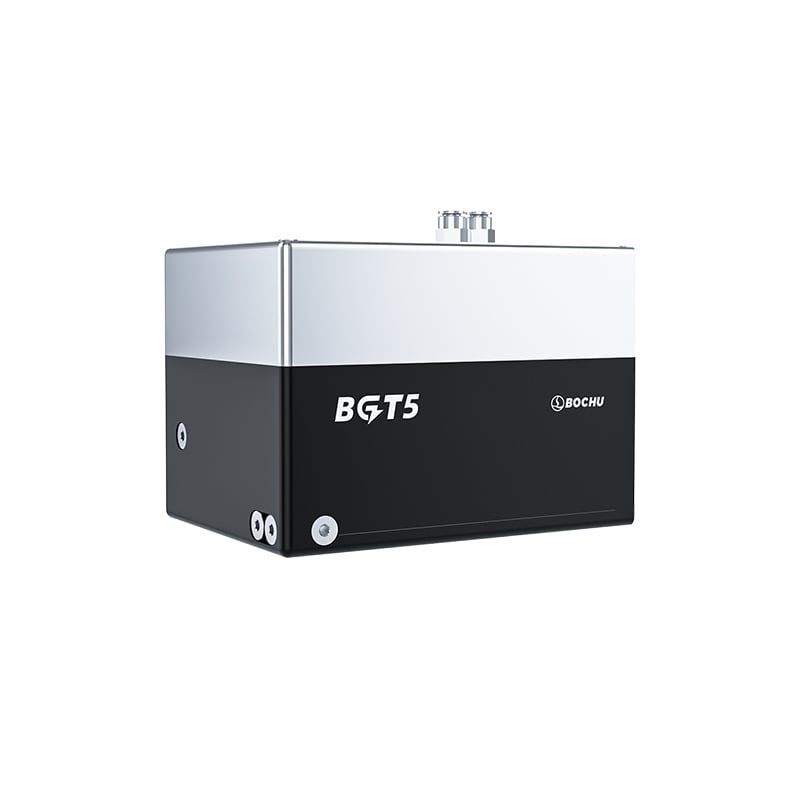

BGT5 Series Galvo Scanner Heads Precision Motion Solutions
Product Summary
The BGT5 Series by Bochu redefines galvo scanning performance for modern manufacturing. Whether your business focuses on high-speed photovoltaic scribing, precision automotive welding, or 3D metal printing, the BGT5 delivers the speed, accuracy, and reliability that industrial leaders demand.

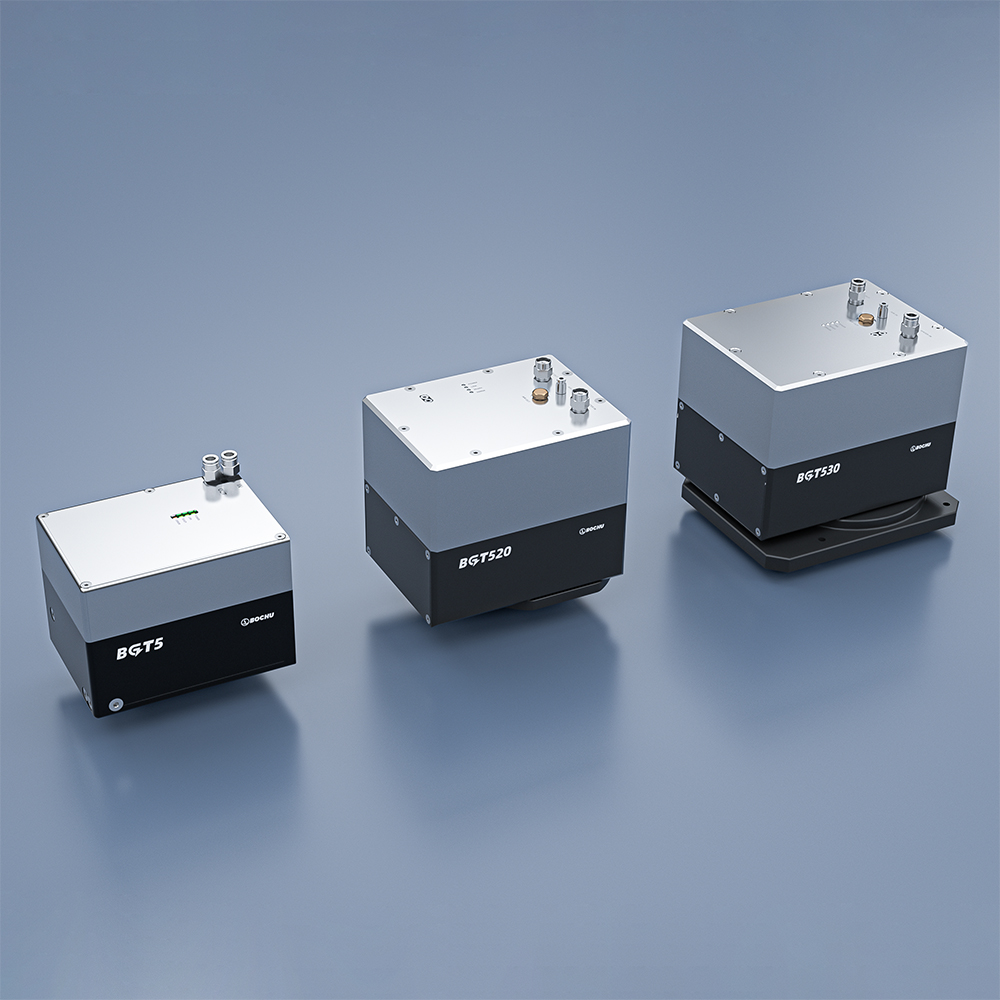

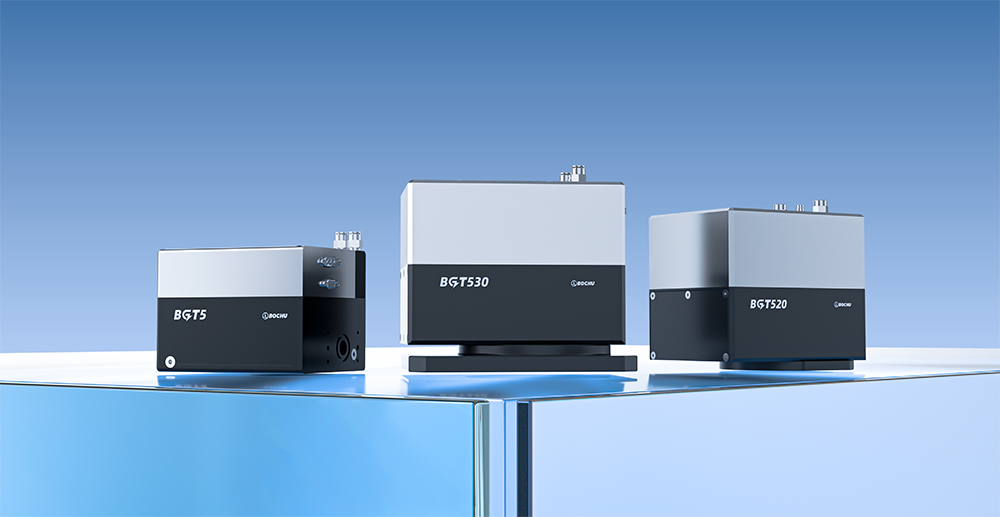

Performance-Driven Design:
BGT514 – Built for scribing excellence in photovoltaic, lithium battery, and panel applications.

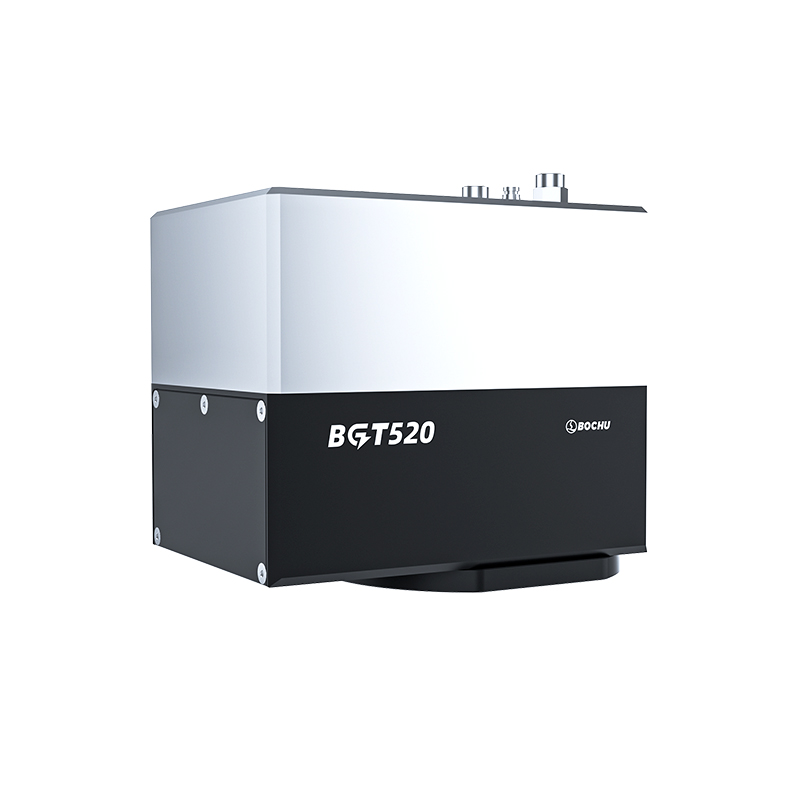

BGT520 – Optimized for the intricate demands of 3D printing and complex welds.

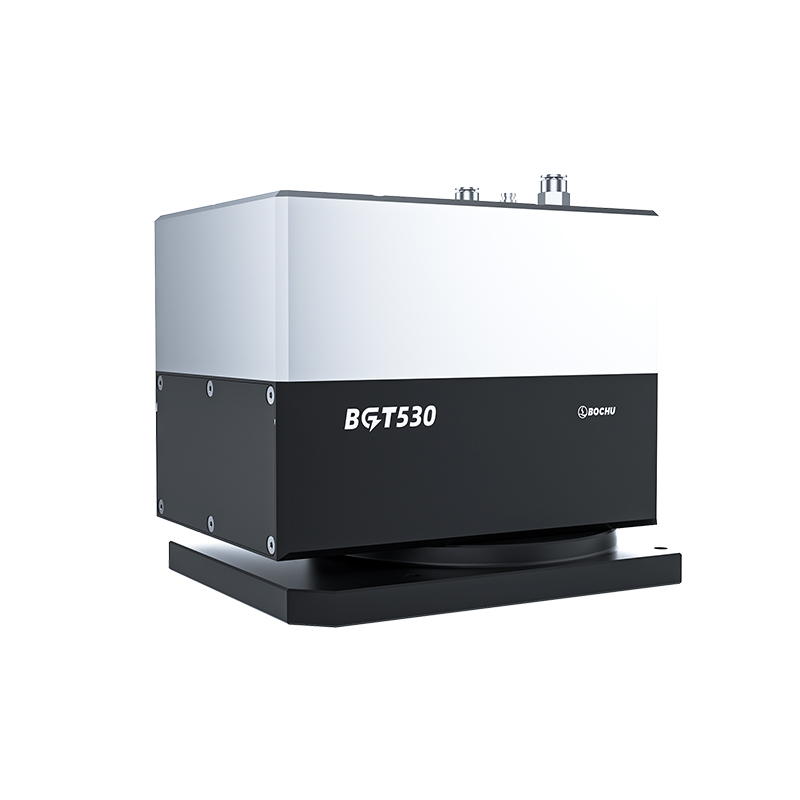

BGT530 – Complete welding solution with integrated collimation module and F-Theta lens for automotive and battery pack manufacturing.
Benefits at a Glance
Ultra-Precise Output – 2 μm straightness enables flawless line and contour processing.
Flexible Tuning Modes – Adapt instantly for high precision, high speed, or balanced operation.
Minimal Downtime – Low heat build-up and thermal drift for stable long-term operation.
Exceptional Speed – Process at up to 200 rad/s without compromising accuracy.
Enhanced Accuracy – 20-bit BC2-100 protocol ensures sharp, consistent positioning.
Technical Highlights
| Parameter | Value |
|---|---|
| Model | BGT514 / BGT520 / BGT530 |
| Digital Signal | BC2-100 |
| Typical Deflection Angle | ±0.349 rad |
| Resolution (20-bit) | 0.67 μrad |
| Repeat Positioning Accuracy (RMS) | < 2.0 μrad |
| Positioning Noise (RMS) | < 4.5 μrad |
| Max Gain Drift | 15 ppm/K |
| Max Position Drift | 10 μrad/K |
| 8h Thermal Drift (No Water Cooling) | < 60 μrad |
| 8h Thermal Drift (With Water Cooling) | < 40 μrad |
Applications
Additive Manufacturing (3D Printing)
Automotive Manufacturing
Photovoltaic Cell Production
New Energy Battery Manufacturing
3C Electronics
Why It Matters to Your Business:
Precision motion control directly impacts your production yield, product quality, and operational costs. The BGT5 Series combines advanced tuning algorithms, thermal stability, and unmatched straightness, helping you achieve superior throughput without sacrificing quality.
