Backpack Laser Cleaning Machine - 23kg Ultra-portable + 300W Power + Air-cooled Design + 30min Battery Life - For Outdoor/High-altitude/Narrow Space Industrial Cleaning (Metal/Non-metal Universal)
Product Description
Backpack Laser Cleaning Machine is a professional ultra-portable backpack laser cleaning equipment developed for scenarios where traditional cleaning machines are inaccessible, such as outdoor operations, high-altitude cleaning and narrow spaces. Adopting high peak power pulsed laser, high-speed scanning system and self-developed high-precision control system, it is equipped with reliable power supply from well-known domestic enterprises, ensuring stable operation, excellent cleaning performance and high efficiency.

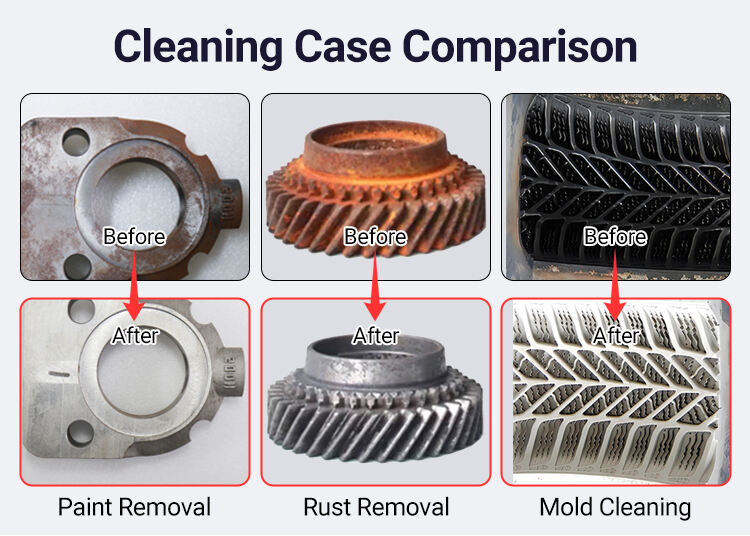

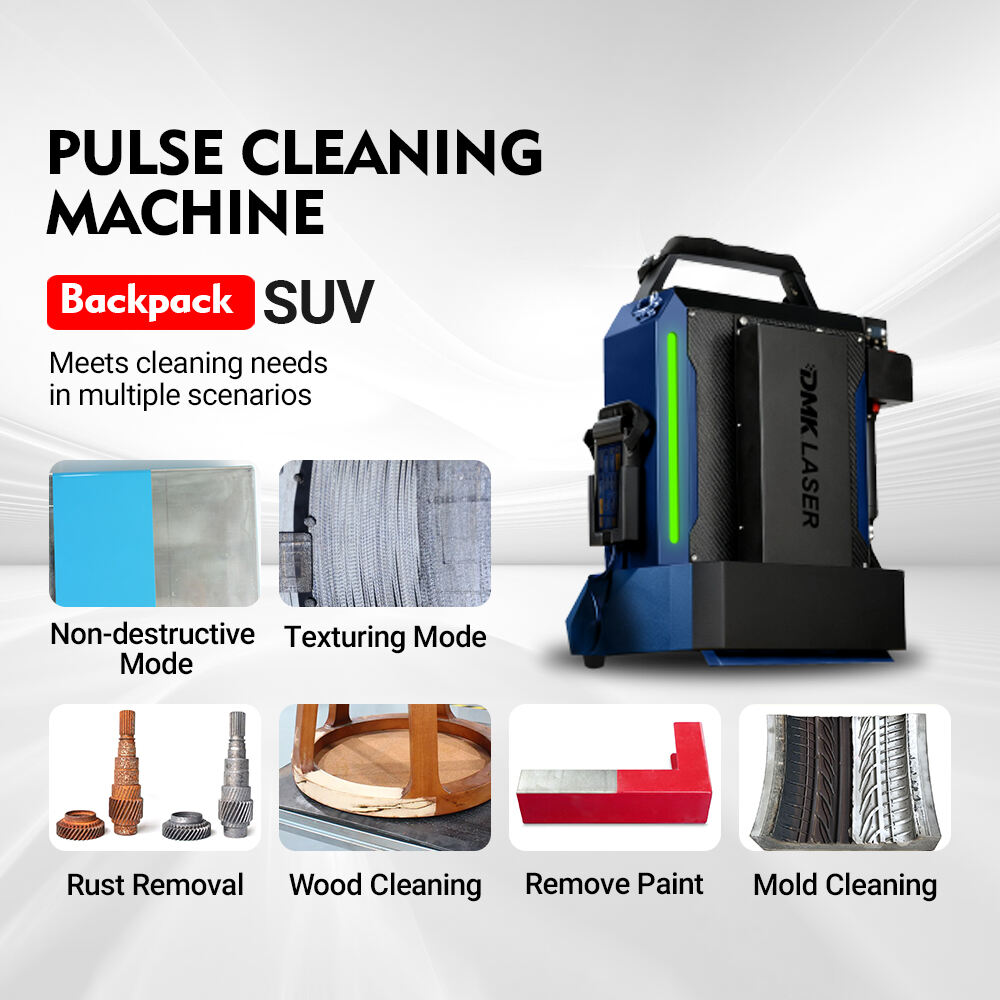

The equipment can efficiently clean local rust, paint, coatings, oil stains, oxide films and other contaminants on various metal surfaces, as well as non-metallic substrates such as ceramics, glass and composites. It also excels in outdoor graffiti cleaning and high-altitude building cleaning—scenarios where ordinary cleaning machines struggle to reach—thanks to its backpack design. Compared with traditional cleaning methods and bulk laser cleaning equipment, this backpack laser cleaning machine has prominent advantages: non-contact cleaning without damaging substrates, environmental friendliness without secondary pollution, recyclable cleaned substances, micron-level precision control in thickness direction, no consumables during use (only consuming electricity), and ultra-energy-saving.

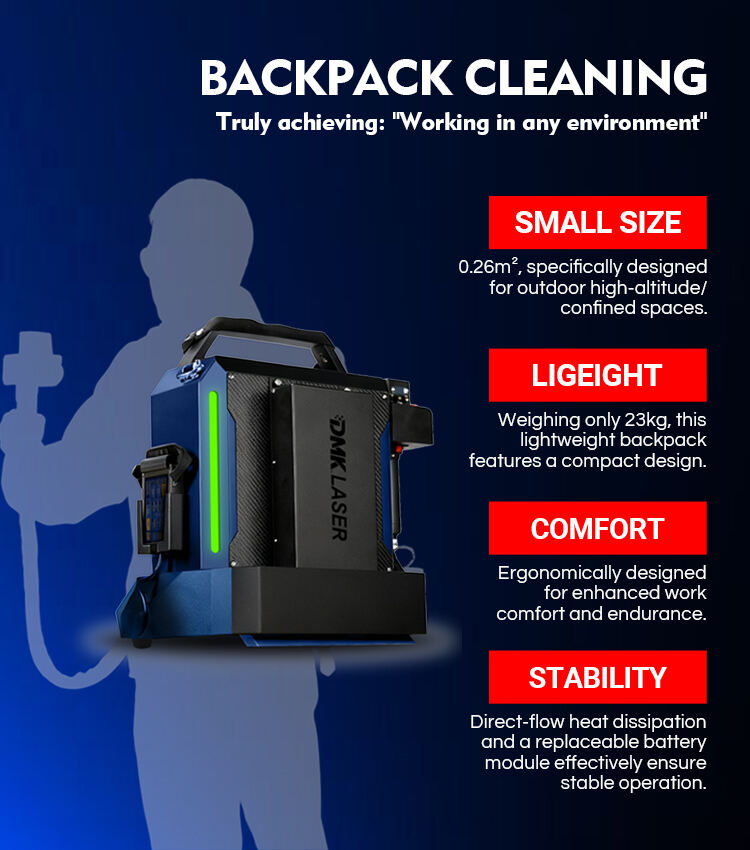

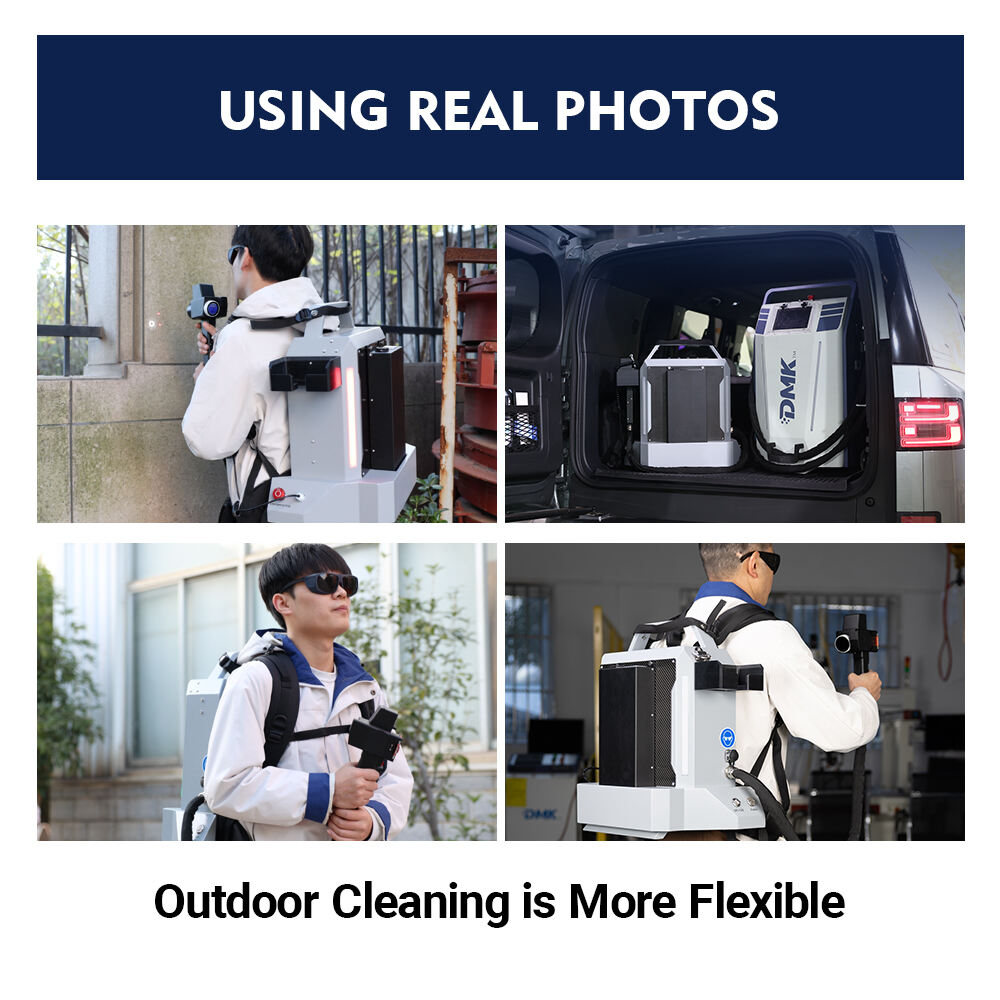

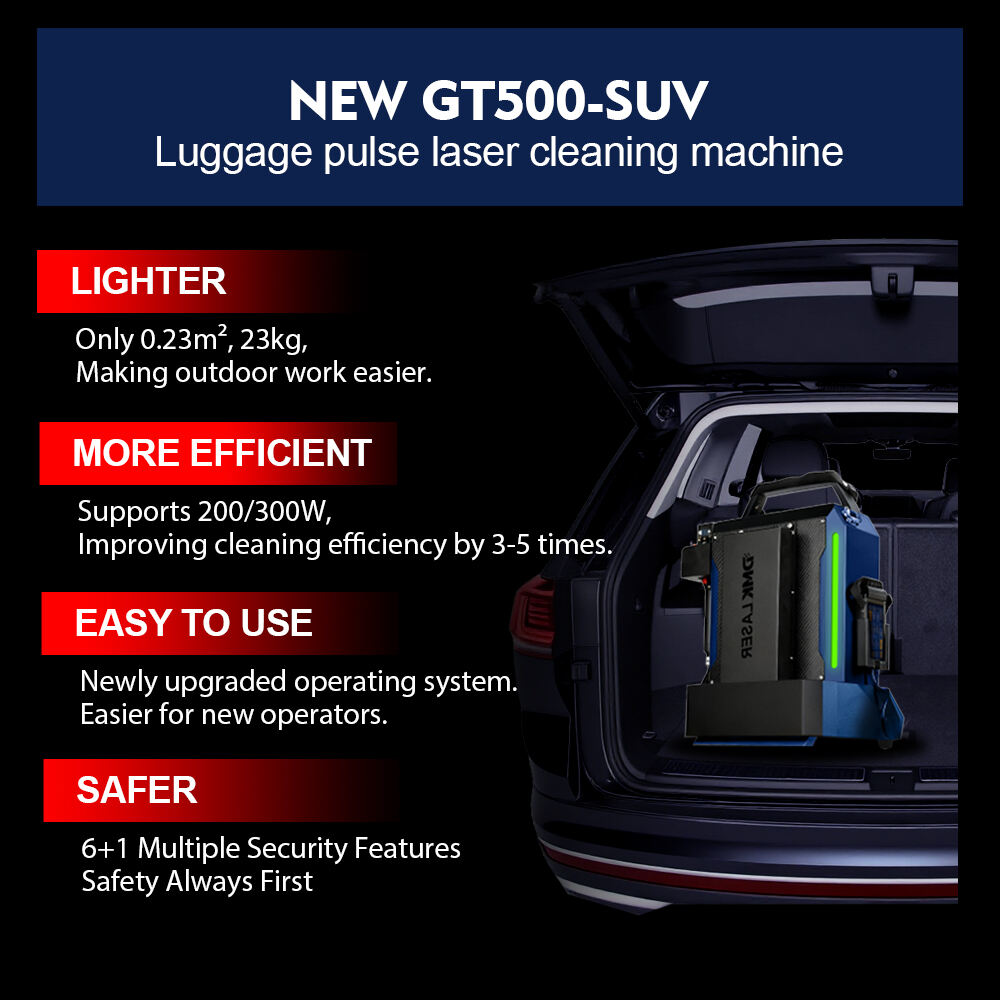

With a net weight of only 23kg (including batteries) and equipped with shoulder straps, it is easy to carry and operate. The air-cooled design adapts to various outdoor working conditions, and two portable batteries provide a battery life of more than 30 minutes, meeting the needs of mobile operations. It is widely used in aerospace, rail transit, automotive manufacturing, marine vessels, electronic microfabrication, food processing, stainless steel and aluminum alloy products, mold processing and other fields, especially suitable for small-hole grooves and other hard-to-reach areas that wire brushes cannot clean.
Product Parameters
| Parameter Category | Specific Parameters |
|---|---|
| Optical Property Parameters | - Laser average power: 300W - Power adjustable range: 10%~100% - Polarization direction Arbitrary - Scanning pattern: 2D, multiple options available - Scanning width: Length 5mm~120mm adjustable; Width 5mm~70mm adjustable (custom field lens required for larger width) - Fiber length: 1.5m - Minimum Fiber Bend Radius: 150mm - Cooling mode: Air cooling - Guided Laser Function: Available - Anti-high-reflection function: Available - Field lens model: F160/F210/F254 (selected according to usage scenarios |

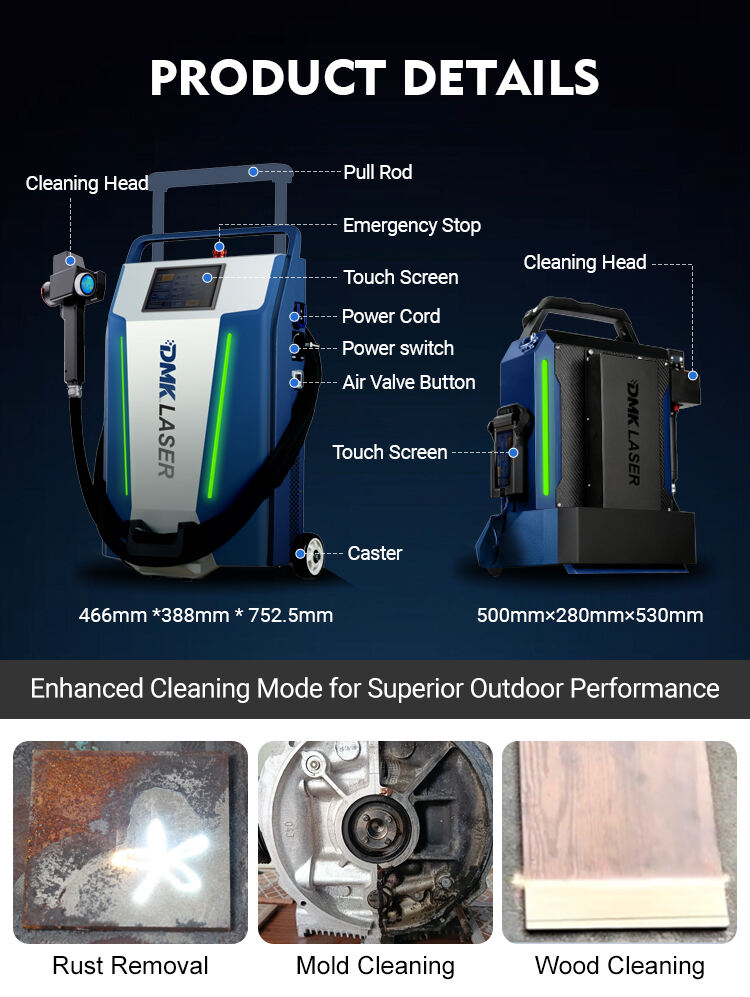

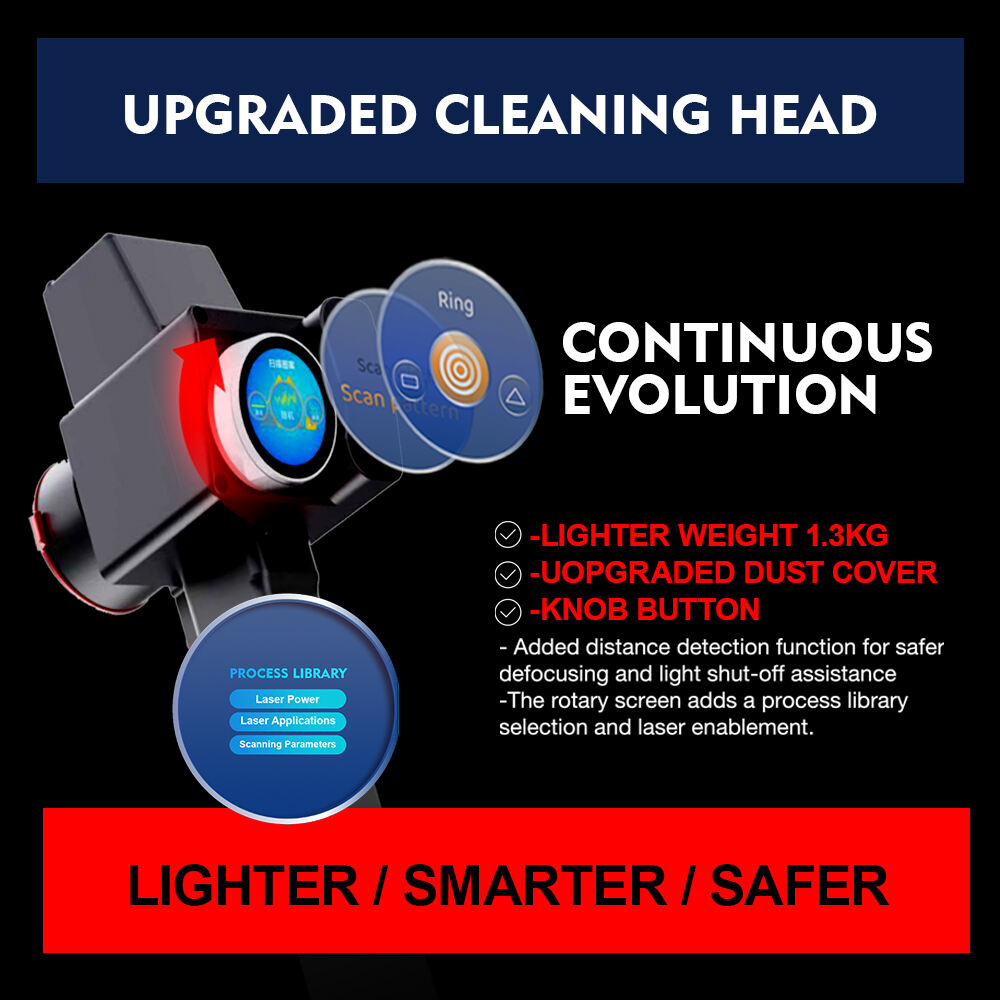

| General Property Parameters | - Net weight: 23kg (including batteries) - Battery life: ＞30min - Cleaning head type: 2D handheld cleaning head - Cleaning head weight: 1.1kg - Chassis Size: L500mm×W280mm×H530mm - Supply voltage: Single phase three-wire system AC 220±10% V- Utility frequency: 50Hz - Work temperature range: 0℃~40℃ - Storage temperature range: -10℃~60℃ - Power consumption @25℃: ＜600W |
Other Details

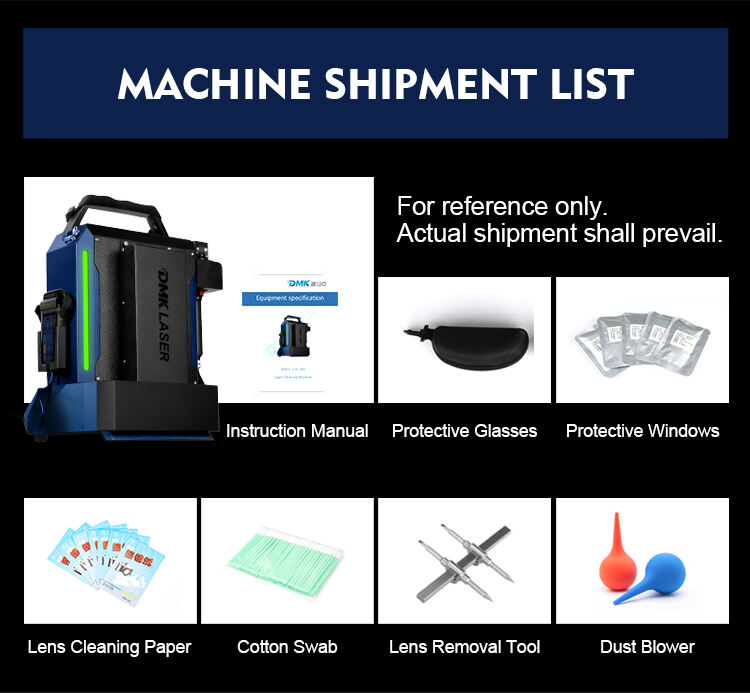

1. Configuration
| Configuration Type | Details |
|---|---|

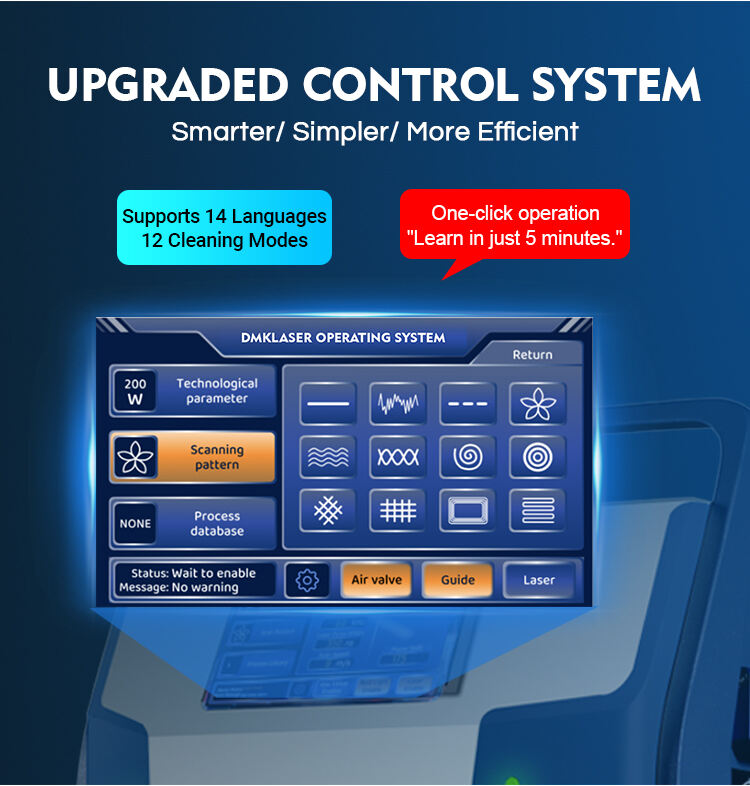

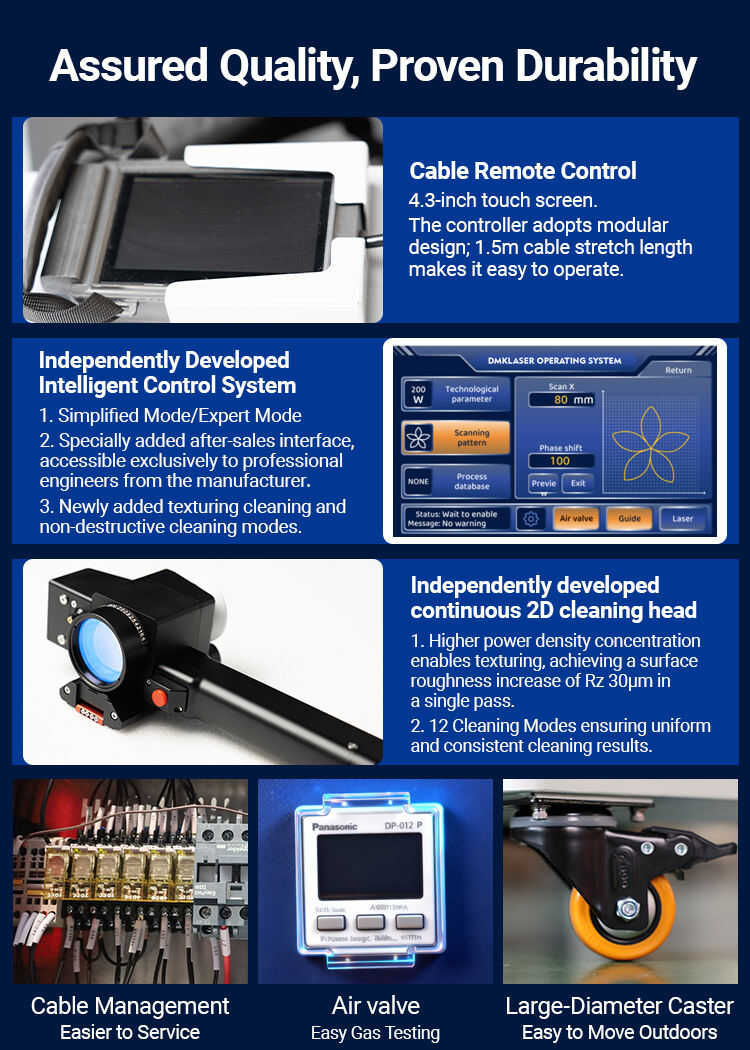

| Standard Configuration | - Cleaning host: 4.2-inch display, 5m operating cable, red light indication, maintenance interface - Portable batteries: 2 pieces (battery life ＞30min) - Battery charger + 220V power converter - Laser protective glasses: 1 pair - Lens wiping paper: 2 boxes - Replaceable field lenses: 1 set (including 4 field lens protection lenses) - Warranty: 1 year |

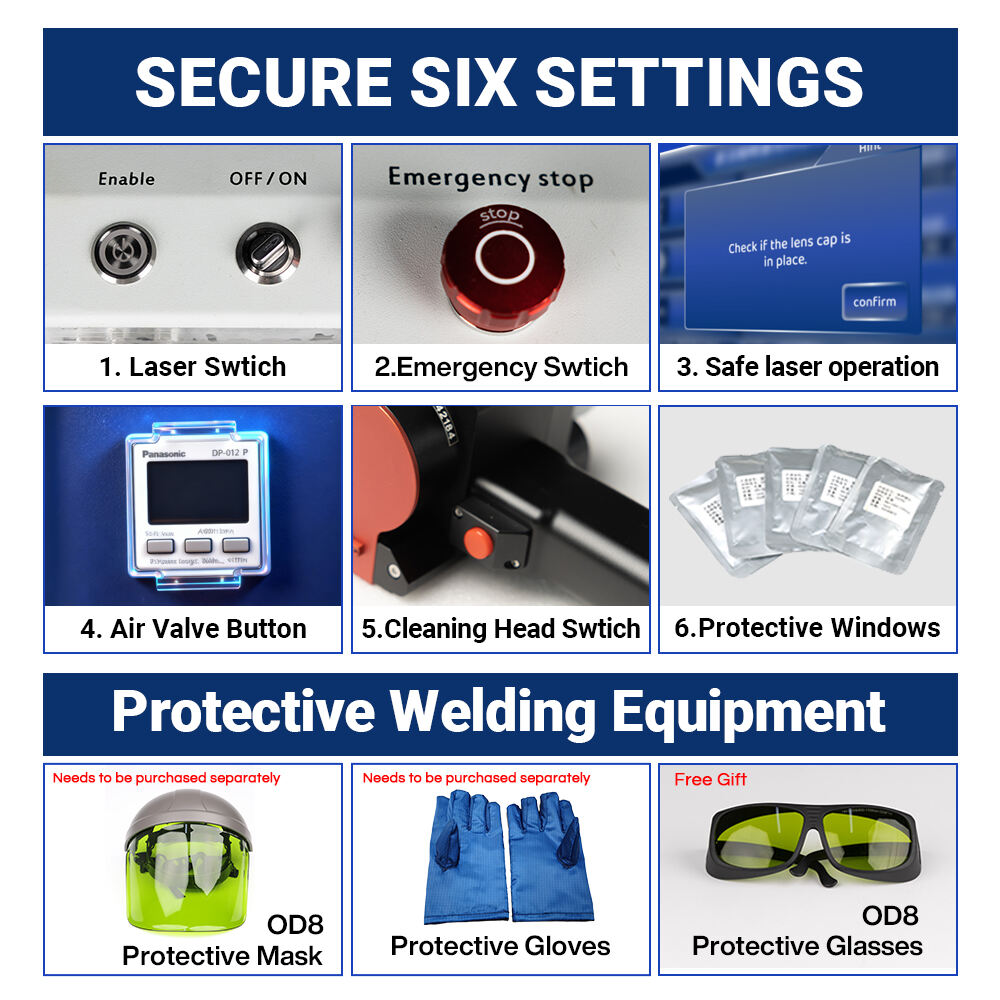

2. Safety & Operation
- The equipment emits laser radiation; operators must wear the provided laser protective glasses throughout the operation to avoid direct or indirect exposure to laser, which may cause eye and skin damage.
- Before use, check the battery power, fiber integrity (bend radius ≥150mm) and cleaning head lens for contamination or damage.
- During outdoor operation, avoid using in harsh weather such as heavy rain, strong wind or extreme temperatures (beyond 0℃~40℃) to ensure equipment safety and cleaning effect.
- When switching batteries, turn off the equipment first to prevent short circuits or laser misemission.

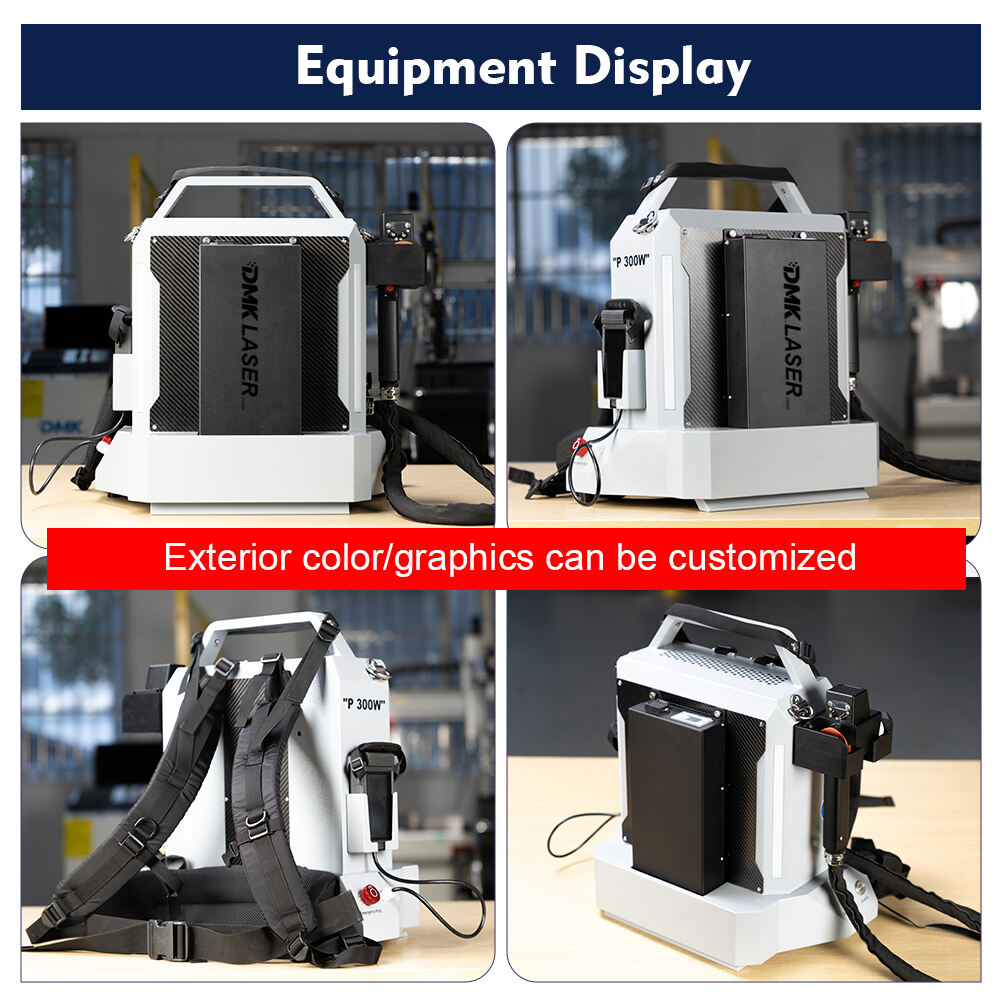

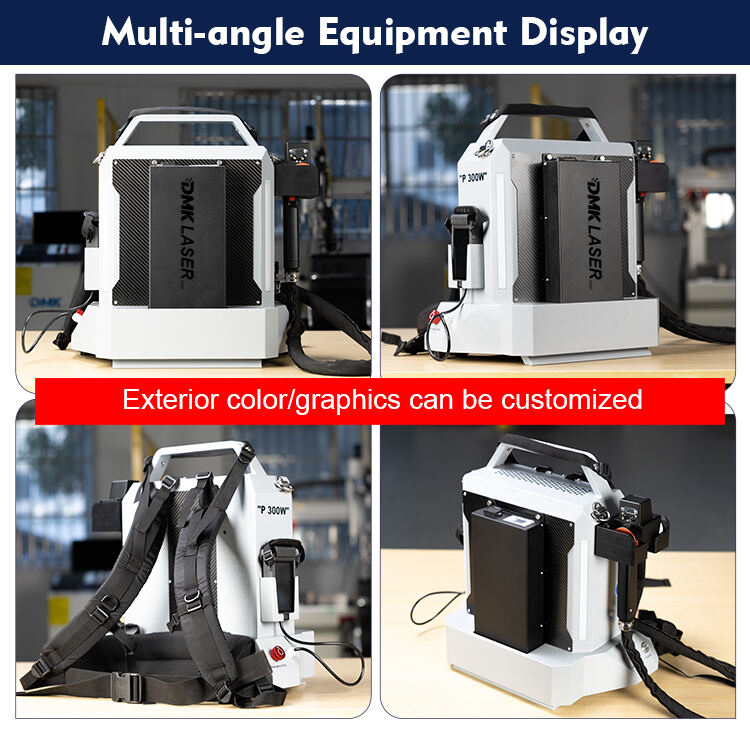

Sample Display
 |
 |
The product is subject to actual delivery.
