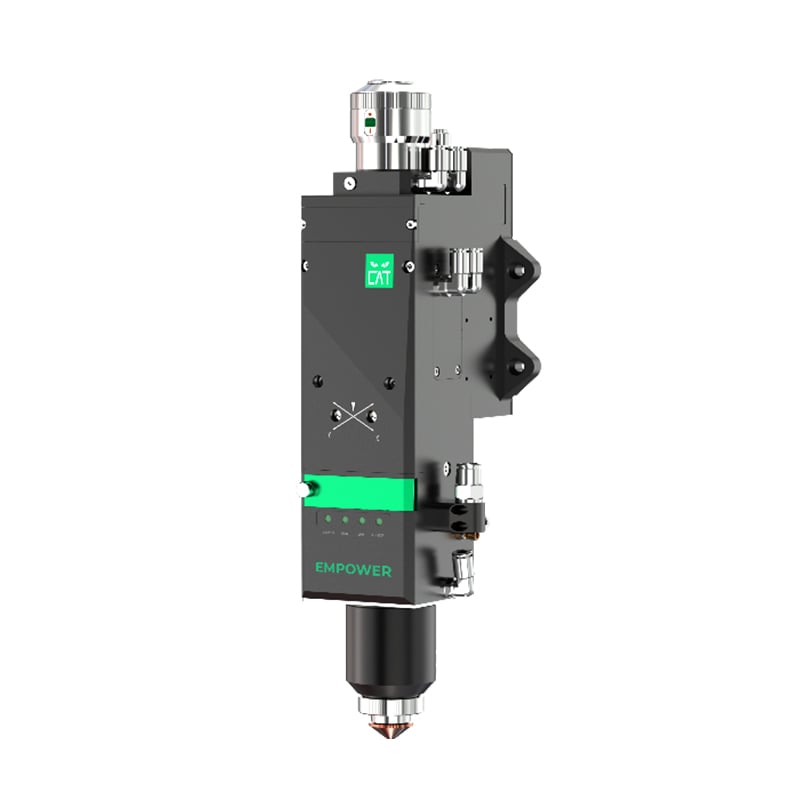

6KW BS06K-CAT High-Power Intelligent Cutting Head
6KW BS06K-CAT High-Power Intelligent Cutting Head

6KW BS06K-CAT High-Power Intelligent Cutting Head

Product Description

The BS06K-CAT is a high-performance intelligent laser cutting head designed for medium to high-power applications up to 6kW. It supports both analog/pulse-controlled focus units and EtherCAT bus communication for advanced focus control, enabling rapid and precise focal point adjustments. Equipped with multiple fiber interfaces such as QBH, QD, and G5, the BS06K-CAT is compatible with mainstream laser sources on the market.

This cutting head integrates a full set of smart sensors and supports real-time data monitoring via wireless networks on mobile devices and CNC systems, ensuring enhanced operational efficiency and cutting quality.


Key Features
  • Dual Optical Protection
    Equipped with four protective lenses to prolong optical component lifespan and enhance internal cavity sealing performance.

  • Flexible Control Options
    Supports both analog/pulse signal adjustment and EtherCAT bus control, allowing users to set and switch focus positions with precision and speed.

  • Optimized Mechanical and Water Cooling Design
    Simplified lens replacement for lower maintenance effort and cost. Anti-collision structural design minimizes damage from accidental impact. Corrosion-resistant surface treatment prevents water leakage during long-term use.

  • Built-In Gas Pressure & Temperature Sensors
    Includes air pressure sensor and protective lens temperature sensor. Features:

    • Accurate gas flow control and more stable cut quality

    • Anti-foolproof gas protection design reduces lens contamination risk

    • One-click intelligent gas calibration makes nozzle and process changes easier

    • Real-time lens temperature monitoring prevents poor cutting caused by contamination

  • Stray Light Detection Module
    High-sensitivity detection for stray light under the lower lens, preventing lens cracking from contamination.

  • Optional Built-In Capacitive Amplifier
    Provides enhanced precision and stability in height-following during cutting.


Technical Specifications
Parameter Value
Focusing Range -17mm to +17mm (F150mm)
-32mm to +32mm (F200mm)
Max Focusing Speed ≤ 200 mm/s
Acceleration ≤ 10 m/s²
Focusing Accuracy 0.01 mm
Numerical Aperture 0.14
Nozzle Types Single-layer, Double-layer, Custom
Nozzle Aperture Sizes 1.0–5.0 mm (1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0)
Auxiliary Gas Pressure ≤ 30 bar
Weight ~5.0 kg
Compatible Fiber Interfaces QBH, QD, G5
Focus Control Analog/Pulse or EtherCAT
Sensor Integration Pressure, Temperature, Stray Light
Application

The BS06K-CAT is ideal for a wide range of industrial laser cutting applications, especially those requiring precision and high power. Typical industries and materials include:

  • Sheet metal fabrication

  • Automotive component processing

  • Aerospace material cutting

  • Stainless steel, carbon steel, aluminum, and copper

  • High-speed, high-precision laser manufacturing environments
