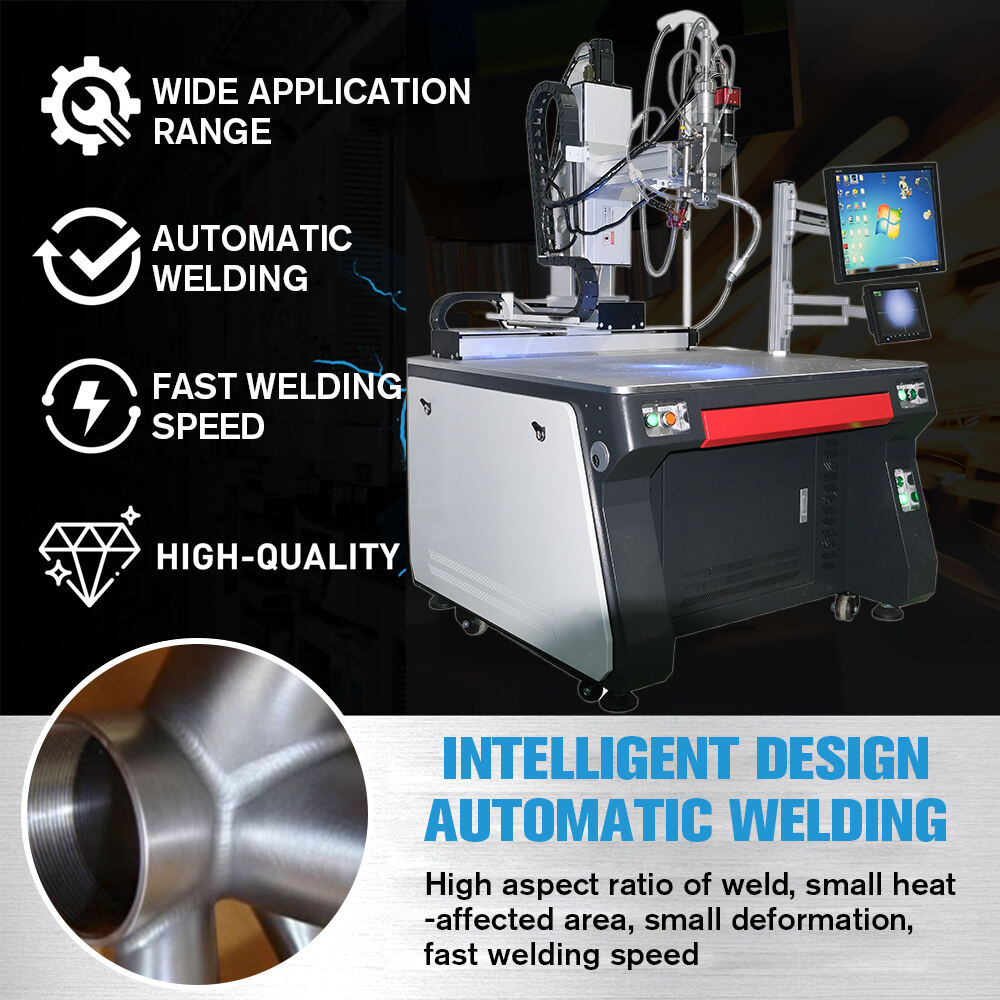

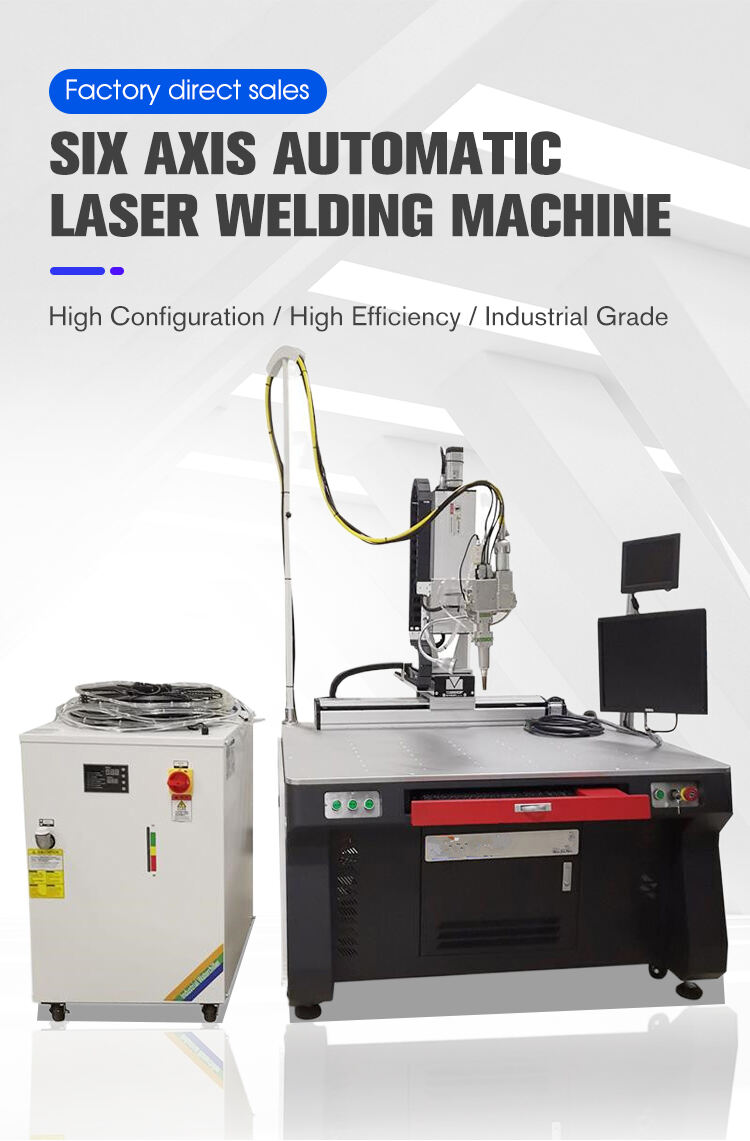

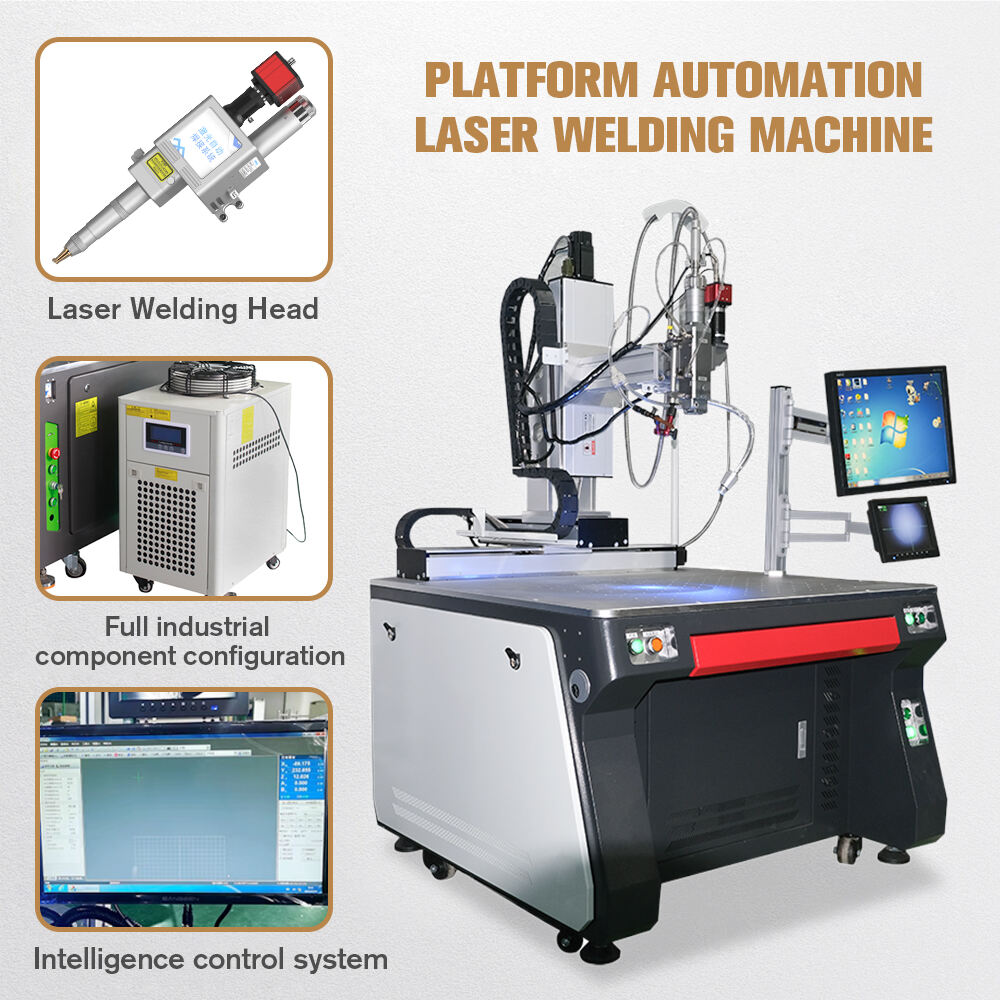

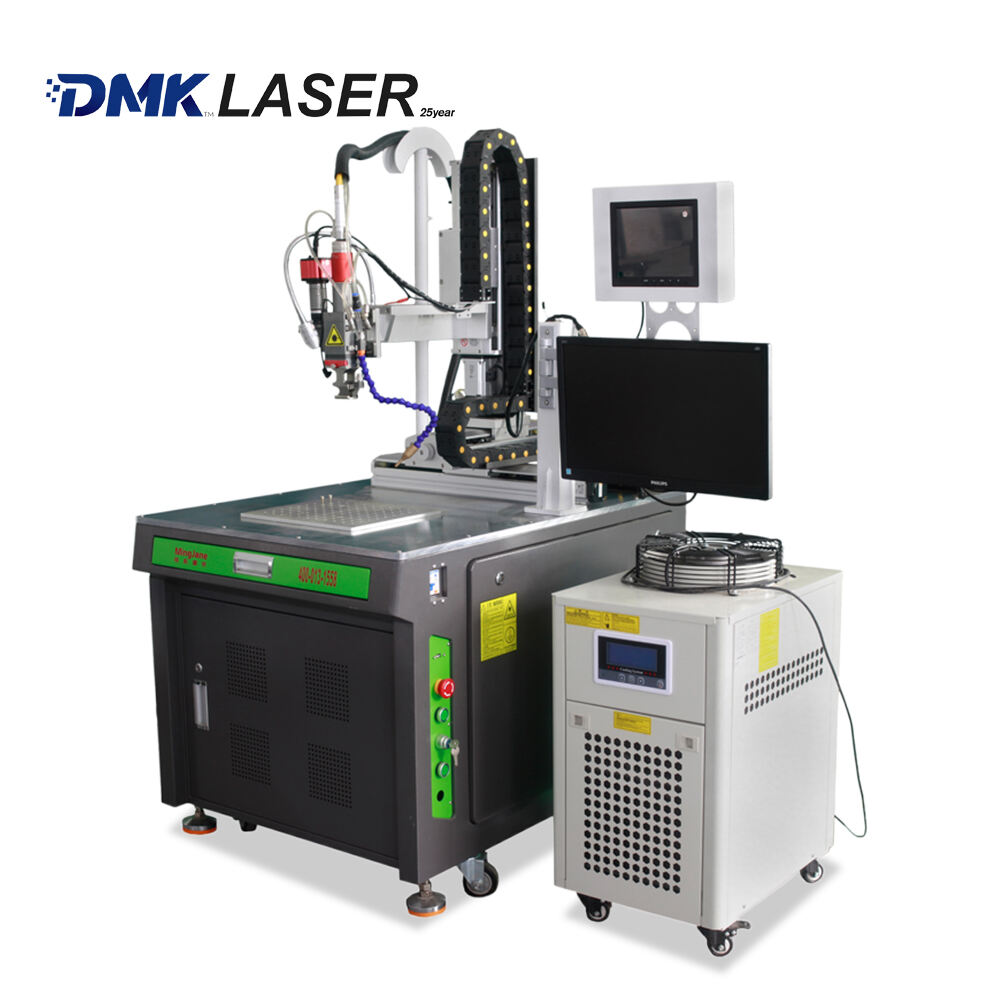

4-Axis / 6-Axis Automated Platform Laser Welding Machine
Product Description

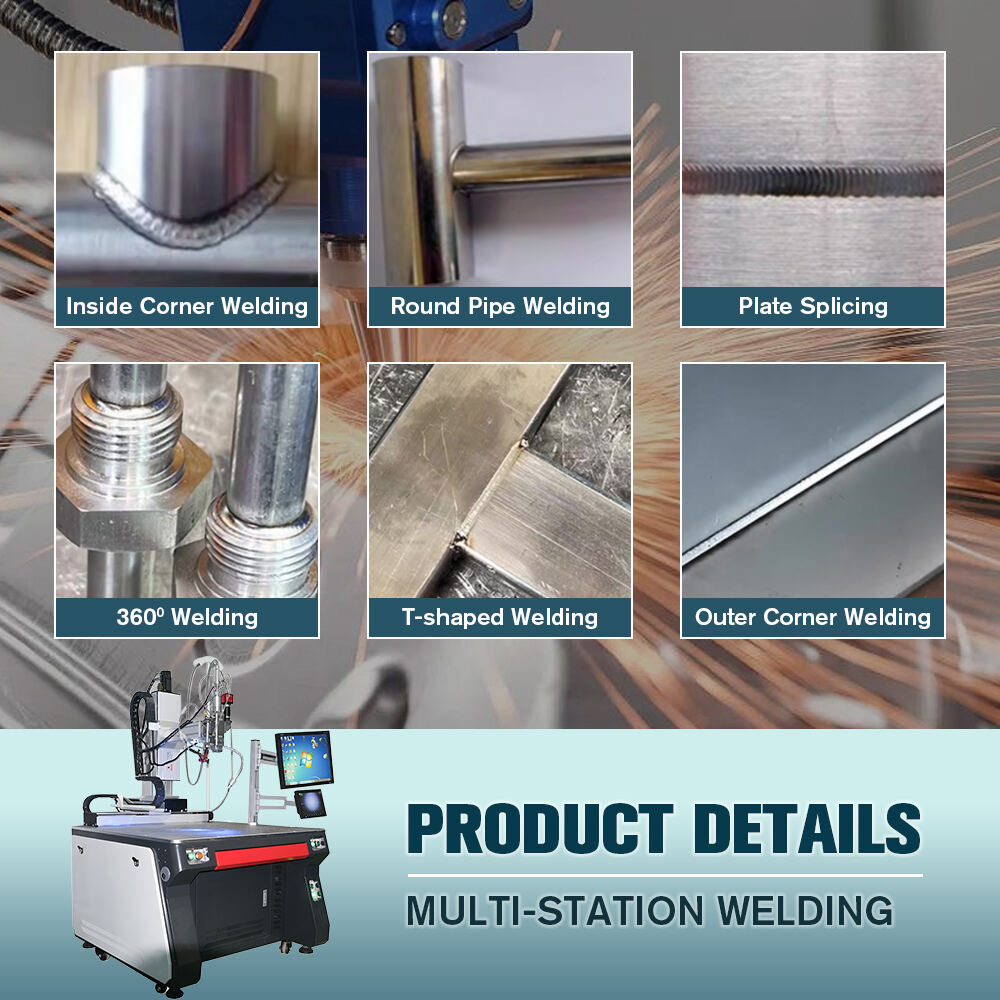

A high-precision automated welding equipment offering flexible 4-axis or 6-axis linkage configurations. Integrated with a 1000W-3000W fiber laser source and an oscillating welding head, it is equipped with a CCD coaxial monitoring system and C6L dedicated welding software, supporting both programming and teaching operation modes. With high welding precision and strong adaptability, it meets the welding needs of metal materials from simple planar to complex three-dimensional trajectories, suitable for automated production scenarios across multiple industries.
Product Parameters
| Core Parameters | Laser Wavelength | 1075nm±5nm |
| Laser Power Range | 1000W-3000W (Optional) | |
| Laser Operating Mode | Continuous / Modulated Mode | |
| Modulation Frequency | 5KHz | |
| Welding Head Configuration | Oscillating Welding Head (8 Oscillation Modes) | |
| Oscillation Amplitude | X/Y Axis 0-5mm | |
| Oscillation Frequency | 0-500Hz | |
| Positioning & Monitoring | Coaxial Red Light Positioning + CCD Monitoring System (≥20x Magnification) | |
| Programming & Pre-reading | CNC Programming, Teaching Programming; 3000 Lines/Second G-code Pre-reading | |
| Motion Parameters | Linkage Configuration | 4-Axis (X/Y/Z + Optional R-Axis) / 6-Axis Full Linkage |
| X/Y Axis Stroke | 200mm/200mm | |
| Z Axis Stroke | 300mm | |
| Repeat Positioning Accuracy | ±0.03mm | |
| Maximum Movement Speed | 80mm/s | |
| Welding Range | 200×150mm (Planar) | |
| Operating Parameters | Power Supply Voltage | Single-Phase AC220V / Three-Phase AC400±10% V |
| Equipment Power Consumption | ＜10kW | |
| Cooling Method | Water Circulation Cooling System | |
| Operating Ambient Temperature | 0-45℃ | |
| Operating Ambient Humidity | 20%-80% | |
| Shielding Gas Method | Coaxial Air Blowing | |
| Physical Parameters | Worktable Dimensions (L×W×H) | 1100×900×1900mm |
| Welding Head Weight | ~3.0kg | |
| Installation Floor Requirement | Load-Bearing ≥700Kg/m², Class I Grounding |
Other Details
