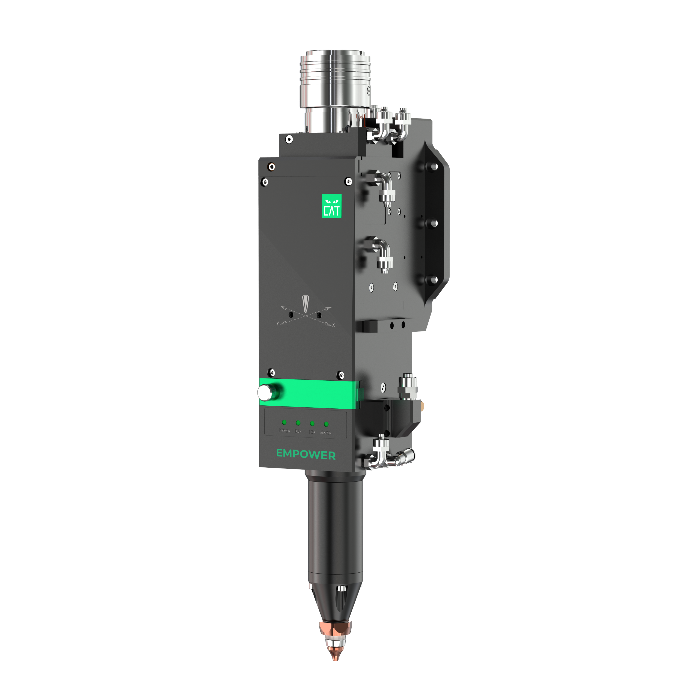

30KW Raytools BS30K‑CAT ‑3D High‑Power Smart Cutting Heads
30KW Raytools BS30K‑CAT ‑3D High‑Power Smart Cutting Heads

30KW Raytools BS30K‑CAT ‑3D High‑Power Smart Cutting Heads

Product Description

Advanced Intelligent Cutting Heads for 30kW–40kW Laser Systems

The BS30K‑CAT‑3D and BS40K‑CAT‑3D are ultra-high-power 3D laser cutting heads designed to meet the most demanding industrial cutting applications. Engineered for 30kW and 40kW fiber lasers, they deliver outstanding performance, precise control, and enhanced reliability for thick plate processing and high-speed production lines.

With broad compatibility (QBH, QD, Q+, LOE), advanced sensing technology, and smart control options, these heads are ideal for modern smart factories and automated CNC systems.


Key Features
  • Dual Optical Protection
    Four-layer protection extends lens lifespan and improves internal sealing reliability.

  • Flexible Focus Control
    Supports EtherCAT bus communication or analog/pulse input for fast, programmable focus adjustments.

  • Rugged Mechanical & Cooling Design
    Built-in anti-collision features and a corrosion-resistant water-cooling system ensure long-term durability with low maintenance.

  • Real-Time Monitoring & Alerts
    Integrated pressure and temperature sensors ensure consistent cut quality. Stray light monitoring prevents lens damage due to contamination.

  • Smart CNC Integration
    Compatible with Jiaqiang CNC systems for piercing detection and intelligent process monitoring.

  • Optional Capacitive Amplifier
    Provides finer height-following capability for complex and uneven surfaces.


Technical Specifications
BS30K-CAT-3D BS40K-CAT-3D
Power Rating Up to 30 kW Up to 40 kW
Focus Range –40 mm to +40 mm (F220 mm)–72 mm to +72 mm (F300 mm) Same
Max Speed ≤200 mm/s ≤200 mm/s
Max Acceleration ≤10 m/s² ≤10 m/s²
Positioning Accuracy 0.01 mm 0.01 mm
Numerical Aperture 0.14 0.14
Weight ~8.2 kg ~8.2 kg
Fiber Interfaces QBH, QD, Q+, LOE QBH, QD, Q+, LOE
Control Options Analog / Pulse / EtherCAT Bus Same
Protective Lens Sets 4 groups 4 groups
Process Monitoring Pressure, Temperature, Stray‑light Same
Piercing Detection Supported (Jiaqiang CNC compatible) Supported
Capacitive Amplifier Optional Optional
Cooling System Water cooling + Nozzle airflow Same
Cooling Gas Pressure ≤6 bar (nozzle) ≤6 bar (nozzle)
Assist Gas Pressure ≤30 bar ≤30 bar
Nozzle Sizes 1.2 mm – 5.0 mm 1.2 mm – 5.0 mm
Applications
  • Ultra-high-power thick plate cutting

  • High-efficiency production lines

  • Precision processing of carbon steel, stainless steel, and aluminum

  • Smart manufacturing environments requiring real-time monitoring and advanced automation
