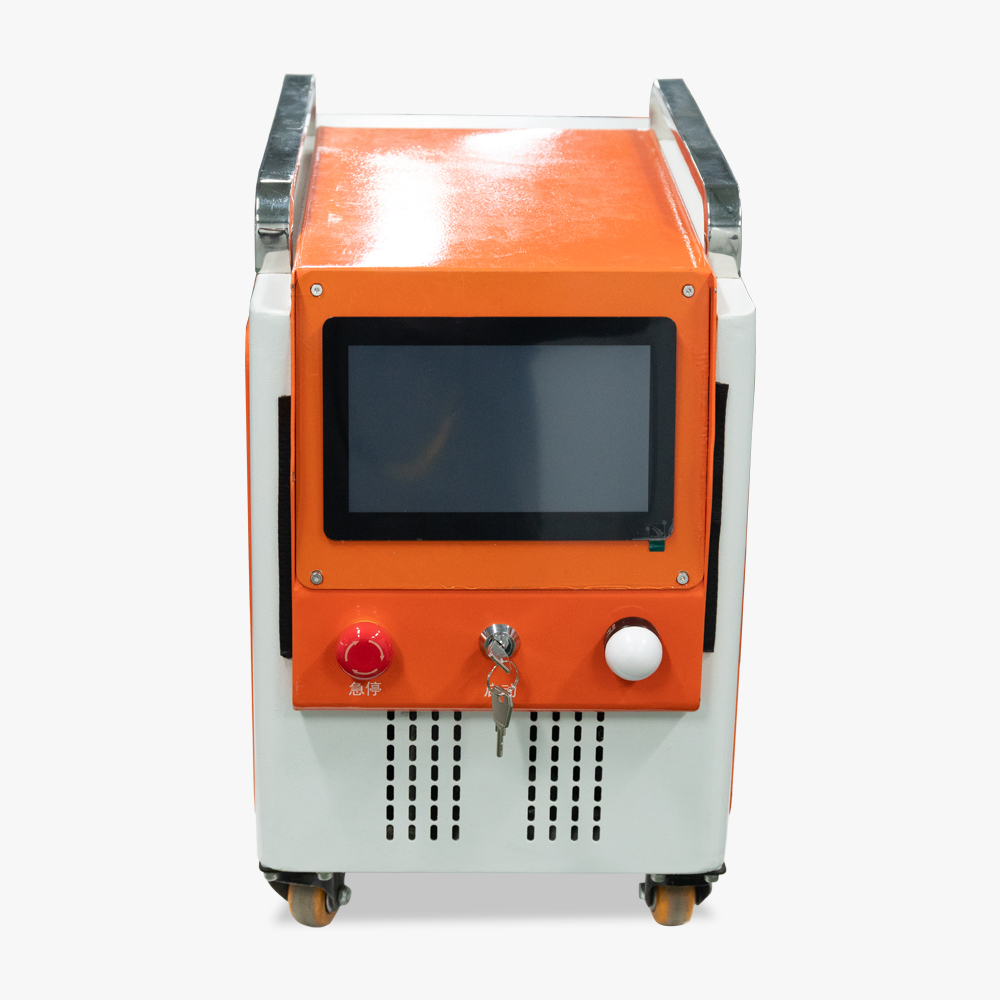

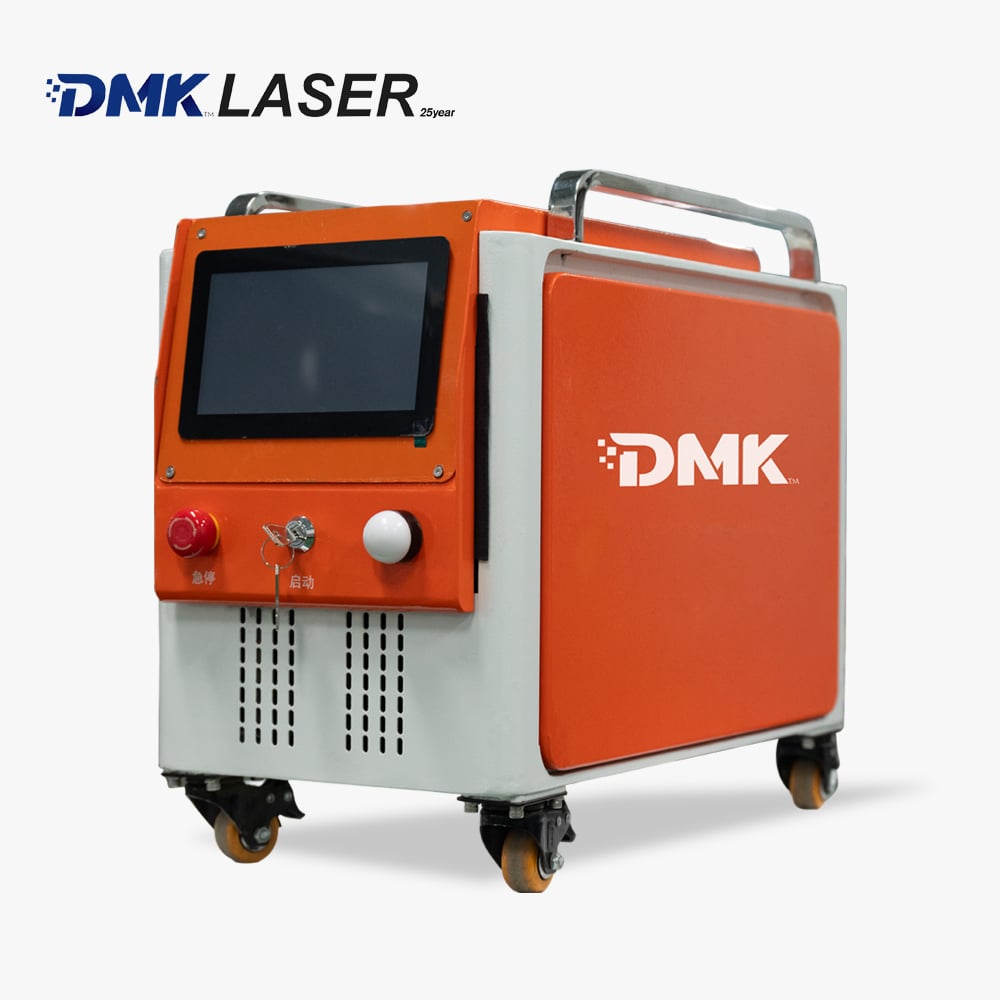

200W Pulse Laser Cleaning, Marking & Thin Sheet Cutting 3-in-1 Machine
Product Description
The KRD-C200W is an advanced integrated system that combines laser cleaning, marking, and thin sheet cutting in one compact design. Powered by a JPT MOPA pulsed fiber laser, this system provides a safe, efficient, and eco-friendly solution for industrial cleaning, precise marking, and light-duty cutting tasks. With stable output, intelligent control, and long continuous working hours, it is suitable for a wide range of manufacturing and repair applications.
Product Parameters
| Item | Specification |
|---|---|
| Model | KRD-C200W |
| Laser Power | 200W |
| Max. Single Pulse Energy | 5 mJ |
| Laser Type | Fiber MOPA |
| Laser Brand | JPT |
| Wavelength | 1080 nm |
| Power Adjustment | 0–100% |
| Frequency Range | 1–3000 kHz |
| Pulse Width | 13–500 ns |
| Instability | ＜5% |
| Divergence Angle | ≤1.5 mrad |
| Cleaning Width | 1–100 mm |
| Focus Length | F=200 mm |
| Cleaning Modes | 9 modes |
| Continuous Operation | Up to 16 hrs |
| Noise Level | ≤60 dB |
| Fiber Cable | 5 m (standard) |
| Total Power Consumption | ≤1 kW |
| Voltage | AC110/220V ±10%, 50/60 Hz |
| Working Temperature | -10°C ~ 40°C |
| Cooling Method | Air-cooled |
| Net Weight | 20 kg |
| Machine Size | 450 × 170 × 360 mm |
| Packed Size/Weight | 490 × 210 × 480 mm, 28 kg |
Other Details
Key Features
-
3-in-1 Functionality – Combines laser cleaning, marking, and thin sheet cutting in one machine, maximizing versatility.
-
High-Performance Laser Source – Equipped with a JPT MOPA pulsed fiber laser featuring flat-top beam design, uniform mode, and stable output energy.
-
Smart Control System – 7-inch capacitive touchscreen with multi-language support (20 languages), adjustable parameters, and 9 cleaning modes.
-

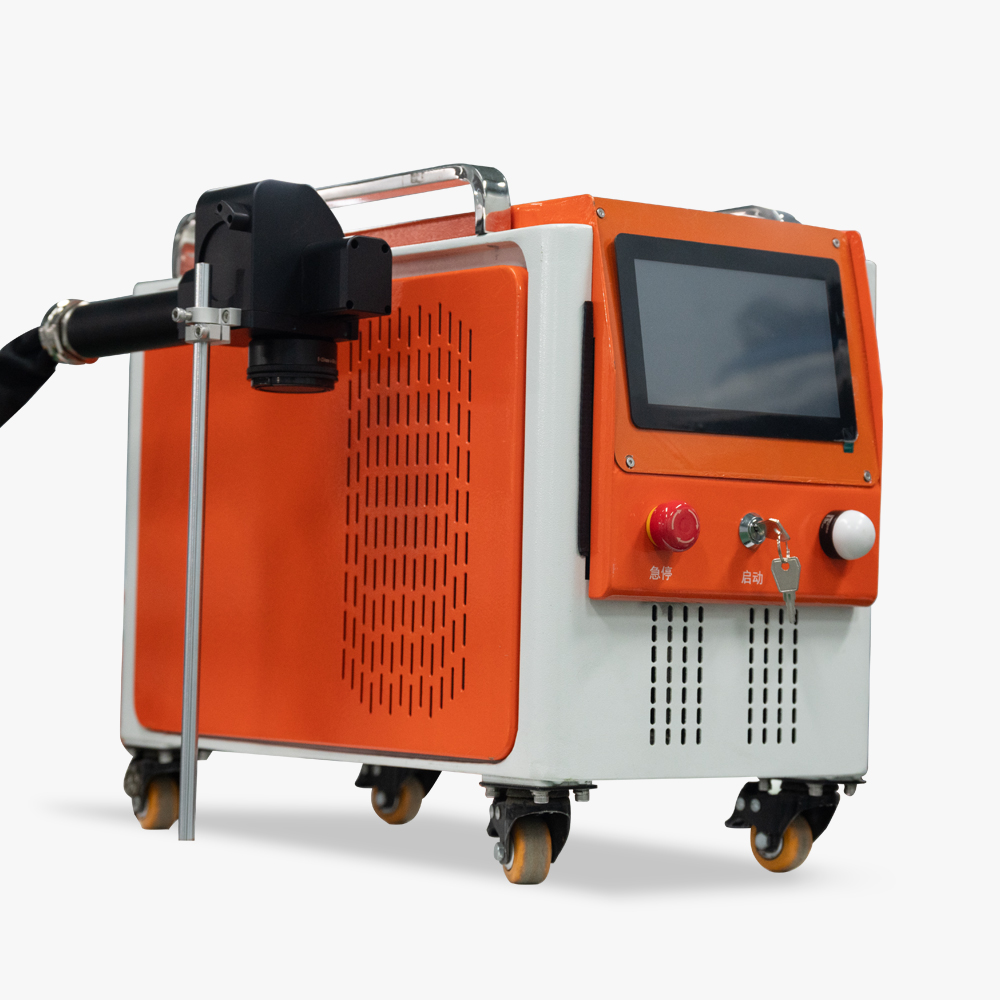

Durable Handheld Cleaning/Marking Head – Lightweight 750g design, made from 6061 aluminum alloy with imported quartz lenses and dual-axis copper motors for high precision and speed.
-
Rugged Build – Metal housing with protective coating, resistant to impact, corrosion, heat, and harsh environments.
- Eco-Friendly & Non-Contact – Removes rust, oil, paint, and coatings without damaging the substrate, with no chemical pollution.
