Product Description

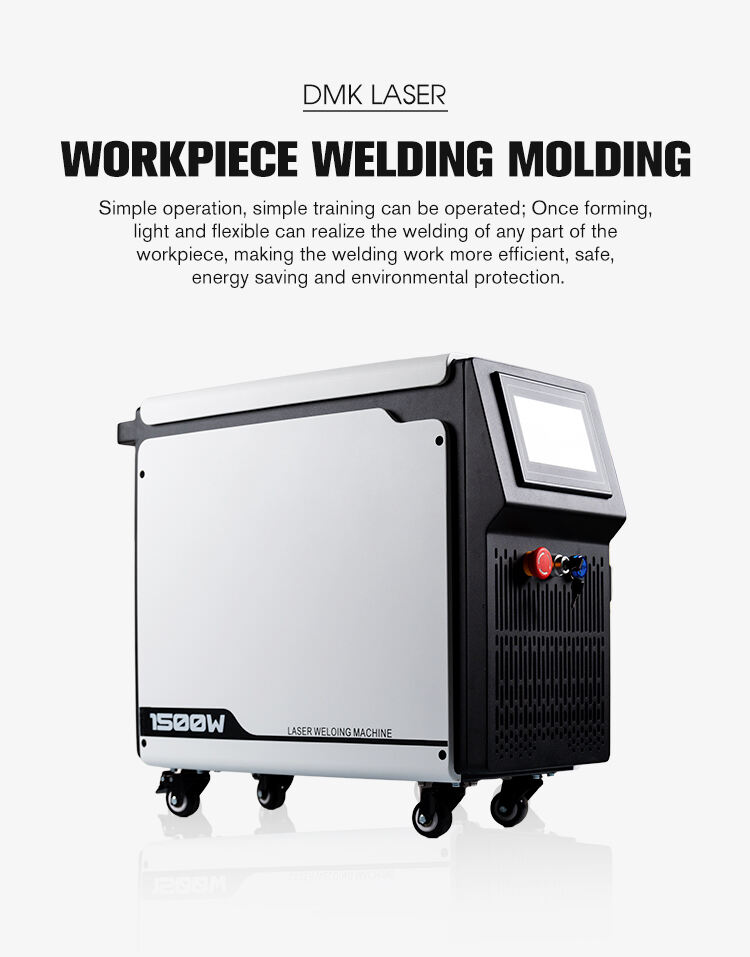

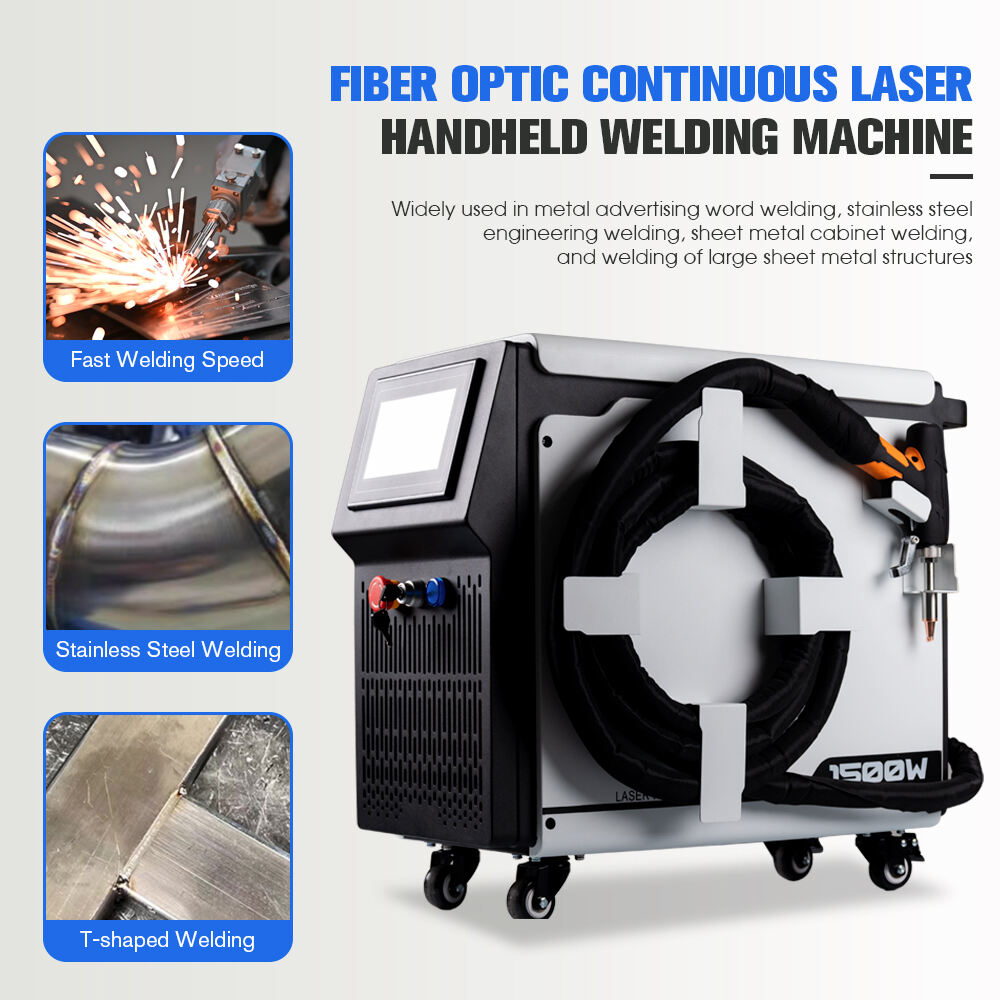

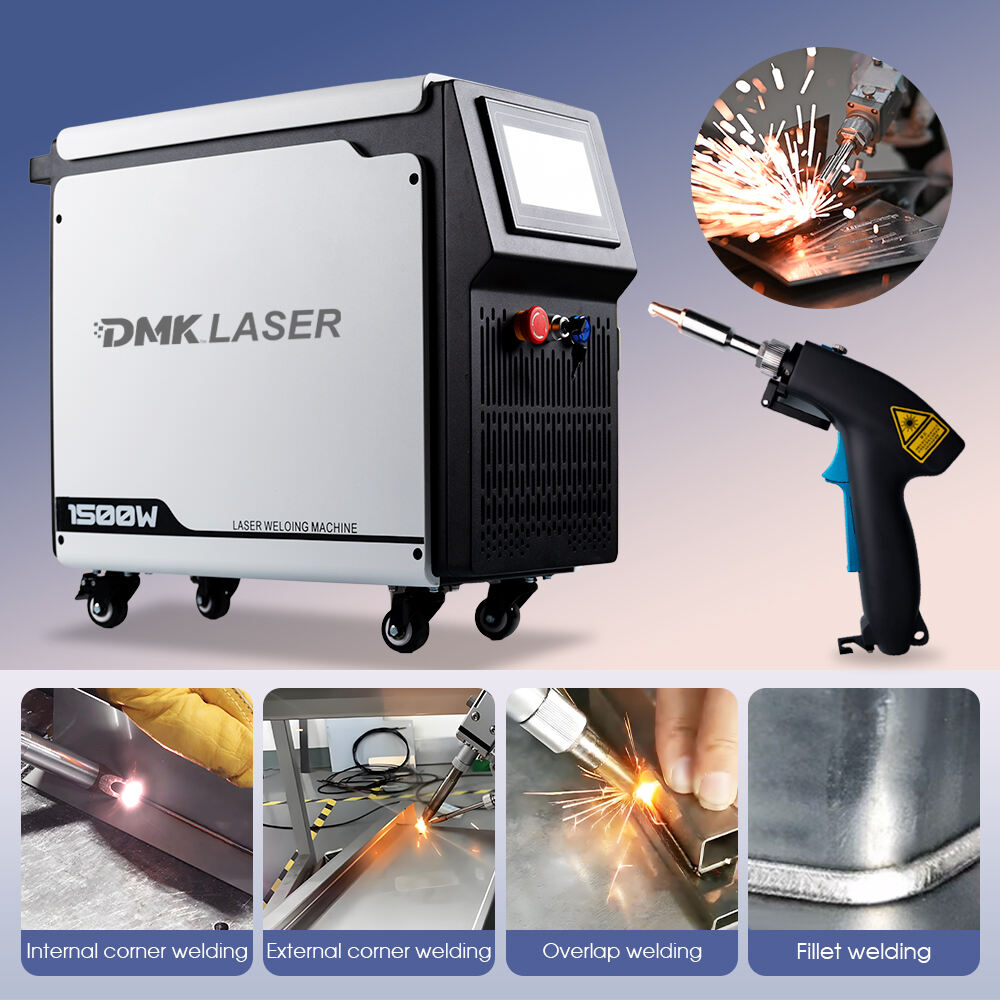

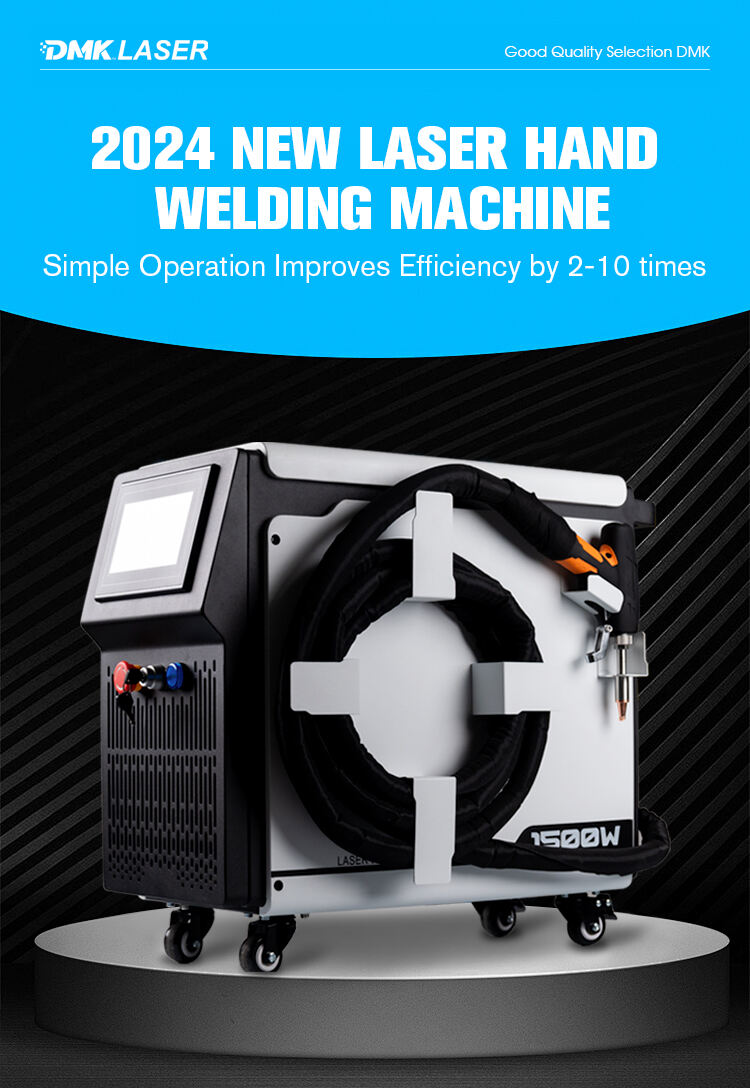

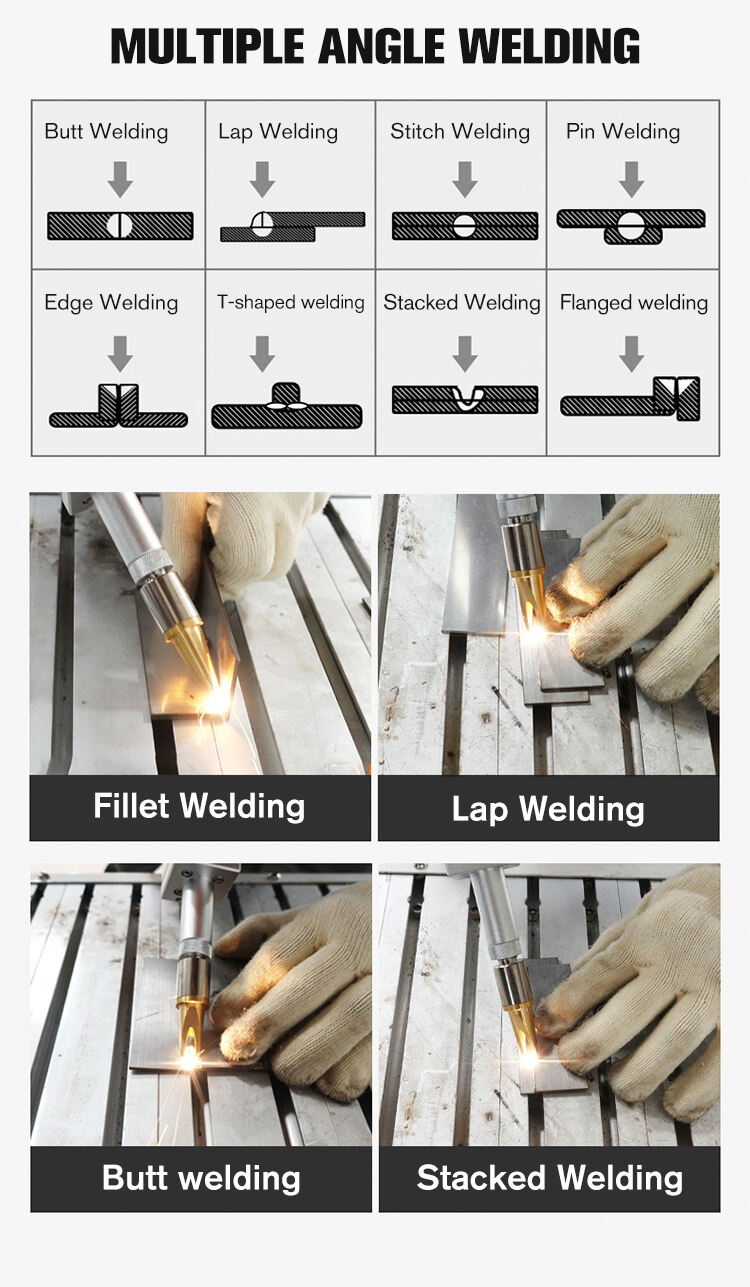

The 1500W handheld welding machine is an industrial-grade, versatile precision welding device. With its high-power laser core and flexible design, it has become the preferred choice across multiple industries. It is compatible with various metal materials such as stainless steel, carbon steel, and aluminum alloy, supporting welding at any angle as well as spot welding, seam welding, and other techniques, easily handling complex workpieces and confined spaces.

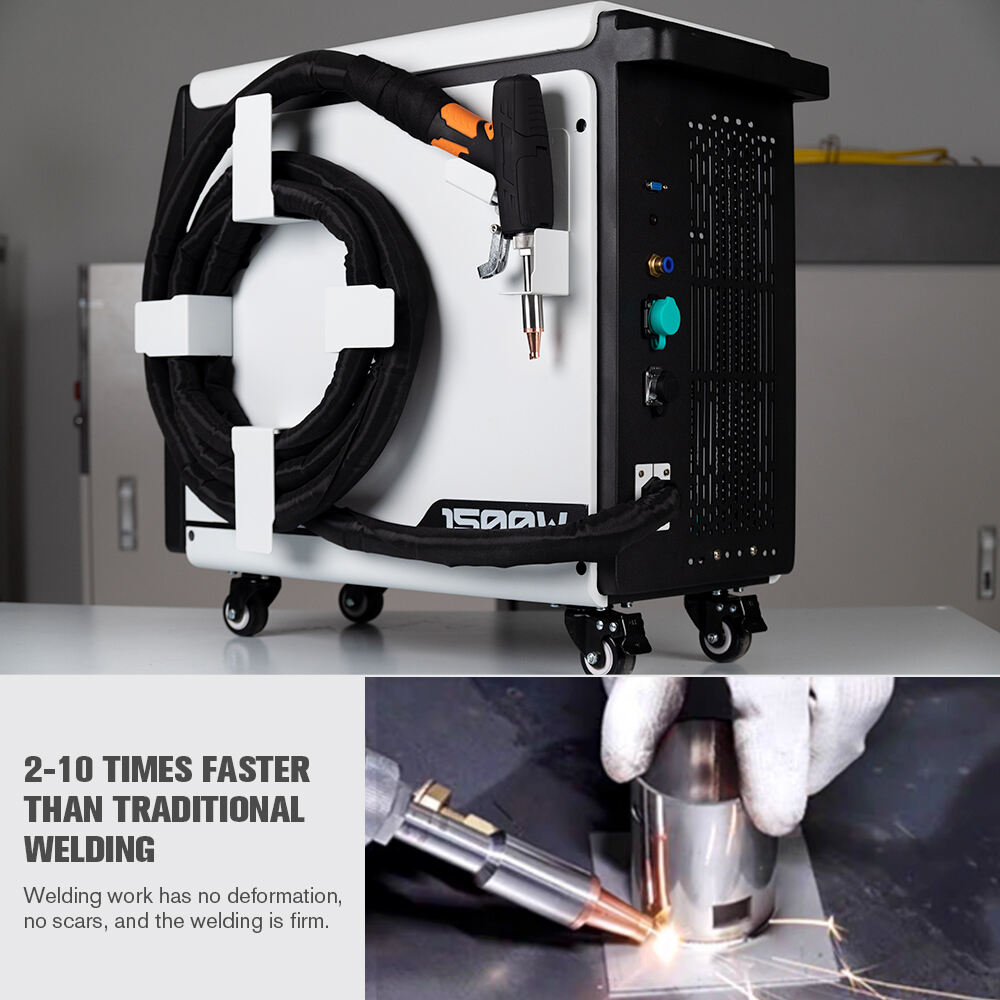

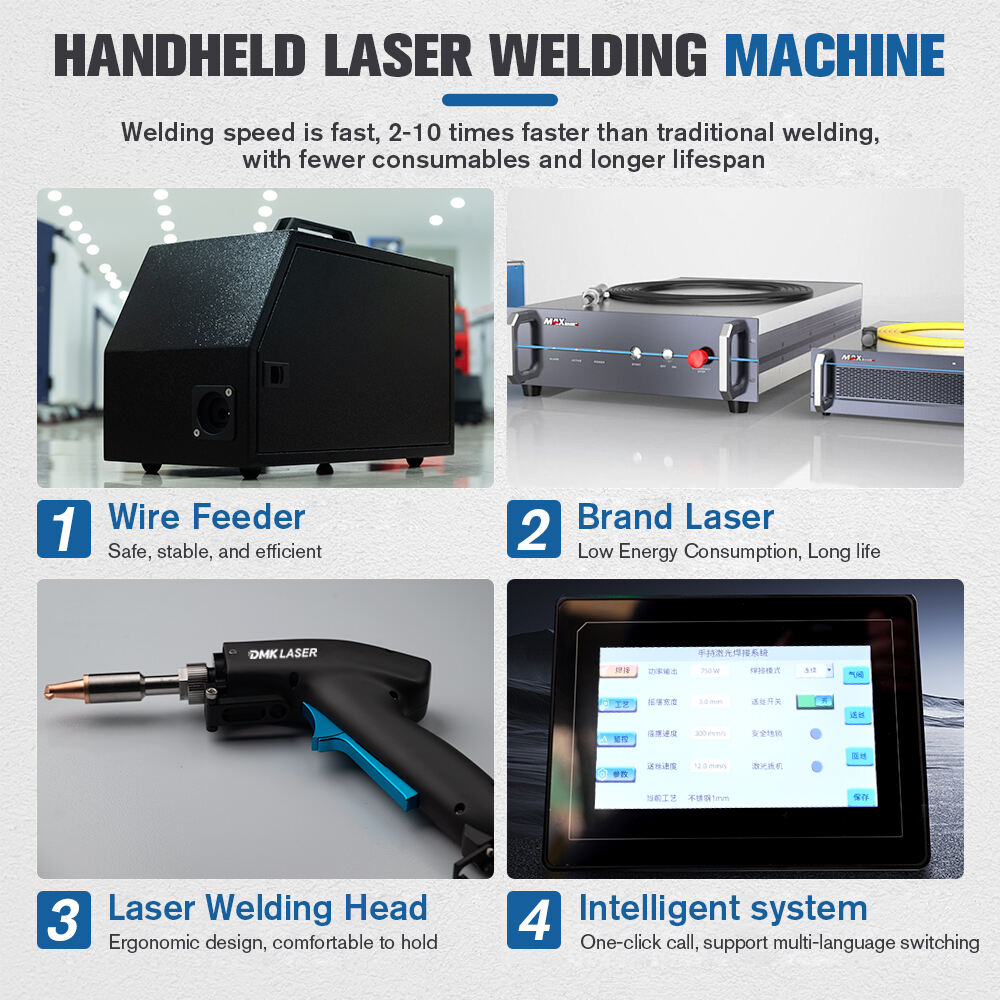

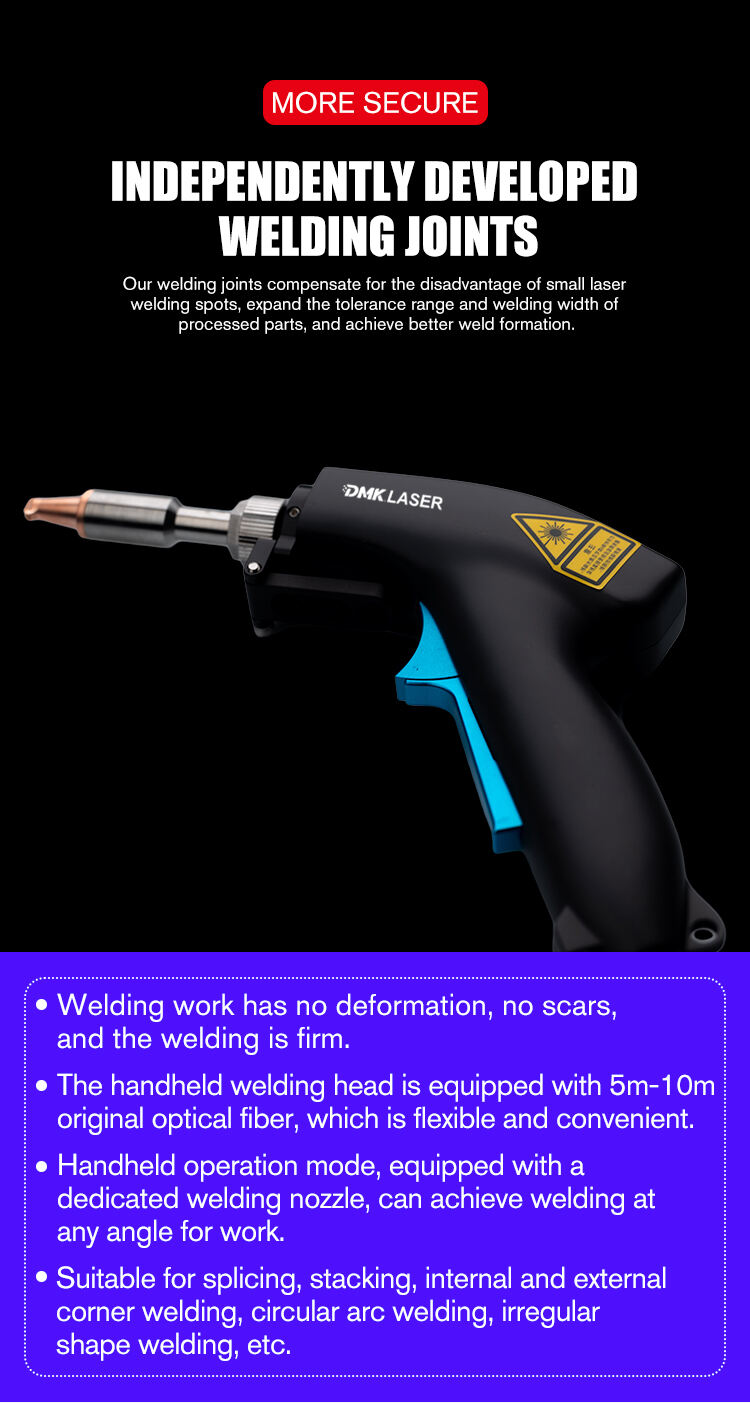

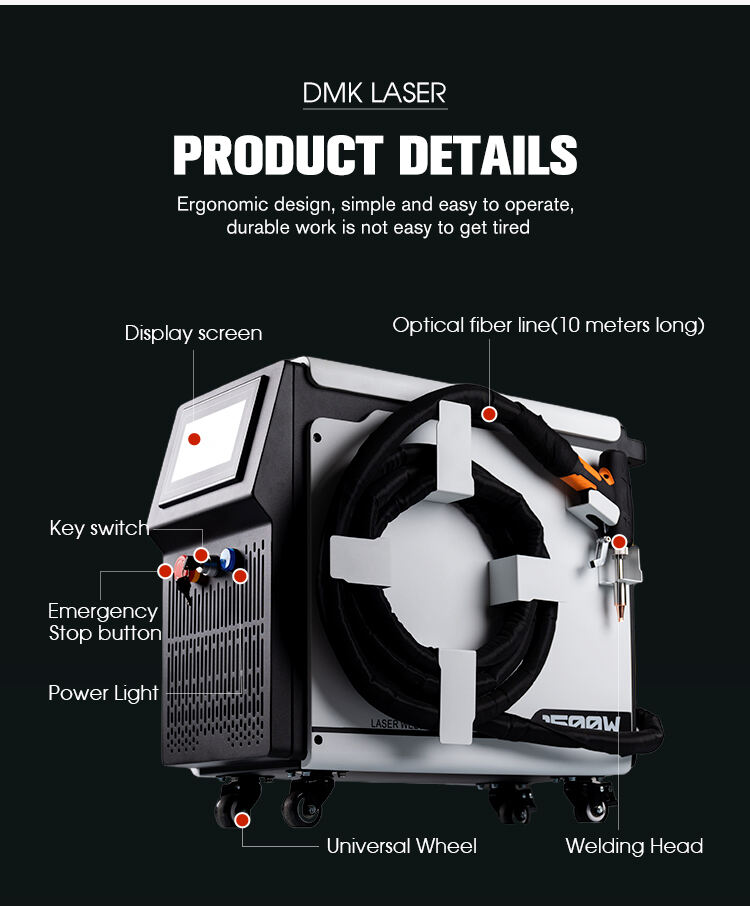

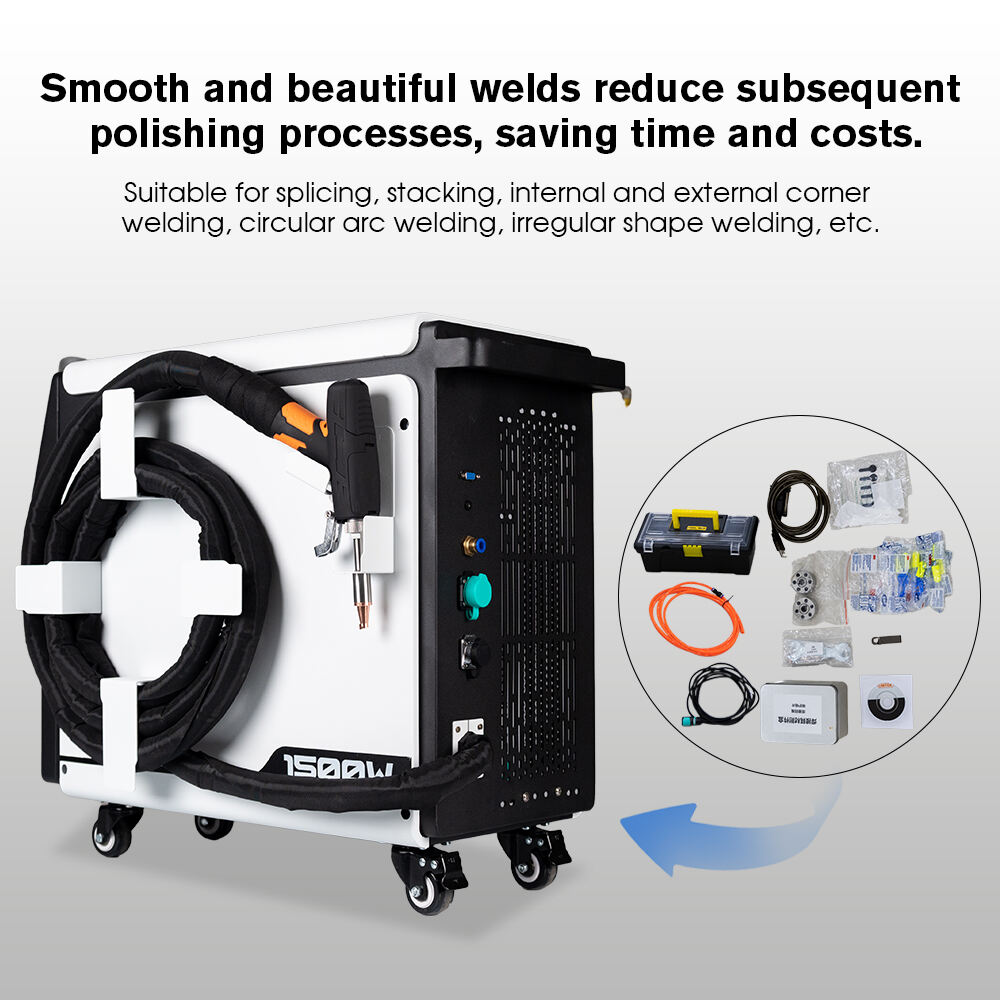

The welding speed of the device is 3-5 times that of traditional argon arc welding, with a small heat-affected zone, smooth welds without scars, and no need for post-weld grinding. The ergonomically designed welding gun with a safety touch switch provides effective protection against accidental operation, allowing ordinary workers to start working after short-term training.

Its consumable-free design combined with low energy consumption can significantly reduce labor and production costs. It is widely used in industries such as hardware, doors and windows, automotive parts, and kitchen and bathroom equipment, ensuring both efficient production and stable quality.


Product Parameters

Other Details

Model DHH-1500
Average power (W) 1500W
Operating Mode Continuous/Modulated Polarization Random
Maximum modulation frequency (KHz) 20
Power adjustment range (%) 10~100
Center wavelength (nm) 1080 (±10)
Bandwidth 3dB (nm) <6
Long-term power stability (%) <3
Beam quality M2 <1.3@20um
Indicates red light power (uW) >100
Output method Standard QBH
Output fiber core diameter (um) 50 (20/25/100 optional)
Working voltage (VAC) 220V
Rated power consumption (kW) 6
Working ambient temperature (℃) 5~40
Cooling method Internal circulation
Overall size (mm) 620*353*518.5 (without handle)
Net weight of the whole machine (kg) 70±5
