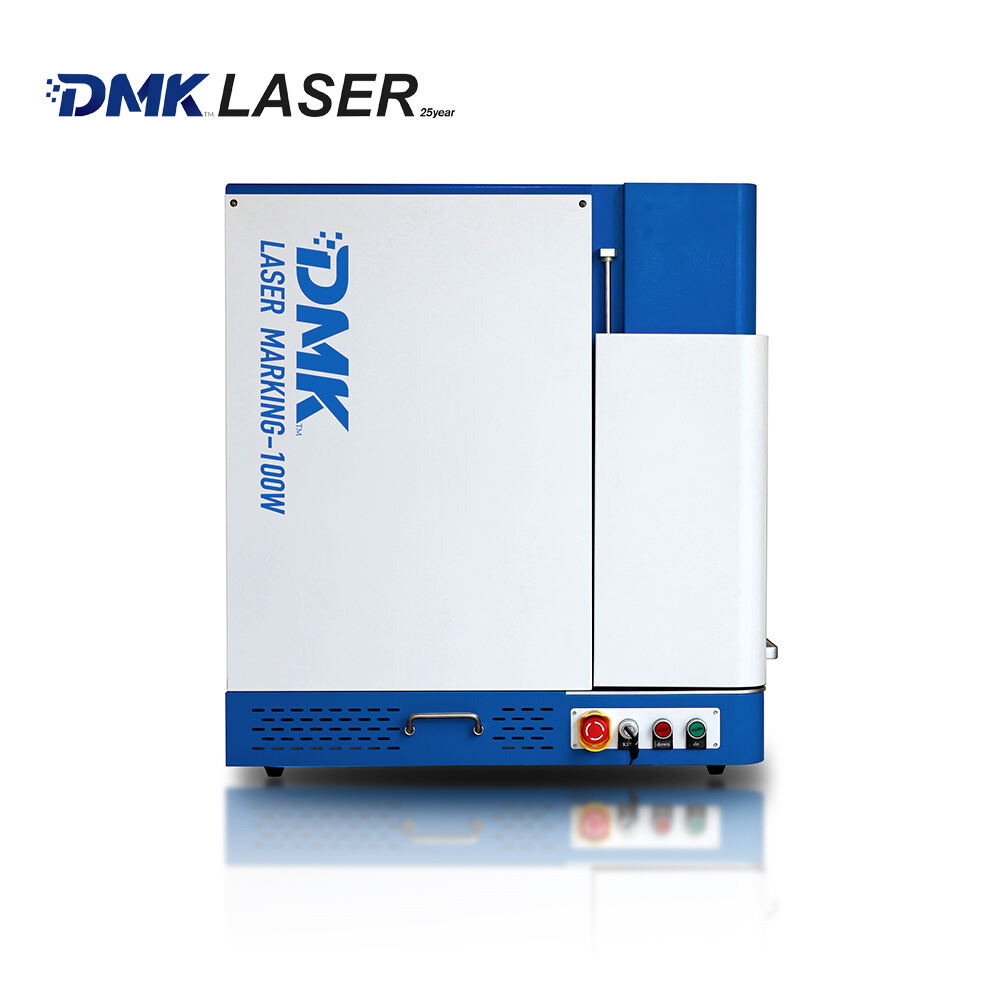

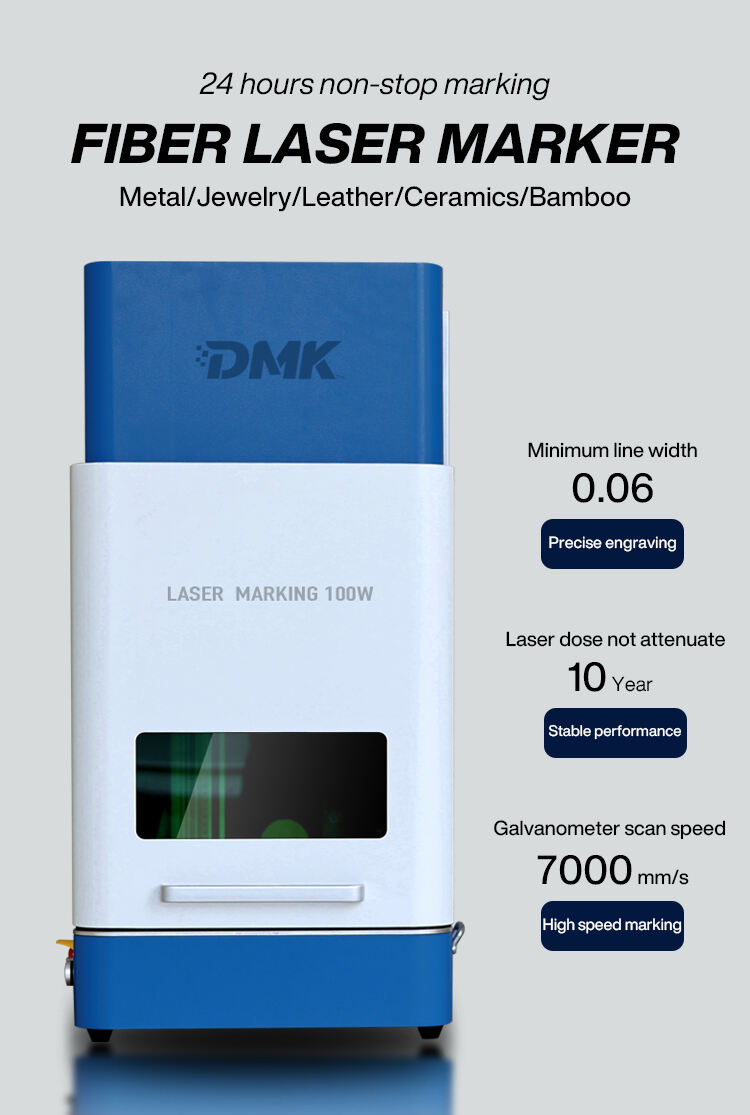

100W Closed Fiber Laser Marking Machine
Product Description
The closed fiber laser marking machine utilizes a fiber laser source and an ultra-high-speed galvanometer scanning system to achieve precise marking. It offers high electro-optical conversion efficiency and is air-cooled for reliable performance.
This compact machine delivers excellent beam quality, outstanding stability, and an ultra-long service life. It is energy-efficient and capable of marking various metal materials and select non-metals. Designed for applications requiring high depth, smooth finishes, and fine detail, it is widely used in industries such as mobile phone stainless steel trim, watches, molds, ICs, and mobile phone keypads.
Additionally, it supports bitmap marking, allowing for intricate images on metal, plastic, and other surfaces. Compared to traditional first-generation YAG and second-generation semiconductor marking machines, its marking speed is 3–12 times faster.
Product Parameters
| Model | DMK-MF20 | DMK-MF30 | DMK-MF50 | DMK-MF100 |
| Laser Power | 20W | 30W | 50W | 100W |
| Laser Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Beam Quality | <1.5M | <1.5M | <1.5M | <1.5M |
| Repetition Frequency | 20KHz-100KHz | 20KHz-100KHz | 20KHz-100KHz | 20KHz-100KHz |
| Max.Linear Speed | 2000mm/s | 2000mm/s | 2000mm/s | 2000mm/s |
| Engraving Range | 110mm*110mm/150mm*150mm/200mm*200mm/300mm*300mm ( Can be customized larger) | |||
| Min,Linear Width | 0.015mm | 0.015mm | 0.02mm | 0.02mm |
| Min,Character Size | 0.18mm | 0.18mm | 0.2mm | 0.2mm |
| Power Consumption | 500W | 500W | 500W | 500W |
| Cooling Way | Air-Cooled | Air-Cooled | Air-Cooled | Air-Cooled |
| Demand For Electricity | 110-220V/Single Phase/ 50-60Hz/3A | |||
For More Details

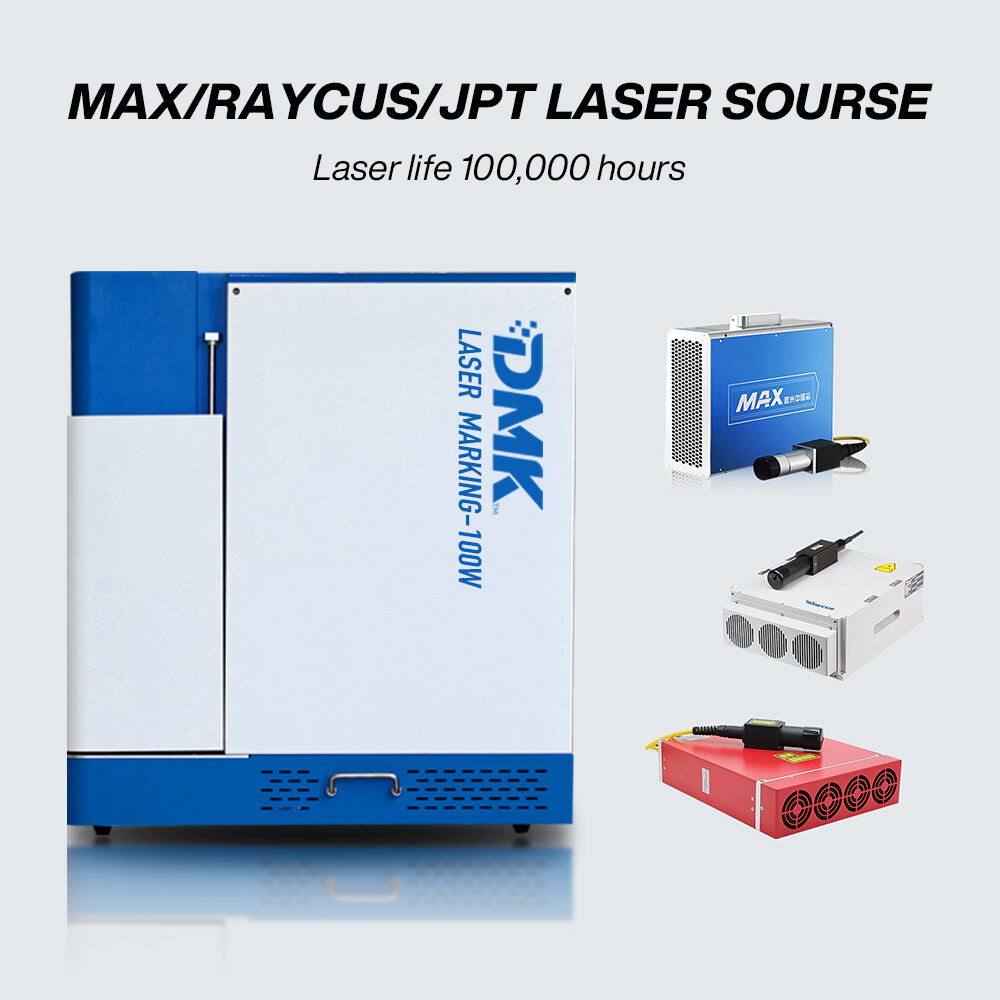

1. Using international high-quality fiber laser, the marking effect is perfect. It can mark various fine and complex patterns required by users on the product surface, and is suitable for ultra-fine marking.
2. This model can be equipped with laser light sources of various powers. No matter what industry you belong to, we can provide you with a suitable fiber laser marking machine.
3. The marking speed is fast and the efficiency is high. The output of workpieces is significantly increased in the same time, which accelerates the user's return on investment.
4. The machine has a long service life, stable laser output power and high reliability. It can work continuously in harsh working conditions. The laser is maintenance-free for 100,000 hours.
5. High electro-optical conversion rate, no power coupling loss, no consumables, significantly reducing operating costs for customers.
Production Application
Widely used in electronic components, hardware tool products, electrical products, daily consumer goods, sensors, auto parts, 3C electronics, handicrafts, precision instruments, gifts and jewelry, medical equipment, high and low voltage electrical appliances, sanitary ware industry, battery industry, IT industry and other fields.
Company Profile
Demark (Wuhan) Science & Technology Co.,Ltd Locates In Free Trade Zone Of East-Lake Hi-Tech Development District In Wuhan City, The Company Is Invested By High Level Technical And Managerial Professionals In China Laser Industry, With More Than 20 Years Working Experience In China Laser Cutting Industry, From The Intergration Of Laser Cutting Machine To The Operation Details Of Fabrication Factories, They Have Experienced The Time Changes And More Than Ten Thousand Installations All Over China, The Target Of Demark Is Exporting The Best Value Chain Of Chinese Laser Cutting Machine Or Fabricating Machineries To The Global Fabricators, To Be Your Best Partner When You Are Purchasing Laser Cutting Machine Or Fabricating Machineries In China With The Most Professional Service.
