Raycus High-Power Pulsed Lasers
Product Overview
 |
 |
Raycus High-Power Pulsed Lasers are core light source products launched by Raycus Laser for industrial heavy-duty processing scenarios, covering a full power range of 500W to 3000W. They integrate three core advantages: high average power, high single-pulse energy and high peak power, and support square/circular homogenized spot output. Some models break through the limitation of multi-module beam combining to achieve high-efficiency single-module output.
Equipped with highly adaptable control interfaces and a stable and reliable water-cooling system, the lasers feature outstanding anti-high-reflection performance and easy operation and maintenance. They can meet the high-intensity operation requirements of mold processing, laser cleaning, heavy industrial processing and other scenarios, making them the optimal light source for heavy-duty precision processing in automotive manufacturing, shipbuilding, petrochemical, new energy and other fields.
Product Technical Features
 |
 |
- Excellent power performance: The full series boasts high average power, high single-pulse energy and high peak power. The 3000W model has an electro-optical conversion efficiency of ≥40% with high power density, strong processing penetration and large melting depth, which greatly improves heavy-duty processing efficiency.
- Flexible spot and parameters: Supports square/circular homogenized spot output with uniform energy distribution and consistent processing effect; wide adjustable range of frequency and pulse width, and precise power adjustment from 10% to 100%, adapting to processing requirements of different materials and processes.
- Strong anti-interference and stability: Equipped with an optimized optical fiber transmission system, it features excellent beam quality and outstanding anti-high-reflection performance, applicable for processing high-reflection materials such as aluminum and copper; power stability ≤5%, ensuring stable continuous operation in industrial sites without fluctuations.
- Easy integration and operation: Configured with standardized control interfaces, compatible with RS232, AD, Ethernet and other control modes with high system integration; rational structural design enables maintenance-free operation and low costs for daily operation and later maintenance.
- Superior environmental adaptability: Adopts water-cooling system to meet the requirements of high-power long-time operation; can run stably in an industrial environment of 10-40℃ with a storage temperature range of -10~60℃, satisfying installation conditions of different on-site scenarios.
Technical Parameters
 |
 |

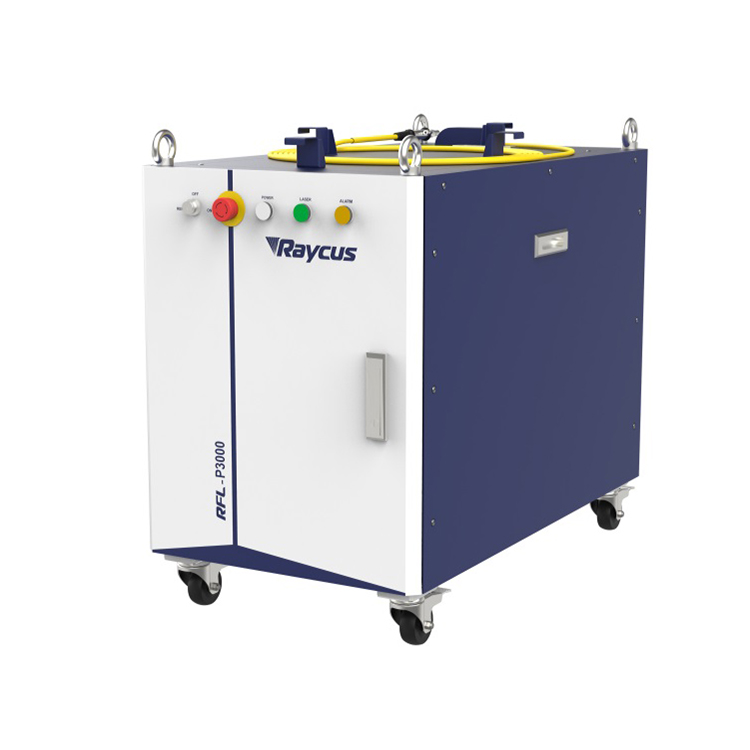

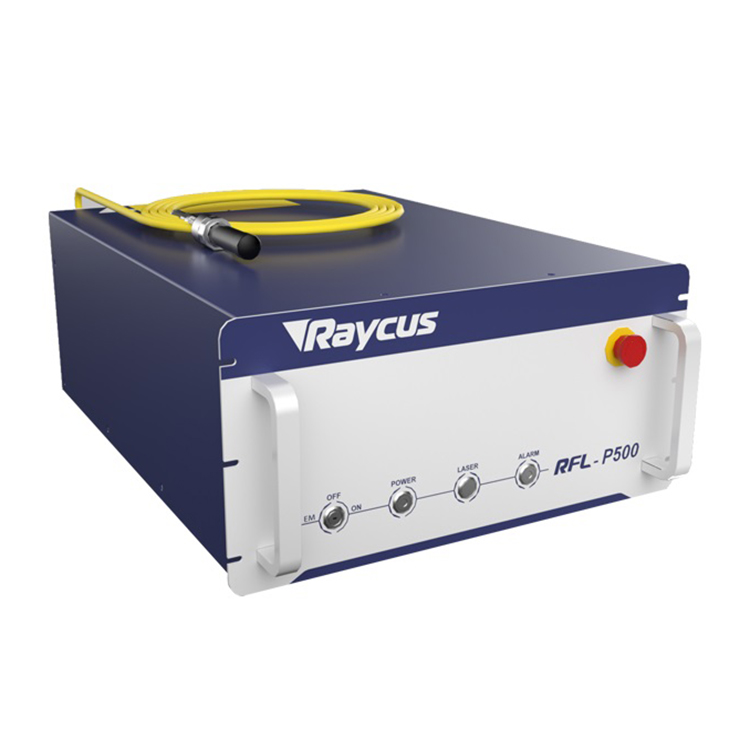

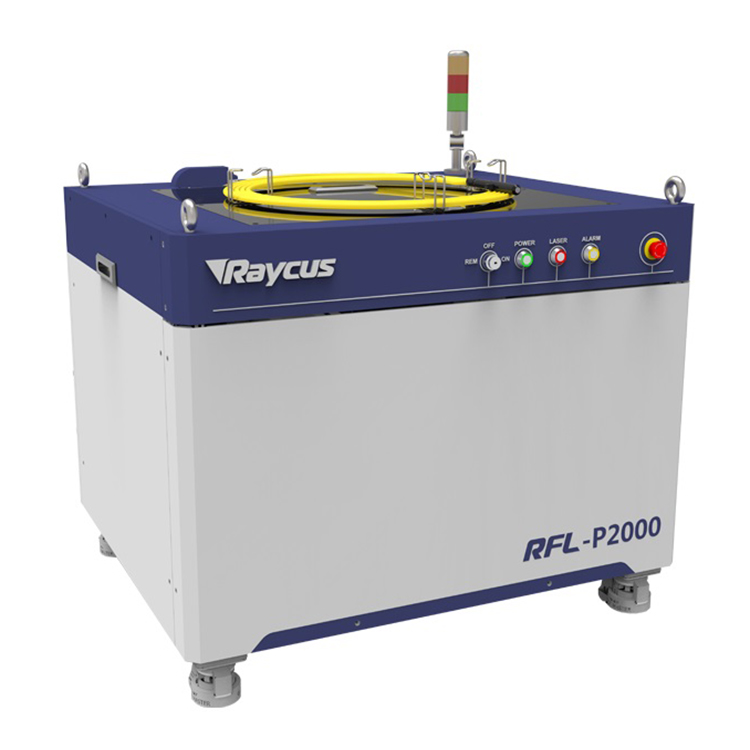

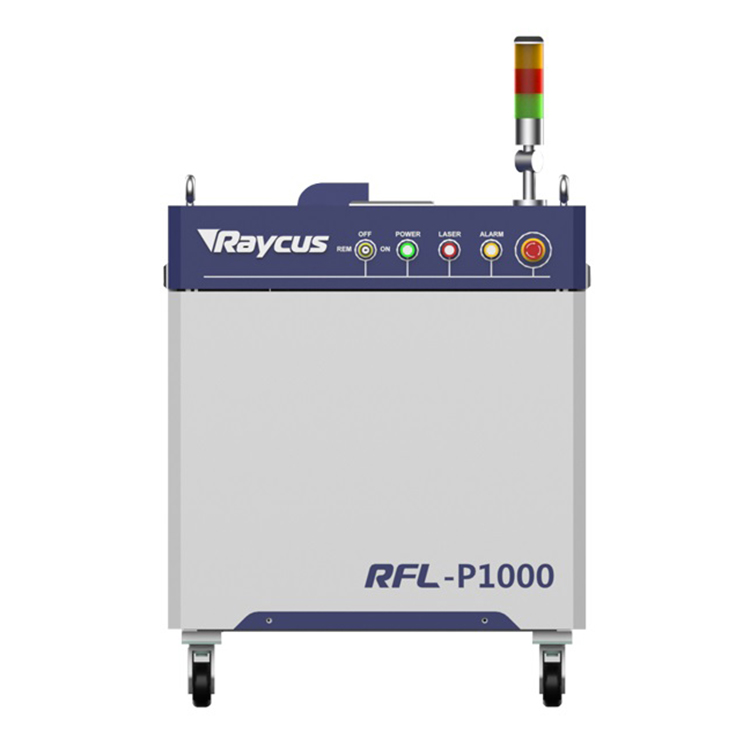

| Parameter Item | RFL-P500 | RFL-P1000 | RFL-P2000 | RFL-P3000 |
| Average Output Power | 200@10kHz/500@20-50kHz W | 400@10kHz/1000@20-50kHz W | 2000@20-50kHz W | 3000@20-50kHz W |
| Central Wavelength | 1064±5 nm | 1064±5 nm | 1064±5 nm | 1064±5 nm |
| Repetition Frequency Range | 10-50 kHz | 10-50 kHz | 20-50 kHz | 20-50 kHz |
| Pulse Width Range | 90-160 ns | 90-160 ns | 90-160 ns | 90-160 ns |
| Max Single Pulse Energy | 25 mJ@20kHz | 50 mJ@20kHz | 100 mJ@20kHz | 100 mJ@20kHz |
| Power Adjustment Range | 10-100% | 10-100% | 10-100% | 10-100% |
| Output Fiber Length | 10 m (Customizable) | 15 m (Customizable) | 20 m (Customizable) | 20 m (Customizable) |
| Control Interface | Standard Interface + RS232 | RS232/AD/Ethernet | RS232/AD/Ethernet | RS232/AD/Ethernet |
| Input Power Supply | 220V AC 50/60Hz | 220V AC 50/60Hz | 380V AC 50/60Hz | 380V AC 50/60Hz |
| Cooling Method | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
| Dimensions (mm) | 502×254×755 | 698×898×865 | 1018×836×850 | 485×900×237 |
Product Applications
With the characteristics of high power, high single-pulse energy and strong anti-high-reflection performance, Raycus High-Power Pulsed Lasers can meet the requirements of industrial heavy-duty operations such as laser cleaning, surface treatment, heavy-duty processing and pre-welding treatment. Its core application fields are as follows:
-
Laser Cleaning
- Rust, oil and paint removal on metal surfaces, and cleaning of contaminants on surface of ship and aerospace components;
- Cleaning of blue film/blue paint on new energy power batteries, and removal of adhesive and impurities on mold surfaces, featuring non-contact processing without secondary pollution.
-
Mold Surface Treatment
- Surface polishing, etching and repair of various industrial molds to improve the surface precision and service life of molds;
- Cleaning of mold weld seams and removal of surface coatings, applicable for various mold types such as plastic molds and hardware molds.
-
Heavy-Duty Industrial Processing
- Precision engraving, marking and micro-processing of thick metal plates in automotive and shipbuilding manufacturing;
- Surface strengthening and marking processing of petrochemical equipment parts, adapting to processing requirements in harsh industrial environments.
-
Welding and Pre-welding Treatment
- Surface cleaning and pre-treatment of high-reflection materials such as aluminum and copper before welding to improve welding coupling capacity and melting depth;
- Auxiliary light source for precision welding of dissimilar metals, inhibiting the formation of brittle intermetallic compounds and improving welding quality.
-
Other Industrial Fields
- Mold etching and surface treatment in rubber tire manufacturing, and high-precision engraving of stone handicrafts;
- Deep engraving of serial numbers and LOGOs on large industrial equipment to meet the requirements of wear-resistant outdoor marking.
