C6 Series Laser Welding Control Card

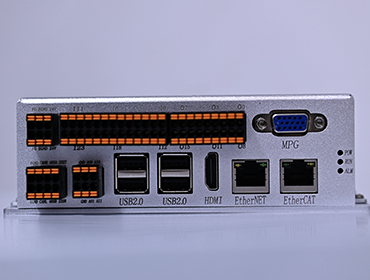

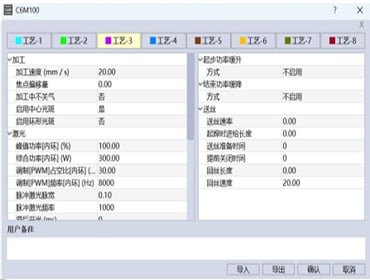

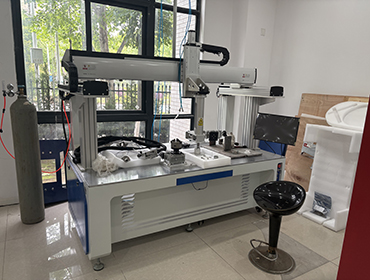

C6M100 Embedded Platform Welding Controller (PC-Free)
 |
 |
C6M100 is an embedded, PC-free, all-in-one control system dedicated to platform-type laser welding machines. It supports XYZ/XYZA/XYZR configurations and is designed for high-volume, high-consistency production of precision hardware, kitchen & bathroom products, jewelry, and complex workpieces.
Core Advantages
- PC-free stable operation: ARM + Linux embedded system, highly integrated, fewer failure points, stronger field stability.
- Consistent welding quality: Power ramp-up/ramp-down, PV power adaptive control, customizable power curves, and energy abnormality monitoring with interlock alarm.
- Multi-posture precision welding: 4-axis EtherCAT bus, supports RTCP (Real-Time Tool Center Point) for rotating and tilted workpieces.
- Production-friendly: Graphical programming, multi-level authority, DXF/NC file import, and parametric integration of wire feeder, fixture, and gas circuit.
Key Specifications
- Control axes: 4-axis EtherCAT bus (XYZ/XYZA/XYZR)
- I/O: 24-ch DI, 14-ch DO, 2-ch PWM, 2-ch DA/AD
- Laser compatibility: CW, QCW pulse, ABP (center/ring power independent control)
- Safety: Emergency laser cut-off, safety door interlock, energy monitoring
- Connectivity: Supports MES, host computer, multi-station line linkage
Applications

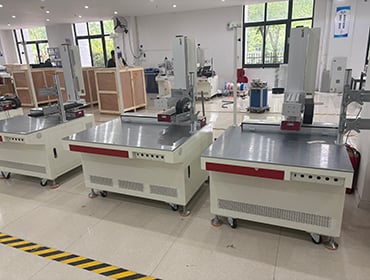

Door & window hardware, sanitary ware, precision jewelry welding, rotating/tilted workpieces, standard mass-production platform welding machines.
 |
 |

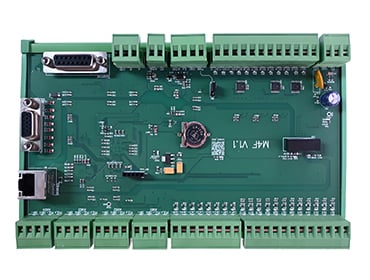

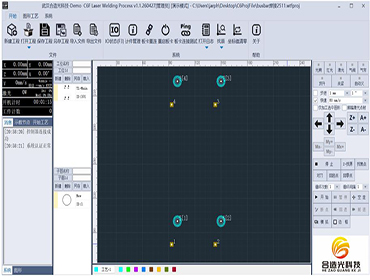

C6F100 Galvo Laser Welding Controller (Economy Type)
 |
 |
C6F100 is an economy, all-in-one control system for galvo laser welding. It integrates motion control, galvo control, laser process, and vision positioning, ideal for high-speed galvo welding of 3C electronics, battery parts, and small precision components.
Core Advantages
- Galvo + platform dual control: 4-axis pulse/direction + 1 galvo channel, supports XY2-100 protocol, compatible with 2D/3D galvo heads.
- High-speed stable welding: Power ramp control, wobble function, precise laser-motion synchronization for uniform weld spots.

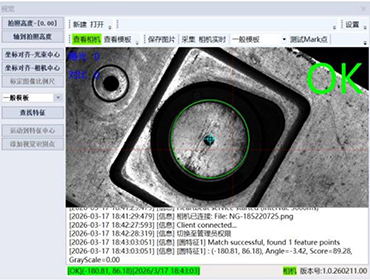

- Vision & auto compensation: Vision positioning correction, laser focus auto-compensation for high batch consistency.
- Easy deployment: Graphical parametric programming, short commissioning time, supports MES data traceability.
Key Specifications
- Control axes: 4-axis pulse/direction + 1 galvo channel
- I/O: 12-ch DI, 12-ch DO, 1-ch PWM, 1-ch DA/AD
- Laser compatibility: CW, QCW pulse
- Functions: RTCP, automatic wire feeding, emergency stop & laser cut-off
- Connectivity: Vision system, displacement sensor, MES
Applications
3C electronics, lithium battery tabs, small precision hardware, galvo flying welding, high-speed compact welding workstations.

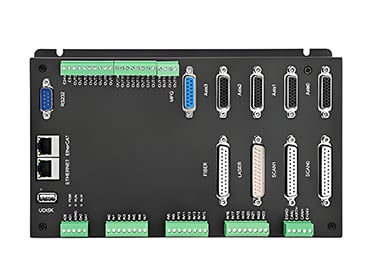

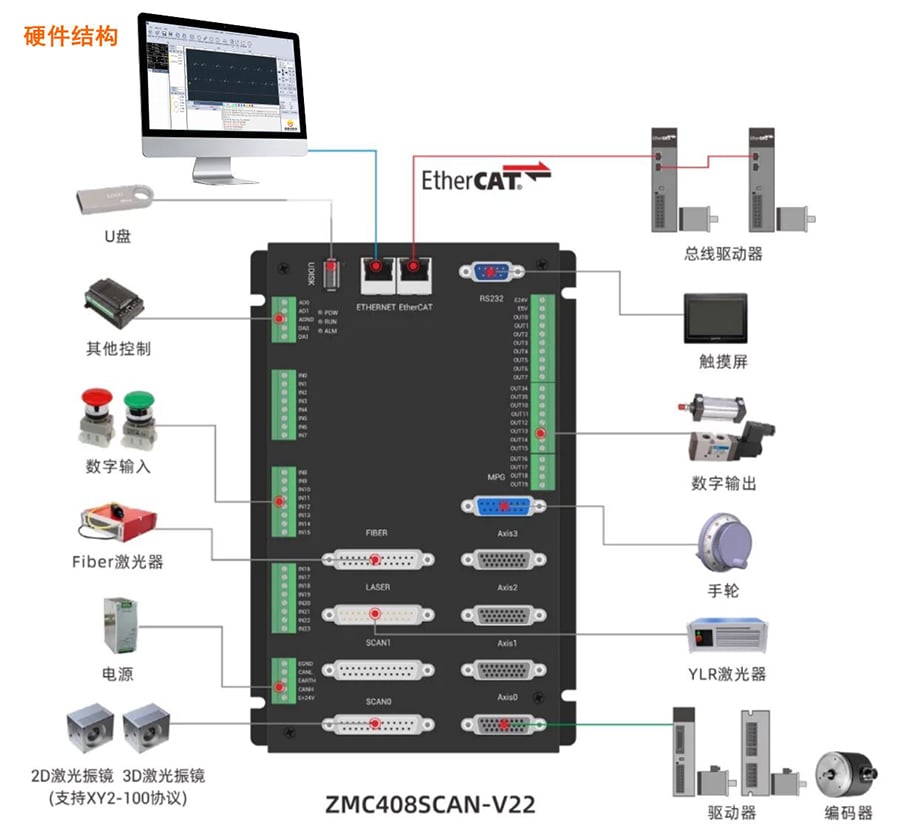

C6E200 Battery PACK Line Welding Controller (Localized)
 |
 |
C6E200 is an all-in-one numerical control system for battery PACK production lines. It covers addressing, post cleaning, and Busbar welding, providing a reliable, repeatable, traceable solution for new energy battery module assembly.
Core Advantages
- Line-level integration: EtherCAT bus + galvo + laser + I/O integrated; unifies data of polarity detection, cleaning, and welding.
- Process repeatability: Multi-recipes, AB module auto-recognition, fast changeover, stable long-term mass production.
- Safety & traceability: Multi-level authority, log management, energy abnormality interlock, MES connectivity for full-process data tracking.
- Weld quality assurance: Wobble, inner/outer ring energy independent control, customizable power curves.
Key Specifications
- Control axes: 6-axis EtherCAT bus + 1 galvo channel
- I/O: 24-ch DI (expandable to 56), 20-ch DO (expandable to 52), 2-ch PWM, 2-ch DA/AD
- Laser compatibility: CW, QCW pulse, ABP (center/ring power independent control)
- Functions: Post cleaning, positioning addressing, Busbar welding, multi-station coordination
- Connectivity: MES, host computer, vision, sensors, line beat management
Applications
Power battery PACK lines, Busbar welding stations, post cleaning + welding integrated stations, new energy automated production lines.
