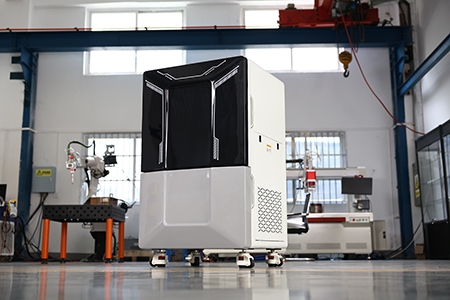

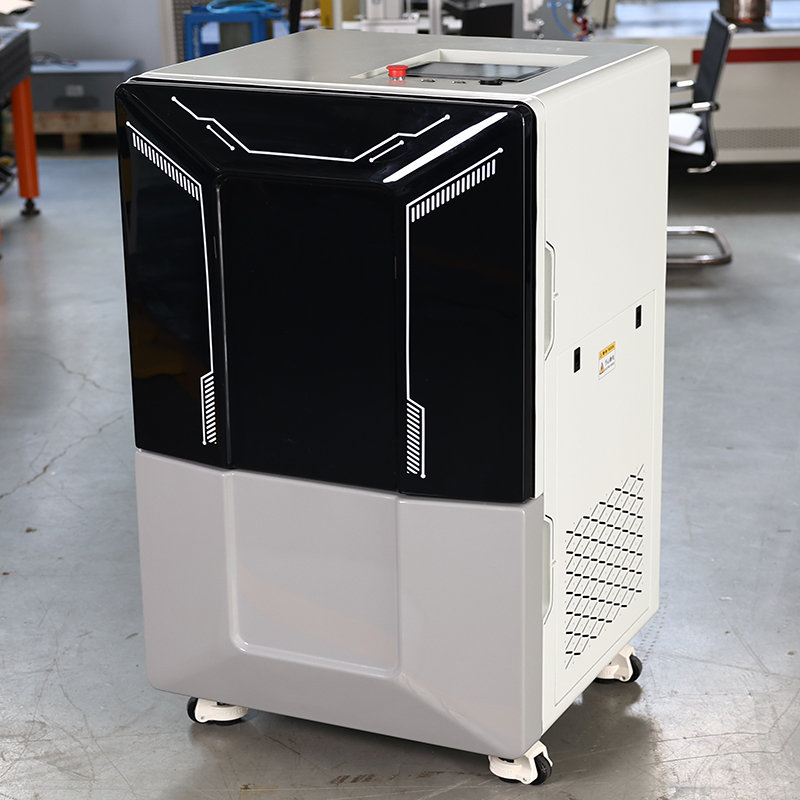

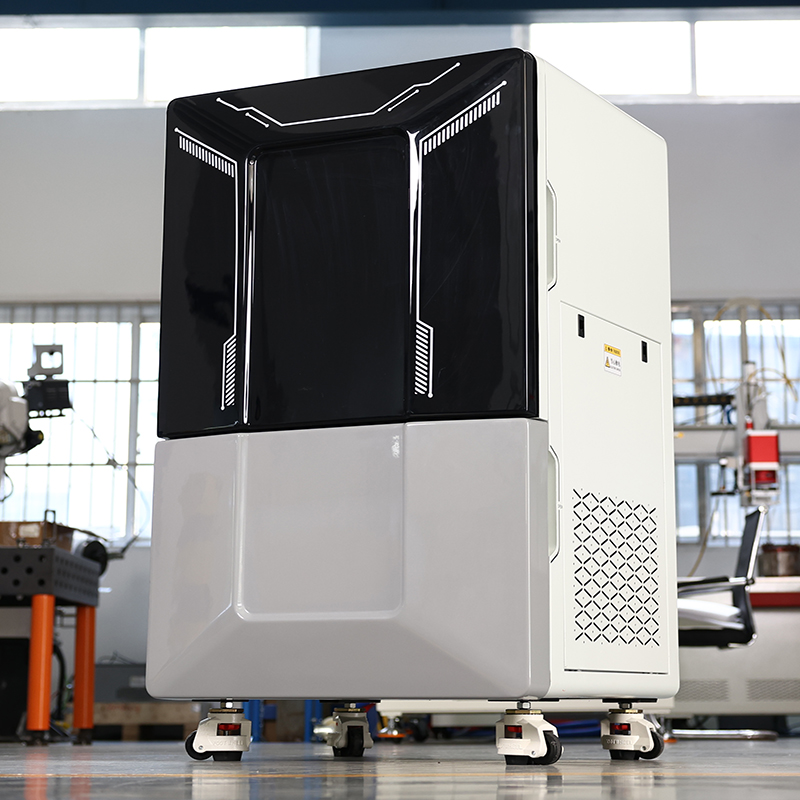

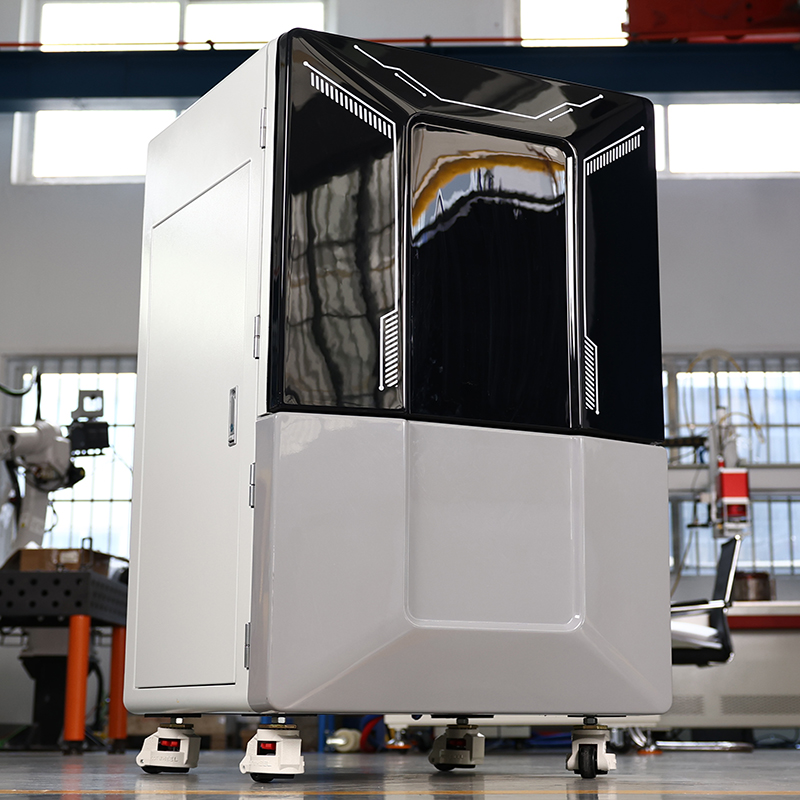

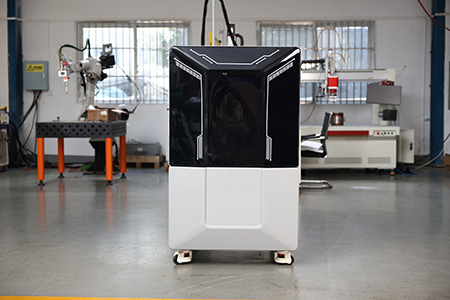

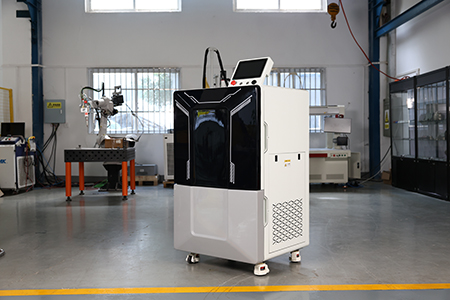

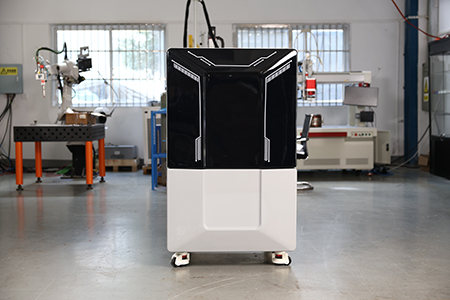

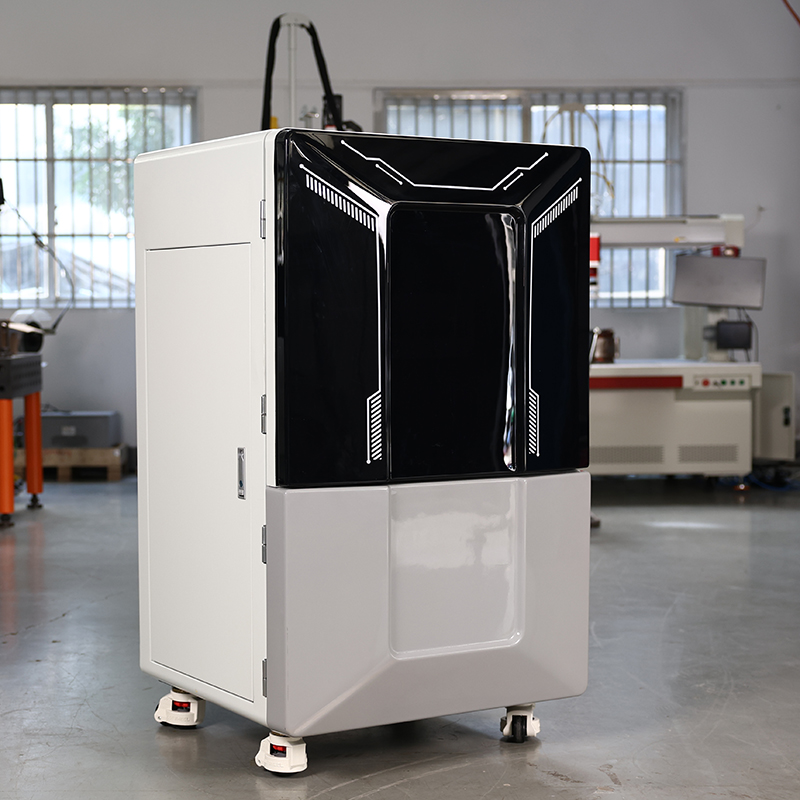

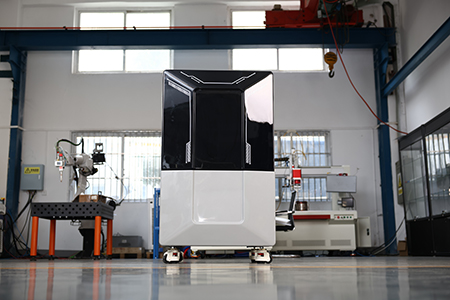

Laser 3‑in‑1 Intelligent Manufacturing Machine

Product Introduction

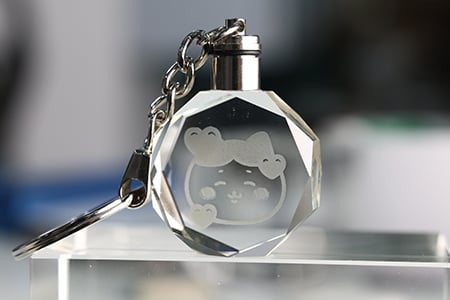

The SPARK‑S1 (SPARKIO Series) is an all‑in‑one laser intelligent manufacturing device that integrates three core functions: crystal & glass laser internal engraving, laser marking and SLA photocuring 3D printing. Equipped with a 355 nm UV solid‑state laser, it supports quick function switching via quick‑change work platforms and encryption dongles. Instead of purchasing multiple separate machines, users can complete engraving, marking and resin model fabrication on one single unit. Oriented to DIY enthusiasts, creative clubs, educational & research institutions and commercial users, it delivers personalized custom processing for accessories, souvenirs, crafts, signage and small‑size parts, serving as an all‑in‑one laser creation platform for design education and small‑batch cultural‑and‑creative production.

Technical Features

• Three‑in‑one Machine with Fast Mode Switching

  Switch rapidly among internal engraving, marking and 3D‑printing modes by plugging/unplugging the encryption dongle and replacing quick‑change work platforms. No extra machines are required, cutting equipment investment and saving floor space. Two interchangeable platforms are included: quick‑change platform for internal engraving & marking, and dedicated 3D‑printing platform for easy assembly and disassembly.
• UV Solid‑state Laser for Multi‑process Compatibility

  Adopts a 355 nm UV solid‑state laser with optional power of 5W/10W/15W. Air‑cooled design simplifies daily maintenance. It supports 3D internal engraving inside crystals, marking on metals & non‑metals, and SLA photocuring resin printing, with a maximum scanning speed up to 12000 mm/s for high‑efficiency processing.

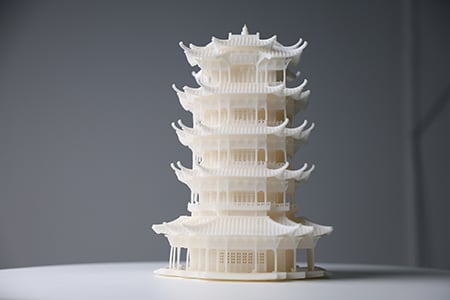

• High‑precision SLA Photocuring 3D Printing

  Features intelligent vacuum recoating technology. Print layer thickness is adjustable from 0.04 mm to 0.2 mm. It delivers high printing accuracy and excellent surface finish, compatible with various UV‑curable resins for prototypes and cultural‑creative model fabrication.
• Rich File Format Support & Powerful Image Processing

  For marking, it supports mainstream image formats including BMP, JPG, PNG, TIF, etc. It provides grayscale, black‑white and dot‑matrix processing with 256‑level grayscale capability. For internal engraving and 3D printing, 3D model files such as STL are accepted, granting wide compatibility with design resources.
• Intuitive Touch Operation & Complete Safety Protection

  Fitted with a 10.1‑inch touch screen for user‑friendly human‑machine interaction. The unit is equipped with emergency stop button and safety enclosure door, complying with IEC Class‑4 laser safety standards to avoid laser hazards, suitable for both educational and commercial environments.

Structural Composition

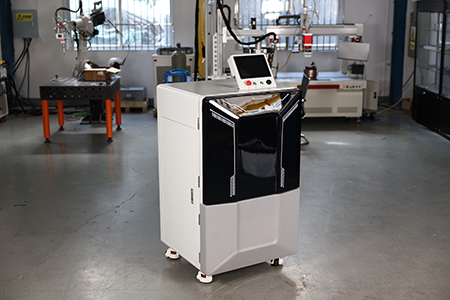

• Human‑machine Control Panel: 10.1‑inch touch display, integrated with emergency‑stop switch, power switch, lighting switch and USB port for importing local files.
• Main Cabinet: Integrated equipment cabinet housing material storage bin, electrical components and laser optical system. Machine dimension: 800×770×1370 mm.

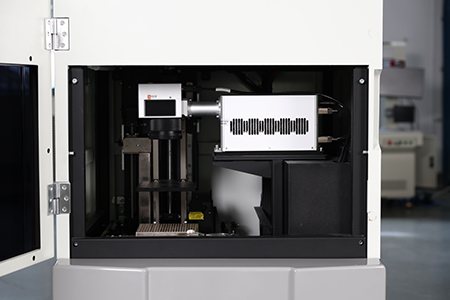

• Processing Chamber: Core processing cavity containing motion lead‑screws and laser scanning system. Two interchangeable platforms are available:
  • Quick‑change platform for internal engraving & marking: for crystal/glass internal engraving and plane marking jobs.
  • 3D‑printing platform: dedicated to SLA UV‑curable resin printing.
• Cooling System: Air‑cooled, no external water chiller required.

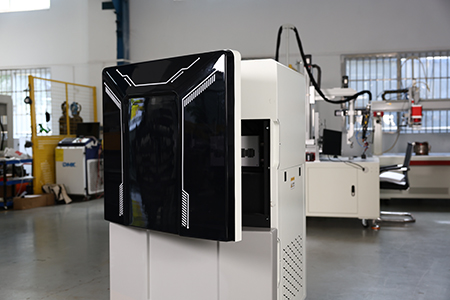

• Safety Protection Structure: Closed processing chamber door blocks laser radiation. Keep chamber door closed during processing to guarantee operator safety.

Technical Specifications

Application Scenarios
